2010 INFINITI G sat nav

1. Audio source switch
2. Menu control switch (models with naviga-tion system) or audio tuning switch (mod-
els without navigation system)
3. Volume control switch
4. Back switch
STEERING-WHEEL-MOUNTED
CONTROLS FOR AUDIO
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system)
While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilt-
ing up/down for less than 1.5 seconds.
AM and FM radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset station.
● Tilting up/down for more than 1.5 seconds
will seek up or down to the next station. ●
Pushing the menu control switch (models
with navigation system) will show the list of
preset stations.
XM Satellite Radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset channel.
● Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
● Pushing the menu control switch (models
with navigation system) will show the XM
Menu.
iPod (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will skip to the next or previous index.
● Pushing the menu control switch will show
the iPod Menu.
CD :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number (if
playing compressed audio files). ●
Pushing the menu control switch (models
with navigation system) will show the CD
Menu.
DVD (models with navigation system) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase or decrease the title number.
● Pushing the menu control switch will select
an item from the DVD display.
● When the transparent operation menu ap-
pears, the switch will control the menu.
USB (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number
● Pushing the menu control switch will show
the USB Menu.
Music Box (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the album (folder)
number (if playing compressed audio files).
Monitor, climate, audio, phone and voice recognition systems4-83
—
—
04/21/10—debbie

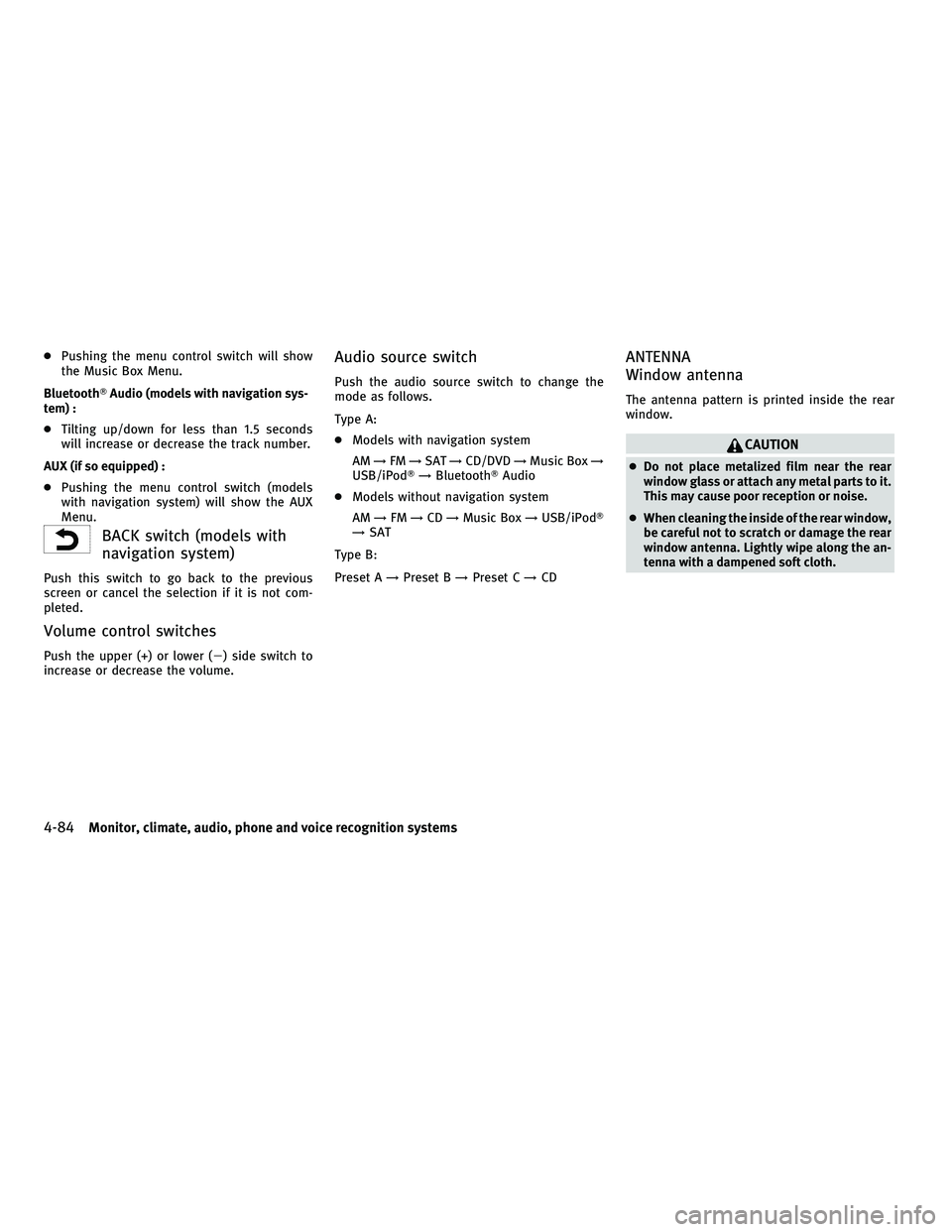

●Pushing the menu control switch will show
the Music Box Menu.
Bluetooth Audio (models with navigation sys-
tem) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
AUX (if so equipped) :
● Pushing the menu control switch (models
with navigation system) will show the AUX
Menu.
BACK switch (models with
navigation system)
Push this switch to go back to the previous
screen or cancel the selection if it is not com-
pleted.
Volume control switches
Push the upper (+) or lower () side switch to
increase or decrease the volume.
Audio source switch
Push the audio source switch to change the
mode as follows.
Type A:
● Models with navigation system
AM →FM →SAT →CD/DVD →Music Box →
USB/iPod →Bluetooth Audio
● Models without navigation system
AM →FM →CD →Music Box →USB/iPod
→ SAT
Type B:
Preset A →Preset B →Preset C →CD
ANTENNA
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
●Do not place metalized film near the rear
window glass or attach any metal parts to it.
This may cause poor reception or noise.
● When cleaning the inside of the rear window,
be careful not to scratch or damage the rear
window antenna. Lightly wipe along the an-
tenna with a dampened soft cloth.
4-84Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
●A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so.
CAUTION
● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer.
WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
CAR PHONE OR CB RADIO BLUETOOTHHANDS-FREE PHONE SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems4-85
—
—
04/21/10—debbie


●Navigation Command:
Command Action
Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
●Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
●Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
4-116Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Engine start operation indicator (Manual
Transmission models)...........2-22
If your vehicle overheats .........6-10
Starting the engine ............. 5-11
Engine coolant temperature gauge ......2-6
Entry/exit function .............. .3-28
Event Data Recorders (EDR) ..........9-25
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-13
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-37
Flat tire ..................... .6-2
Flat towing .................. .9-21
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-12
Capacities and recommended fuel/
lubricants ..................9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-13
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-54
Fog light switch ............... .2-37
Front passenger air bag and status light . .1-47
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-11
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ............... 5-42
Fuel economy information (display) ....4-9
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Fuel-filler cap ................ 3-21
Fuel-filler door ............... 3-21
Gauge ....................2-7
Fuses ..................... .8-20
Fusible links ................. .8-21
G
Garage

door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-21
Gauge ...................... .2-4
Gauge Engine coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-45
Golf bag stowing ............... .2-48 H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-85
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch . . ......2-37
Head restraints ................. .1-9
Headlights Bulb replacement .............8-25
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Heated seats ................. .2-38
Heater Automatic climate control .........4-28
Engine block heater ............5-56
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-17
Hook, Coat hooks .............. .2-48
Horn ...................... .2-38
Ignition switch Automatic transmission models ......5-12
Manual transmission models . . . . . . . 5-16
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-38
Indicator

lights ................ .2-16
Indicator, Dot matrix display .........2-19
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
10-3
—
—
04/30/10—diane
