2010 INFINITI G clock setting

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671

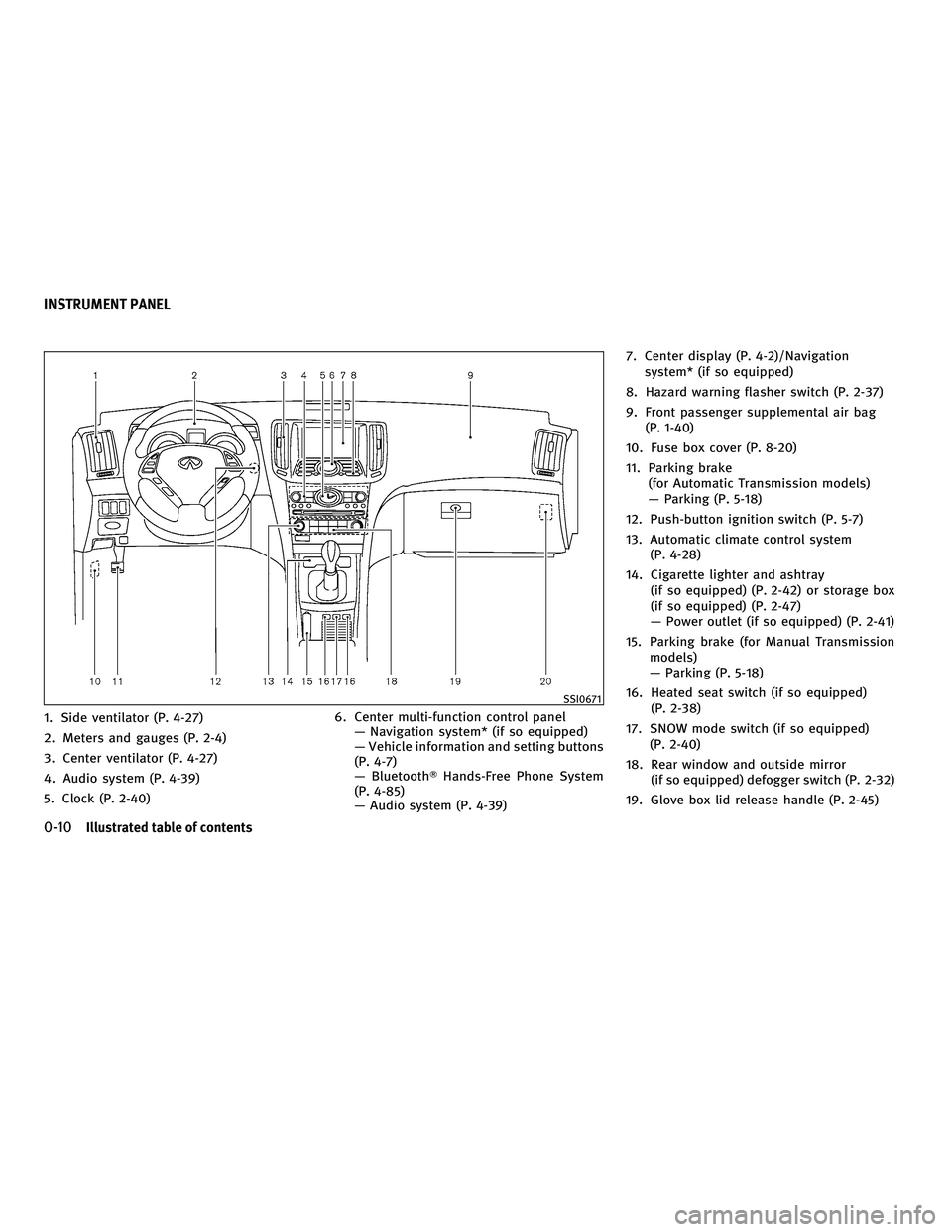

INSTRUMENT PANEL
0-10Illustrated table of contents
—
—
10/12/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671
INSTRUMENT PANEL
Instruments and controls2-3
—
—
10/12/09—tbrooks


For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
1on the
switch will illuminate. When the SNOW mode is
activated, engine output is controlled to avoid
wheel spin. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC3602SIC1881SIC3325
SNOW MODE SWITCH (if so equipped) VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCHCLOCK
2-40Instruments and controls
—
—
04/21/10—debbie


To turn on the screen, set this item to the “ON”
position or push the “
” button.
Brightness/Contrast/Background Colour :
To adjust the brightness, contrast and back-
ground colour of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Colour” key and push the ENTERbutton.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller. Switch
the background colour to the daytime mode or
the nighttime mode by pushing the ENTER
button.
Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem. Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
SAA2487
4-16Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
