2010 INFINITI G-COUPE manual transmission

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671
INSTRUMENT PANEL
0-10Illustrated table of contents
—
—
10/12/09—tbrooks


VQ37VHR ENGINE
1. Fuse/fusible link holder (P. 8-20)
2. Battery (P. 8-13)
3. Engine oil filler cap (P. 8-8)
4. Brake fluid reservoir (P. 8-12)5. Clutch fluid reservoir
(Manual Transmission models) (P. 8-12)
6. Window washer fluid reservoir (P. 8-13)
7. Power steering fluid reservoir (P. 8-11)
8. Air cleaner (P. 8-17) 9. Radiator filler cap (P. 8-7)
10. Drive belts (P. 8-16)
11. Coolant reservoir (P. 8-7)
12. Engine oil dipstick (P. 8-8)
SSI0345
ENGINE COMPARTMENT
0-12Illustrated table of contents
—
—
10/12/09—tbrooks


Walk-in mechanism (Coupe) :
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
If the sun visor is used, close it to the original
position before operating the walk-in feature.
1. Pull the seatback lever upward1to fold
the front seatback down. Make sure that
the front seatback is completely folded
down.
2. To slide the front seat forward, firmly push the seatback switch
2. The front
seat will move forward.
3. Get in or out of the vehicle. 4. To return the front seat to its original
position, raise the seatback and push the
seatback switch
2again.
●To stop the seat sliding, push the seatback
switch
2again or push the seat sliding
switch.
● The front passenger seat will stop returning
7.0 in (177.6 mm) from its front-most posi-
tion to retain space for the rear passenger.
● Depending on the seat position, the head
restraint may contact the roof headlining
during the walk-in operation. To prevent
possible interference, lower the seat using
the seat lifter switch.
CAUTION
● When returning the seat to its original posi-
tion, confirm the seat and seatback are
locked properly.
● Be careful not to pinch your hand or foot or
bump your head when operating the walk-in
seat.
● While operating the walk-in seat, do not op-
erate the seatback reclining switch. The re-
clining motor may be damaged.
● Do not place any objects near the seatback
of the front seats. They may be pinched and
damaged.
The automatic forwarding and reversing will not
work or stop under the following conditions:
● When the vehicle speed is above 4 MPH (7
km/h) (driver’s seat only).
● When the seat belt is fastened.
● When the selector lever is not in the P (Park)
position (Automatic Transmission model’s
driver’s seat) or the parking brake is not
applied (Manual Transmission model’s driv-
er’s seat).
● When the door is closed (automatic forward-
ing only).
SSS0786
1-6Safety — Seats, seat belts and supplemental restraint system
—
—
10/12/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671
INSTRUMENT PANEL
Instruments and controls2-3
—
—
10/12/09—tbrooks


Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For 5 seconds after the ignition switch is in the
ON position, the system does not activate the
warning light for the front passenger.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational.If any of the following conditions occur, the
supplemental front air bag, supplemental side
air bag, supplemental curtain side-impact air
bag and pretensioner seat belt needs servicing
and your vehicle must be taken to your nearest
INFINITI retailer.
●
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioner seat
belt may not function properly.
For additional information, see “SUPPLEMENTAL
RESTRAINT SYSTEM” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning light is on,
it could mean that the supplemental front air
bag, supplemental side air bag, curtain side-
impact air bag systems and/or pretensioner
seat belt will not operate in an accident. To help
avoid injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.
INDICATOR LIGHTS
Automatic Transmission (AT)
position indicator light (if so
equipped)
When the ignition switch is pushed to the “ON”
position, the indicator shows the automatic
selector position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to a
transmission protection mode, the AT position
indicator light will blink and a chime will sound.
See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section for further details.
2-16Instruments and controls
—
—
10/12/09—tbrooks


8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
WARNING SYSTEM (TPMS)” in the “5. Starting
and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
2-22Instruments and controls
—
—
05/10/10—tbrooks


The power outlet is located in the center con-
sole and storage box (if so equipped).
CAUTION
●The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery. ●
Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on.
● This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water to contact the outlet.
Automatic transmission models
SIC4302
Manual transmission models
SIC4303
Automatic transmission models
SIC4316
POWER OUTLET
Instruments and controls2-41
—
—
10/12/09—tbrooks

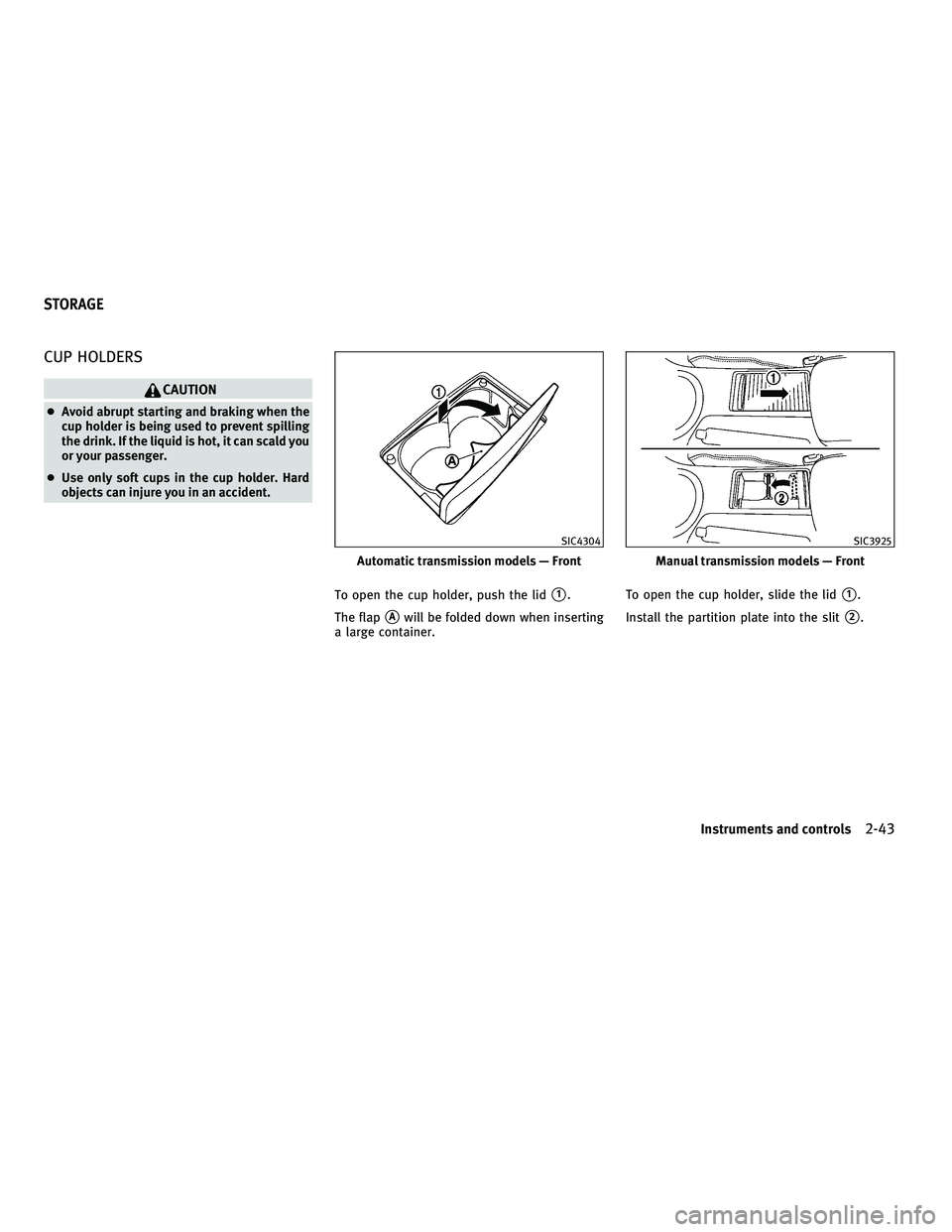

CUP HOLDERS
CAUTION
●Avoid abrupt starting and braking when the
cup holder is being used to prevent spilling
the drink. If the liquid is hot, it can scald you
or your passenger.
● Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
To open the cup holder, push the lid
1.
The flap
Awill be folded down when inserting
a large container. To open the cup holder, slide the lid
1.
Install the partition plate into the slit
2.
Automatic transmission models — Front
SIC4304
Manual transmission models — Front
SIC3925
STORAGE
Instruments and controls2-43
—
—
10/12/09—tbrooks
