M6 (6th) andM5 (5th) :
Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.
M4 (4th),M3 (3rd) andM2 (2nd) :
Use these positions for hill climbing or engine
braking on downhill grades.
M1 (1st) :
Use this position when climbing steep hills
slowly or driving slowly through deep snow, or
for maximum engine braking on steep downhill
grades.
● Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.
● Moving the selector lever rapidly to the same
side twice will shift the ranges in succes-
sion.
● In the manual shift mode, the transmission
may not shift to the selected gear. This helps
maintain driving performance and reduces
the chance of vehicle damage or loss of con-
trol.
When this situation occurs, the Automatic
Transmission (AT) position indicator light (on
the dot matrix liquid crystal display) will
blink and the chime will sound. ●
In the manual shift mode, the transmission
automatically shifts down to 1st gear before
the vehicle comes to a stop. When accelerat-
ing again, it is necessary to shift up to the
desired range.
Accelerator downshift — In D (Drive)
position —
For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-
ing on the vehicle speed.
Fail-safe
When the fail-safe operation occurs, note that
the transmission will be locked in any of the
forward gears according to the condition.
If the vehicle is driven under extreme conditions,
such as excessive wheel spinning and subse-
quent hard braking, the fail-safe system may be
activated. This will occur even if all electrical
circuits are functioning properly. In this case,
push the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition switch
back to the ON position. The vehicle should re-
turn to its normal operating condition. If it does
not return to its normal operating condition,
have an INFINITI retailer check the transmission
and repair if necessary.Shift lock release
If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the selector lever button pushed.
To move the selector lever, perform the follow-
ing procedure:
1. Push the ignition switch to the OFF or
LOCK position.
2. Apply the parking brake.
3. Remove the shift lock cover
Ausing a
suitable tool.
SSD0598
Starting and driving5-15
—
—
04/21/10—debbie


4. Push down the shift lockBas illustrated.
5. Push the selector lever button
Cand
move the selector lever to N (Neutral)
position
Dwhile holding down the shift
lock.
Push the ignition switch to the ON position to
unlock the steering wheel. Now the vehicle may
be moved to the desired location.
If the battery is discharged completely, the
steering wheel cannot be unlocked. Do not
move the vehicle with the steering wheel
locked.
If the lever cannot be moved out of P (Park),
have an INFINITI retailer check the automatic
transmission system as soon as possible.
MANUAL TRANSMISSION
WARNING
● Do not downshift abruptly on slippery roads.
This may cause a loss of control.
● Do not over-rev the engine when shifting to a
lower gear. This may cause a loss of control
or engine damage.
CAUTION
● Do not rest your foot on the clutch pedal
while driving. This may damage the clutch.
● Fully depress the clutch pedal before shift-
ing to help prevent transmission damage.
● Stop your vehicle completely before shifting
into R (Reverse).
● When the vehicle is stopped for a period of
time, for example at a stop light, shift to N
(Neutral) and release the clutch pedal with
the foot brake applied.
Shifting
To change gears, or when upshifting or down-
shifting, fully depress the clutch pedal, shift
into the appropriate gear, then slowly and
smoothly release the clutch pedal.
This vehicle is equipped with a short throw
shifter manual transmission. To ensure smooth
gear changes, fully depress the clutch pedal
before operating the shift lever. If the clutch
pedal is not fully depressed before the trans-
mission is shifted, a gear noise may be heard.
Transmission damage could occur.
Start the vehicle in 1st gear and shift to 2nd,
3rd, 4th, 5th and 6th gear in sequence accord-
ing to vehicle speed.
SSD0536
5-16Starting and driving
—
—
04/21/10—debbie


5) Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
6) Intelligent Cruise Control system warn- ing light (orange):
The light comes on if there is a malfunc-
tion in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push and
release the MAIN switch
Aon. The cruise
indicator light, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0607SSD0608
5-30Starting and driving
—
—
04/29/10—pattie

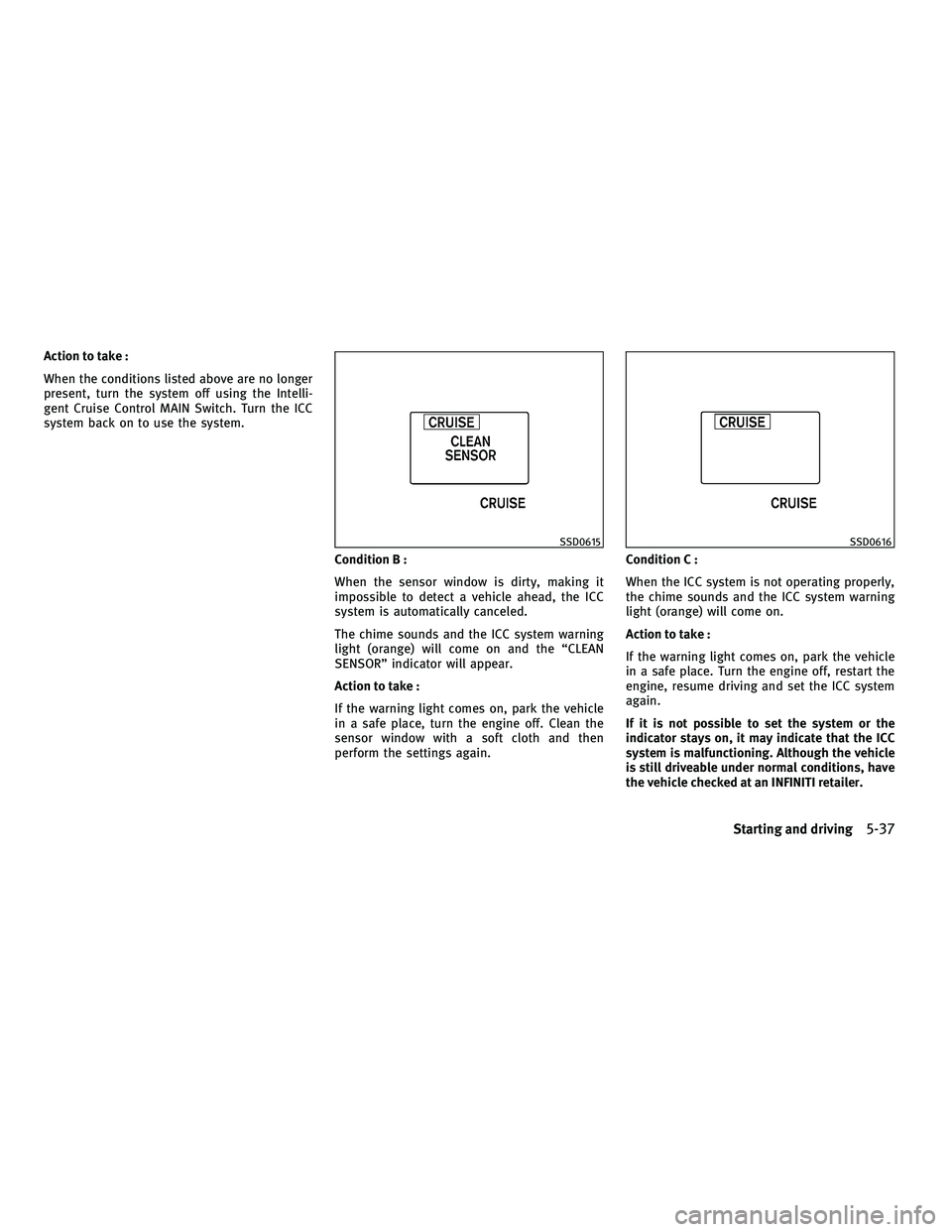

Action to take :
When the conditions listed above are no longer
present, turn the system off using the Intelli-
gent Cruise Control MAIN Switch. Turn the ICC
system back on to use the system.Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime sounds and the ICC system warning
light (orange) will come on and the “CLEAN
SENSOR” indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.Condition C :
When the ICC system is not operating properly,
the chime sounds and the ICC system warning
light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the ICC
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
SSD0615SSD0616
Starting and driving5-37
—
—
04/29/10—pattie


b) Tap the brake pedal. The SET indicatorwill go out.
c) Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will go out.
To reset at a faster cruising speed, use one of
the following three methods:
a) Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET/COAST switch.
b) Push and hold the RESUME/ACCELERATE set switch. When the vehicle attains the
speed you desire, release the switch.
c) Push, then quickly release the RESUME/ACCELERATE switch. Each time
you do this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following three methods:
a) Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET/COAST switch and release it.
b) Push and hold the SET/COAST switch. Release the switch when the vehicle
slows down to the desired speed.
c) Push, then quickly release the SET/COAST switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
● When the vehicle slows down more than 8
MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is not in the D
(Drive), DS (Drive Sport) or manual shift
mode
● When the VDC operates (including the trac-
tion control system)
● When a tire slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and then perform the
setting again.
If it is not possible to set or the indicator stays
on, it may indicate that the system is malfunc-
tioning. Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
SSD0621
Starting and driving5-41
—
—
04/29/10—pattie


The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started.If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
WARNING
●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
SSD0336
ALL-WHEEL DRIVE (AWD) (if so equipped)
Starting and driving5-43
—
—
04/29/10—pattie


CAUTION
●Do not operate the engine on a free roller
when any of the wheels are raised.
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the warning light remains on after the
above operation, have your vehicle checked
by an INFINITI retailer as soon as possible.
● The power train may be damaged if you con-
tinue driving with the warning light blinking.
WARNING
● Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park) for Automatic
Transmission (AT) model or in an appropri-
ate gear for Manual Transmission (MT)
model. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away and
result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
SD1006MA
PARKING/PARKING ON HILLS
5-44Starting and driving
—
—
04/29/10—pattie


●When the Preview Function operates, the
brake pedal may move slightly and may
make a small noise. This is not a system
malfunction.
Warning light and display
When the Preview Function is not operating
properly, a chime sounds and the system warn-
ing light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine and resume driving.
If the indicator stays on, it may indicate that the
Preview Function is malfunctioning (the brake is
operative). Although the Vehicle is still drive-
able under normal conditions, have the vehicle
checked at an INFINITI retailer.
How to handle the sensor
The sensor for the Preview Function is common
with Intelligent Cruise Control and is located
below the front bumper.
To keep the Preview Function operating prop-
erly, be sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
SSD0471
Starting and driving5-51
—
—
04/29/10—pattie
