INDICATORS FOR OPERATION
1. Engine start operation indicator
(Automatic Transmission models)
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. Intelligent Key insertion indicator
This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key
port. (For example, the Intelligent Key battery is
discharged.)
If this indicator appears, insert the Intelligent
Key into the Intelligent Key port in the correct
direction. (See “PUSH-BUTTON IGNITION
SWITCH” in the “5. Starting and driving” sec-
tion.)
4. Intelligent Key removal indicator
This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
5. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key :
The warning appears when the ignition switch is
pushed from the LOCK position and the Intelli-
gent Key cannot be recognized by the system.
You cannot start the engine with an unregistered
key. Use the registered Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.
6. SHIFT “P” warning (Automatic
Transmission models)
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
Instruments and controls2-21
—
—
10/12/09—tbrooks


8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
WARNING SYSTEM (TPMS)” in the “5. Starting
and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
2-22Instruments and controls
—
—
05/10/10—tbrooks

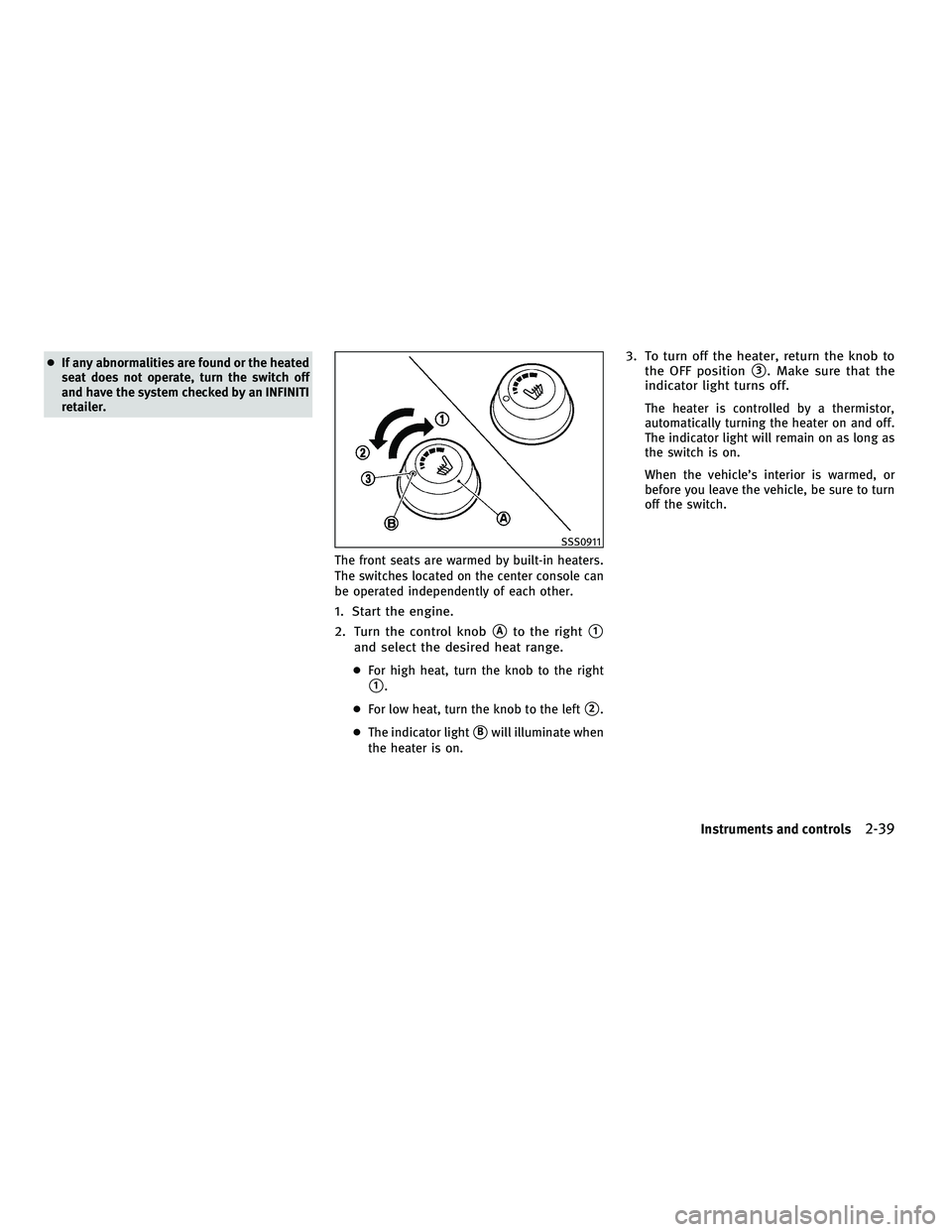

●If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
SSS0911
Instruments and controls2-39
—
—
10/12/09—tbrooks


WARNING
●Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
doors and the trunk lid using the remote con-
troller function or pushing the request switch
on the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter. ●
When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. Replace
the discharged battery with a new one as soon
as possible. For more details, see “PUSH-
BUTTON IGNITION SWITCH” in the “5. Starting
and driving” section.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section.
INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7
—
—
10/12/09—tbrooks


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17
—
—
10/12/09—tbrooks


OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the right side of the door (Sedan) or
push the left side of the door (Coupe).
●Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
malfunction indicator
light (MIL) to come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.
Sedan
SPA2554
Coupe
SPA1562A
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-21
—
—
04/21/10—debbie


Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe). 3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h). ●
When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
Pre-driving checks and adjustments3-31
—
—
04/21/10—debbie


INTELLIGENT KEY BATTERY DISCHARGE
If the battery of the Intelligent Key is almost
discharged, the guide light
Bof the Intelligent
Key port
Ablinks and the indicator appears on
the dot matrix liquid crystal display. (See “DOT
MATRIX LIQUID CRYSTAL DISPLAY” in the “2.
Instruments and controls” section.)
In this case, inserting the Intelligent Key into
the port
1allows you to start the engine. Make
sure that the key ring side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port,
push the ignition switch to the OFF position and
pull the Intelligent Key out of the port. NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●
Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)
SSD0768
BEFORE STARTING THE ENGINE
5-10Starting and driving
—
—
04/21/10—debbie
