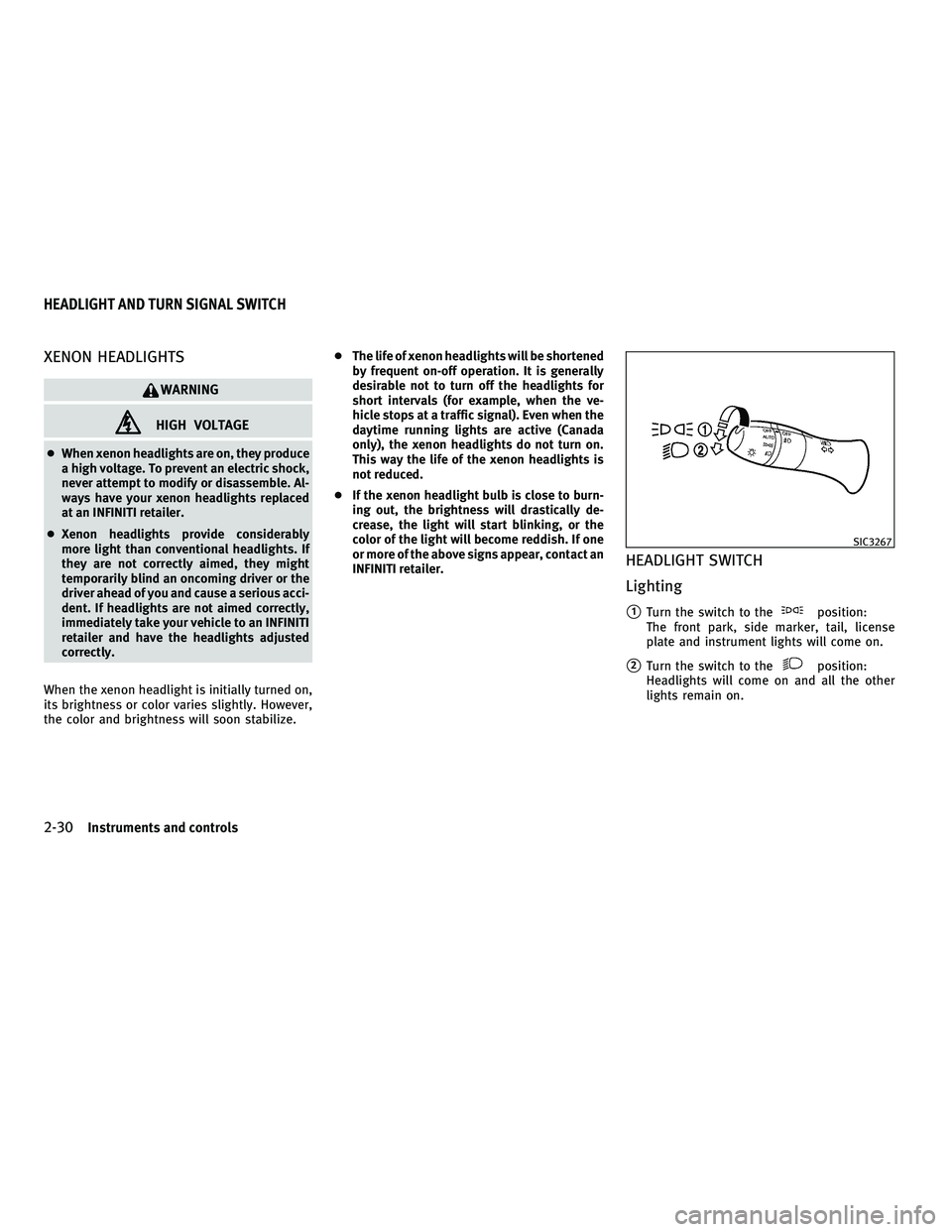

2010 INFINITI G-CONVERTIBLE stop start

XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
●When xenon headlights are on, they produce
a high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced
at an INFINITI retailer.
● Xenon headlights provide considerably
more light than conventional headlights. If
they are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious acci-
dent. If headlights are not aimed correctly,
immediately take your vehicle to an INFINITI
retailer and have the headlights adjusted
correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize. ●
The life of xenon headlights will be shortened
by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.
● If the xenon headlight bulb is close to burn-
ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to theposition:
The front park, side marker, tail, license
plate and instrument lights will come on.
2Turn the switch to theposition:
Headlights will come on and all the other
lights remain on.
SIC3267
HEADLIGHT AND TURN SIGNAL SWITCH
2-30Instruments and controls
—
—
10/14/09—tbrooks


INDICATORS FOR THE RETRACTABLE
HARD TOP
The retractable hard top indicator in the dot
matrix liquid crystal display
1shows the
conditions of retractable hard top operation.
The information displays when the retractable
hard top is being operated or if it is stopped
before reaching the fully opened or closed
position. For details about the retractable hard
top indicator, see “INDICATORS FOR RETRACT-
ABLE HARD TOP” in the “2. Instruments and
controls” section.
Automatic window lowering
When the retractable hard top operating switch
is pressed, the power windows will automati-
cally be lowered completely. The windows do
not rise automatically after the retractable hard
top operation is completed. Use the power
window switches to raise them.
OPENING THE RETRACTABLE HARD
TOP
1. Make sure the trunk lid is securely closed before operating the retractable hard top.
2. Apply the parking brake and move the selector lever to the P (Park) position (for
the automatic transmission models) or
the shift lever to the N (Neutral) position
(for the manual transmission models).
3. Start the engine.
SIC4293SPA2632
3-22Pre-driving checks and adjustments
—
—
10/14/09—tbrooks


4. Push the OPEN side of the retractablehard top operating switch and hold it until
the retractable hard top is fully opened.
●When the OPEN side of the retractable
hard top operating switch is pushed a
beep sounds.
● “ROOF IN OPERATION” is displayed on the
dot matrix liquid crystal display while the
retractable hard top is in motion.
● The windows will automatically be fully
opened.
5. Release the switch when the retractable hard top is fully opened.
●When the retractable hard top is fully
opened, a beep sounds.
● “ROOF OPEN” is displayed on the dot
matrix liquid crystal display when the
retractable hard top is fully opened.
CAUTION
Be sure to fully open or fully close the retract-
able hard top and do not stop using the operat-
ing switch half way through the roof opening or
closing process. If the retractable hard top is
only partially opened, significant damage to
the retractable hard top could occur.
CLOSING THE RETRACTABLE HARD
TOP
1. Make sure the trunk lid is securely closed before operating the retractable hard top.
2. Apply the parking brake and move the selector lever to the P (Park) position (for
the automatic transmission models) or
the shift lever to the N (Neutral) position
(for the manual transmission models).
3. Start the engine. 4. Push the CLOSE side of the retractable
hard top operating switch and hold it until
the retractable hard top is fully closed.
●When the CLOSE side of the retractable
hard top operating switch is pushed a
beep sounds.
● “ROOF IN OPERATION” is displayed on the
dot matrix liquid crystal display while the
retractable hard top is in motion.
● The windows will automatically be fully
opened.
5. Release the switch when the retractable hard top is fully closed.
●When the retractable hard top is fully
closed, a beep sounds.
● “ROOF CLOSED” is displayed on the dot
matrix liquid crystal display when the
retractable hard top is fully closed.
IF THE RETRACTABLE HARD TOP DOES
NOT OPEN OR CLOSE ELECTRICALLY
If you cannot operate the retractable hard top
with the operating switch, first check whether
all the following operating conditions are satis-
fied.
● The vehicle is stopped
● The engine is running
SPA2633
Pre-driving checks and adjustments3-23
—
—
10/14/09—tbrooks


TROUBLESHOOTING GUIDE
If the retractable hard top stops halfway during operation or does not operate normally, follow the procedures shown in the following table. If the
procedures in the following table do not solve the symptom, immediately contact INFINITI retailer for the inspection.
SymptomBeepPossible cause Possible solution
The OPEN side of the retractable hard
top operating switch is pushed, but
the retractable hard top does not
operate. Sounds twice
The OPEN side of the retractable hard top op-
erating switch is pushed while the retractable
hard top is fully open, or the CLOSE side of
the retractable hard top operating switch is
pushed while the retractable hard top is fully
closed. Push the CLOSE side of the retractable hard top
operating switch when the retractable hard top
is fully open. Push the OPEN side of the retract-
able hard top operating switch when the re-
tractable hard top is fully closed.
Sounds twice The selector lever (automatic transmission
models only) or the shift lever (manual trans-
mission models only) is in the R (Reverse)
position. Shift the selector lever (automatic transmission
models only) to the P (Park) or N (Neutral)
position, or shift the shift lever (manual trans-
mission model only) to the N (Neutral) position,
and then operate the retractable hard top.
Sounds twice The trunk lid is opened. Fully close the trunk lid.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Sounds twice The separator in the trunk room is not cor-
rectly set. Set the separator correctly. For details, refer to
“Separator” earlier in this section.
Does not sound The retractable hard top is in the deactivation mode in order to avoid motor overheating by
the continuous operation of the retractable
hard top. Wait for approximately 20 minutes without op-
erating the retractable hard top and then oper-
ate the retractable hard top.
3-26Pre-driving checks and adjustments
—
—
10/14/09—tbrooks


SymptomBeepPossible cause Possible solution
The retractable hard top stops halfway
during operation. Sounds twice
Objects are trapped in the moving structure of
the retractable hard top. Check that an object is not trapped inside the
rear parcel shelf, side flap and retractable hard
top. After the check, turn the ignition switch to
the OFF position, start the engine again and
then operate the retractable hard top.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Only the rear parcel shelf operates
when the OPEN side of the retractable
hard top operating switch is pushed. Sounds twice
every 10 sec- onds for 15 minutes. The retractable hard top control does not rec-
ognize the rear parcel shelf position because
of battery replacement or the contentious op-
eration of the retractable hard top. Perform the initialization of the retractable hard
top and operate the retractable hard top again.
For the initialization details, please refer to
“INITIALIZING OF THE RETRACTABLE HARD TOP”
in the “3. Pre-driving checks and adjustments”
section.
When the vehicle is being driven, the
beep sounds. Sounds con-
tinuously The retractable hard top is partially opened. Immediately park the vehicle in a safe location
and fully open or fully close the retractable
hard top.
When the engine is stopped, the beep
sounds. Sounds twice The retractable hard top is partially opened. Fully open or fully close the retractable hard
top.
Pre-driving checks and adjustments3-27
—
—
10/14/09—tbrooks


To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause
the malfunction indicator
light (MIL) to come on. ●
Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage.
● Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● If your vehicle is equipped with the LOOSE
FUEL CAP warning, the LOOSE FUEL CAP
warning will illuminate if the fuel-filler cap is
not properly tightened. Failure to tighten the
fuel-filler cap properly after the LOOSE FUEL
CAP warning illuminates may cause the
malfunction indicator light (MIL) to
illuminate.
Pre-driving checks and adjustments3-33
—
—
04/28/10—pattie


Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-41
—
—
04/28/10—pattie


SONAR settings (if so equipped)
The “Sonar” screen will appear when selecting
the “Sonar” key with the INFINITI controller and
pushing theENTERbutton.
For the details about the sonar system opera-
tion, see “SONAR SYSTEM” in the “5. Starting
and driving” section.
Sonar Display
When this item is turned ON, the corner/center
sonar indicator will appear when the sonar
detects front or rear obstacles near the bumper.
Corner Sonar Sensitivity
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
Centre Sonar Sensitivity
Adjust the sensitivity level of the center sonar
higher (right) or lower (left).
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake.
Models with navigation system
SAA2971
Models without navigation system
SAA2920
SAA2491
4-20Monitor, climate, audio, phone and voice recognition systems
—
—
10/14/09—tbrooks
