2010 INFINITI G-CONVERTIBLE ECO mode

CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible. ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel. ●
Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
Starting and driving5-41
—
—
10/15/09—tbrooks


WARNING
●Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park) for Automatic
Transmission (AT) model or in an appropri-
ate gear for Manual Transmission (MT)
model. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away and
result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
1. Firmly apply the parking brake. 2.
Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Place the shift lever in the R (Reverse) gear.
When parking on an uphill grade, place the
shift lever in the 1st gear.
3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move the
vehicle forward until the curb side wheel
gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL, NO CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the
center of the road if it moves.
4. Push the ignition switch to the OFF posi-
tion.
SD1006MA
PARKING/PARKING ON HILLS
5-42Starting and driving
—
—
10/15/09—tbrooks


6 In case of emergency
Roadside assistance program...................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Repairing flat tire (for models with
emergency tire puncture repair kit) .............. 6-3
Changing flat tire
(for models with spare tire) ....................6-12Jump starting
.................................... 6-17
Push starting .................................... 6-19
If your vehicle overheats .......................... 6-19
Towing your vehicle .............................. 6-20
Towing recommended by INFINITI ...............6-21
Vehicle recovery (Freeing a stuck vehicle) .......6-22
—
—
04/28/10—diane


●Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure (for models
equipped with the emergency tire puncture
repair kit).REPAIRING FLAT TIRE (for models with
emergency tire puncture repair kit)
WARNING
● After using Emergency Tire Sealant to repair
a minor tire puncture, do not drive the ve-
hicle at speeds faster than 50 MPH (80
km/h).
● Immediately after using the Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure. This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emergency
Tire Sealant) is supplied with the vehicle in-
stead of a spare tire. It can be used to tempo-
rarily repair minor tire punctures.
If possible, have the vehicle towed to a facility
that can repair or replace the flat tire. Using the
emergency tire puncture repair kit may cause a
malfunction of the tire pressure sensor and
cause the low tire pressure warning light to
illuminate.
If you have a flat tire, follow the instructions
below.
CAUTION
●
To avoid the emergency tire puncture kit be-
ing damaged during storage or use:
– Only use the emergency tire puncture re- pair kit on your vehicle. Do not use it on
other vehicles.
– Only use the kit to inflate the tires of your vehicle and to check the vehicle’s tire
pressure.
– Only plug the compressor into a 12V DC car power point.
– Keep the kit free of water and dirt.
– Do not disassemble or modify the kit.
In case of emergency6-3
—
—
12/21/09—tbrooks


CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
9. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
10. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be con-
taminated with corrosive acid.
Do not attempt to start the engine by pushing.
CAUTION
●Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-19
—
—
10/15/09—tbrooks


For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING RECOMMENDED BY INFINITI
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illus-
trated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive damage to the drivetrain. If it is necessary to
tow the vehicle with the front wheels raised,
always use towing dollies under the rear
wheels.
● When towing rear wheel drive models with
the front wheels on the ground or on towing
dollies: Push the ignition switch to the ACC
or ON position, and secure the steering
wheel in a straight-ahead position with a
rope or similar device. Never secure the
steering wheel by selecting the LOCK posi-
tion. This may damage the steering lock
mechanism.
SCE0802
In case of emergency6-21
—
—
10/15/09—tbrooks

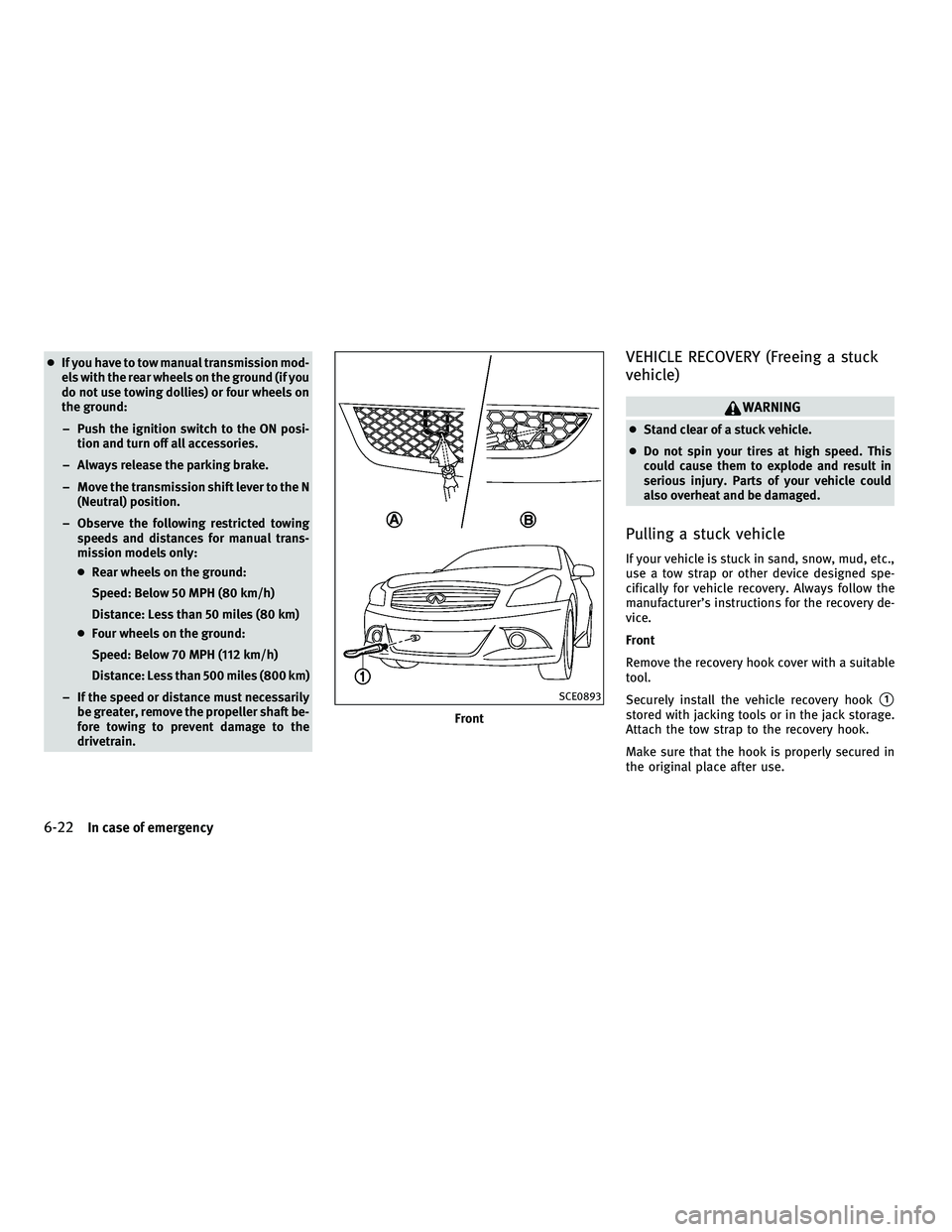

●If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
●Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
drivetrain.VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
Front
Remove the recovery hook cover with a suitable
tool.
Securely install the vehicle recovery hook
1
stored with jacking tools or in the jack storage.
Attach the tow strap to the recovery hook.
Make sure that the hook is properly secured in
the original place after use.Front
SCE0893
6-22In case of emergency
—
—
10/15/09—tbrooks


Rear
Do not use the tie down hook
2for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc. ●
Never tow a vehicle using the vehicle tie
downs or recovery hooks.
● Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires. 4. Slowly rock the vehicle forward and back-
ward.
●Shift back and forth between R (Reverse)
and D (Drive) (automatic transmission
models) or 1st and R (Reverse) (manual
transmission models).
● Apply the accelerator as little as possible
to maintain the rocking motion.
● Release the accelerator pedal before
shifting between R (Reverse) and D (Drive)
(automatic transmission models) or 1st
and R (Reverse) (manual transmission
models).
● Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
Rear
SCE0894
In case of emergency6-23
—
—
10/15/09—tbrooks
