2010 Hyundai Sonata audio

F11
1. Driver’s air bag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Cruise control switch*
6. Ignition switch
7. "PASSENGER AIR BAG OFF" Indicator
8. Digital clock*
9. Audio controls*
10. Heating/Air conditioning control panel*
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster
nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas
(Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air
freshener does leak onto these areas, wash them with water immediately.
!
11. Hazard warning flasher switch
12. Seat warmer*
13. Shift lever
14. Cigarette lighter
15. Power outlet
16. Ashtray
17. Passenger’s air bag
18. Vent controls
19. Glove box
* : if installed

1

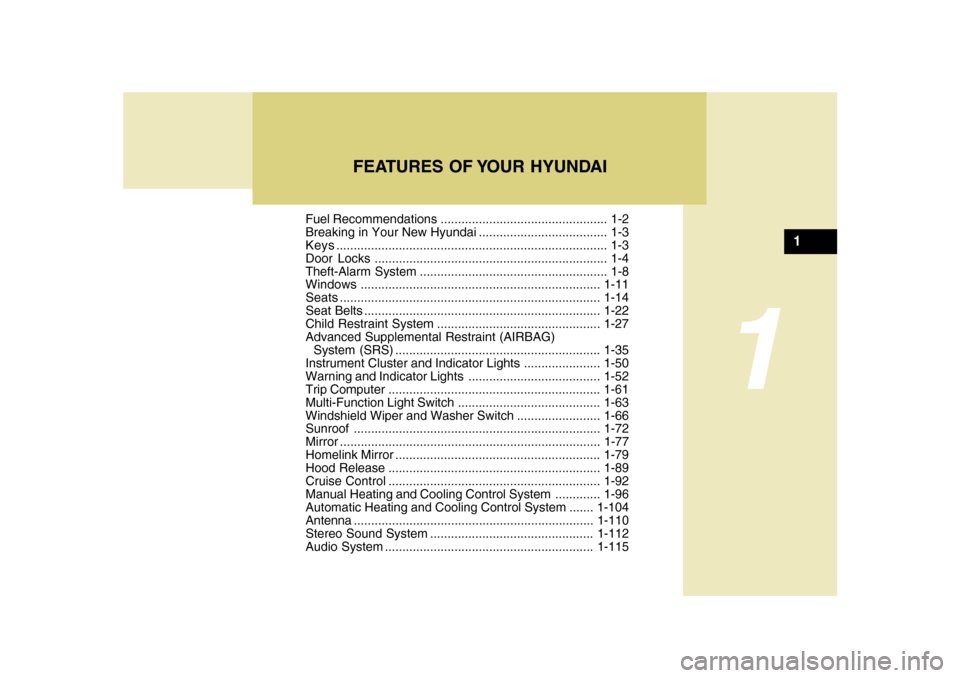

Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys.............................................................................. 1-3
Door Locks ................................................................... 1-4
Theft-Alarm System ...................................................... 1-8
Windows..................................................................... 1-11
Seats........................................................................... 1-14
Seat Belts.................................................................... 1-22
Child Restraint System ............................................... 1-27
Advanced Supplemental Restraint (AIRBAG)
System (SRS) ........................................................... 1-35
Instrument Cluster and Indicator Lights ...................... 1-50
Warning and Indicator Lights ...................................... 1-52
Trip Computer ............................................................. 1-61
Multi-Function Light Switch ......................................... 1-63
Windshield Wiper and Washer Switch ........................ 1-66
Sunroof....................................................................... 1-72
Mirror ...........................................................................1-77
Homelink Mirror ........................................................... 1-79
Hood Release ............................................................. 1-89
Cruise Control ............................................................. 1-92
Manual Heating and Cooling Control System ............. 1-96
Automatic Heating and Cooling Control System....... 1-104
Antenna.....................................................................1-110
Stereo Sound System...............................................1-112
Audio System............................................................1-115
FEATURES OF YOUR HYUNDAI
1

1FEATURES OF YOUR HYUNDAI70
B450A01NF-GATFront Drink HolderThe drink holder for holding cups or cans
is located on the main console.
ONF048103
DRINK HOLDER
!
CAUTION:
o Use the power outlets only when the
engine is running and remove the plug
from the power outlet after using the
electric device. Using the power
outlets when the engine stops or keep-
ing the electric device plugged in for
many hours may cause the battery to
discharge.
o Do not use the power outlet to connect
electric accessories or equipment
that are not designed to operate on 12
volts.
o Some electronic devices can cause
electronic interference when plugged
into the power outlet. These devices
may cause excessive audio noise
and malfunctions in other electronic
systems or devices in your vehicle.
POWER OUTLETSB500D02NF-AAT(If Installed)These supply 12V electric power to operate
electric accessories or equipment only
when the key is in the "ON" or "ACC"
position.
ONF048105

1
FEATURES OF YOUR HYUNDAI
95
CDP mode
It will function as the TRACK UP/DOWN
button.
CDC mode
It will function as the TRACK UP/DOWN
button.MUTE Switcho Pull the MUTE switch to silence the
sound.
o Once again press the MUTE switch to
restore the sound.VOL ( / ) Switcho Press the VOL ( ) switch to increase
volume.
o Press the VOL ( ) switch to decease
volume.
SEEK/PRESET (
/
) Switch
o If the button is pressed for 0.8 second or
more, it will work as follows in each
mode.
RADIO mode
It will function as the AUTO SEEK select
button.
CDP mode
It will function as the FF/REW button.
CDC mode
It will function as the DISC UP/DOWN
button.
o If the button is pressed for less than 0.8
second, it will work as follows in each
mode.
RADIO mode
It will function as the PRESET STATION
select buttons.
AUDIO REMOTE CONTROL
SWITCHB610A03NF-AAT(If Installed)
NOTE:Do not operate audio remote control
switches simultaneously.MODE SwitchPress the MODE switch to select Radio,
CD* (Compact Disc) and CDC* (Compact
Disc Changer).
Each press of the switch changes the display
as follows:
ONF048108L
* : if installedRADIO (FM1 → FM2 → AM) → CD* → CDC*
→

1
FEATURES OF YOUR HYUNDAI
111111
The satellite antenna is installed on the
roof of your car to listen to a satellite radio
broadcast. This antenna is permanently
attached and can not be removedNOTE:In places such as tunnels, the satellite
broadcast signal is not available.
D281400AFDAux, USB and iPod
® (if installed)NOTE:
When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
Type AType B
ONF048111ONF048112B875D01TG-AAT
AVN (AUDIO, VIDEO AND NAVIGA-
TION) System (If Installed)If your vehicle has an AVN, you can refer
to the AVN operation manual provided
with AVN for the detailed function.
!
CAUTION:
This vehicle may include mercury-con-
taining devices installed by the manu-
facturer:
* High Intensity Discharge Headlamps
* Navigation Display
* Back-lit Instruments
Remove Devices Before Vehicle dis-
posal Upon Removal of Devices:
Please Reuse, Recycle, or Dispose as
Hazardous Waste
ONF048133N B880A01NF-AAT
Satellite Antenna
* iPod
® is a trademark of Apple Inc.

1FEATURES OF YOUR HYUNDAI
112

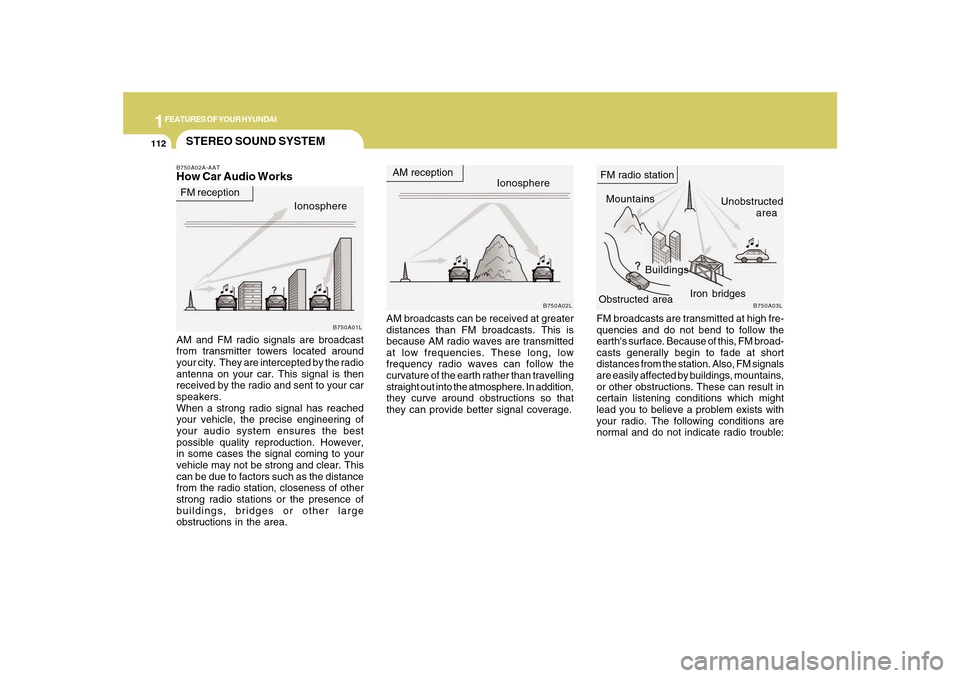

STEREO SOUND SYSTEMB750A02A-AATHow Car Audio Works
AM broadcasts can be received at greater
distances than FM broadcasts. This is
because AM radio waves are transmitted
at low frequencies. These long, low
frequency radio waves can follow the
curvature of the earth rather than travelling
straight out into the atmosphere. In addition,
they curve around obstructions so that
they can provide better signal coverage. AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the radio
antenna on your car. This signal is then
received by the radio and sent to your car
speakers.
When a strong radio signal has reached
your vehicle, the precise engineering of
your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear. This
can be due to factors such as the distance
from the radio station, closeness of other
strong radio stations or the presence of
buildings, bridges or other large
obstructions in the area.FM broadcasts are transmitted at high fre-
quencies and do not bend to follow the
earth's surface. Because of this, FM broad-
casts generally begin to fade at short
distances from the station. Also, FM signals
are easily affected by buildings, mountains,
or other obstructions. These can result in
certain listening conditions which might
lead you to believe a problem exists with
your radio. The following conditions are
normal and do not indicate radio trouble: Ionosphere
B750A02L
AM reception
Mountains
BuildingsUnobstructed
area FM radio station
B750A03L
Ionosphere FM reception
B750A01L
Obstructed areaIron bridges

1
FEATURES OF YOUR HYUNDAI
113113
!

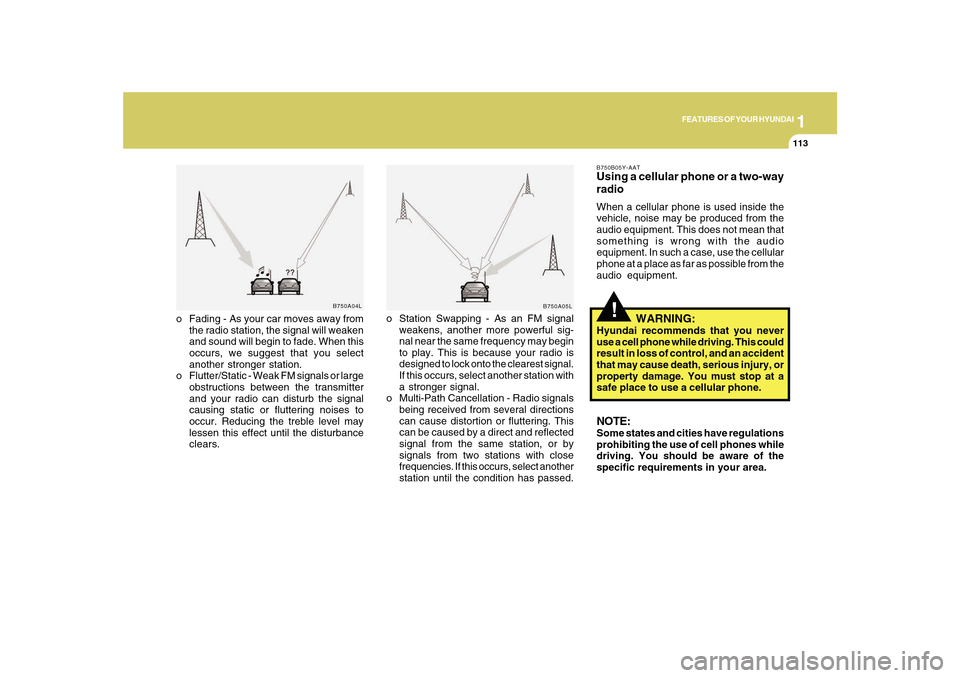

o Fading - As your car moves away from
the radio station, the signal will weaken
and sound will begin to fade. When this
occurs, we suggest that you select
another stronger station.
o Flutter/Static - Weak FM signals or large
obstructions between the transmitter
and your radio can disturb the signal
causing static or fluttering noises to
occur. Reducing the treble level may
lessen this effect until the disturbance
clears.o Station Swapping - As an FM signal
weakens, another more powerful sig-
nal near the same frequency may begin
to play. This is because your radio is
designed to lock onto the clearest signal.
If this occurs, select another station with
a stronger signal.
o Multi-Path Cancellation - Radio signals
being received from several directions
can cause distortion or fluttering. This
can be caused by a direct and reflected
signal from the same station, or by
signals from two stations with close
frequencies. If this occurs, select another
station until the condition has passed.
B750B05Y-AATUsing a cellular phone or a two-way
radioWhen a cellular phone is used inside the
vehicle, noise may be produced from the
audio equipment. This does not mean that
something is wrong with the audio
equipment. In such a case, use the cellular
phone at a place as far as possible from the
audio equipment.
WARNING:
Hyundai recommends that you never
use a cell phone while driving. This could
result in loss of control, and an accident
that may cause death, serious injury, or
property damage. You must stop at a
safe place to use a cellular phone.NOTE:Some states and cities have regulations
prohibiting the use of cell phones while
driving. You should be aware of the
specific requirements in your area.
B750A04L
B750A05L

1
FEATURES OF YOUR HYUNDAI
115
AUDIO SYSTEMPA710SA01NF-AATRADIO, SET UP, VOLUME CONTROL (PA710S) (If Installed)
NFF_USA_CDP_RADIO
1. FM Selection Button
2. AM Selection Button
3. XM Selection Button
4. CD/AUX Selection Button
5. Automatic Channel Selection Button
6. Power ON/OFF
7. SCAN Button
8. MUTE Button
9. Information Display Button
10. SET UP Button
11. TUNE/ENTER Button
12. CAT(FLDR) Button
13. Pre-set Button
1 2
3
4
5
67
8
10
9
12
11
13
