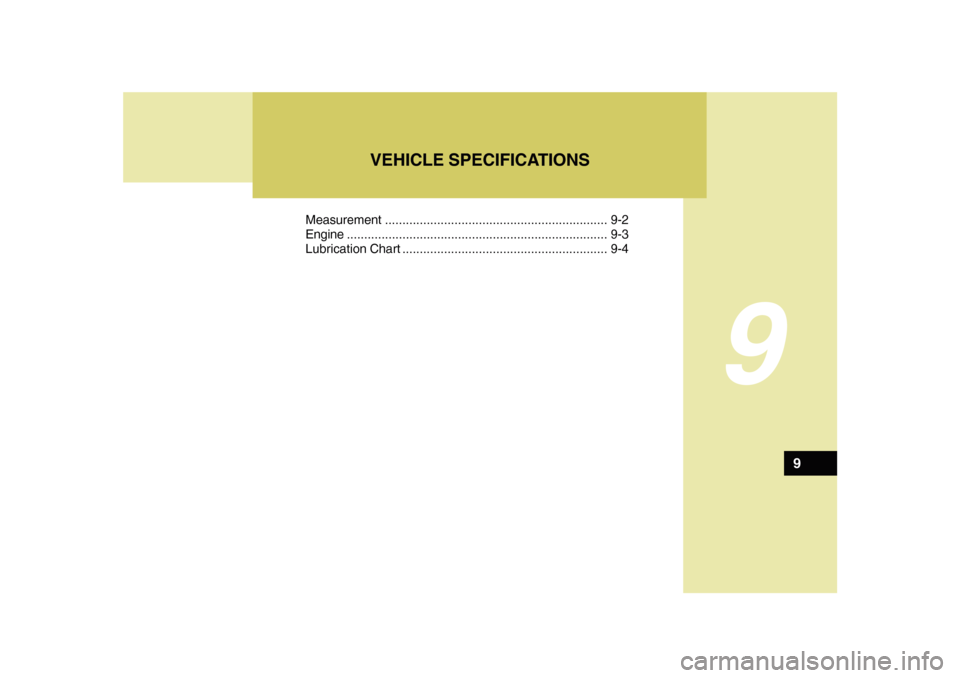

9
Measurement................................................................ 9-2
Engine...........................................................................9-3
Lubrication Chart ........................................................... 9-4
VEHICLE SPECIFICATIONS
9

9
VEHICLE SPECIFICATIONS
3
3.3L
6-Cyl., V-type DOHC
3.62 x 3.29 (92.0 x 83.8)
203.9 (3,342)
1 - 2 - 3 - 4 - 5 - 6
620 ± 100
BTDC 10° ± 5° 0.006 ~ 0.009 in. (0.17 ~ 0.23 mm)
0.01 ~ 0.012 in. (0.27 ~ 0.33 mm) 2.4L
4-Cyl., In-line DOHC
3.46 x 3.81 (88 x 97)
143.9(2,359)
1 - 3 - 4 - 2
650 ± 100
BTDC 8° ± 5°
ENGINEJ070A02NF-AAT
ITEMS
Engine Type
Bore x Stroke in.(mm)
Displacement cu.in.(cc)
Firing order
Valve clearance (cold engine) Intake
Exhaust
Idle speed (rpm)
Ignition timing (Base)

9
VEHICLE SPECIFICATIONS4
Oil & Grease Standard
API SM or SL, SAE 5W-20, SAE 5W-30 (ALL TEMP. RANGE)
ILSAC GF-3 SAE 10W-30 (ABOVE 0°F(-18°C))
or ABOVE
HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)
HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other
brands meeting the SP III specification approved by Hyundai Motor Co..Ethylene glycol base for aluminum radiator
PSF-4 TYPE FLUID
DOT 3 or DOT 4 Equivalent
LUBRICATION CHARTJ080A04NF-AAT
Quantity (Us. qts)(Liter)
Drain and refill;
2.4L : 4.54 (4.3) (With oil filter)
3.3L : 5.49 (5.2) (With/Without oil
filter)
1.8 (1.75)
2.4L : 10.0 (9.5)
3.3L : 11.52 (10.9)
2.4L : 6.87 (6.5)
2.4L : 6.66 (6.3)
3.3L : 8.66 (8.2)
0.95 (0.9)
1.0 (0.9) Item
Engine Oil
Recommends
Transaxle
Coolant
Power steering
Brake and clutch fluid
Manual Transaxle
Automatic Transaxle
Manual
Automatic
