FEATURES OF YOUR HYUNDAI
53HEATING AND COOLING CONTROL
B710A01TB-GAT (If Installed)

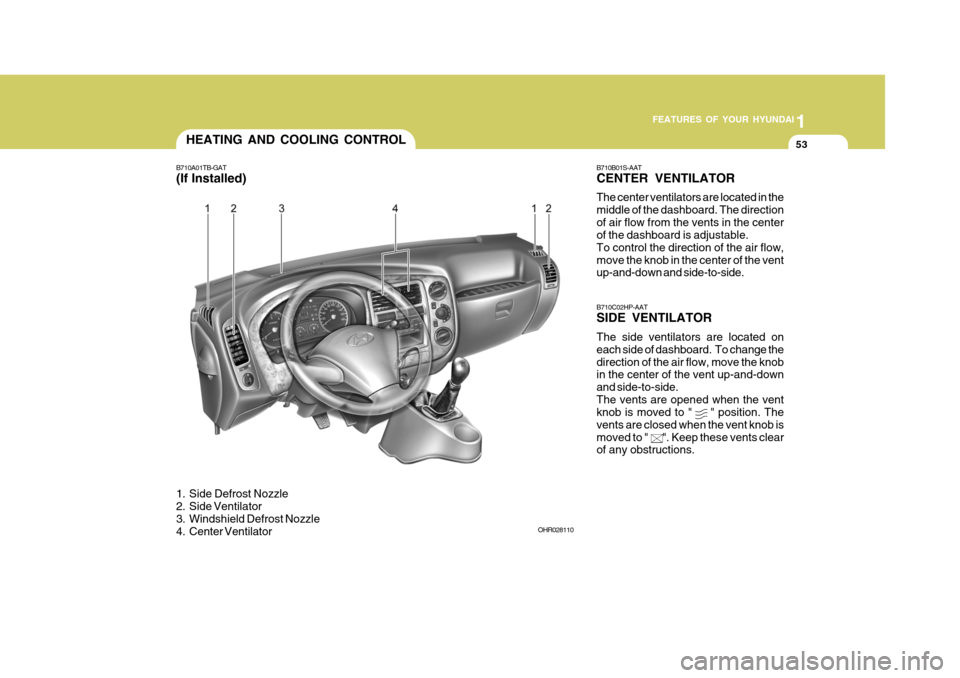

1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Center Ventilator B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The directionof air flow from the vents in the center of the dashboard is adjustable. To control the direction of the air flow,move the knob in the center of the vent up-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change thedirection of the air flow, move the knob in the center of the vent up-and-down and side-to-side.The vents are opened when the vent knob is moved to " " position. The vents are closed when the vent knob ismoved to " ". Keep these vents clear of any obstructions.
OHR028110

1FEATURES OF YOUR HYUNDAI
54
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
B670D01HR-GAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. OHR028111
HHR2080
HEATING AND VENTILATION
B670A01HR-GAT
(If Installed)

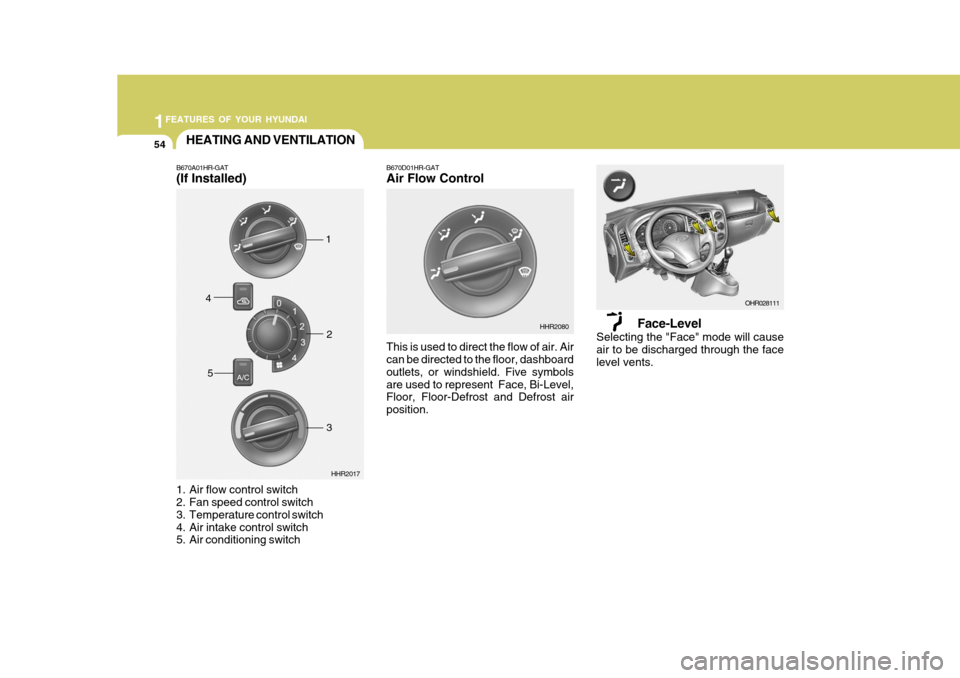

1. Air flow control switch
2. Fan speed control switch
3. Temperature control switch
4. Air intake control switch
5. Air conditioning switch HHR2017
1
2
3
4
5

1
FEATURES OF YOUR HYUNDAI
55

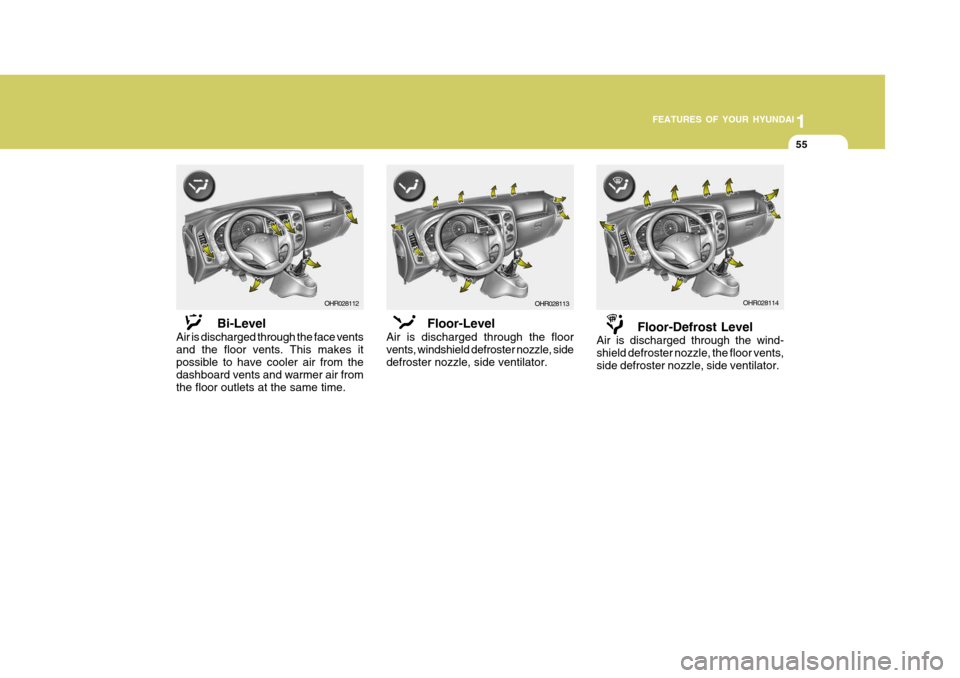

Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to have cooler air from the dashboard vents and warmer air fromthe floor outlets at the same time. Floor-Level
Air is discharged through the floorvents, windshield defroster nozzle, side defroster nozzle, side ventilator.Floor-Defrost Level
Air is discharged through the wind- shield defroster nozzle, the floor vents,side defroster nozzle, side ventilator.
OHR028112 OHR028113OHR028114

1
FEATURES OF YOUR HYUNDAI
77ANTENNA
o The playback head, capstan and pinch rollers will develop a coating of tape residue that can result in dete- rioration of sound quality, such as a wavering sound. They should becleaned monthly using a commer- cially available head cleaning tape or special solution available from audiospecialty shops. Follow the supplier's directions carefully and never oil any part of the tape player unit.
o Always be sure that the tape is tightly wound on its reel before inserting inthe player. Rotate a pencil in thedrive sprockets to wind up any slack. NOTE: Look at a tape before you insert it. If the tape is loose, tighten it by turning one of the hubs with a pencil or your finger.If the label is peeling off, do not put it in the drive mechanism. Do not leave tapes sitting wherethey are exposed to hot, warm, or high humidity, such as on top of the dashboard or in the player.If a tape is exposed to excessively hot or cold, let it reach a moderate temperature before putting it in theplayer.
B860A03LB870C01A-GAT Manual Antenna Your car uses a manual stainless steel antenna to receive both AM and FMbroadcast signals. Pull up the antenna using your fingers, as shown in the drawing. NOTE: Before entering an automatic car wash or a place with a low heightclearance, be sure that the antenna is fully retracted. HHR2137
