2010 HONDA PILOT sensor

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
When you shif t to reverse with the
ignition switch in the ON (II)
position, the rear view is shown on
the lef t side of the inside mirror. For
more information, see page .
1.
2.
3.
4.
391
On EX-L models
Mirrors
A djusting the Power Mirrors
Inst rument s and Cont rols
171
SELECTOR SWITCH
ADJUSTMENT SWITCH
There is also a sensor on the back of
the mirror. Items hung on the mirror
may block this sensor and af f ect its
perf ormance.
——
y
y
(/
y
y
2010 Pilot

The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet.The hooks on the f loor of the cargo
area enable you to tie down items
stored in the back. Make sure all
stored items are secured bef ore
driving.
Additional storage space f or large
items can be accessed by strapping
the cargo floor to the seat back.
Interior Convenience Items
Cargo HooksCargo Floor Storage
Compartment
188
NOTE:
HOOK
——
y

y
(/
y
y
2010 Pilot

Thestandardaudiosystemhas
manyfeatures.Thissection
describesthosefeaturesandhowto
usethem.
Yourvehiclehasananti-theftaudio
systemthatrequiresacodenumber
toenableit.
Theheatingandairconditioning
systeminyourvehicleprovidesa
comfortabledrivingenvironmentin
allweatherconditions.
Thesecuritysystemhelpstodis-
couragevandalismandtheftofyour
vehicle.
Theclimatecontrolsystemandthe
audiosystemhaveavoicecontrol
feature.Refertothenavigation
systemmanualformoreinformation.
..............Vents,HeatingandA/C.192
.........UsingtheRearA/CUnit.197
...............ClimateControlSystem.199
..............RearClimateControls.204
................................AudioSystem.208
..........PlayingtheFM/AMRadio.210
................................PlayingaDisc.218
.......DiscPlayerErrorMessages.225
................................AudioSystem.226
..........PlayingtheFM/AMRadio.227
................PlayingtheXMRadio.236
.................................PlayingDiscs.242
...DiscChangerErrorMessages.251
................................AudioSystem.252
..........PlayingtheFM/AMRadio.253
................PlayingtheXMRadio.266
.................................PlayingDiscs.274
...DiscChangerErrorMessages.284
..................ProtectingYourDiscs.285
............................PlayinganiPod.288
.................iPodErrorMessages.297
PlayingaUSBFlashMemory
........................................Device.298
USBFlashMemoryDeviceError
...................................Messages.307
............FM/AMRadioReception.308
......................AuxiliaryInputJack.310
................RemoteAudioControls.311
.................RadioTheftProtection.313
..........................SettingtheClock.314
........RearEntertainmentSystem.317
............................SecuritySystem.349
...............................CruiseControl.350
.........................................Compass.353
HomeLinkUniversal
................................Transceiver.357
........HandsFreeLink.361
................ParkingSensorSystem.386
...RearviewCameraandMonitor.390
LXmodels
EXandEX-Lmodelswithout
navigationsystem
Modelswithnavigationsystem
Bluetooth
Onvehicleswithnavigationsystem
ExceptLXmodels
Features
Features
191
——yy
(/
y
y
2010 Pilot

When you press a f an control button,
the fan is taken out of AUTO mode.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
In the Auto mode, the vehicle’s
interior temperature is
independently regulated f or the
driver, f ront passenger, and rear
passengers according to each
adjusted temperature. The system
also regulates each temperature
basedontheinformationof the
sunlight sensor and the sun’s
position which is updated
automatically by the navigation’s
global positioning system (GPS). For
example, if the driver’s side of the
vehicle is getting too much sun, the
system will adjust to a lower
temperature.
When you turn the ignition switch to
the ON (II) position, the temperature
of the rear passenger compartment
is synchronized to the driver’s side
set temperature. You will see SYNC
on the system display of the rear
control panel. Changing the
temperature of the rear passenger
compartment takes the system out
of synchronized mode. This causes
thewordSYNCinthedisplaytogo
out and displays the rear
temperature in the f ront display.
When you turn the ignition switch to
the ON (II) position and see LOCK
on the system display of the f ront
and rear control panels, the
temperature of the rear passenger
compartment is not synchronized to
the driver’s side set temperature.
On vehicles with navigation systemRR (Rear) L ock But t on
Climate Control System
Features
201
——
y
y
(/
yy
2010 Pilot

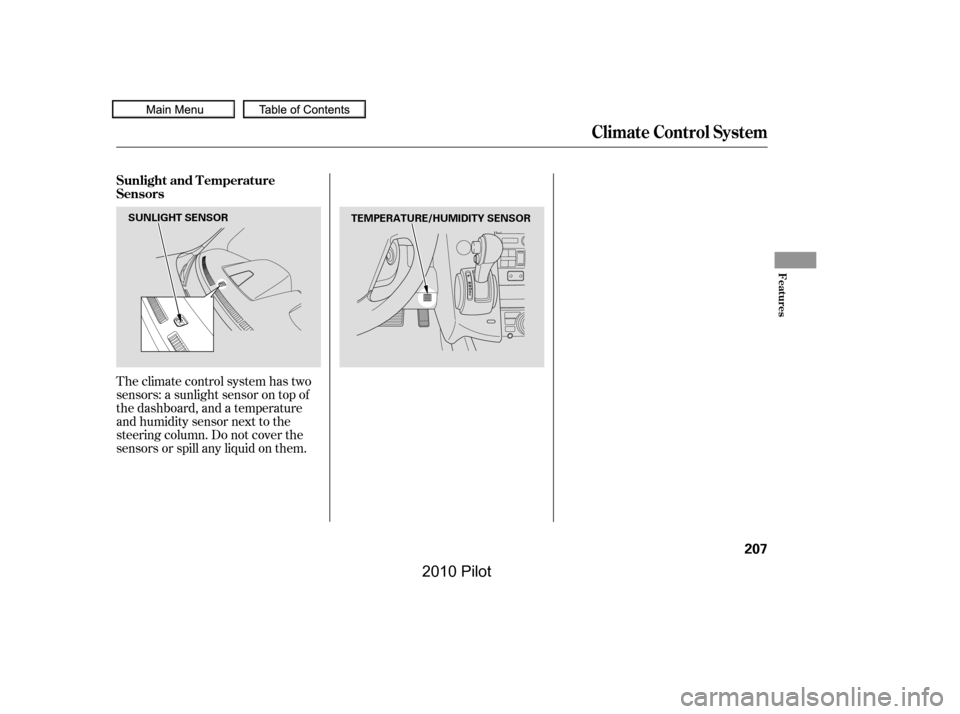

Theclimatecontrolsystemhastwo
sensors: a sunlight sensor on top of
the dashboard, and a temperature
and humidity sensor next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight and T emperature
Sensors
Climate Control System
Features
207
TEMPERATURE/HUMIDITY SENSORSUNLIGHT SENSOR
——
y

y
(/
y
y
2010 Pilot

All obstacles may not always be
sensed. Even when the system is on,
you should look f or obstacles near
yourvehicletomakesureitissafeto
park.
Your vehicle has a parking sensor
system. The system lets you know
theapproximatedistancebetween
your vehicle and most obstacles
while you are parking. When the
system is on and your vehicle is
nearinganobstacle,youwillheara
beeper and see system messages on
the multi-information display.
To activate the system, push the
switch on the dashboard with the
ignition in the ON (II) position. The
indicator in the switch comes on
when the system is on. To turn the
system of f , push the switch again.
The system has two front corner
sensors, two rear corner sensors,
and two rear center sensors.
The rear center sensors work when
the shif t lever is in reverse (R).
The corner sensors do not work
when the shift lever is in drive (D),
and the vehicle speed is more than 5
mph (8 km/h).
On Touring models
Parking Sensor System
386
PARKING SENSOR SYSTEM SWITCH
——
y

y
(/
y
y
2010 Pilot

Example shown: Obstacle is at the lef t f ront of the vehicle
When you turn the system on, all
indicators will appear on the multi-
inf ormation display, and a beeper
sounds once.
When the system senses an obstacle,
the appropriate indicator comes on,
and a beeper sounds as shown in the
f ollowing tables.
Distance
Beeper
Upper lef t
indicator stays on
Short beepsContinuous
beepVery short beeps
Upper lef t
indicator stays on
Upper lef t
indicator stays on
Indicator
About 18-24 in
(45-60 cm)
About 14-18 in
(35-45 cm)
About 14 in
(35 cm) or less
CONT INUED
Corner Sensor Operat ionMulti-Inf ormation Display
Messages and Beeper Operation
Parking Sensor System
Features
387
——
y

y
(/
yy
2010 Pilot

Distance
Beeper
Bottom
indicator stays on
Bottom
indicator stays on
Bottom
indicator stays on
Indicator
Bottom
indicator stays on
Continuous
beepsShort beepsVery short beepsLong beeps
About 24-40 in
(60-100 cm)
About 18-24 in
(45-60 cm)
About 14-18 in
(35-45 cm)
About 14 in
(35 cm) or less
Rear Cent er Sensor Operat ion
Parking Sensor System
388
——
y

y
(/
yy
2010 Pilot
