2010 HONDA ODYSSEY navigation

CONT INUED
Playing the XMRadio (Models with navigation system)
Features
257

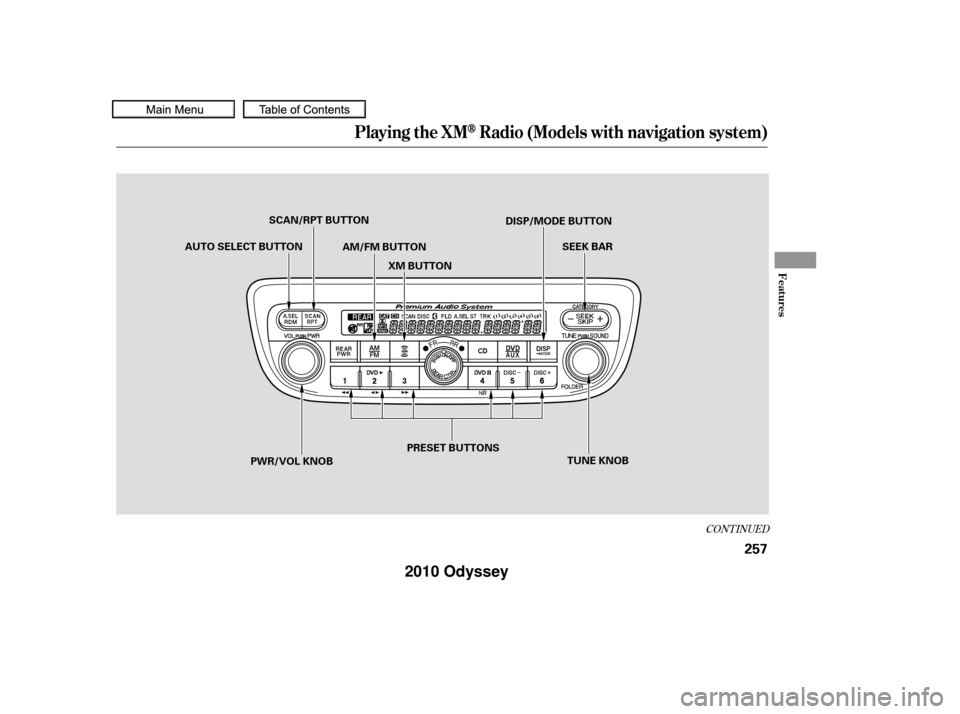

AM/FM BUTTONPRESET BUTTONS
AUTO SELECT BUTTON
TUNE KNOB
PWR/VOL KNOB SCAN/RPT BUTTON
XM BUTTON SEEK BAR
DISP/MODE BUTTON
——
y
y
(yy
2010 Odyssey

µYou may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is

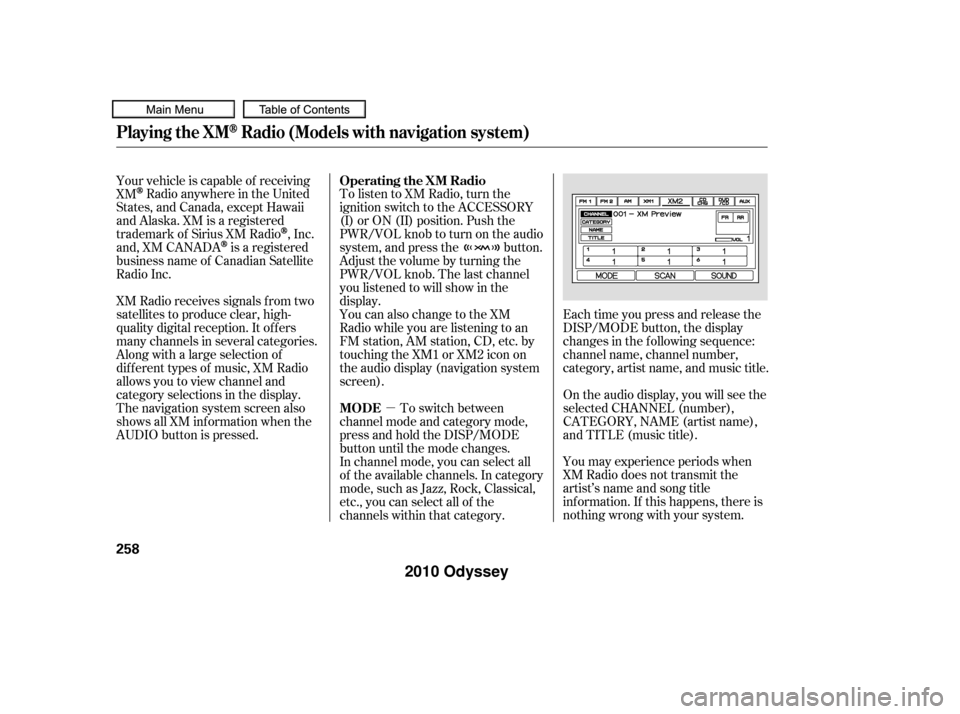

nothing wrong with your system. On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category. You can also change to the XM
Radio while you are listening to an
FM station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen). To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes. Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States, and Canada, except Hawaii
and Alaska. XM is a registered
trademark of Sirius XM Radio
,Inc.
and, XM CANADA
is a registered
business name of Canadian Satellite
Radio Inc. To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed. Operating the XM Radio
MODE
Playing the XMRadio (Models with navigation system)
258
——
y
y
(yy
2010 Odyssey

µ
µ µ
µ´
µ In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Pick the preset button (icon) you
want f or that channel. Press and
hold the button (icon) until you
hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper preset button
(icon) to tune to it. Press the button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
On models with a rear entertainment
system and a navigation system, you
cannot listen to XM Radio and a disc
at the same time. For example, when
XM Radio is playing on the f ront
speakers, you cannot listen to a disc
on the wireless headphones, or vice
versa.
Use the TUNE knob, the
CATEGORY bar, or the SCAN
button to tune to a desired channel.
You can also touch the SCAN icon
on the audio display. Press the button. Either
XM1 or XM2 will show in the
display.
To store a channel: Youcanstoreupto12
preset channels using the six preset
buttons or preset icons on the audio
display. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN/RPT button or
touch the SCAN icon on the audio
display. The system plays each channel in numerical order f or a f ew
seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again.
Press either side of
the bar ( or ) to select another
category. Turn the tune knob lef t or
right to select channels. In the
category mode, you can only select
channels within that category.
1.
2.3.
4.
5.
Playing the XMRadio (Models with navigation system)
Preset
SCAN CATEGORY TUNEFeatures
259
——
y

y
(yy
2010 Odyssey

µ
µ µ
µ
µ
µ µ
The signal is
currently too
weak. Move the
vehicle to an area
away from tall
buildings, and
with an
unobstructed view
of the southern
horizon.
The selected channel
number does not exist, or
isnotpartofyour
subscription, or this
channel has no artist or
title information at this
time.
This channel has no
artist or title
inf ormation at this
time.
XM is loading the
audio or program
inf ormation.
The channelcurrently selected is
no longer
broadcasting.
The encryption
code is being
updated. Wait
until the
encryption code is
f ully updated.
Channels 0 and 1
should still work
normally. There is
a problem with the XM antenna.
Please consult your dealer.
XM Radio Display Messages ‘‘NO SIGNA L ’’
‘‘----’’
‘‘NO INFO’’
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘CHECK A NT ENNA ’’
Playing the XMRadio (Models with navigation system)
260
——
y
y
(yy
2010 Odyssey

CONT INUED

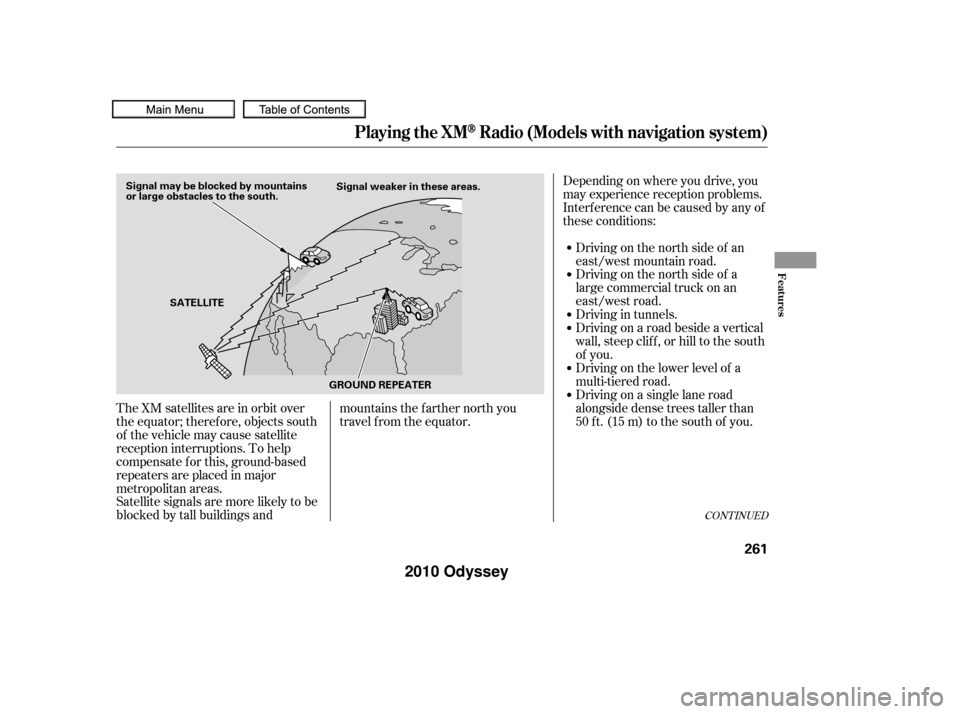

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings andmountains the f arther north you
travel from the equator.Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road. Driving on the north side of an
east/west mountain road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Playing the XMRadio (Models with navigation system)
Features
261
SATELLITE
GROUND REPEATER
Signal may be blocked by mountains
or large obstacles to the south.
Signal weaker in these areas.
——
y

y
(yy
2010 Odyssey

There may also be other geographic
situations or structures that could
af f ect satellite radio reception.If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the PWR/
VOL knob to turn on the audio
system and press the XM RADIO
button. A variety of music types and
styles will play.After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio. In Canada, contact XM
CANADA
.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, turn the
TUNE knob until ‘‘0’’ appears in the
display. Your I.D. will appear in the
display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Playing the XMRadio (Models with navigation system)
Receiving XM Radio Service
262
——
y
y
(yy
2010 Odyssey

µ´
CONT INUED
Playing Discs (Models with navigation system)
Features
263

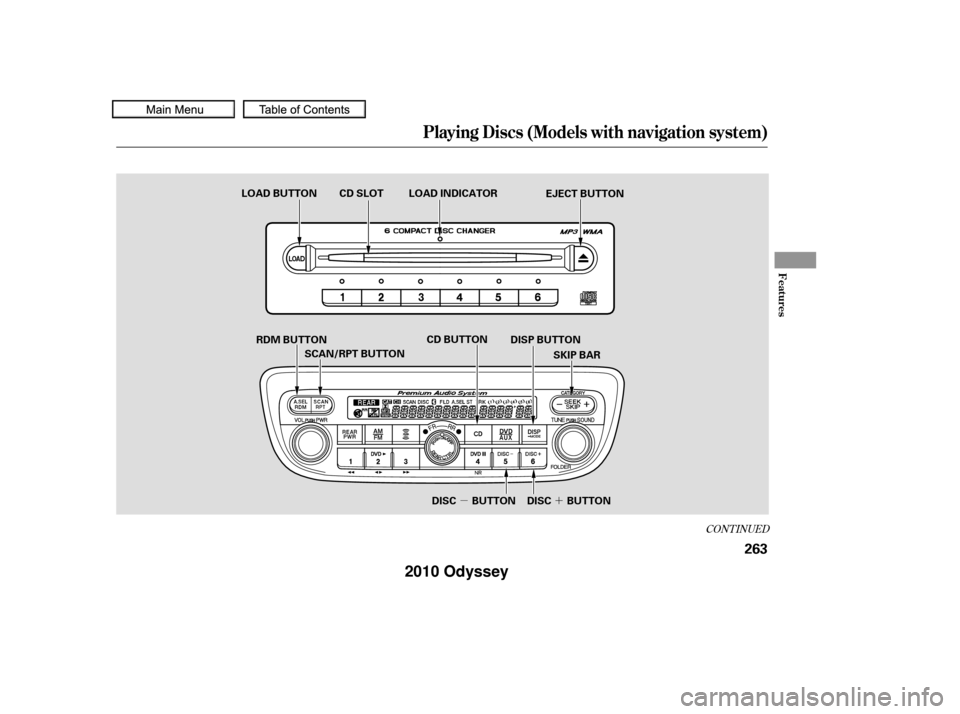

LOAD BUTTONLOAD INDICATOR
CD SLOT
EJECT BUTTON
SCAN/RPT BUTTON
RDM BUTTON
DISP BUTTON
SKIP BAR
DISC BUTTON DISC BUTTON
CD BUTTON
——
y
y
(yy
2010 Odyssey

µ
µ
µ
µ
µ
µ
µ
µ
Your vehicle’s audio system has an
in-dash disc changer that holds up to
six discs. You operate this disc
changer with the same controls used
f or the radio. To operate the disc
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
Video CDs and DVDs do not work in
this unit.The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
The specif ications f or compatible
WMA f iles are: Sampling f requency:
32/44.1/48 kHz
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers Bitrate:
48/64/80/96/128/160/192 kbps
NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED FORMAT,
andthenskipstothenextfile.
Operating the CD Changer
Playing Discs (Models with navigation system)
264
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
