2010 HONDA CIVIC Owners Manual

Avoid dropping or throwing the
transmitter.If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Do not immerse the transmitter in
any liquid.
Protect the transmitter from
extreme temperature.
1. 2.
CONT INUED
Replacing the Transmitter Battery
Remote Transmitter Care
Remote Transmitter
Inst rument s and Cont rols
91
SCREW
Table of Contents

´
Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover. Remove the old battery from the
back of the inner cover, and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing down), then
insert it into the back of the cover.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
Install the parts in reverse order.
3. 4. 5.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to the
f ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept any
interf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing two
conditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may cause
undesired operation of the device.
Remote Transmitter
92
TAB
BATTERY
Table of Contents

µ
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 11 13
Make all adjustments bef ore you
start driving.
To adjust the seat f orward or
backward, pull up on the bar under
the seat cushion’s f ront edge. Move
the seat to the desired position, and
releasethebar.Trytomovetheseat
to make sure it is locked in position.Once a seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position.
To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
FrontSeatAdjustments
Seats
Inst rument s and Cont rols
93
Table of Contents

See page f or important saf etyinf ormation and a warning aboutimproperly positioning head restraints. 13
The height of your driver’s seat is
adjustable. To raise the seat,
repeatedly pull up the lever on the
outside of the seat cushion. To lower
the seat, push the lever down
repeatedly. Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom the likelihood of
whiplash and other injuries.
They are most ef f ective when you
adjust them so the center of the back
of the occupant’s head rests against
the center of the restraint.
Driver’s Seat Height Adjustment Head Restraints
Seats
94
Table of Contents

CONT INUED
To remove a head restraint f or
cleaning or repair, pull it up as f ar as
it will go. Push the release button,
then pull the restraint out of the seat-
back.
When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
Make sure the head restraint locks
in position when you reinstall it.
When a passenger is seated in the
rear center seating position, the
center head restraint should be
adjusted up or down, to match the
passenger’s height.
The head restraints adjust f or height.
You need both hands to adjust a
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
Seats
Removing t he Head Rest raint
A djust ing t he Head Rest raint
Inst rument s and Cont rols
95
Rear Center Position
Front
RELEASE BUTTON
SEAT-BACK CUSHION
LEGS RELEASE BUTTON SEAT-BACKCUSHION
LEG
Failure to reinstall the head
restraints can result in severe
injury during a crash.
Always replace the head
restraints before driving.
Table of Contents

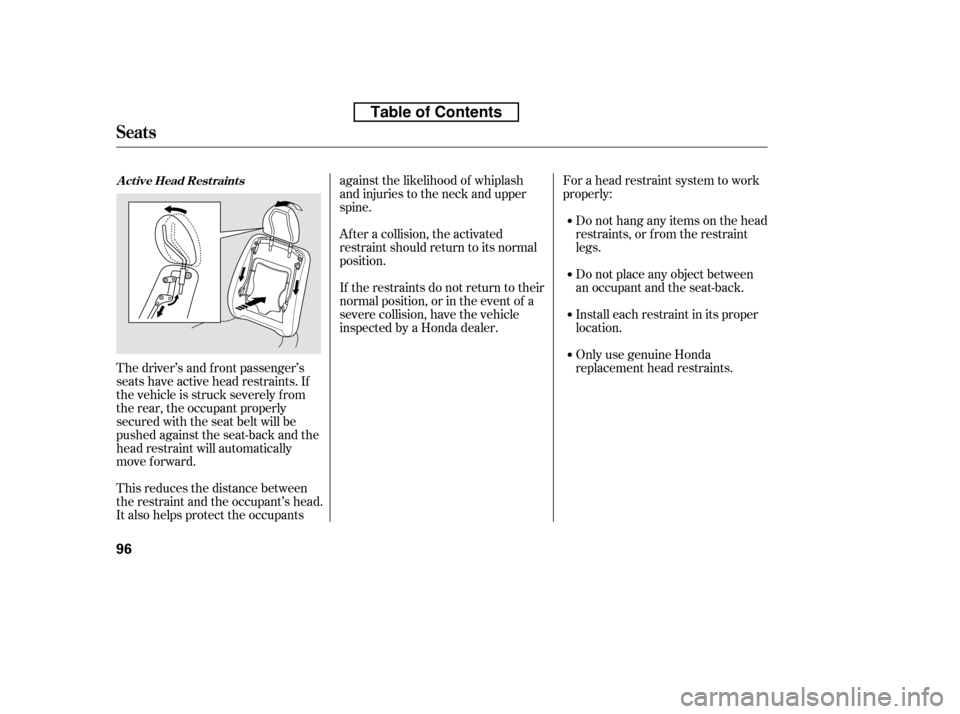

The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.
This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupantsagainst the likelihood of whiplash
and injuries to the neck and upper
spine.
For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
Af ter a collision, the activated
restraint should return to its normal
position.
Seats
A ct ive Head Rest raint s
96
Table of Contents

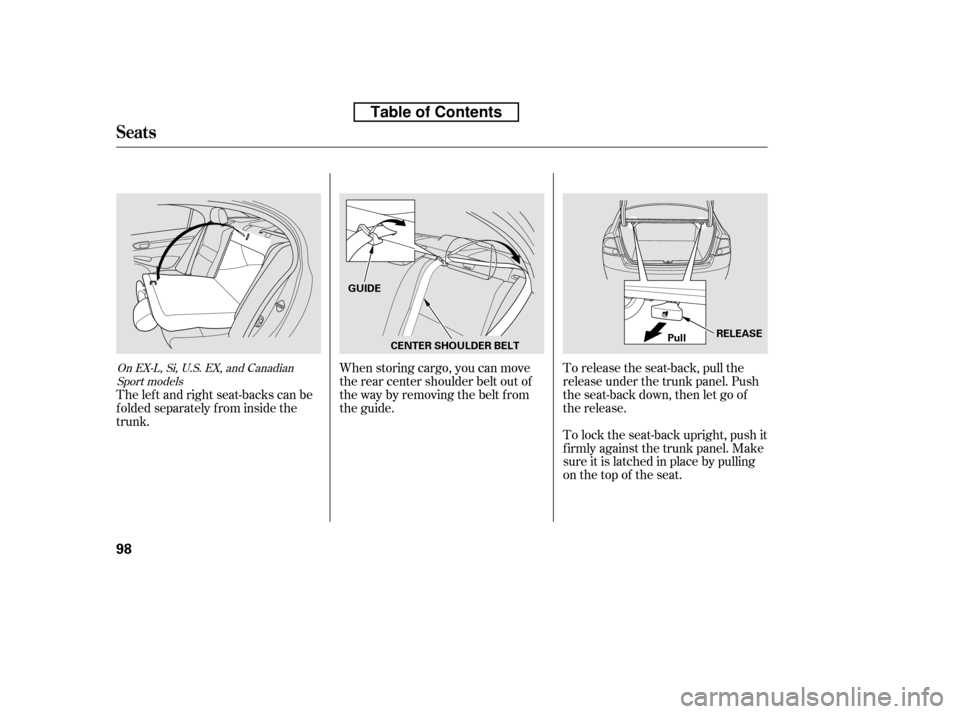

The back of the rear seat folds down,
giving you direct access to the trunk.
The seat-back is released f rom inside
the trunk.
Theseat-backcanbefoldeddownas
one piece.
To use the console lid as an armrest,
slide it to one of its three positions. On EX-L, Si, U.S. EX, and Canadian
Sport models, the rear seat armrest
is in the center of the rear seat. Pivot
it down to use it.
CONT INUED
On DX, U.S. LX, LX-S, and Canadian
DX-G models
If equipped
Folding Rear Seat
Armrest
Seats
Inst rument s and Cont rols
97
Table of Contents

When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt f rom
the guide.To lock the seat-back upright, push it
firmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.
To release the seat-back, pull the
release under the trunk panel. Push
the seat-back down, then let go of
the release.
The lef t and right seat-backs can be
f olded separately f rom inside the
trunk.On EX-L, Si, U.S. EX, and Canadian
Sport models
Seats
98
GUIDE
CENTER SHOULDER BELT Pull
RELEASE
