Service and Maintenance 10-9
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your retailer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 25899727 A3138C
Engine Oil Filter
2.4L L4 Engine 12605566 PF457G
3.0L V6 Engine 89017524 PF48
Passenger Compartment Air Filter Element 19130294 CF177
Spark Plugs
2.4L L4 Engine 12620540 41-108
3.0L V6 Engine 12622561 41-109
Wiper Blades
Driver Side –60 cm (23.6 in) 20794123 —
Passenger Side –42.5 cm (16.7 in) 20794124 —
Rear –32.5 cm (12.8 in) 25788783 —

Technical Data 11-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 11-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 11-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 11-2
Engine Drive Belt Routing . . . . 11-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 11‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

11-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Engine Cooling System 2.4L L4 Engine 7.8 L 8.2 qt
3.0L V6 Engine 10.2 L 10.8 qt
Engine Oil with Filter 2.4L L4 Engine 4.7 L 5.0 qt
3.0L V6 Engine 5.7 L 6.0 qt
Fuel Tank 2.4L L4 Engine 71.1 L 18.8 gal
3.0L V6 Engine 79.1 L 20.9 gal

Technical Data 11-3
ApplicationCapacities
Metric English
Transmission Fluid (Drain and Refill)
2.4L L4 6–Speed Automatic* 8.5 L 9.0 qt
3.0L V6 6–Speed Automatic* 9.0 L 9.5 qt
Wheel Nut Torque 170 Y125 ft lb
*See Automatic Transmission Fluid
on page 9‑13for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.4L L4 WAutomatic 0.9 mm (0.035 in)
3.0L V6 YAutomatic 1.1 mm (0.043 in)

11-4 Technical Data
Engine Drive Belt Routing
2.4L L4 Engine
3.0L V6 Engine

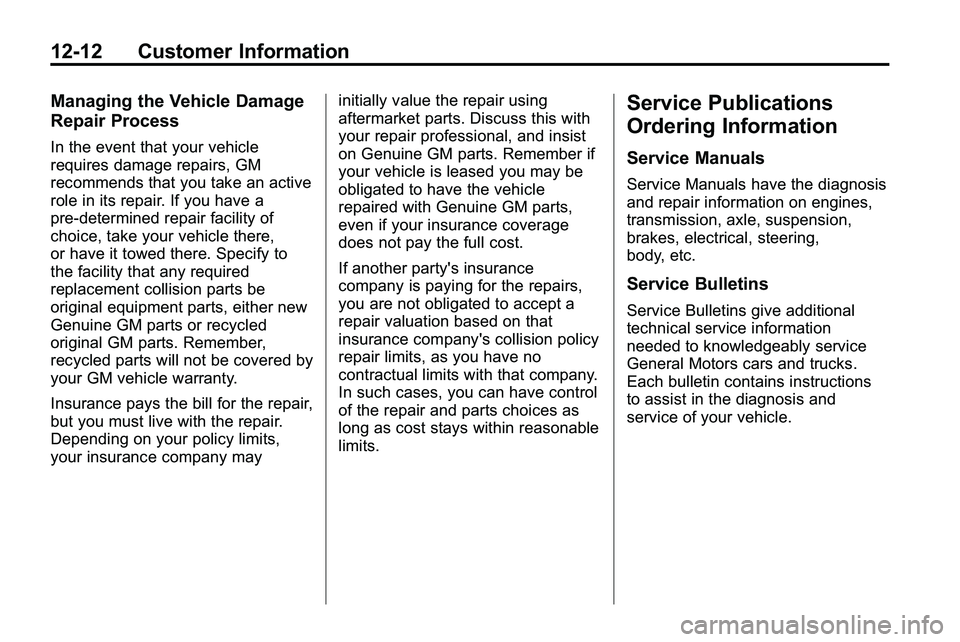

12-12 Customer Information
