2010 FORD TRANSIT CONNECT bluetooth

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 20
AM/FM stereo 20
AM/FM stereo with CD 21
Auxiliary input jack (Line in) 24
Bluetooth system 25
Climate Controls 36
Manual heating and air conditioning 36
Rear window defroster 38
Lights 39
Headlamps 39
Turn signal control 42
Bulb replacement 43
Driver Controls 51
Windshield wiper/washer control 51
Steering wheel adjustment 52
Power windows 54
Mirrors 55
Speed control 56
Locks and Security 62
Keys 62
Anti-theft system 67
Table of Contents
1
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

FADE/BAL:Press to toggle between fade and balance adjustments.
Once the desired selection appears in the display, press
to adjust
the audio between front (F) and back (B) and left (L) and right (R)
speakers.
Extra Features
AUX:Press to access auxiliary input jack mode and play music from a
portable player over the vehicle speakers.
(Phone): If your vehicle is equipped with theBluetoothsystem,
refer toBluetooth hands free systemlater in this chapter for more
information. If your vehicle is not equipped withBluetooth, this control
will not be operational.
MENU:Press repeatedly to access the following features:
MAN:Press
oror to manually advance down or up the chosen
frequency band.
SCAN:Press
orfor a brief sampling of radio stations or CD
tracks.
SHUFFLE CD:Select to shuffle the tracks on the current CD.
REPEAT CD:Select to repeat the current CD.
COMP(Compression): Select to bring soft and loud CD passages
together for a more consistent listening level.
CLOCK 24H:Press
to toggle between a 12 and 24 hour clock
display.
AVC:Press
orto decrease/increase the level of automatic volume
control.
ADV MENU:When ADV MENU (Advanced menu) appears in the
display, press and hold MENU to access the following features:
•NEWS ON/OFF:News features are not available in the U.S. and
Canada markets.
•CLIP ON/OFF:Press to turn nominal volume levels on/off.
•VEHICLE ID:Press to view the vehicle’s VIN number.
•BT ON/OFF:Press to turn Bluetooth ON/OFF (if equipped). Refer to
Bluetooth hands free systemlater in this chapter for more
information
Entertainment Systems
23
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
BLUETOOTHHANDS-FREE SYSTEM (IF EQUIPPED)
Your vehicle may be equipped withBluetooth, a wireless technology
which works with your cellular phone to allow you to send and receive
calls in a hands-free manner. Your cellular phone must beBluetooth
enabled and also be connected (bonded or paired) to the vehicle’s
system. These features allow you to have hands-free conversations while
enabling you to focus your attention on the road.
WARNING:Use extreme caution when using any device or
feature that may take your attention off the road. Your primary
responsibility is the safe operation of the vehicle. Only use
non-essential features and devices when it is safe to do so.
Entertainment Systems
25
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

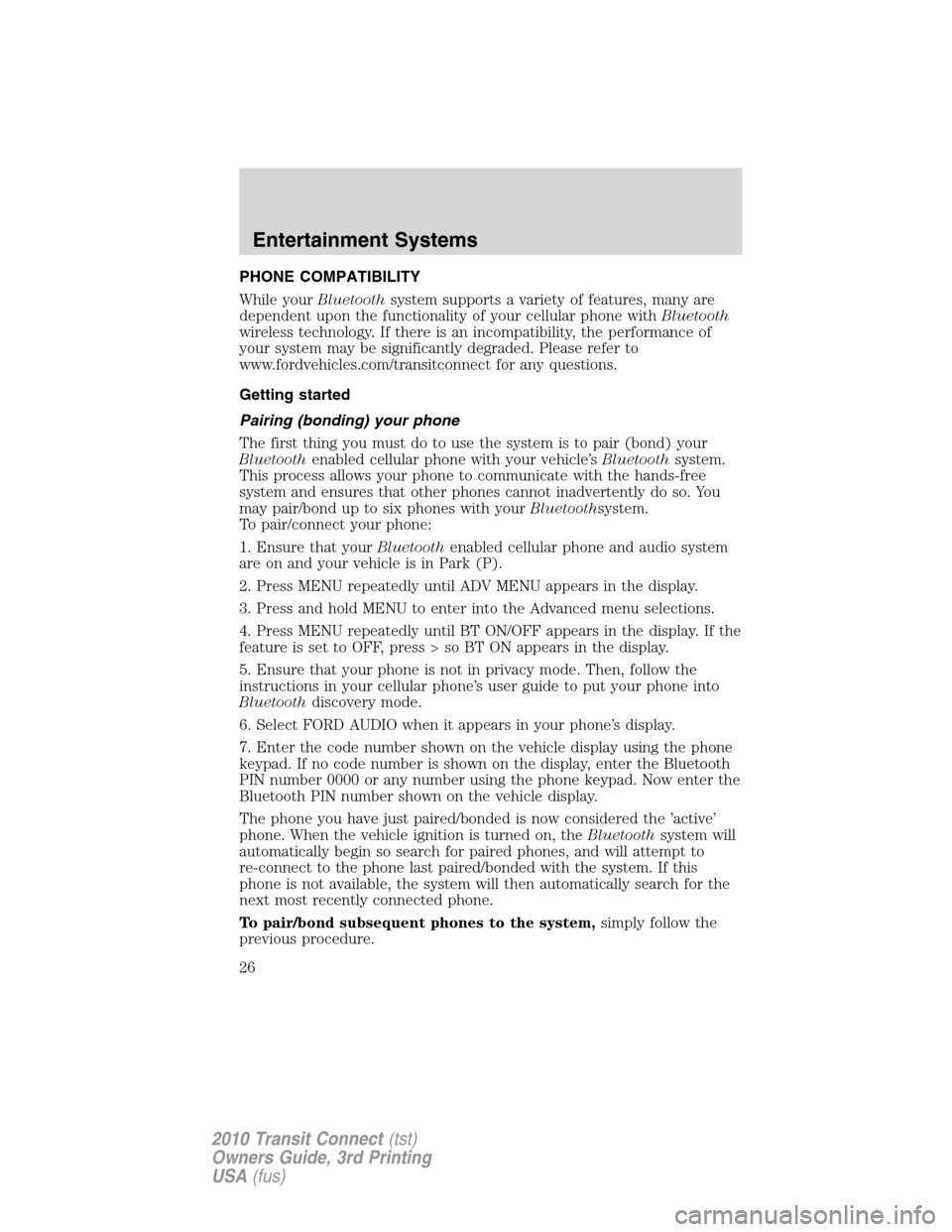

PHONE COMPATIBILITY
While yourBluetoothsystem supports a variety of features, many are
dependent upon the functionality of your cellular phone withBluetooth
wireless technology. If there is an incompatibility, the performance of
your system may be significantly degraded. Please refer to
www.fordvehicles.com/transitconnect for any questions.
Getting started
Pairing (bonding) your phone
The first thing you must do to use the system is to pair (bond) your
Bluetoothenabled cellular phone with your vehicle’sBluetoothsystem.
This process allows your phone to communicate with the hands-free
system and ensures that other phones cannot inadvertently do so. You
may pair/bond up to six phones with yourBluetoothsystem.
To pair/connect your phone:
1. Ensure that yourBluetoothenabled cellular phone and audio system
are on and your vehicle is in Park (P).
2. Press MENU repeatedly until ADV MENU appears in the display.
3. Press and hold MENU to enter into the Advanced menu selections.
4. Press MENU repeatedly until BT ON/OFF appears in the display. If the
feature is set to OFF, press > so BT ON appears in the display.
5. Ensure that your phone is not in privacy mode. Then, follow the
instructions in your cellular phone’s user guide to put your phone into
Bluetoothdiscovery mode.
6. Select FORD AUDIO when it appears in your phone’s display.
7. Enter the code number shown on the vehicle display using the phone
keypad. If no code number is shown on the display, enter the Bluetooth
PIN number 0000 or any number using the phone keypad. Now enter the
Bluetooth PIN number shown on the vehicle display.
The phone you have just paired/bonded is now considered the ’active’
phone. When the vehicle ignition is turned on, theBluetoothsystem will
automatically begin so search for paired phones, and will attempt to
re-connect to the phone last paired/bonded with the system. If this
phone is not available, the system will then automatically search for the
next most recently connected phone.
To pair/bond subsequent phones to the system,simply follow the
previous procedure.
Entertainment Systems
26
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Phonebook entries:Once theBluetoothsystem connects to your
phone, it will attempt to automatically download your Phonebook entries
so that you can easily access them later. The maximum number of
entries vary depending on the information attached to the number.
Voice recognition
YourBluetoothsystem is equipped with a voice recognition system
which allows you to perform some operations by speaking certain
commands to the system. The system will respond with a series of beeps,
confirmations or questions when necessary. At any time, you can say,
“Cancel” if you do not wish to continue, or “Help” for a list of possible
voice commands in your current mode. Speak the command clearly to
ensure that the system is able to recognize and perform the desired
function.
For best system performance:
•After pressing VOICE on the
stalk, wait until the beep is heard
before speaking a command. Any
command spoken prior to this will
not register with the system.
•Speak naturally without large
pauses in between words.
•Ensure that the interior of the
vehicle is as quiet as possible.
Wind noise from open windows and road vibrations may prevent the
system from correctly recognizing spoken voice commands.
At any time, you can say these commands:
•Phone•Radio
•CD player•Cancel
•External device•Help
External device:Auxiliary input jack
Note:This system is language specific. If you would like the system to
operate in another language, please contact your authorized dealer.
VOICE
SEEK
VOL
VOL
MODE
Entertainment Systems
27
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Play directory:Allows you to let the system tell you of all the stored
radio stations.
Note:Using the system with the engine off will drain the battery.
Phone voice commands
Press the VOICE button on the stalk. After the tone, say, “Phone” and
then any of the following commands:
•Mobile name
1•Dial name1
•Dial number1•Delete name
•Delete directory•Play directory
•Store name•Redial
1
•Accept calls•Reject calls
•Help
1Can be used as a shortcut.
Store name:When you say, “Store name”, the system will ask you for
the name. Say the name. The system will then ask you for the number
associated with that name. Say the number.
Delete name:Allows you to delete a stored name.
Delete directory:Allows you to delete all stored names at once.
Play directory:Allows you to let the system tell you of all the stored
names.
Note:Using the system with the engine off will drain the battery.
External device commands (if equipped)
Press the VOICE button on the stalk. After the tone, say, “External
device” and then any of the following commands:
•Help•Line in
•Play
Phone features
Phonebook
If yourBluetoothenabled cellular phone supports the feature, you can
download your cell phone’s phone book to theBluetoothsystem.
Depending on your phone book entry, different categories may be
displayed in the audio display, such as:
•
or Phone
•
or Mobile or M
Entertainment Systems
30
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

•or Home or H
•
or Office or O
•
or Fax or F
Making a call using voice commands
To make a hands-free call using your system:
1. Press the VOICE button on the stalk.
2. When the tone sounds, say, “Phone”. The system will confirm you are
in phone mode.
3. Say, “Dial name” or “Dial number”.
4. When prompted, say the desired name or phone number. The system
will ask you to confirm. If you confirm, the call will be placed. Otherwise,
the call will be cancelled.
Making a call using your phone book entries
To access your phone book entries viaBluetooth:
1. Press the
button on your audio system.
2. Press MENU repeatedly until PHONEBOOK appears in the display.
3. Press the SEEK switch on the back of the stalk to scroll through all
possible listings.
Note:Press and hold SEEK to advance to the next letter in the
alphabet.
4. When the desired contact appears in the display, press
to initiate
the call.
Ending a call
At any time, you can end an active call by pressing
on the audio
system.
To exit phone mode(and end an active call if present), CD, AM/FM,
VOL ON/OFF, or
on the audio system.
Answering an incoming call
Accept the callby pressing the
button on the audio system. The
call will be transferred to hands-free mode.
Ignore the callby doing nothing.
Reject the callby pressing CD, AM/FM or VOL ON/OFF on the audio
system.
Entertainment Systems
31
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Answering a second incoming call
If another calls comes in while you are already on an active call, you will
hear a beep. You have the choice to end your current call and accept the
incoming call.
To accept the incoming call,press the
button on the audio
system.
To reject the incoming call,by pressing CD or AM/FM on the audio
system.
Redialing a number
To redial a number:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly to cycle through CALL OUT, CALL IN,
MISSED, INCOMING or OUTGOING appears in the display.
3. When the desired selection appears in the display, press < or > to
access the desired number.
4. When the desired number appears in the display, press
for the
system to initiate the call.
To redial a number using voice commands:
1. Press VOICE on the stalk.
2. After the tone, say, “Phone”.
3. When prompted, say, “Redial”. The system will attempt to redial the
last number.
Changing the active phone
With yourBluetooth system, you can pair (bond) and save up to six
phones. At any time, you can choose to make another one of your saved
phones the ’active’ phone with which the system will connect. To select a
another paired (bonded) phone as your active phone:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly until ACTIVE appears in the display.
3. Press < or > on the audio system to scroll through the list of paired
(bonded) phones.
4. When the desired selection appears in the display, press MENU.
Entertainment Systems
32
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
