2010 FORD TRANSIT CONNECT Owners Manual

MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine
Engine air filter element 9T16-9601-AA
Oil filter FL-910
1
Battery BXT-96-R
Spark plugs2
1
Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
241
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftSuper DOT
4 Motor Vehicle Brake
FluidYS4Z-19542-AA /
ESD-M6C57-A or
WSS-M6C57-A2
Door latch, hood latch,
auxiliary hood latch,
seat tracks.— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid7.1 quarts
(6.7L)
1
Motorcraft
MERCONLV AT F
2
XT-10-QLV /
MERCONLV
Engine oil 4.5 quarts (4.3L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)
3
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Maintenance and Specifications
242
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine coolant 6.1 quarts (5.7L)MotorcraftSpecialty
Orange Engine Coolant
with bittering agent
(US) /
MotorcraftSpecialty
Orange Engine Coolant
(Canada)
4
VC-3-B (US)
CVC-3-B (Canada) /
WSS-M97B44-D
Cooling system stop
leak pellets—MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Windshield washer
fluidTop-off as
neededMotorcraftPremium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
243
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Fuel tank15.1 gallons
(57.1 L)——
1Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenanceto determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.
Maintenance and Specifications
244
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

ENGINE DATA
Engine 2.0L I4 engine
Cubic inches 121
Required fuel 87 octane
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 10.0:1
Spark plug gap .051 inch +/- .002
(1.3 mm +/- .05)
Engine drivebelt routing
Maintenance and Specifications
245
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

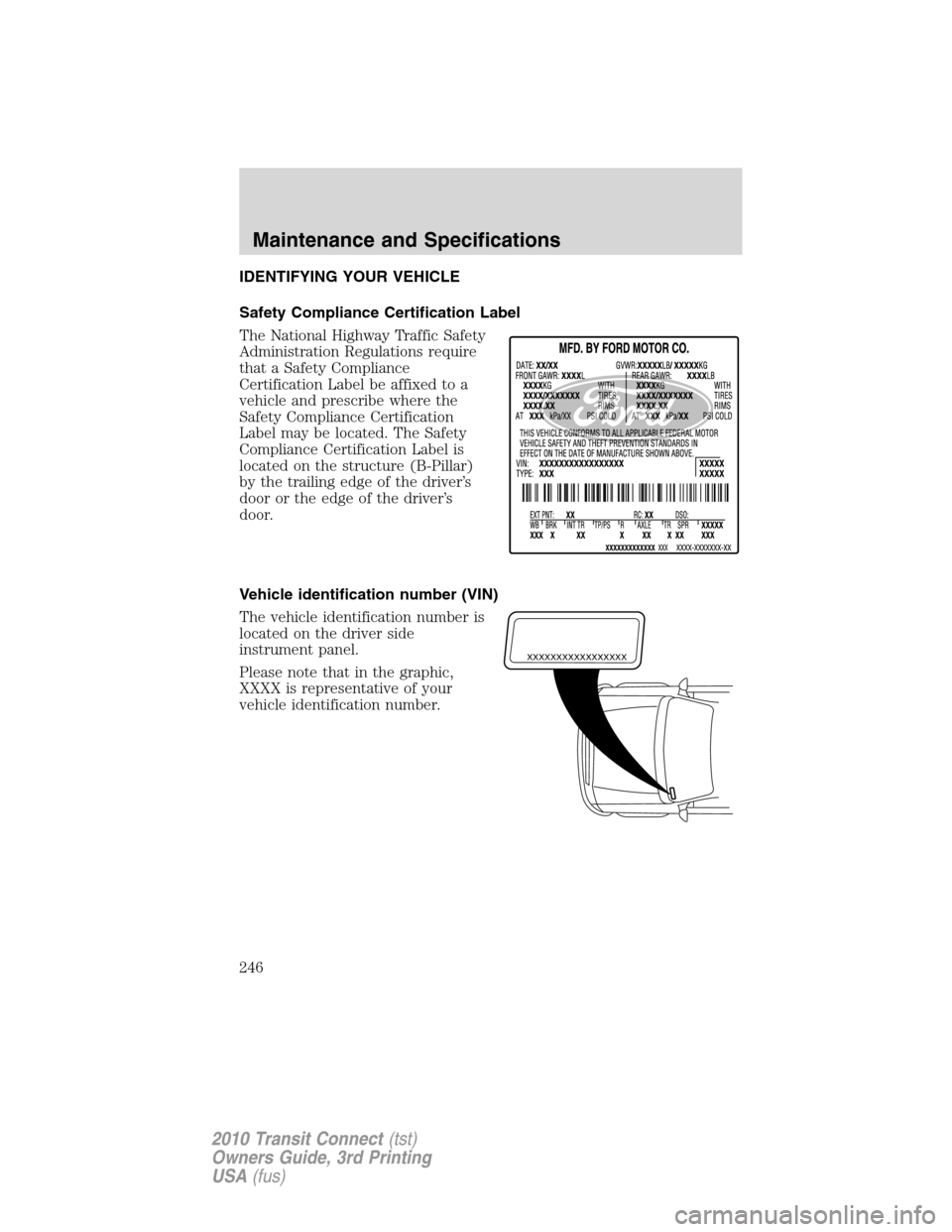

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
246
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4F27E) D2
Maintenance and Specifications
247
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Side window deflectors
Splash guards
Interior style
Electrochromic compass/temperature interior mirrors
All-weather floor mats
Carpeted floor mats
Lifestyle
Roof racks and accessories
Peace of mind
Remote start
Vehicle security systems
