Fuse/Relay
LocationFuse Amp
RatingPower Circuits
58 — Not used
59 Half ISO relay Left halogen headlamp relay
60 Half ISO relay Right halogen headlamp relay
61 — Not used
62 — Not used
63 Half ISO relay Daytime running lamps (DRL) 1
relay
64 Half ISO relay DRL 2 high beam control relay
65 G8VA relay Run/start relay (PEPS)
66 — Not used
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensor, refer toChanging tires with TPMSin theTires,
Wheels and Loadingchapter. Replace the spare tire with a road tire as
soon as possible.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire Pressure Monitoring System (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Roadside Emergencies
287
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

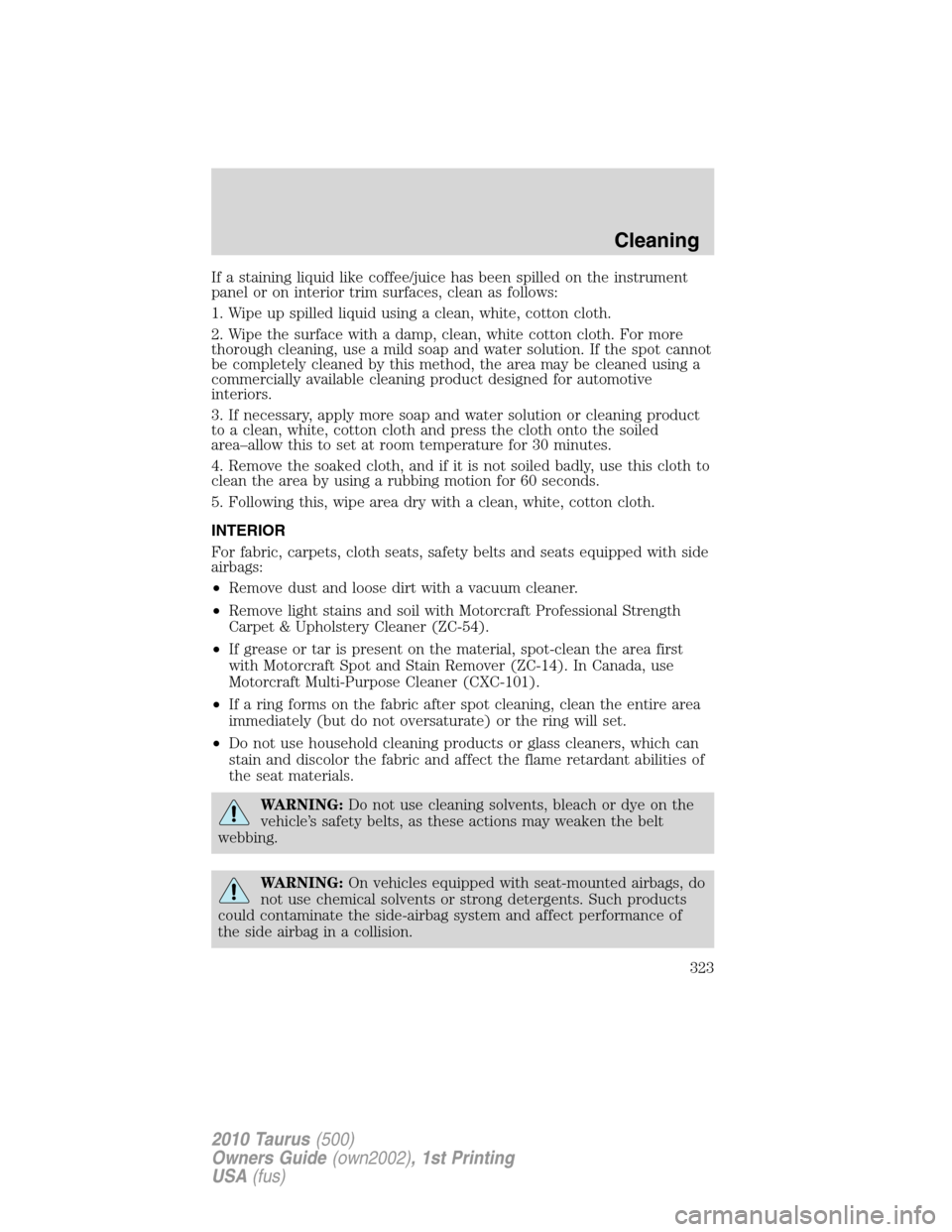

If a staining liquid like coffee/juice has been spilled on the instrument
panel or on interior trim surfaces, clean as follows:
1. Wipe up spilled liquid using a clean, white, cotton cloth.
2. Wipe the surface with a damp, clean, white cotton cloth. For more
thorough cleaning, use a mild soap and water solution. If the spot cannot
be completely cleaned by this method, the area may be cleaned using a
commercially available cleaning product designed for automotive
interiors.
3. If necessary, apply more soap and water solution or cleaning product
to a clean, white, cotton cloth and press the cloth onto the soiled
area–allow this to set at room temperature for 30 minutes.
4. Remove the soaked cloth, and if it is not soiled badly, use this cloth to
clean the area by using a rubbing motion for 60 seconds.
5. Following this, wipe area dry with a clean, white, cotton cloth.
INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Motorcraft Professional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover (ZC-14). In Canada, use
Motorcraft Multi-Purpose Cleaner (CXC-101).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
WARNING:Do not use cleaning solvents, bleach or dye on the
vehicle’s safety belts, as these actions may weaken the belt
webbing.
WARNING:On vehicles equipped with seat-mounted airbags, do
not use chemical solvents or strong detergents. Such products
could contaminate the side-airbag system and affect performance of
the side airbag in a collision.
Cleaning
323
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

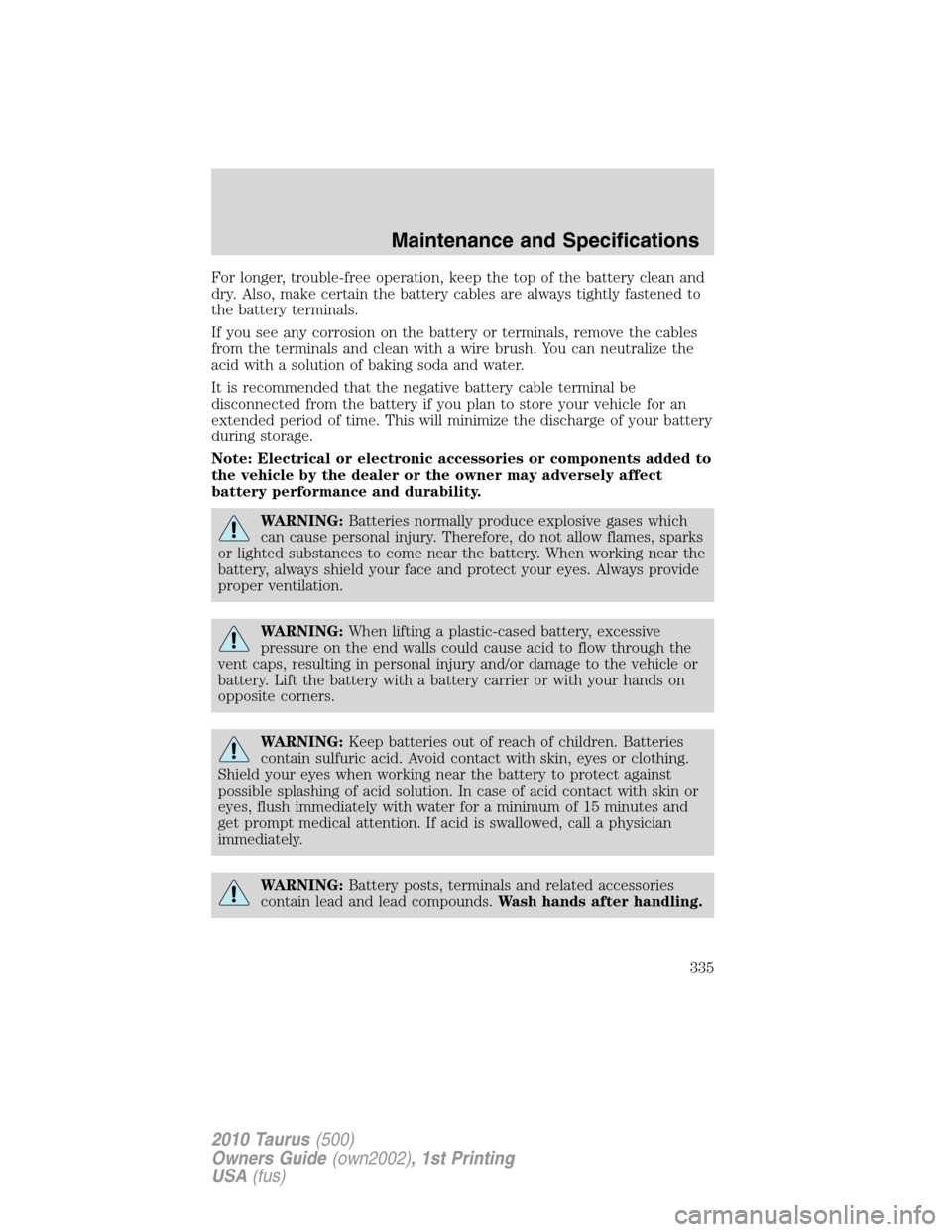

For longer, trouble-free operation, keep the top of the battery clean and
dry. Also, make certain the battery cables are always tightly fastened to
the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
It is recommended that the negative battery cable terminal be
disconnected from the battery if you plan to store your vehicle for an
extended period of time. This will minimize the discharge of your battery
during storage.
Note: Electrical or electronic accessories or components added to
the vehicle by the dealer or the owner may adversely affect
battery performance and durability.
WARNING:Batteries normally produce explosive gases which
can cause personal injury. Therefore, do not allow flames, sparks
or lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
WARNING:When lifting a plastic-cased battery, excessive
pressure on the end walls could cause acid to flow through the
vent caps, resulting in personal injury and/or damage to the vehicle or
battery. Lift the battery with a battery carrier or with your hands on
opposite corners.
WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Maintenance and Specifications
335
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Maintenance and Specifications
339
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
•The service engine soon
indicator may come on. For more
information on the service engine soon indicator, refer toWarning
lights and chimesin theInstrument Clusterchapter.
Refilling with a portable fuel container
With the Easy Fuel™ “no cap” fuel system, use the following directions
when filling from a portable fuel container:
WARNING:Do not insert the nozzle of portable fuel containers
or aftermarket funnels into the Easy Fuel™ system. This could
damage the fuel system and its seal, and may cause fuel to run onto
the ground instead of filling the tank, which could result in serious
personal injury.
WARNING:Do not try to pry open or push open the Easy
Fuel™ system with foreign objects. This could damage the fuel
system and its seal and cause injury to you or others.
When filling the vehicle’s fuel tank from a portable fuel container, use the
funnel included with the vehicle.
Maintenance and Specifications
347
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

•Have the items listed inscheduled maintenance information
performed according to the specified schedule.
The scheduled maintenance items listed inscheduled maintenance
informationare essential to the life and performance of your vehicle
and to its emissions system.
If other than Ford, Motorcraft or Ford-authorized parts are used for
maintenance replacements or for service of components affecting
emission control, such non-Ford parts should be equivalent to genuine
Ford Motor Company parts in performance and durability.
WARNING:Do not park, idle, or drive your vehicle in dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
Illumination of the service engine soon
indicator, charging system
warning light or the temperature warning light, fluid leaks, strange odors,
smoke or loss of engine power could indicate that the emission control
system is not working properly.
An improperly operating or damaged exhaust system may allow exhaust
to enter the vehicle. Have a damaged or improperly operating exhaust
system inspected and repaired immediately.
WARNING:Exhaust leaks may result in entry of harmful and
potentially lethal fumes into the passenger compartment.
Do not make any unauthorized changes to your vehicle or engine. By
law, vehicle owners and anyone who manufactures, repairs, services,
sells, leases, trades vehicles, or supervises a fleet of vehicles are not
permitted to intentionally remove an emission control device or prevent
it from working. Information about your vehicle’s emission system is on
the Vehicle Emission Control Information Decal located on or near the
engine. This decal also lists engine displacement.
Please consult yourWarranty Guide/Customer Information Guidefor
complete emission warranty information.
On board diagnostics (OBD-II)
Your vehicle is equipped with a computer that monitors the engine’s
emission control system. This system is commonly known as the On
Board Diagnostics System (OBD-II). The OBD-II system protects the
environment by ensuring that your vehicle continues to meet
Maintenance and Specifications
352
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ..........................82
Adaptive Cruise Control .............86
AdvanceTrac ..............................244
AdvanceTrac Sport Mode .........248
Air cleaner filter ...............357–359
Air conditioning ....................48, 51
automatic temperature
control system ..........................53
manual heating and air
conditioning system .................48
Airbag supplemental restraint
system ................171–172, 180, 182
and child safety seats ............173
description ..............172, 180, 182
disposal ....................................186
driver airbag ............174, 181, 183
indicator light .................180, 185
operation .................174, 181, 183
passenger airbag .....174, 181, 183
side airbag ...............................180
All Wheel Drive (AWD),
driving off road .........................269
Ambient mood/lighting ...............66
AM/FM .........................................30
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................242
Anti-theft system ..............129, 137
arming the system ..................138
disarming a triggered
system .....................................139
triggering .................................139
Audio system (see Radio) .........30Automatic transaxle
fluid, refill capacities ..............360
fluid, specification ..................360
Automatic transmission
driving an automatic
overdrive .........................251, 254
fluid, adding ............................355
fluid, checking ........................355
Selectshift (SST) ....................255
Auxiliary input jack (Line in) ....39
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....304
maintenance-free ....................334
replacement, specifications ...359
servicing ..................................334
Belt-Minder
.............................167
Blind Spot Information
System .......................................263
Booster seats .............................199
Brakes ........................................241
anti-lock ...................................242
anti-lock brake system (ABS)
warning light ...........................242
fluid, checking and adding ....355
fluid, refill capacities ..............360
fluid, specifications .................360
lubricant specifications ..........360
parking ....................................243
shift interlock ..........................250
Bulbs ............................................67
C
Capacities for refilling fluids ....360
Car2U garage door opener .......102
Cargo cover .................................82
Index
372
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Emergencies, roadside
jump-starting ..........................304
running out of fuel .........303, 347
Emission control system ..........351
Engine ........................................363
cleaning ...................................320
coolant .....................................336
fail-safe cooling .......................341
idle speed control ...................334
lubrication specifications .......360
refill capacities ........................360
service points ..................328–329
Engine block heater .................240
Engine oil ..................................331
change oil soon warning,
message center .......................331
checking and adding ..............331
dipstick ....................................331
filter, specifications ........333, 359
recommendations ...................333
refill capacities ........................360
specifications ..........................360
Event data recording ....................7
Exhaust fumes ..........................239
F
Fail safe cooling ........................341
Fleet MyKey programming ......134
Fluid capacities .........................360
Four-Wheel Drive vehicles
driving off road .......................270
Fuel ............................................342
calculating fuel
economy ............................21, 348
cap ...........................................344
capacity ...................................360
choosing the right fuel ...........345comparisons with EPA fuel
economy estimates .................351
detergent in fuel .....................346
filler funnel .............................347
filling your vehicle with
fuel ...........................342, 344, 348
filter, specifications ........342, 359
improving fuel economy ........348
octane rating ...................346, 363
quality ......................................346
running out of fuel .........303, 347
safety information relating to
automotive fuels .....................342
Fuses ..........................................279
G
Garage door opener ....................97
Gas cap (see Fuel cap) ............344
Gas mileage
(see Fuel economy) .................348
Gauges .........................................17
H
Hazard flashers .........................278
Headlamps ...................................59
aiming ........................................64
autolamp system .......................59
bulb specifications ....................67
daytime running lights .............63
flash to pass ..............................63
high beam .................................60
replacing bulbs .........................68
turning on and off ....................59
Heating
heating and air conditioning
system ...........................48, 51, 53
Homelink wireless control
system ..........................................98
Index
374
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
