IMPORTANT TIRE INFORMATION
Your SVT vehicle is equipped with unique wheels and tires designed to
enhance performance. To continue providing this performance, extra
care must be taken when operating and maintaining your vehicle.
Wheels and Tires
TiresP255/45ZR-18 front, P285/40ZR-18 rear
(convertible only)
P255/40ZR-19 front, P285/35ZR-19 rear
(coupe only)
Wheels18 x 9.5 in. cast aluminum (convertible only)
19 x 9.5 in. forged aluminum (coupe only)
Tires
Your SVT vehicle is equipped with low profile, high performance tires
that are designed to optimize the driving dynamics you expect in a SVT
vehicle. These tires are not optimized for off-road or winter (snow or
cold weather) performance, and their ride, noise and wear characteristics
are different than non-performance tires. Also, because of their lower
profile, the tires are more susceptible to damage due to potholes and
rough roads. To ensure that your tires perform as intended, it is
important that you maintain your tires properly:
•The Shelby GT500 original equipment tires are optimized for
performance in both wet and dry conditions. Ford does not
recommend using the original equipment tires when temperatures are
below 40°F (5°C) or in snow/ice conditions.
•Do not use tire chainson the original wheels and tires of your
vehicle. The use of any type of tire chain on these tires may damage
your vehicle.
•For tire pressures, see the placard located on the B-pillar inside the
driver’s door.
•Always maintain your tire pressures according to the tire information
placard on the driver’s door jamb, using an accurate gauge.
•Tire pressures are specified “cold” and should be checked after the
vehicle has been parked for at least 3 hours. Do not reduce pressure
of warm tires.
•Check your tire pressure often to maintain it properly. Tire pressure
can diminish over time and fluctuate with temperature.
Tire information
13
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

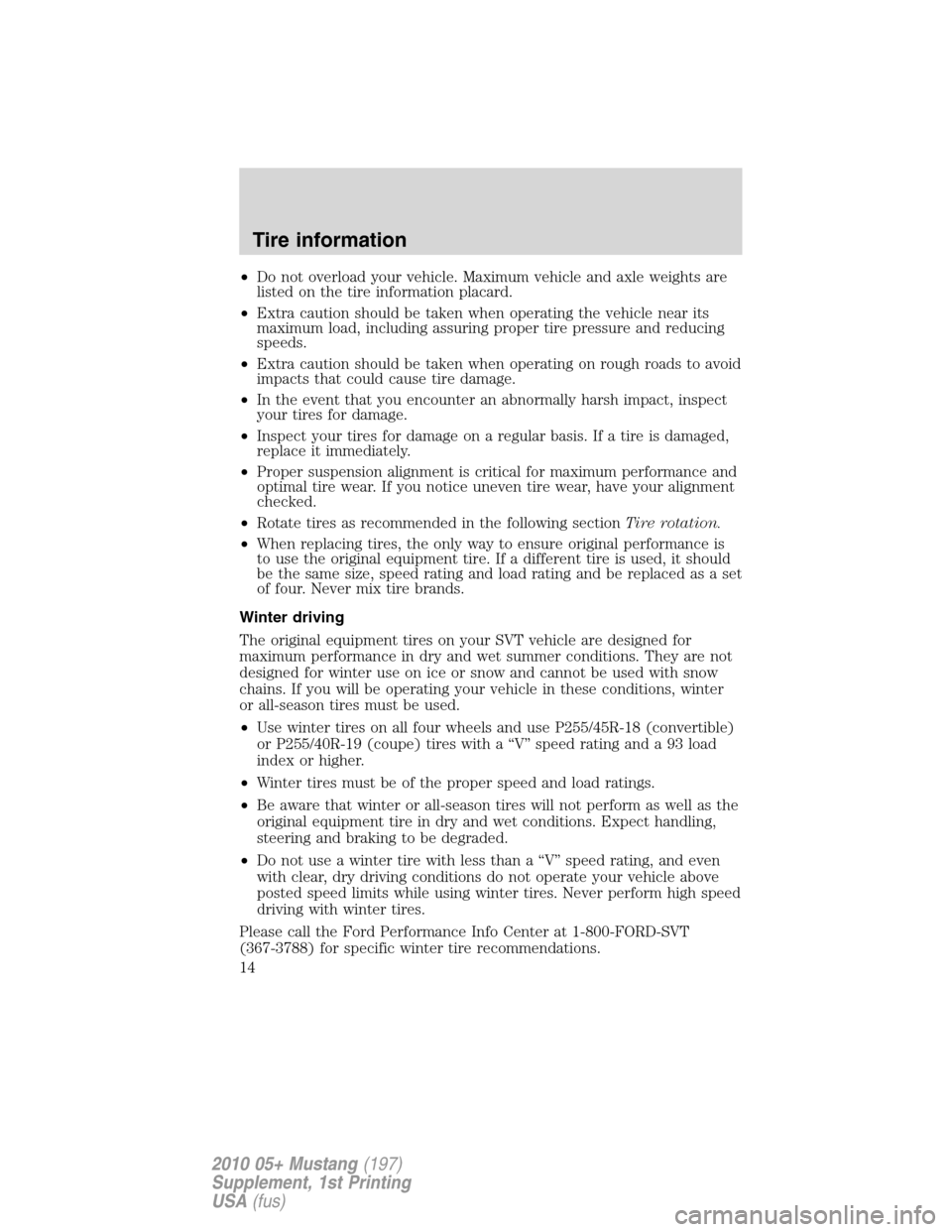

•Do not overload your vehicle. Maximum vehicle and axle weights are
listed on the tire information placard.
•Extra caution should be taken when operating the vehicle near its
maximum load, including assuring proper tire pressure and reducing
speeds.
•Extra caution should be taken when operating on rough roads to avoid
impacts that could cause tire damage.
•In the event that you encounter an abnormally harsh impact, inspect
your tires for damage.
•Inspect your tires for damage on a regular basis. If a tire is damaged,
replace it immediately.
•Proper suspension alignment is critical for maximum performance and
optimal tire wear. If you notice uneven tire wear, have your alignment
checked.
•Rotate tires as recommended in the following sectionTire rotation.
•When replacing tires, the only way to ensure original performance is
to use the original equipment tire. If a different tire is used, it should
be the same size, speed rating and load rating and be replaced as a set
of four. Never mix tire brands.
Winter driving
The original equipment tires on your SVT vehicle are designed for
maximum performance in dry and wet summer conditions. They are not
designed for winter use on ice or snow and cannot be used with snow
chains. If you will be operating your vehicle in these conditions, winter
or all-season tires must be used.
•Use winter tires on all four wheels and use P255/45R-18 (convertible)
or P255/40R-19 (coupe) tires with a “V” speed rating and a 93 load
index or higher.
•Winter tires must be of the proper speed and load ratings.
•Be aware that winter or all-season tires will not perform as well as the
original equipment tire in dry and wet conditions. Expect handling,
steering and braking to be degraded.
•Do not use a winter tire with less than a “V” speed rating, and even
with clear, dry driving conditions do not operate your vehicle above
posted speed limits while using winter tires. Never perform high speed
driving with winter tires.
Please call the Ford Performance Info Center at 1-800-FORD-SVT
(367-3788) for specific winter tire recommendations.
Tire information
14
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
