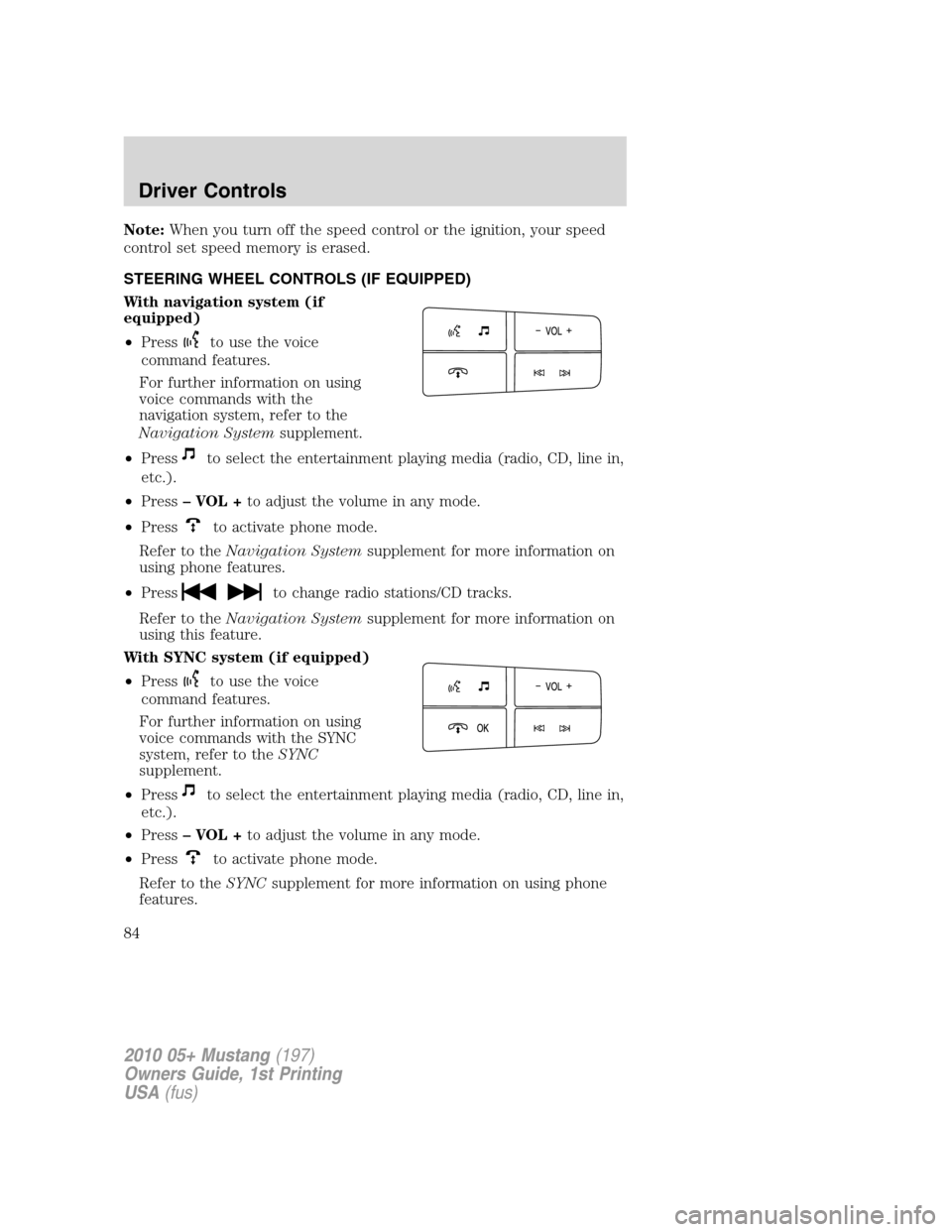

2010 FORD MUSTANG navigation system

Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
STEERING WHEEL CONTROLS (IF EQUIPPED)
With navigation system (if
equipped)
•Press
to use the voice
command features.
For further information on using
voice commands with the
navigation system, refer to the
Navigation Systemsupplement.
•Press
to select the entertainment playing media (radio, CD, line in,
etc.).
•Press– VOL +to adjust the volume in any mode.
•Press
to activate phone mode.
Refer to theNavigation Systemsupplement for more information on
using phone features.
•Press
to change radio stations/CD tracks.
Refer to theNavigation Systemsupplement for more information on
using this feature.
With SYNC system (if equipped)
•Press
to use the voice
command features.
For further information on using
voice commands with the SYNC
system, refer to theSYNC
supplement.
•Press
to select the entertainment playing media (radio, CD, line in,
etc.).
•Press– VOL +to adjust the volume in any mode.
•Press
to activate phone mode.
Refer to theSYNCsupplement for more information on using phone
features.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
84

REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the trunk, provides a
video image which appears in the
rearview mirror or on the navigation
screen (if equipped), of the area
behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display in the rearview mirror or on the navigation screen (if
equipped). The area displayed on the screen may vary according to the
vehicle orientation and/or road condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
Image delay if displayed through the rearview mirror:
When shifting out of R (Reverse) and into any other gear, the image in
the rearview mirror will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
Image delay if displayed through the Navigation screen:
After shifting out of R (Reverse) and into any gear other than P (Park),
the image in the navigation screen will remain until the vehicle speed
reaches five mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is depressed.
Note:The default setting for the rear camera delay is off. Push the
“Settings” button found on the navigation screen to set the rear camera
delay feature to on or off. Refer to theNavigation Supplementfor more
information.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Driving
214

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
11 10A Security module
12 7.5A Power mirrors
13 5A Not used (Spare)
14 10A Center information display, Electronic
finish panel, GPS
15 10A Climate control
16 15A Not used (Spare)
17 20A Power door locks
18 20A Not used (Spare)
19 25A Navigation amp
20 15A Diagnostic connector
21 15A Fog lamps
22 15A Park lamps, License lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lighting (battery saver)
26 10A Cluster (battery)
27 20A Ignition switch feed
28 5A Audio mute (Start)
29 5A Camera (Run/Start)
30 5A Not used (Spare)
31 10A Restraints Control Module (RCM)
32 10A Passenger Airbag Deactivation
Indicator (PADI), Occupant
Classification Sensor (OCS)
33 10A Not used (Spare)
34 5A Electronic stability control, Steering
angle
35 10A Auxiliary Body Module (ABM)
Run/Start
36 5A Passive Anti-Theft System (PATS)
37 10A Not used (Spare)
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
222

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Not used (Spare)
39 20A Radio/Navigation
40 20A Not used (Spare)
41 15A Accessory delay (windows, automatic
dimming rear view mirror [including
microphone and compass] and door
switch III)
42 10A Not used (Spare)
43 10A Heated seat relay coils
44 10A Not used (Spare)
45 5A Wiper relay and module, Blower relay
46 7.5A Not used (Spare)
47 30A Circuit
BreakerNot used (Spare)
48 — Accessory delay relay (windows,
automatic dimming rear view mirror
[including microphone and compass]
and door switch III)
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Do not probe the contacts for the fuses and relays in the power
distribution box as damage will occur, causing improper, or loss
of, electrical functionality.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
223

lighting up panel and
interior .......................................61
J
Jack ............................................226
positioning ...............................226
storage .....................................226
Jump-starting your vehicle ......243
K
Keyless entry system
autolock ...............................93, 95
Keys .....................................91, 104
positions of the ignition .........194
L
Lamps
autolamp system .......................59
bulb replacement
specifications chart ..................65
daytime running light ...............61
fog lamps ...................................60
headlamps .................................59
headlamps, flash to pass ..........61
instrument panel, dimming .....61
interior lamps .....................64–65
replacing bulbs .........................66
LATCH anchors .........................152
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........200
Limited slip axle (see Traction
Loc) ............................................207
Load limits .................................184
Locks ............................................92
autolock ...............................93, 95
doors ..........................................92
Lubricant specifications ...........301Lug nuts ....................................241
Lumbar support, seats .............113
M
Manual transmission .................212
fluid capacities ........................301
lubricant specifications ..........301
reverse .....................................213
Message center .....................20–22
display color ..............................24
english/metric button ...............26
MyColor display ........................24
system check button ................22
warning messages .....................29
Mirrors ...................................79–80
automatic dimming rearview
mirror ........................................80
heated ........................................54
side view mirrors (power) .......80
Motorcraft parts ........264, 283, 300
N
Navigation system .......................50
O
Octane rating ............................287
Oil (see Engine oil) ..................270
P
Parking brake ............................200
Parts (see Motorcraft parts) ....300
Passenger Occupant
Classification Sensor .................119
Power distribution box (see
Fuses) ........................................223
Power mirrors .............................80
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Index
316
