2010 FORD MUSTANG clock

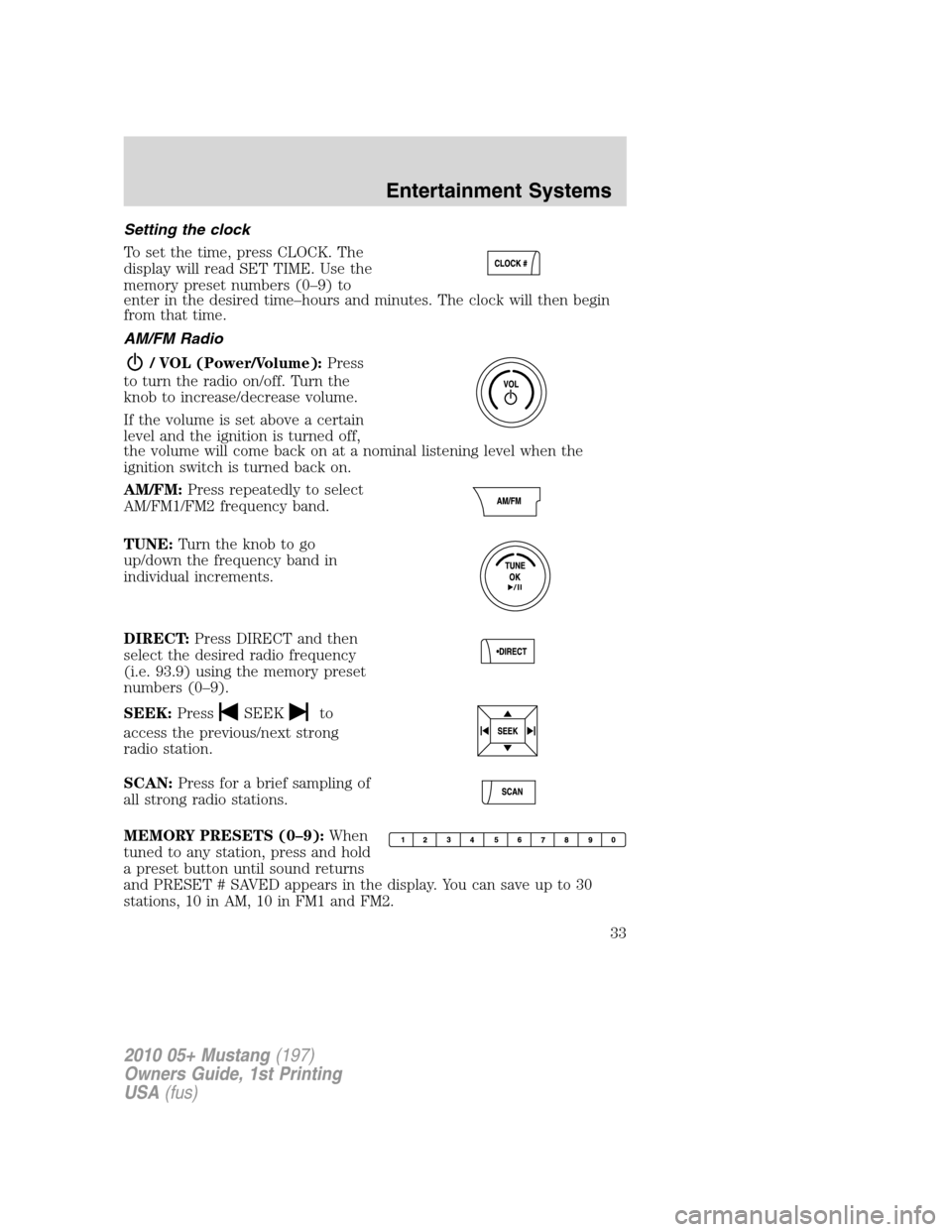

Setting the clock
To set the time, press CLOCK. The
display will read SET TIME. Use the
memory preset numbers (0–9) to
enter in the desired time–hours and minutes. The clock will then begin
from that time.
AM/FM Radio
/ VOL (Power/Volume):Press
to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition switch is turned back on.
AM/FM:Press repeatedly to select
AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go
up/down the frequency band in
individual increments.
DIRECT:Press DIRECT and then
select the desired radio frequency
(i.e. 93.9) using the memory preset
numbers (0–9).
SEEK:Press
SEEKto
access the previous/next strong
radio station.
SCAN:Press for a brief sampling of
all strong radio stations.
MEMORY PRESETS (0–9):When
tuned to any station, press and hold
a preset button until sound returns
and PRESET # SAVED appears in the display. You can save up to 30
stations, 10 in AM, 10 in FM1 and FM2.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
33

Replacing headlamp bulbs
To remove the headlamp bulb:
1. Make sure headlamp switch is in the off position, then open the hood.
2. Disconnect the electrical
connector from the bulb by
depressing the retainer clip and
pulling rearward.
3. Remove the bulb by rotating it
counterclockwise and pulling it
straight out.
WARNING:Handle a
halogen headlamp bulb
carefully and keep out of
children’s reach. Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
Install the new bulb in reverse order.
Replacing HID headlamp bulbs (if equipped)
The headlamps on your vehicle use a “high intensity discharge” source.
These lamps operate at a high voltage. When the bulb is burned out, the
bulb and starter capsule assembly must be replaced by your authorized
dealer.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
66

Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the off position and open the
hood.
Halogen headlamp
HID headlamp
2. Remove the hex head screws attaching the underbody forward
aeroshield and remove to gain access to the front parking lamp/ turn
signal assembly.
3. Rotate the socket counterclockwise and remove from the lamp
assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
67

Replacing front sidemarker bulb
1. Make sure the headlamp control is in the off position.
2. Remove the hex head screws
attaching the underbody forward
aeroshield and remove to gain
access to the front sidemarker
assembly.
3. Rotate the socket counterclockwise and remove from the lamp
assembly.
4. Carefully pull the bulb straight
out of socket.
Replacing tail lamp/brake/rear turn signal lamps
The tail lamp, the brake lamp and the turn signal lamp are located in the
tail lamp assembly. Follow the same steps to replace these lamps.
1. Make sure the headlamp switch is
in the off position, then open the
trunk.
2. Carefully remove the fasteners
around the lamp area and then
remove the interior trunk trim.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
68

3. Unbolt the three tail lamp
attachment nuts and remove the
lamp assembly.
4. Rotate the LED assembly
counterclockwise and remove it
from the lamp assembly.
5. Disconnect the LED assembly
from the electrical connector and
replace the LED assembly. See your
authorized dealer for replacement
LED assembly.
6. Install new LED assembly in reverse order.
Replacing backup bulbs
The backup lamps are located in the tail lamp assembly. Follow the same
steps to replace either bulb.
1. Make sure the headlamp switch is
in the off position, then open the
trunk.
2. Carefully remove the fasteners
around the lamp area, then remove
the interior trunk trim.
3. Unbolt the three tail lamp
attachment nuts and remove the
lamp assembly.
4. Rotate the bulb socket
counterclockwise and remove it from the lamp assembly.
5. Pull the bulb straight out from
the socket.
Install the new bulb in reverse
order.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
69

Replacing rear sidemarker lamp bulbs
1. Make sure the headlamp switch is
in the off position and locate the
sidemarker on the rear bumper
fascia.
2. Install a flathead screwdriver
between the rear of the sidemarker
lens and the bumper fascia.
3. Push the screwdriver to the front
of the vehicle and then slide it towards you to pop out the lamp
assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
Replacing fog lamp bulbs (GT) (if equipped)
1. Make sure the headlamp control is in the off position and open the
hood.
2. Remove the sight shield by
loosening the fasteners with a flat
head screwdriver.
3. Remove the two underhood bolts
attaching the bumper cover next to
the grill and then pull the
cover/grille/fog lamp assembly
forward to access the fog lamp
bulbs.
4. Disconnect the electrical
connector from the bulb by pulling it straight off.
5. Rotate the bulb counterclockwise and remove from the lamp assembly.
Install the new bulb in reverse order.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
70

Replacing fog lamp bulbs (V6) (if equipped)
1. Make sure the headlamp control is in the off position and open the
hood.
2. Remove the hex head screws
attaching the underbody forward
aeroshield and remove to gain
access to the foglamp assembly.
3. Disconnect the electrical
connector from the bulb by pulling
it straight off.
4. Rotate the bulb counterclockwise
and remove from the lamp assembly.
Install the new bulb in reverse
order.
Replacing high-mount brake lamp bulbs
For bulb replacement, see your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Remove the two screws and the
lens from the license plate lamp
assembly.
3. Carefully pull the bulb straight
out from the lamp assembly.
Install new bulb(s) in reverse order.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Lights
71

Automatic dimming interior rear view mirror (if equipped)
Your vehicle may be equipped with an interior rear view mirror that has
an auto-dimming function. The electronic day/night mirror will change
from the normal (high reflective) state to the non-glare (darkened) state
when bright lights (glare) reach the mirror. When the mirror detects
bright light from behind the vehicle, it will automatically adjust (darken)
to minimize glare.
With microphone shown, without
similar
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a Reverse Camera System, a video image will be
displayed in the mirror or the navigation system display (if equipped)
when the vehicle is put in reverse. Refer toReverse camera systemin
theDrivingchapter.
EXTERIOR MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
80
