2010 FORD F750 child lock

Locks and Security 64
Keys 64
Locks 64
Seating and Safety Restraints 65
Seating 65
Safety restraints 69
Child restraints 79
Driving 91
Starting 91
Brakes 99
Air suspension 120
Transmission operation 122
Vehicle loading 136
Roadside Emergencies 142
Hazard flasher switch 143
Fuses and relays 143
Jump starting 151
Wrecker towing 155
Customer Assistance 159
Getting assistance outside the U.S. and Canada 161
Ordering additional owner’s literature 162
Reporting safety defects (U.S. only) 162
Reporting safety defects (Canada only) 163
Cleaning 164
Cleaning your vehicle 164
Repairing paint chips 164
Underbody preservation 167
Table of Contents
2
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
8
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
9
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
CHILDPROOF DOOR LOCKS (IF EQUIPPED)
When these locks are set, the rear
doors cannot be opened from the
inside. The rear doors can be
opened from the outside when the
doors are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
Move lock control up to engage the
childproof lock. Move control down
to disengage childproof locks.
U L
Locks and Security
64
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

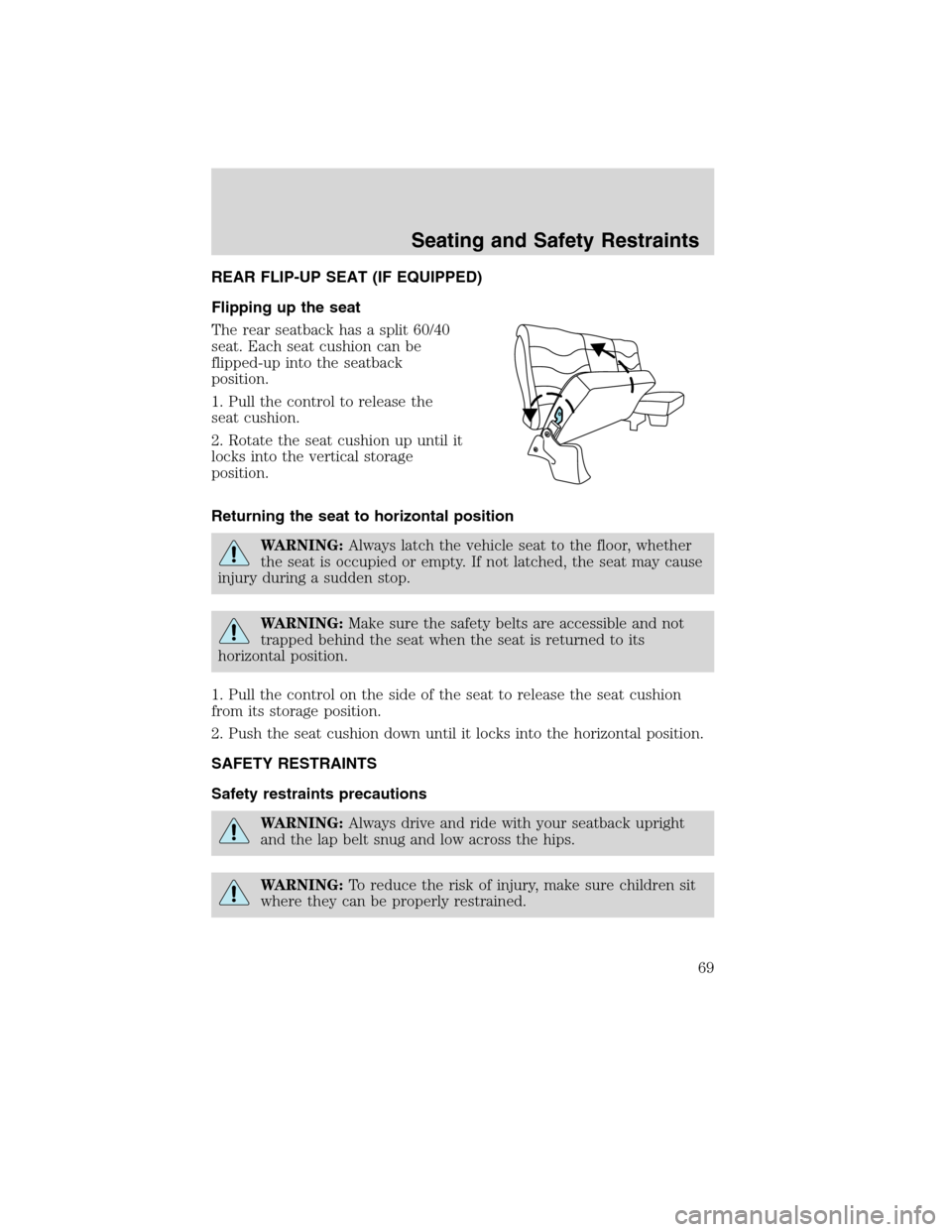

REAR FLIP-UP SEAT (IF EQUIPPED)
Flipping up the seat
The rear seatback has a split 60/40
seat. Each seat cushion can be
flipped-up into the seatback
position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the seat to horizontal position
WARNING:Always latch the vehicle seat to the floor, whether
the seat is occupied or empty. If not latched, the seat may cause
injury during a sudden stop.
WARNING:Make sure the safety belts are accessible and not
trapped behind the seat when the seat is returned to its
horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
SAFETY RESTRAINTS
Safety restraints precautions
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:To reduce the risk of injury, make sure children sit
where they can be properly restrained.
Seating and Safety Restraints
69
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

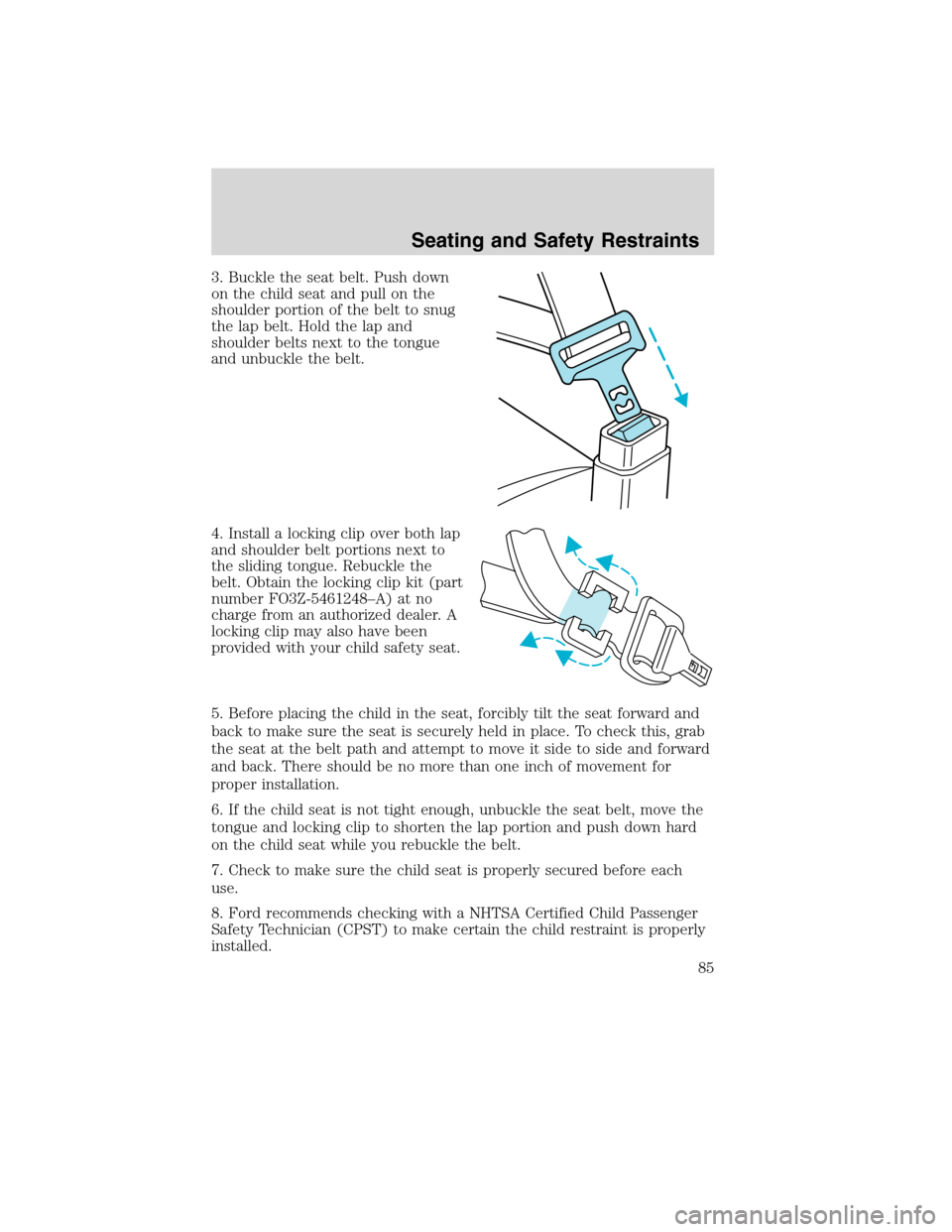

3. Buckle the seat belt. Push down
on the child seat and pull on the
shoulder portion of the belt to snug
the lap belt. Hold the lap and
shoulder belts next to the tongue
and unbuckle the belt.
4. Install a locking clip over both lap
and shoulder belt portions next to
the sliding tongue. Rebuckle the
belt. Obtain the locking clip kit (part
number FO3Z-5461248–A) at no
charge from an authorized dealer. A
locking clip may also have been
provided with your child safety seat.
5. Before placing the child in the seat, forcibly tilt the seat forward and
back to make sure the seat is securely held in place. To check this, grab
the seat at the belt path and attempt to move it side to side and forward
and back. There should be no more than one inch of movement for
proper installation.
6. If the child seat is not tight enough, unbuckle the seat belt, move the
tongue and locking clip to shorten the lap portion and push down hard
on the child seat while you rebuckle the belt.
7. Check to make sure the child seat is properly secured before each
use.
8. Ford recommends checking with a NHTSA Certified Child Passenger
Safety Technician (CPST) to make certain the child restraint is properly
installed.
Seating and Safety Restraints
85
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................120
Anti-lock brake system
(see Brakes) ..............................118
Audio system
(see Radio) ......................33, 35, 40
Automatic transmission ............122
fluid, adding ............................199
fluid, checking ........................199
fluid, refill capacities ..............232
fluid, specification ..................218
Auxiliary power point .................55
Axle ............................131, 171, 204
lubricant specifications ..........218
refill capacities ........................230
B
Battery .......................................180
charging system warning
light ............................................22
jumping a disabled battery ....151
voltage gauge ............................28
Belt-Minder...............................75
Booster seats ...............................87
Brakes ..........................99, 104, 172
adjustment ..............................174
anti-lock ...................................118
anti-lock brake system (ABS)
warning light .....................22, 118
brake warning light ..................22
fluid, checking and
adding ..............................175, 196
fluid, specifications .................218parking ....................100, 107, 175
Bulbs ............................................51
C
Catalytic converter
(see Emission control) .............175
CD-single premium .....................33
Cell phone use ..............................6
Child safety seats ........................83
attaching with tether straps ....86
in front seat ..............................84
in rear seat ..........................84, 86
recommendations .....................81
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................87
Cleaning your vehicle
chrome and aluminum
parts .........................................165
engine compartment ..............165
exterior ....................................167
instrument panel ....................166
interior .....................................166
interior trim ............................166
plastic parts ............................165
washing ....................................164
waxing .....................................164
wheels ......................................165
Climate control (see Air
conditioning or Heating) ......46–47
Clutch ................................125, 197
adjusting ..................................198
fluid ..........................................197
operation while driving ..........125
specifications ..........................218
Controls
power seat .................................66
Index
270
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

odometer ...................................28
speedometer .............................28
tachometer ................................28
trip odometer ............................28
H
Hazard flashers .........................143
Headlamps ...................................49
aiming ........................................50
daytime running lights .............49
high beam .................................49
warning chime ..........................22
Heating ..................................46–47
heater only system ...................46
manual heating and air
conditioning system .................47
Hood ..........................................177
I
Ignition .........................................91
chime .........................................22
Infant seats (see Safety seats) ..83
Instrument panel
cleaning ...................................166
lighting up panel and
interior .......................................50
J
Jump-starting your vehicle ......151
K
Keys
key in ignition chime ...............22
positions of the ignition ...........91L
Lamps
bulb replacement
specifications chart ..................51
cargo lamps ...............................50
daytime running light ...............49
headlamps .................................49
high beams ................................49
instrument panel, dimming .....50
interior lamps ...........................51
replacing bulbs ...................51–53
Lane change indicator
(see Turn signal) ........................50
Lights, warning and indicator ....22
air suspension ...........................22
anti-lock brakes (ABS) ....22, 118
brake ..........................................22
charging system ........................22
safety belt .................................22
service engine soon ..................22
traction control off ...................22
turn signal indicator .................22
Locks
childproof ..................................64
Lubricant specifications ...........218
M
Manual transmission .................126
lubricant specifications ..........218
Mirrors .........................................57
fold away ...................................59
heated ........................................58
side view mirrors (power) .......58
O
Odometer .....................................28
P
Paint chips, repairing ...............164
Index
272
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
