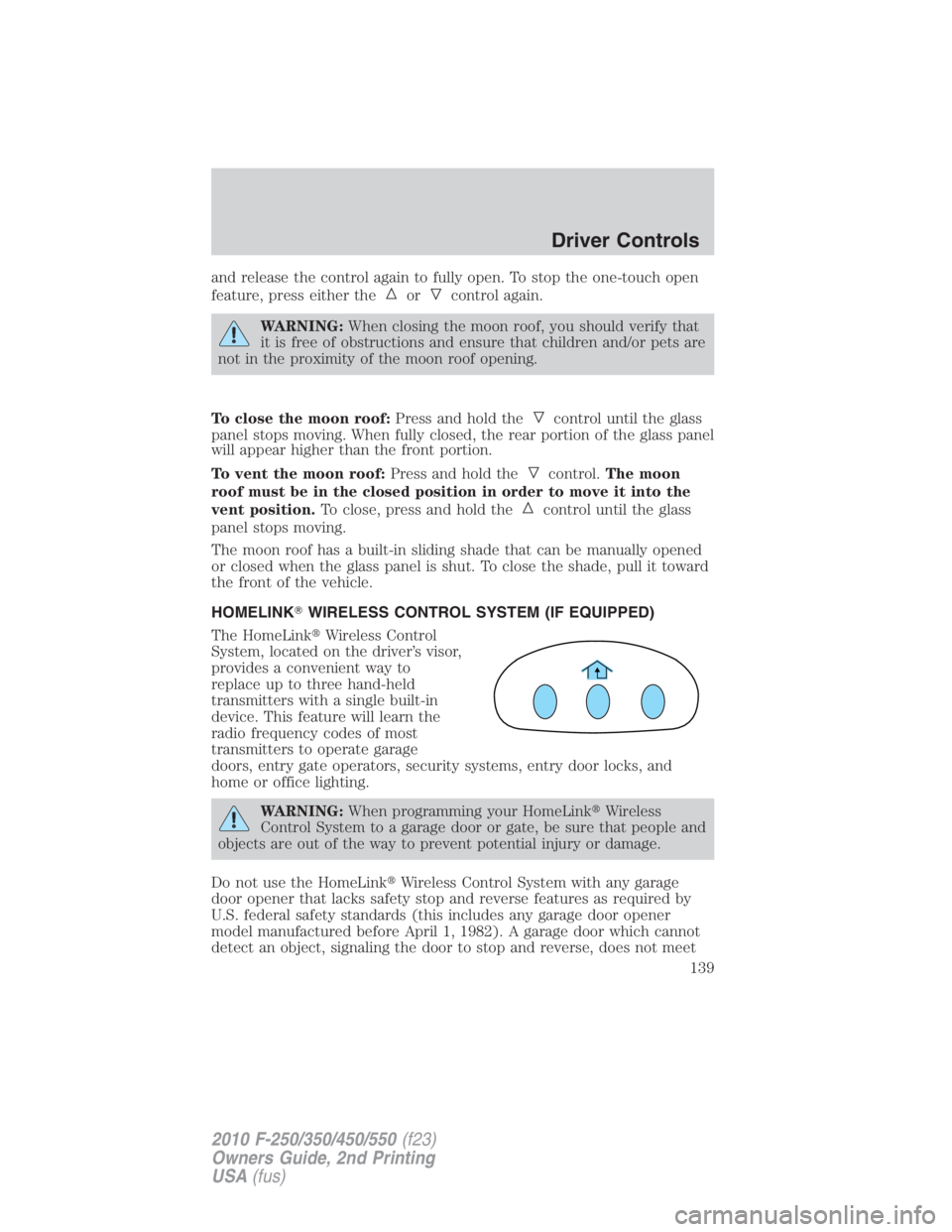

Page 139 of 408
and release the control again to fully open. To stop the one-touch open
feature, press either the or control again.
WARNING: When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
To close the moon roof: Press and hold the control until the glass
panel stops moving. When fully closed, the rear portion of the glass panel
will appear higher than the front portion.
To vent the moon roof: Press and hold the control. The moon
roof must be in the closed position in order to move it into the
vent position. To close, press and hold the control until the glass
panel stops moving.
The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut. To close the shade, pull it toward
the front of the vehicle.
HOMELINK WIRELESS CONTROL SYSTEM (IF EQUIPPED)
The HomeLink Wireless Control
System, located on the driver’s visor,
provides a convenient way to
replace up to three hand-held
transmitters with a single built-in
device. This feature will learn the
radio frequency codes of most
transmitters to operate garage
doors, entry gate operators, security systems, entry door locks, and
home or office lighting.
WARNING: When programming your HomeLink Wireless
Control System to a garage door or gate, be sure that people and
objects are out of the way to prevent potential injury or damage.
Do not use the HomeLink Wireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
model manufactured before April 1, 1982). A garage door which cannot
detect an object, signaling the door to stop and reverse, does not meet Driver Controls
139
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

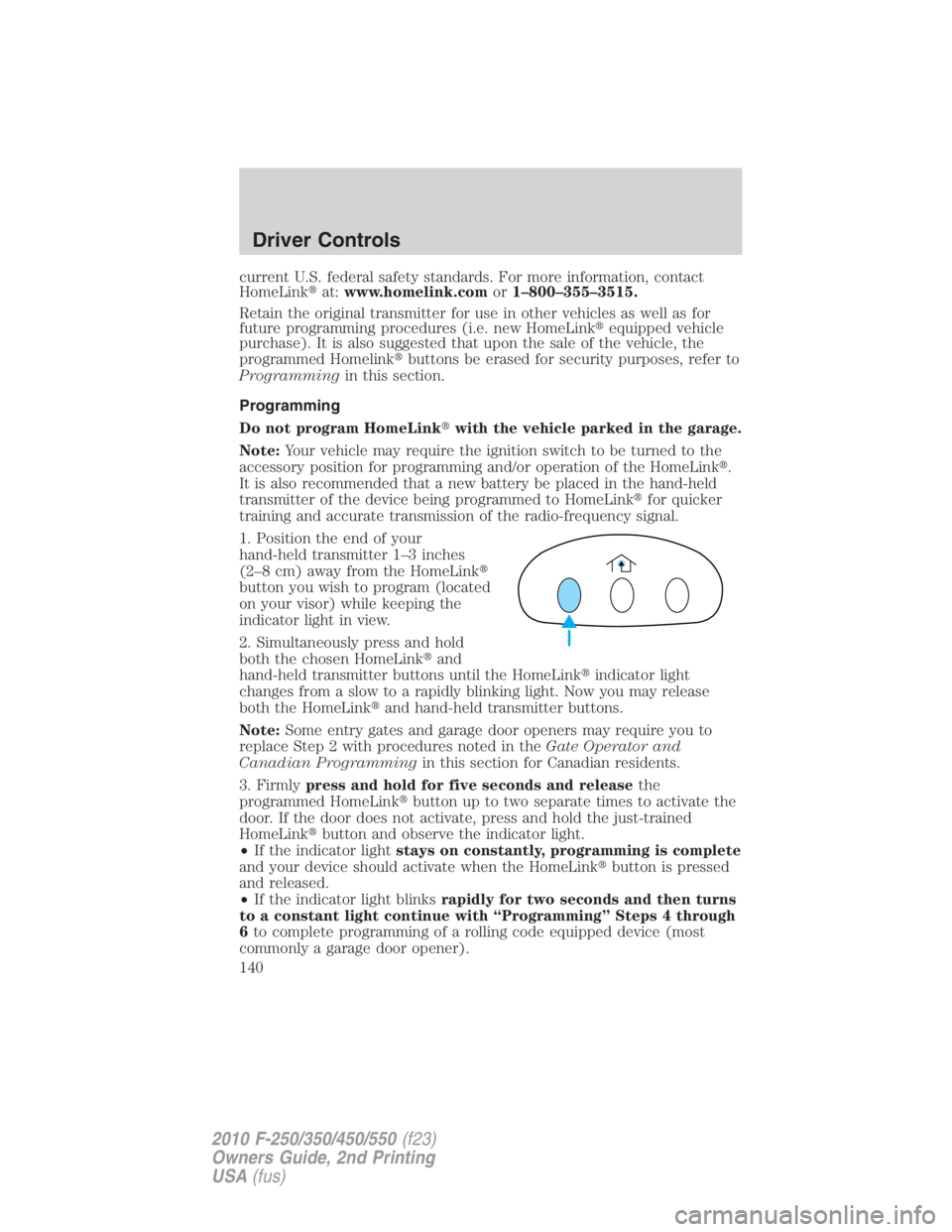

Page 140 of 408
current U.S. federal safety standards. For more information, contact
HomeLink at: www.homelink.com or 1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for
future programming procedures (i.e. new HomeLink equipped vehicle
purchase). It is also suggested that upon the sale of the vehicle, the
programmed Homelink buttons be erased for security purposes, refer to
Programming in this section.
Programming
Do not program HomeLink with the vehicle parked in the garage.
Note: Your vehicle may require the ignition switch to be turned to the
accessory position for programming and/or operation of the HomeLink .
It is also recommended that a new battery be placed in the hand-held
transmitter of the device being programmed to HomeLink for quicker
training and accurate transmission of the radio-frequency signal.
1. Position the end of your
hand-held transmitter 1–3 inches
(2–8 cm) away from the HomeLink
button you wish to program (located
on your visor) while keeping the
indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLink and
hand-held transmitter buttons until the HomeLink indicator light
changes from a slow to a rapidly blinking light. Now you may release
both the HomeLink and hand-held transmitter buttons.
Note: Some entry gates and garage door openers may require you to
replace Step 2 with procedures noted in the Gate Operator and
Canadian Programming in this section for Canadian residents.
3. Firmly press and hold for five seconds and release the
programmed HomeLink button up to two separate times to activate the
door. If the door does not activate, press and hold the just-trained
HomeLink button and observe the indicator light.
• If the indicator light stays on constantly, programming is complete
and your device should activate when the HomeLink button is pressed
and released.
• If the indicator light blinks rapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through
6 to complete programming of a rolling code equipped device (most
commonly a garage door opener).Driver Controls
140
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

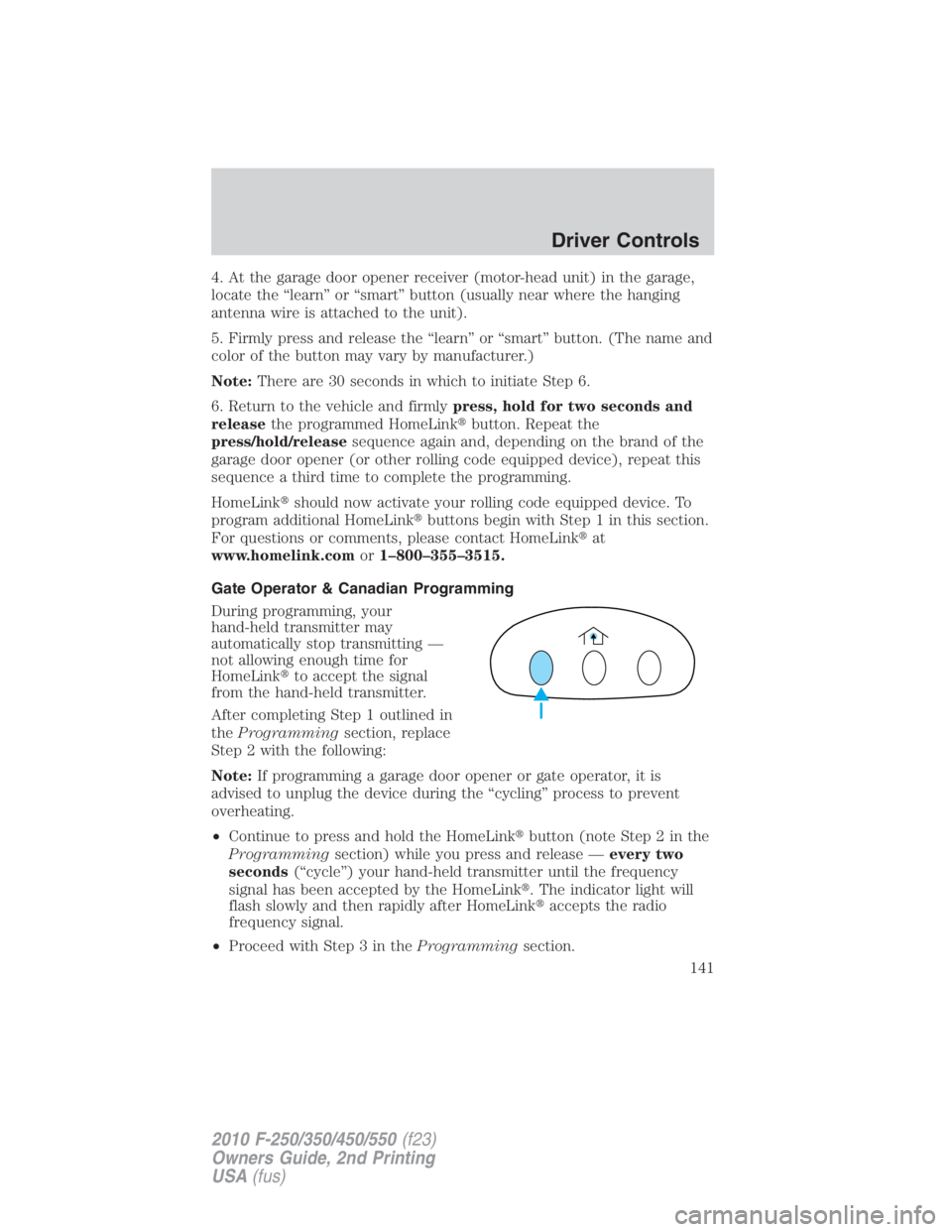

Page 141 of 408
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging
antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.)
Note: There are 30 seconds in which to initiate Step 6.
6. Return to the vehicle and firmly press, hold for two seconds and
release the programmed HomeLink button. Repeat the
press/hold/release sequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this
sequence a third time to complete the programming.
HomeLink should now activate your rolling code equipped device. To
program additional HomeLink buttons begin with Step 1 in this section.
For questions or comments, please contact HomeLink at
www.homelink.com or 1–800–355–3515.
Gate Operator & Canadian Programming
During programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLink to accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in
the Programming section, replace
Step 2 with the following:
Note: If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
• Continue to press and hold the HomeLink button (note Step 2 in the
Programming section) while you press and release — every two
seconds (“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink . The indicator light will
flash slowly and then rapidly after HomeLink accepts the radio
frequency signal.
• Proceed with Step 3 in the Programming section.Driver Controls
141
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
