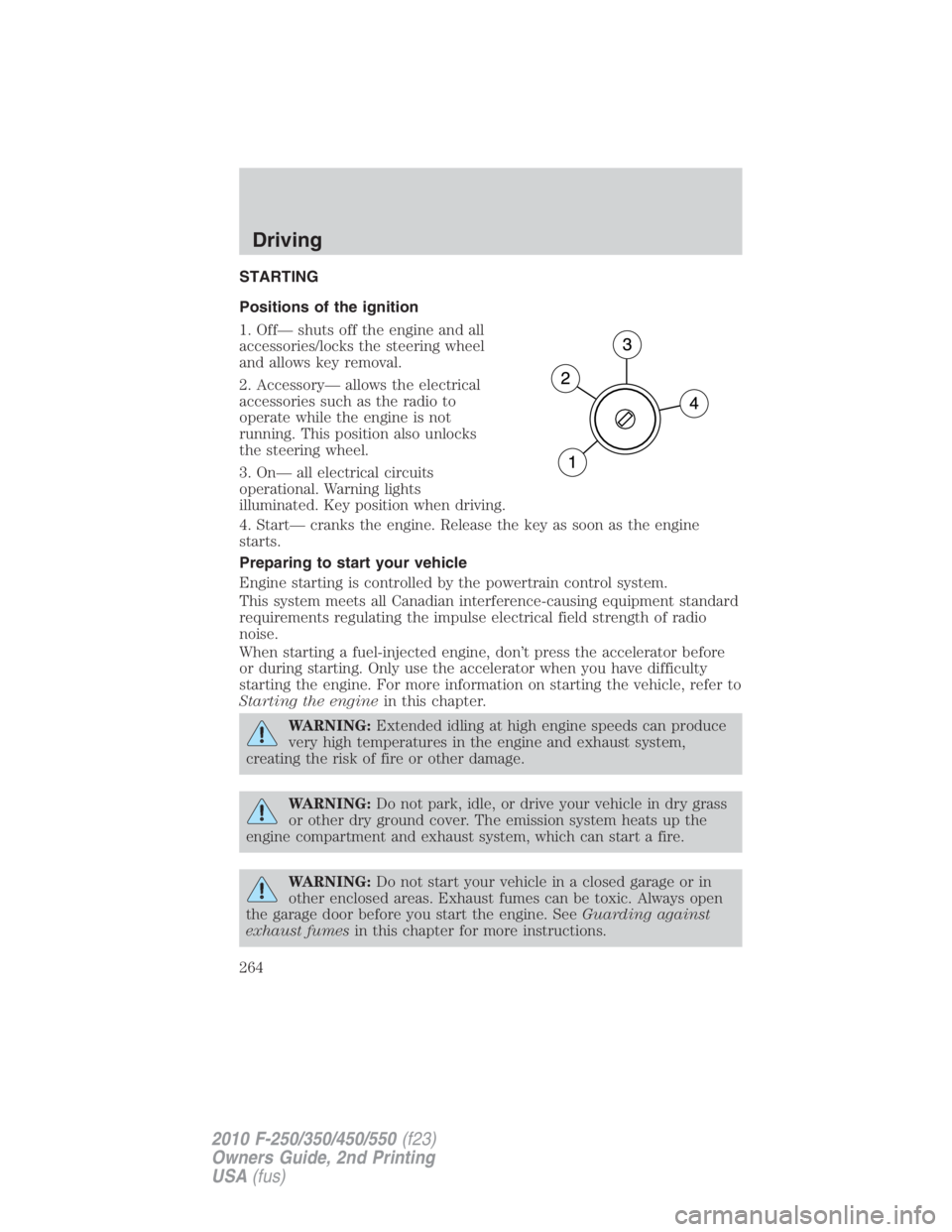

STARTING
Positions of the ignition
1. Off— shuts off the engine and all
accessories/locks the steering wheel
and allows key removal.
2. Accessory— allows the electrical
accessories such as the radio to
operate while the engine is not
running. This position also unlocks
the steering wheel.
3. On— all electrical circuits
operational. Warning lights
illuminated. Key position when driving.
4. Start— cranks the engine. Release the key as soon as the engine
starts.
Preparing to start your vehicle
Engine starting is controlled by the powertrain control system.
This system meets all Canadian interference-causing equipment standard
requirements regulating the impulse electrical field strength of radio
noise.
When starting a fuel-injected engine, don’t press the accelerator before
or during starting. Only use the accelerator when you have difficulty
starting the engine. For more information on starting the vehicle, refer to
Starting the engine in this chapter.
WARNING: Extended idling at high engine speeds can produce
very high temperatures in the engine and exhaust system,
creating the risk of fire or other damage.
WARNING: Do not park, idle, or drive your vehicle in dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
WARNING: Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. See Guarding against
exhaust fumes in this chapter for more instructions.Driving
264
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

If starting a vehicle with a manual
transmission:
1. Make sure the parking brake is
set.
2. Push the clutch pedal to the floor.
• Turn the key to 3 (on) without
turning the key to 4 (start).
Some warning lights will briefly illuminate. See Warning lights and
chimes in the Instrument Cluster chapter for more information
regarding the warning lights.
Starting the engine
1. Turn the key to 3 (on) without
turning the key to 4 (start). If there
is difficulty in turning the key,
rotate the steering wheel until the
key turns freely. This condition may
occur when:
• the front wheels are turned.
• a front wheel is against the curb.
2. Turn the key to 4 (start), then
release the key as soon as the
engine begins cranking. Your vehicle has a computer assisted cranking
system that assists in starting the engine. After releasing the key from
the 4 (start) position, the engine may continue cranking for up to
10 seconds or until the vehicle starts.Driving
266
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

How to Use the Engine Block Heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater system may consume anywhere between 400 watts or 1000 watts
of power per hour. Your factory installed block heater system does not
have a thermostat; however, maximum temperature is attained after
approximately three hours of operation. Block heater operation longer
than three hours will not improve system performance and will
unnecessarily use additional electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer to Warning lights and
chimes in the Instrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS) (if equipped)
Your vehicle may be equipped with an anti-lock braking system (ABS).
This system helps you maintain steering control during emergency stops
by keeping the brakes from locking. The ABS operates by detecting the
onset of wheel lockup during brake application and compensates for this
tendency. Noise from the ABS pump motor and brake pedal pulsation
may be observed during ABS braking; any pulsation or mechanical noise
you may feel or hear is normal. In addition, the ABS performs a
self-check after you start the engine and begin to drive away. A brief
mechanical noise may be heard during this test. This is normal. P!
BRAKE Driving
269
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

If you have run out of fuel:
• You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
• Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
• The service engine soon indicator may come on. For more
information on the service engine soon indicator, refer to
Warning lights and chimes in the Instrument Cluster chapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles–3,000 miles (3,000 km–5,000
km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in the Maintenance
product specifications and capacities section of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
• Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.Maintenance and Specifications
376
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Instrument panel
cleaning ...........................349–350
cluster ........................................14
lighting up panel and
interior .....................................109
J
Jump-starting your vehicle ......331
K
Keyless entry system
autolock ...................................149
keypad .....................................157
locking and unlocking
doors ........................................159
programming entry code .......157
Keys ...................................160–161
positions of the ignition .........264
L
Lamps
autolamp system .....................107
daytime running light .............108
fog lamps .................................107
headlamps ...............................107
headlamps, flash to pass ........108
instrument panel, dimming ...109
interior lamps .........................113
replacing bulbs ...............115–119
LATCH anchors .........................207
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........270
Limited-slip axle .......................273
Load limits .................................244
Loading instructions .................251
Locks
autolock ...................................149 childproof ................................152
doors ........................................148
Lug nuts ....................................330
Lumbar support, seats .....168–169
M
Manual transmission .................278
fluid capacities ........................391
reverse .....................................279
Message center .....................24, 32
english/metric button .........27, 36
system check button ................36
warning messages ...............27, 37
Mirrors ...............................126–127
automatic dimming rearview
mirror ......................................126
fold away .................127, 129–130
side view mirrors (power) .....127
signal .......................................130
Moon roof ..................................138
Motorcraft
parts ..............371, 390
N
Navigation system .......................97
O
Octane rating ............................375
Oil (see Engine oil) ..................360
P
Parking brake ............................270
Parts (see Motorcraft

parts) .........................................390
Pedals (see Power adjustable
foot pedals) ...............................131Index
406
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

tilting .......................................121
SYNC
..........................................97
T
Tailgate ......................................143
Temperature control (see
Climate control) ..........................98
Tilt steering wheel ....................121
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....237
Tires ...................................219–220
alignment ................................229
care ..........................................225
changing ..........................318, 320
checking the pressure ............224
inflating ...................................221
label .........................................236
replacing ..................................227
rotating ....................................229
safety practices .......................228
sidewall information ...............231
snow tires and chains ............243
spare tire .................................316
terminology .............................220
tire grades ...............................220
treadwear ........................219, 226
Towing .......................................251
recreational towing .................262
Trailer Brake
Controller-Integrated ..............256
trailer towing ..........................251
wrecker ....................................336
Traction control ........................271
Trailer Brake
Controller-Integrated ................256 Transfer case
fluid checking .........................388
Transmission
automatic operation ...............275
brake-shift interlock (BSI) ....274
fluid, checking and adding
(automatic) .............................384
fluid, checking and adding
(manual) .................................387
fluid, refill capacities ..............391
manual operation ....................278
Turn signal ................................112
U
Upfitter controls .......................137
USB port ......................................60
V
Vehicle Identification Number
(VIN) ..........................................396
Vehicle loading ..........................244
Ventilating your vehicle ...........267
W
Warning lights (see Lights) .......14
Washer fluid ..............................359
Water, Driving through .............299
Windows
power .......................................124
Windshield washer fluid and
wipers ........................................120
checking and adding fluid .....359
replacing wiper blades ...........359
Wrecker towing .........................336Index
408
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
