2010 FORD F550 CD player

DVD player controls
1. Headphone control A/B: While
in Dual Play mode, press to select
either the A or B headphone source.
Then press MEDIA to select the
desired playing media for that
headset. When a headphone channel has been selected (A or B),
selections will affect the source on that channel only.
Note: Headphone A can access any possible media (AM, FM1, FM2, SAT
(if equipped), CD, DVD, DVD-AUX). Headphone B can only access DVD
and DVD-AUX.
For further information, refer to Single play/Dual play later in this
section.
2. / (Stop/Eject): Press
once to stop and press a second
timetoejectadiscfromtheDVD
system.
3. (Reverse): Press and
release for the previous chapter or
track. Press and hold to reverse
search a DVD, Video CD, or FES CD in DVD/CD mode. A
B VIDEO
VOLUMEMEDIARETURNMENUENTER
1
72
3 4
5 6
910
1112
1314
1516
8Entertainment Systems
73
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Remote control
Unless otherwise stated, all operations can be carried out with the
remote control. Always point the remote control directly at the player.
Ensure that there are no obstructions between the remote and player.
1. Power control: Press to turn the FES (Family Entertainment
System) ON/OFF.
2. Cursor controls: Use in various active menus to advance the cursor
up/down/left/right. When not in a Menu, the left and right cursor controls
decrease and increase the display brightness.
3. DISPLAY: Press to access the on-screen display of the FES functions
and adjustments.
4. RETURN: Press to return to the previous menu screen.
5. ANGLE (DVD dependent): Press to select the angle to view the
scene.
6. Channel A/B: Press to select either A or B headphones and then use
the MEDIA control to select the desired playing media for the
headphones.Entertainment Systems
76
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

21. LANGUAGE (DVD dependent): Press to select the desired
language.
22. ENTER: Press to select the highlighted menu option.
23. ILLUMINATION : Press to illuminate the remote control and
backlight all of the buttons.
Battery replacement
Batteries are supplied with the
remote control unit. Since all
batteries have a limited shelf life,
replace them when the unit fails to
control the DVD player.
Remove the screw and unlatch the battery cover to access the batteries.
The remote control unit uses two AAA batteries which are supplied with
the unit.Entertainment Systems
78
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

4. The folder, track and elapsed
time will appear in the status bar.
The screen will list the Artist, Title,
Album and File Name.
COMP (Compression):
Compression brings soft and loud
CD/MP3 passages together for a
more consistent listening level when
in CD mode. Press to turn the feature on/off.
SHUFFLE: Press to hear all tracks on the current MP3 folder in random
order. Press again to stop.
SCAN: Press for a brief sampling of all tracks on the current MP3 folder.
Press again to stop.
FOLDER LIST: Press access folder mode and to go to the previous/next
folder in the MP3 disc.
MP3 disc quality factors
Several factors can effect disc playback quality:
• Disc capacity — Each disc contains about 650 MB of storage capacity.
We do not recommend using high capacity discs containing 700MB of
storage.
• Disc type — Some CD-RW discs may operate inconsistently and may
cause an error message to appear. We recommend burning MP3 files
onto CD-R discs.
• Disc finalization — The disc may be left open for the purpose of
adding sessions to it at a later time, but be sure to close each session
or the disc will not play.
• Bit rate — The player supports bit rates from 32–320 kbps, as well as
variable bit rate MP3 files, but lower bit rates will have a noticeable
effect on sound quality and are recommended only for speech or low
fidelity music material. We recommend that you encode MP3 files
using a high quality encoder.
• PC configuration — Encoding MP3 files requires intensive use of your
computer’s resources. Follow the PC configuration recommendations
of the encoder software vendor. We recommend that you avoid
running other software applications on your PC during MP3 encoding
to avoid undesirable noise and distortion.Entertainment Systems
88
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

CD, MP3 and CD player care
• Handle discs by their edges only. Never touch the playing surface.
• Do not expose discs to direct sunlight or heat sources for extended
periods of time.
• Do not insert more than one disc into the slot of the CD player (if
equipped).
• Always store discs out of direct sunlight. Excessive heat may damage
or warp discs.
• Use care when handling and playing CD-R and CD-RW discs, which
are more susceptible to damage from heat, light and stress than are
regular CDs.
• Always insert and remove a disc by holding the disc flat, with the
playing surface facing down, in order to prevent damage to the disc or
the player.
• Never insert any object other than a compact disc (CD) or digital
versatile disc (DVD) into the player, as doing so may damage the
player and may cause injury to you.
• Do not disassemble the player. The laser used in disc playback is
extremely harmful to the eyes.
The FES DVD system is designed to play commercially pressed
12 cm (4.75 in) audio compact discs and digital versatile discs
(DVD), DVD-R and R/W discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD and DVD
players. Irregular shaped CDs or DVDs, CDs or DVDs with a
scratch protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the FES DVD
system. The label may peel and cause the CD or DVD to become
jammed. It is recommended that homemade CDs or DVDs be
identified with permanent felt tip marker rather than adhesive
labels. Ball point pens may damage CDs or DVDs. Please contact
your authorized dealer for further information.
Playing a DVD
1. Ensure that the vehicle is on or the ignition is in accessory mode.
2. Ensure that the navigation system is on.
3. Insert a DVD label-side up into the system. Entertainment Systems
89
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

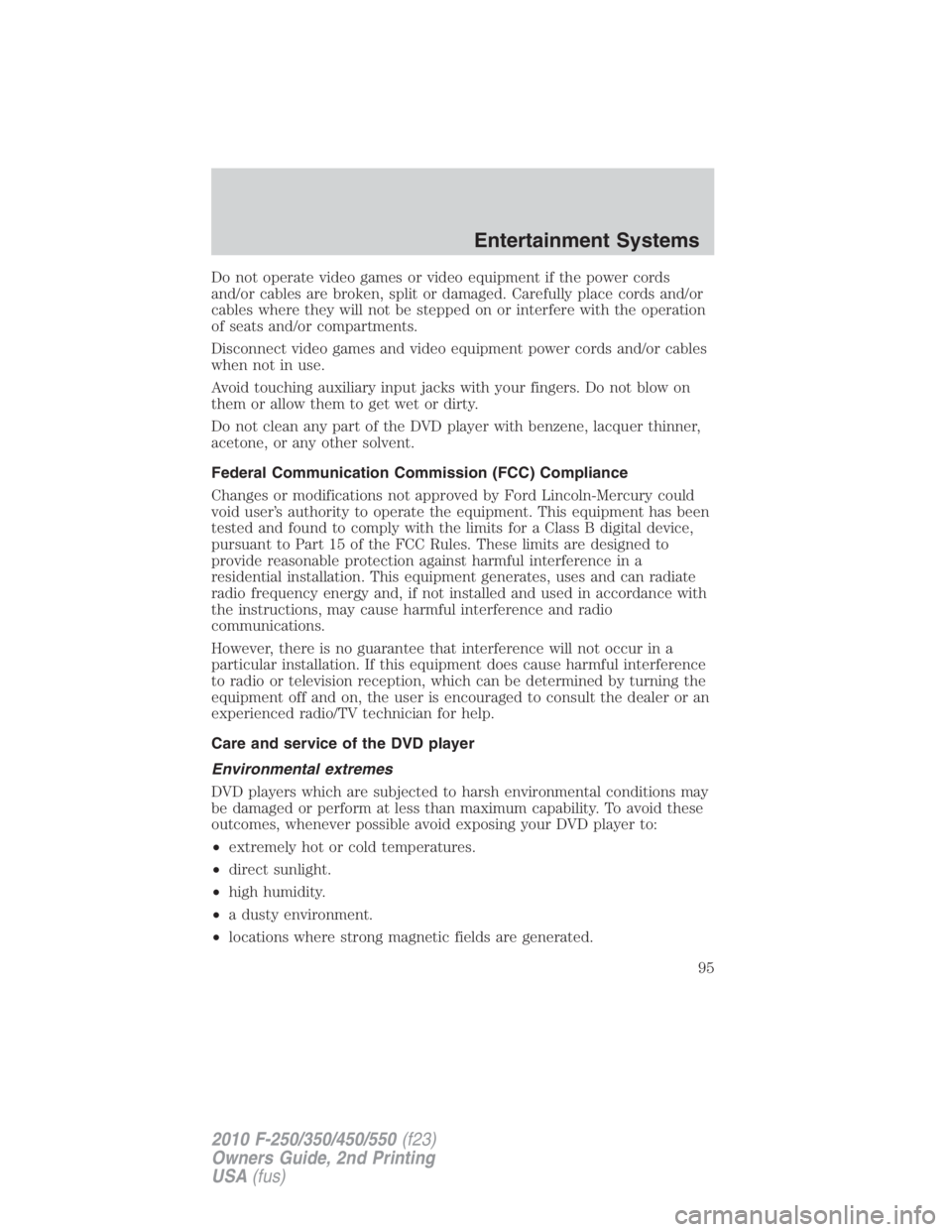

Do not operate video games or video equipment if the power cords
and/or cables are broken, split or damaged. Carefully place cords and/or
cables where they will not be stepped on or interfere with the operation
of seats and/or compartments.
Disconnect video games and video equipment power cords and/or cables
when not in use.
Avoid touching auxiliary input jacks with your fingers. Do not blow on
them or allow them to get wet or dirty.
Do not clean any part of the DVD player with benzene, lacquer thinner,
acetone, or any other solvent.
Federal Communication Commission (FCC) Compliance
Changes or modifications not approved by Ford Lincoln-Mercury could
void user’s authority to operate the equipment. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference and radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Care and service of the DVD player
Environmental extremes
DVD players which are subjected to harsh environmental conditions may
be damaged or perform at less than maximum capability. To avoid these
outcomes, whenever possible avoid exposing your DVD player to:
• extremely hot or cold temperatures.
• direct sunlight.
• high humidity.
• a dusty environment.
• locations where strong magnetic fields are generated. Entertainment Systems
95
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Temperature extremes
When the vehicle is parked under direct sunlight or in an extremely cold
place for a long period of time, wait until the cabin temperature of the
vehicle is at normal temperature before operating the system.
Humidity and moisture condensation
Moisture in the air will condense in the DVD player under extremely
humid conditions or when moving from a cold place to a warm one.
Moisture condensation may cause damage to the DVD and/or player. If
moisture condensation occurs, do not insert a CD or DVD into the
player. If one is already in the player, remove it. Turn the DVD player ON
to dry the moisture before inserting a DVD. This could take an hour or
more.
Foreign substances
Exercise care to prevent dirt and foreign objects from entering the DVD
player compartment. Be especially careful not to spill liquids of any kind
onto the media controls or into the system. If liquid is accidentally
spilled onto the system, immediately turn the system OFF and consult a
qualified service technician.
Cleaning the liquid crystal display (LCD) flip-down screen
Clean the display screen by applying a small amount of water or any
ammonia-based household glass cleaner directly to a soft cloth. Rub the
screen gently until the dust, dirt or fingerprints are removed. Do not
spray the screen directly with water or glass cleaning solvents. Overspray
from these fluids could drip down into the internal electronics of the
screen and cause damage. Do not apply excessive pressure while
cleaning the screen.
Cleaning DVD and CD discs
Inspect all discs for contamination before playing. If necessary, clean
discs only with an approved DVD and CD cleaner and wipe from the
center out to the edge. Do not use circular motion.Entertainment Systems
96
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

A
Accessory delay ........................126
Air cleaner filter ...............388–390
Air conditioning ........................102
Airbag supplemental restraint
system ........................................185
and child safety seats ............186
description ..............................185
disposal ....................................189
driver airbag ............................187
indicator light .........................189
operation .................................187
passenger airbag .....................187
passenger deactivation
switch ......................................190
Ambulance packages ....................7
Antifreeze (see Engine
coolant) .....................................365
Anti-lock brake system
(see Brakes) ......................269–270
Anti-theft system ..............159, 162
arming the system ..........160, 162
disarming a triggered
system .....................................163
triggering .................................163
Audio system
(see Radio) ......................42, 44, 51
Automatic transmission ............275
driving an automatic
overdrive .................................275
fluid, adding ............................384
fluid, checking ........................384
fluid, refill capacities ..............391
Auxiliary Input Jack ...................58
Auxiliary power point ...............123
Axle
refill capacities ........................391 B
Battery .......................................363
acid, treating emergencies .....363
jumping a disabled battery ....331
maintenance-free ....................363
replacement, specifications ...390
servicing ..................................363
Bed extender ............................145
Belt-Minder
.............................181
Booster seats .............................212
Brakes ........................................269
anti-lock ...........................269–270
anti-lock brake system (ABS)
warning light ...........................270
fluid, checking and adding ....383
fluid, refill capacities ..............391
parking ....................................270
shift interlock ..........................274
trailer .......................................256
Bulbs ..........................................113
C
Capacities for refilling fluids ....391
Cassette tape player ...................42
Cell phone use ............................10
Child safety seats ......................199
attaching with tether
straps .......................................207
in front seat ............200, 203, 206
in rear seat ......200, 203, 206–207
LATCH .....................................207
Child safety seats - booster
seats ...........................................212
Cleaning your vehicle
engine compartment ..............347
instrument panel ............349–350
interior .....................................351 Index
403
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
