When fail-safe cooling mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. Remember that the engine is capable of completely
shutting down automatically to prevent engine damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait approximately 15 minutes for the engine to
cool.
4. Check the coolant level and replenish if low. Look for coolant leakage
in the engine compartment and under the vehicle.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel™ “no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
Maintenance and Specifications
367
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

POWER STEERING FLUID
Check the power steering fluid. Refer toscheduled maintenance
information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir.
5. The fluid level should be between the MIN and MAX lines. Do not add
fluid if the level is in this range.
6. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the correct operating range. Be sure to put the
cap back on the reservoir. Refer toMaintenance product specifications
and capacitiesin this chapter for the proper fluid type.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have an underhood transmission
fluid dipstick.
Maintenance and Specifications
380
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

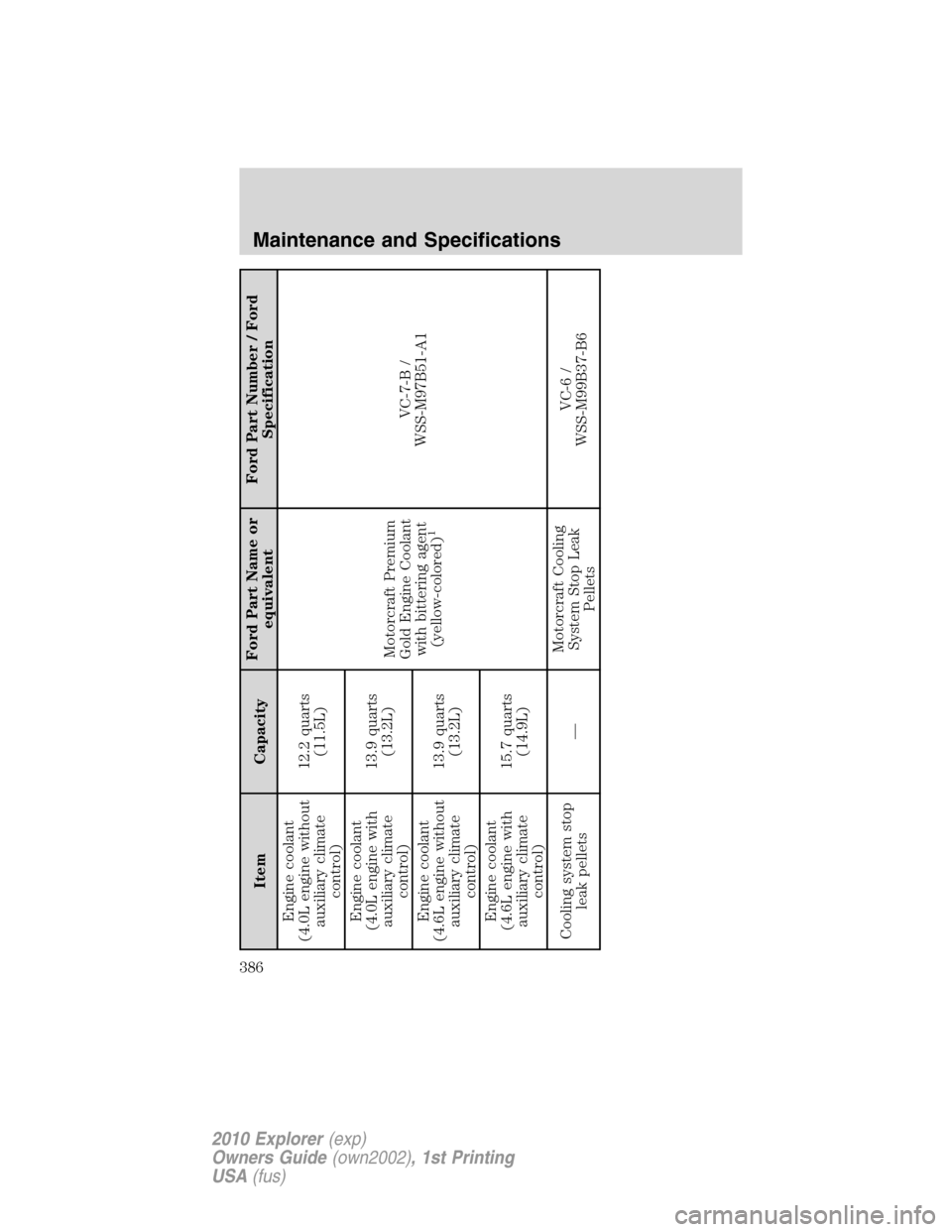

Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification
Engine coolant
(4.0L engine without
auxiliary climate
control)12.2 quarts
(11.5L)
Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant
(4.0L engine with
auxiliary climate
control)13.9 quarts
(13.2L)
Engine coolant
(4.6L engine without
auxiliary climate
control)13.9 quarts
(13.2L)
Engine coolant
(4.6L engine with
auxiliary climate
control)15.7 quarts
(14.9L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Maintenance and Specifications
386
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Use of a dual usage fluid in an automatic transmission requiring MERCON
V may cause
transmission damage. Use of any fluid other than the recommended fluid may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.5Use of a dual usage fluid in an automatic transmission requiring MERCON
LV may cause
transmission damage. Use of any fluid other than the recommended fluid may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Maintenance and Specifications
389
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ........................124
AdvanceTrac ..............................278
Air cleaner filter ...............382–384
Air conditioning ........................101
Airbag supplemental restraint
system ........................199, 208, 210
and child safety seats ............201
description ..............199, 208, 210
disposal ....................................213
driver airbag ............201, 208, 211
indicator light .................208, 213
operation .................201, 208, 211
passenger airbag .....201, 208, 211
side airbag ...............................208
All Wheel Drive (AWD),
driving off road .........................295
Ambulance packages ....................6
Antifreeze
(see Engine coolant) ................361
Anti-lock brake system
(see Brakes) ..............................276
Anti-theft system ......................162
Audio system
(see Radio) ......................39, 43, 50
Automatic transmission
driving an automatic
overdrive .........................286, 288
fluid, adding ............................380
fluid, checking ........................380
fluid, refill capacities ..............385
fluid, specification ..................385
Auxiliary input jack (Line in) ....58
Auxiliary power point ...............121
Axle
lubricant specifications ..........385refill capacities ........................385
B
Battery .......................................359
acid, treating emergencies .....359
jumping a disabled battery ....325
maintenance-free ....................359
replacement, specifications ...384
servicing ..................................359
Belt-Minder
.............................194
Booster seats .............................229
Brakes ........................................275
anti-lock ...................................276
anti-lock brake system (ABS)
warning light ...........................276
fluid, checking and adding ....380
fluid, refill capacities ..............385
fluid, specifications .................385
lubricant specifications ..........385
parking ....................................277
shift interlock ..........................285
C
Calculating load ........................262
Capacities for refilling fluids ....385
Car2U garage door opener .......140
Cargo cover ...............................145
Cargo management system ......146
Cell phone use ..............................9
Changing a tire .........................315
Child safety seats ......................218
attaching with tether
straps .......................................226
in front seat ............................219
in rear seat ..............................219
LATCH .....................................222
recommendations ...................216
Index
398
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

Child safety seats - booster
seats ...........................................229
Cleaning your vehicle
engine compartment ..............342
instrument panel ....................344
interior .....................................345
plastic parts ............................343
washing ....................................340
waxing .....................................341
wheels ......................................341
wiper blades ............................343
Climate control (see Air
conditioning or Heating) ..........101
Clock adjust
6-CD in dash .............................52
AM/FM/CD .................................45
Compass, electronic
calibration .................................27
set zone adjustment ...........27, 36
Console ..............................120–121
overhead ..................................119
rear ..........................................121
Controls
power seat ...............................170
steering column ......................130
Coolant
checking and adding ..............361
refill capacities ................365, 385
specifications ..........................385
Cruise control
(see Speed control) ..................128
Customer Assistance ................305
Ford Extended Service
Plan ..........................................395
Getting assistance outside the
U.S. and Canada .....................337
Getting roadside assistance ...305
Getting the service you
need .........................................333Ordering additional owner’s
literature .................................338
Utilizing the
Mediation/Arbitration
Program ...................................337
D
Daytime running lamps
(see Lamps) ..............................107
Defrost
rear window ............................105
Dipstick
automatic transmission
fluid ..........................................380
engine oil .................................354
Driveline universal joint and
slip yoke ....................................382
Driving under special
conditions ..................291, 298, 302
sand .........................................300
snow and ice ...........................303
through water .................301, 304
Dual automatic temperature
control (DATC) .........................101
DVD system .................................66
E
Electronic message center ...21, 30
Emergencies, roadside
jump-starting ..........................325
running out of fuel .........325, 372
Emergency Flashers .................306
Emission control system ..........377
Engine ........................................390
cleaning ...................................342
coolant .....................................361
fail-safe cooling .......................366
