2010 FORD EXPEDITION warning

Pull the release lever to release the
brake. Driving with the parking
brake on will cause the brakes to
wear out quickly and reduce fuel
economy.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM (IF EQUIPPED)
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTrac
with RSC
system. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTrac
with RSC
system. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTrac
with RSC
sensors. Reducing the effectiveness
of the AdvanceTrac
with RSC
system could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTrac
with RSC
system is an indication that
at least some of the tires have exceeded their ability to grip the road;
this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your AdvanceTrac
with RSC
system
activates, SLOW DOWN.
Driving
293
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:If a failure has been detected within the
AdvanceTrac
with RSC
system, thesliding caricon
will
illuminate steadily. Verify that the AdvanceTrac
with RSC
system is
not manually disabled (push the AdvanceTrac
with RSC
“Off “
button located on the center of the instrument panel). If thesliding
caricon
still illuminates steadily, have the system serviced by an
authorized dealer immediately. Operating your vehicle with
AdvanceTrac
with RSC
disabled could lead to an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
The AdvanceTrac
with RSC
system provides the following stability
enhancement features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction.
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC
), which functions to help avoid a
vehicle roll-over.
The AdvanceTrac
with RSC
system automatically enables each time
the engine is started. All features of the AdvanceTrac
with RSC
system
(TCS, ESC, and RSC
are active and monitor the vehicle from start-up).
However, the system will only intervene if the driving situation requires
it.
The AdvanceTrac
with RSC

system includes an AdvanceTrac

with RSC
“Off” button on the
center of the instrument panel, and
a “sliding car” icon
in the
instrument cluster. The “sliding car”
icon
in the instrument cluster will illuminate temporarily during
start-up as part of a normal system self-check, or during driving if a
driving situation causes the AdvanceTrac
with RSC
system to operate.
If the “sliding car” icon
illuminates steadily, verify that the
AdvanceTrac
with RSC
system is not manually disabled by pressing
the AdvanceTrac
with RSC
“Off” button located on the center of the
instrument panel. If the “sliding car” icon
remains steadily
illuminated, have the system servicedd by an authorized dealer
immediately. The message center will also indicate a failure with the
AdvanceTrac
with RSC
system.
Driving
294
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Switching Off Traction Control
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off the Traction Control features of the AdvanceTrac

with RSC
system may be beneficial because the wheels are allowed to
spin. This will restore full engine power and will enhance momentum
through the obstacle. To switch off the Traction Control press the
AdvanceTrac
with RSC
“Off” button. Full features of the AdvanceTrac

with RSC
system can be restored by pressing the AdvanceTrac
with
RSC
Offbutton again or by turning off and restarting the engine.
If you switch off the Traction Control, the sliding caricon
will
illuminate steadily. Pressing the AdvanceTrac
with RSC
“Off” button
again will turn off “sliding car” icon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC and RSC
are disabled.
AdvanceTrac
with RSC
Features
Button
functions“Sliding
car”
icon
RSC
ESCEngine
Traction
ControlBrake
Traction
Control
Default at
start-upIlluminated
during bulb
checkEnabled Enabled Enabled Enabled
Button
pressed
momentarilyIlluminated
solidEnabled EnabledPartially
enabledPartially
enabled
Trailer Sway Control
Your vehicle may be equipped with trailer sway control. When properly
equipped, trailer sway control will use the vehicle’s AdvanceTrac
with
RSC
system to detect and help reduce trailer sway by applying brake
force at individual wheels and, if necessary, by reducing engine power.
WARNING:Trailer sway control does not prevent a trailer from
swaying, it mitigates the sway from increasing once it has
occurred. If you are experiencing trailer sway it is likely that the trailer
is improperly loaded for the correct tongue weight or the speed of the
vehicle and trailer is too high. Pull the vehicle-trailer over to a safe
location to check the trailer weight distribution and tongue load and
reduce speed to a safe level while towing. If trailer sway is
experienced, SLOW DOWN.
Driving
297
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

During trailer sway control events the “sliding car”icon in the
instrument cluster will flash momentarily. The cluster message center
will also displayTRAILER SWAY REDUCE SPEED. In some cases
when trailer sway is detected, the vehicle speed is too high and may be
above a speed at which trailer sway will not grow continuously. This may
cause the system to activate multiple times, causing a gradual reduction
in speed.
Note:The trailer sway control will only activate at speeds greater than
40 mph (64 km/h).
Disabling Trailer Sway Control
Trailer sway control can be disabled during any key cycle. SeeMessage
centerin theInstrument Clusterchapter. Note that regardless of
chosen enable state, trailer sway control will be re-enabled at each new
key cycle.
WARNING:Turning off trailer sway control increases the risk of
loss of vehicle control, serious injury, or death. Ford does not
recommend disabling this feature except in situations where speed
reduction may be detrimental (e.g., hill climbing), the driver has
significant trailer towing experience, and can control trailer sway and
maintain safe operation.
STEERING
Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.
To help prevent damage to the power steering pump:
•Never hold the steering wheel to the extreme right or the extreme left
for more than a few seconds when the engine is running.
•Do not operate the vehicle with the power steering pump fluid level
below the MIN mark on the reservoir.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
Driving
298
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

If the system is off, the rear air suspension will not operate and will not
raise (pump) or lower (vent) while the vehicle is not moving. However, if
the system determines that the vehicle is low or high and needs to make
a height adjustment while driving at speeds above 15 mph (24 km/h), the
system will pump or vent as required. Normal vehicle operation does not
require any action by the driver.
WARNING:On vehicles equipped with air suspension, turn the
air suspension and the ignition switch off prior to jacking,
hoisting or towing your vehicle.
LIMITED-SLIP AXLE (IF EQUIPPED)
This axle provides added traction on slippery surfaces, particularly when
one wheel is on a poor traction surface. Under normal conditions, the
limited slip axle functions like a standard rear axle.
Extended use of other than the manufacturer’s specified size tires on a
limited slip rear axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal driving
and should not be noticeable to the driver.
PREPARING TO DRIVE
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
Utility vehicles and trucks have larger tires and increased ground
clearance, giving the vehicle a higher center of gravity than a passenger
car.
WARNING:Vehicles with a higher center of gravity such as
utility vehicles and trucks handle differently than vehicles with a
lower center of gravity. Utility vehicles and trucks arenotdesigned for
cornering at speeds as high as passenger cars any more than low-slung
sports cars are designed to perform satisfactorily under off-road
conditions. Avoid sharp turns, excessive speed or abrupt maneuvers in
these vehicles. Failure to drive cautiously could result in an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death.
Driving
300
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Do not overload
your vehicle and use extra precautions, such as driving at slower
speeds, avoiding abrupt steering changes and allowing for increased
stopping distance, when driving a heavily loaded vehicle. Over-loading
or loading the vehicle improperly can deteriorate handling capability
and contribute to loss of vehicle control and vehicle rollover.
BRAKE-SHIFT INTERLOCK – COLUMN-SHIFT TRANSMISSION
This vehicle is equipped with a park/brake-shift interlock feature that
prevents the gearshift lever from being moved from P (Park) when the
ignition is in the on position unless brake pedal is pressed.

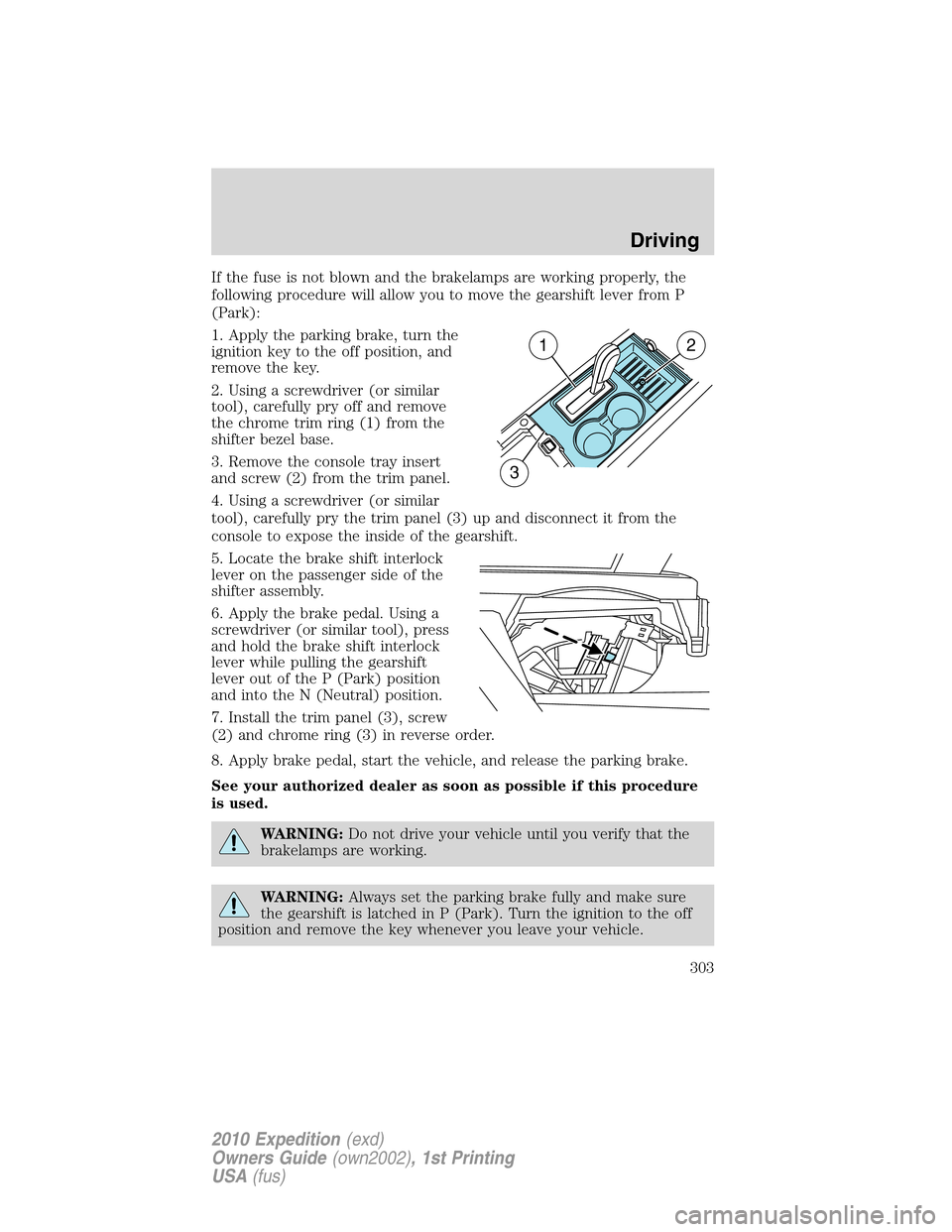

If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, or when the ignition is in
the off position, it is possible that a fuse has blown or the vehicle’s
brakelamps are not operating properly. Refer toFuses and relaysin the
Roadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake.
2. Turn the key to the off position.
3. Remove the access plug on top of
the steering column.
Driving
301
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

4. Using a flat-head screwdriver or
similar tool, move the brake-shift
interlock actuator spindle toward
the left, apply the brake and shift
the transmission into N (Neutral).
5. Start the vehicle.
6. Reinstall the access plug.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
Brake-shift interlock – floor-shift transmission
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brakelamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
Driving
302
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

If the fuse is not blown and the brakelamps are working properly, the
following procedure will allow you to move the gearshift lever from P
(Park):
1. Apply the parking brake, turn the
ignition key to the off position, and
remove the key.
2. Using a screwdriver (or similar
tool), carefully pry off and remove
the chrome trim ring (1) from the
shifter bezel base.
3. Remove the console tray insert
and screw (2) from the trim panel.
4. Using a screwdriver (or similar
tool), carefully pry the trim panel (3) up and disconnect it from the
console to expose the inside of the gearshift.
5. Locate the brake shift interlock
lever on the passenger side of the
shifter assembly.
6. Apply the brake pedal. Using a
screwdriver (or similar tool), press
and hold the brake shift interlock
lever while pulling the gearshift
lever out of the P (Park) position
and into the N (Neutral) position.
7. Install the trim panel (3), screw
(2) and chrome ring (3) in reverse order.
8. Apply brake pedal, start the vehicle, and release the parking brake.
See your authorized dealer as soon as possible if this procedure
is used.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
12
3
Driving
303
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
