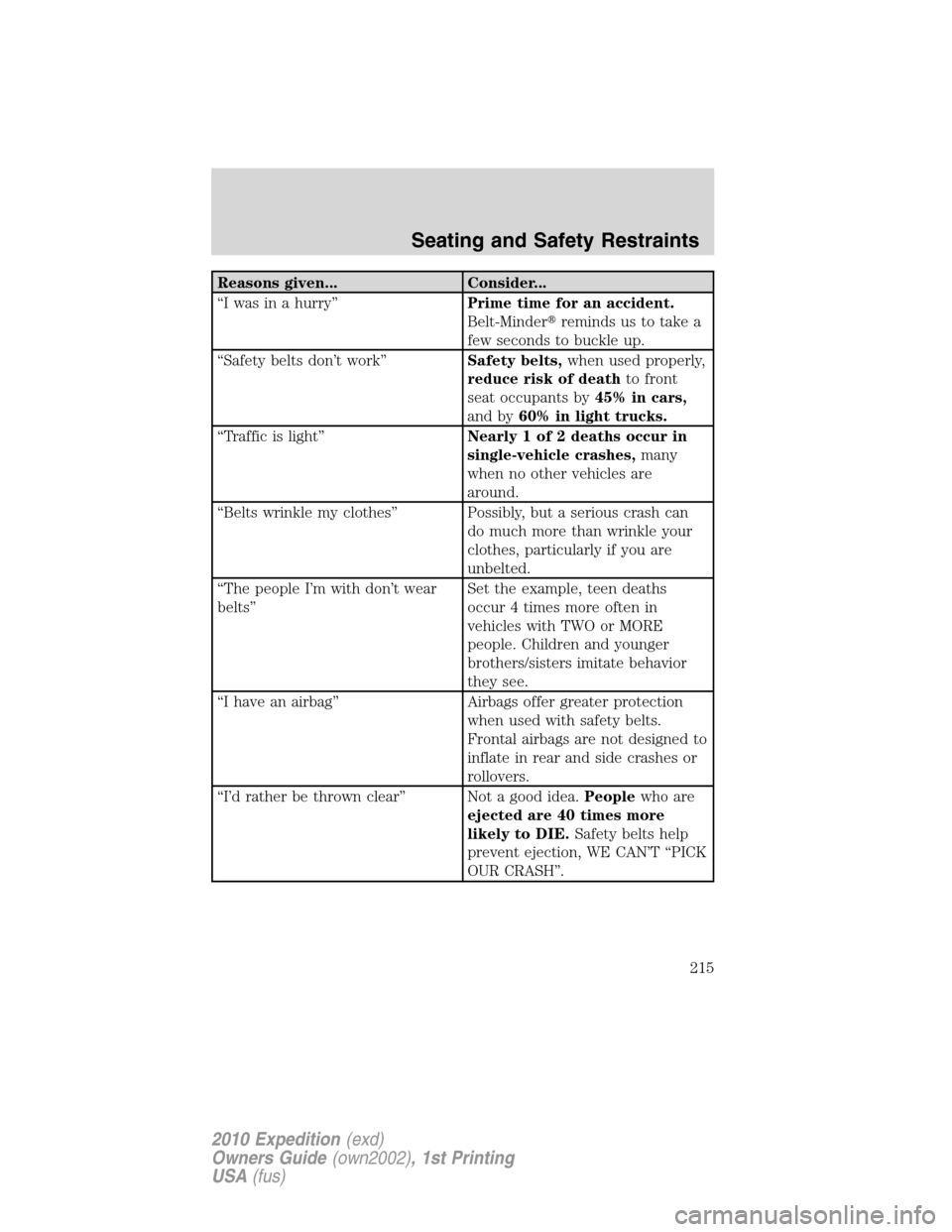

Reasons given... Consider...
“I was in a hurry”Prime time for an accident.
Belt-Minder
reminds us to take a
few seconds to buckle up.
“Safety belts don’t work”Safety belts,when used properly,
reduce risk of deathto front
seat occupants by45% in cars,
and by60% in light trucks.
“Traffic is light”Nearly 1 of 2 deaths occur in
single-vehicle crashes,many
when no other vehicles are
around.
“Belts wrinkle my clothes” Possibly, but a serious crash can
do much more than wrinkle your
clothes, particularly if you are
unbelted.
“The people I’m with don’t wear
belts”Set the example, teen deaths
occur 4 times more often in
vehicles with TWO or MORE
people. Children and younger
brothers/sisters imitate behavior
they see.
“I have an airbag” Airbags offer greater protection
when used with safety belts.
Frontal airbags are not designed to
inflate in rear and side crashes or
rollovers.
“I’d rather be thrown clear” Not a good idea.Peoplewho are
ejected are 40 times more
likely to DIE.Safety belts help
prevent ejection, WE CAN’T “PICK
OUR CRASH”.
Seating and Safety Restraints
215
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minder
chime. To
do so may adversely affect the performance of the vehicle’s air bag
system
Deactivating/activating the Belt-Minderfeature (if equipped)
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Note:If you are using MyKey™, the Belt-Minder
cannot be disabled.
Also, if the Belt-Minder
has been previously disabled, it will be
re-enabled after the use of MyKey™. Refer toMyKey™in theLocks
and securitychapter.
The driver Belt-Minder
feature can be deactivated/activated by
performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition switch is in the off position
•The driver and passenger safety belts are unbuckled
WARNING:While the design allows you to deactivate your
Belt-Minder
, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Minder
system activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minder
feature while driving the vehicle.
1. Turn the ignition switch to the on position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. Buckle then unbuckle the safety belt nine times at a moderate speed,
ending in the unbuckled state.
•After Step 3, the safety belt warning light will be turned on for three
seconds.
Seating and Safety Restraints
216
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the Belt-Minder
feature for that seating position if it
is currently enabled. As confirmation, the safety belt warning light will
flash four times per second for three seconds.
•This will enable the Belt-Minder
feature for that seating position if it
is currently disabled. As confirmation, the safety belt warning light will
flash four times per second for three seconds, followed by three
seconds with the light off, then followed by the safety belt warning
light flashing four times per second for three seconds again.
AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Important SRS precautions
The SRS is designed to work with
the safety belt to help protect the
driver and right front passenger
from certain upper body injuries.
Airbags DO NOT inflate slowly;
there is a risk of injury from a
deploying airbag.
Seating and Safety Restraints
217
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING:When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
WARNING:The National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 10 inches
(25 cm) between an occupant’s chest and the driver airbag module.
WARNING:Never place your arm over the airbag module as a
deploying airbag can result in serious arm fractures or other
injuries.
To properly position yourself away from the airbag:
•Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
•Recline the seat slightly one or two degrees from the upright position.
WARNING:Do not put anything on or over the airbag module.
Placing objects on or over the airbag inflation area may cause
those objects to be propelled by the airbag into your face and torso
causing serious injury.
WARNING:Do not attempt to service, repair, or modify the
airbag supplemental restraint systems or its fuses. Contact your
authorized dealer as soon as possible.
WARNING:The front passenger airbag is not designed to offer
protection to an occupant in the center front seating position.
WARNING:Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the
vehicle.
Seating and Safety Restraints
218
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

•one or more impact and safing sensors and diagnostic monitor (RCM),
•a readiness light and tone
•the electrical wiring which connects the components.
The RCM (restraints control module) monitors its own internal circuits
and the supplemental airbag electrical system wiring (including the
impact sensors, the system wiring, the airbag system readiness light, the
airbag back up power and the airbag ignitors).
Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer toAirbag readinesssection
in theInstrument Clusterchapter. Routine maintenance of the airbag is
not required.
A difficulty with the system is indicated by one or more of the following:
•The readiness light will either
flash or stay lit.
•The readiness light will not
illuminate immediately after ignition is turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, contact your
authorized dealer as soon as possible. Unless serviced, the system may
not function properly in the event of a collision.
Seat-mounted side airbag system
WARNING:Do not place objects or mount equipment on or
near the airbag cover on the side of the seatbacks of the front
seats or in front seat areas that may come into contact with a
deploying airbag. Failure to follow these instructions may increase the
risk of personal injury in the event of a collision.
WARNING:Do not use accessory seat covers. The use of
accessory seat covers may prevent the deployment of the side
airbags and increase the risk of injury in an accident.
WARNING:Do not lean your head on the door. The side airbag
could injure you as it deploys from the side of the seatback.
Seating and Safety Restraints
221
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Do not attempt to service, repair, or modify the
airbag SRS, its fuses or the seat cover on a seat containing an
airbag. Contact your authorized dealer as soon as possible.
WARNING:All occupants of the vehicle should always wear
their safety belts even when an airbag SRS is provided.
How does the side airbag system work?
The design and development of the side airbag system included
recommended testing procedures that were developed by a group of
automotive safety experts known as the Side Airbag Technical Working
Group. These recommended testing procedures help reduce the risk of
injuries related to the deployment of side airbags.
The side airbag system consists of
the following:
•An inflatable nylon bag (airbag)
with an inflator concealed behind
the outboard bolster of the driver
and front passenger seatbacks.
•A special seat cover designed to
allow airbag deployment.
•The same warning light,
electronic control and diagnostic
unit as used for the front airbags.
•Crash sensors located on the
front doors and C pillars (one
sensor on each pillar on each side
of the vehicle).
Side airbags, in combination with
safety belts, can help reduce the risk of severe injuries in the event of a
significant side impact collision.
The side airbags are fitted on the outboard side of the seatbacks of the
front seats. In certain lateral collisions, the airbag on the side affected by
the collision will be inflated. The airbag was designed to inflate between
the door panel and occupant to further enhance the protection provided
occupants in side impact collisions.
The airbag SRS is designed to activate when the vehicle sustains lateral
deceleration sufficient to cause the sensors to close an electrical circuit
that initiates airbag inflation.
Seating and Safety Restraints
222
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Do not attempt to service, repair, or modify the
Safety Canopy
system, its fuses, the A, B, C or D pillar trim, or
the headliner on a vehicle containing a Safety Canopy
. See your
authorized dealer.
WARNING:All occupants of the vehicle including the driver
should always wear their safety belts even when an airbag SRS
and Safety Canopy
system is provided.
WARNING:To reduce risk of injury, do not obstruct or place
objects in the deployment path of the inflatable Safety Canopy
.
How does the Safety Canopysystem work?
The design and development of the
Safety Canopy
system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags (including the Safety
Canopy
).
The Safety Canopy
system consists
of the following:
•An inflatable nylon curtain with a
gas generator concealed behind
the headliner and above the doors
(one on each side of vehicle).
•A headliner designed to flex open above the side doors to allow Safety
Canopy
deployment.
•The same readiness airbag light, electronic control and diagnostic unit
as used for the front airbags.
Seating and Safety Restraints
224
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:If the Safety
Canopy
system has
deployed, the Safety Canopy
will
not function again unless replaced.
The Safety Canopy
system
(including the A, B, C, and D
pillar trim and headliner) must be
inspected and serviced by an
authorized dealer. If the Safety
Canopy
is not replaced, it will
not function again, which will
increase the risk of injury in a
future collision.
Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer to theAirbag readiness
section in theInstrument Clusterchapter. Routine maintenance of the
airbag is not required.
Any difficulty with the system is indicated by one or more of the
following:
•The readiness light (same light as for front airbag system) will either
flash or stay lit.
•The readiness light will not illuminate immediately after ignition is
turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and light are repaired.
If any of these things happen, even intermittently, contact your
authorized dealer as soon as possible. Unless serviced, the system may
not function properly in the event of a collision or rollover event.
SOS Post-Crash Alert System™
The SOS Post-Crash Alert automatically flashes the turn signal lamps and
sounds the horn three times at four second intervals in the event of a
serious impact that deploys an airbag (front, side, side curtain or Safety
Canopy
) or the safety belt pretensioners.
Seating and Safety Restraints
226
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
