2010 FIAT PUNTO EVO transmission

115
F0U0200mfig. 118F0U0201mfig. 119
With Dualogic gearbox
(for versions/markets where provided)
The engine cuts out if the car stops with the brake pedal
pressed.
This condition can be maintained even if the brake pedal
is not pressed, if the gear lever is in position N.
NB: The engine can be stopped automatically only after
a speed of about 10 Km/h is reached, to prevent the en-
gine from being repeatedly stopped when driving at walk-
ing pace.
The engine being stopped is signalled by the warning light
fig. 118 on the instrument panel, depending on the con-
figuration.
Engine restarting mode
With normal transmission
Press the clutch pedal to allow the engine to be restarted.
START&STOP SYSTEM
(for versions/markets where provided)
FOREWORD
The Start&Stop device automatically stops the engine each
time the vehicle is stationary and starts it again when the
driver wants to move off.
This improves the efficiency of the vehicle by reducing fu-
el consumption, the emission of harmful gases and noise
pollution. The system is activated each time the car is
started.
OPERATING MODES
Engine cut-out mode
With manual transmission
With the vehicle stationary, the engine cuts out with the
gearbox in neutral and the clutch pedal released.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 115

120
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0206mfig. 124a
IMPORTANT
Before opening the bonnet, make sure
that the car is switched off and the key is
in the OFF position. Follow the instructions on the
plate near the front crossmember fig. 124a. It is
advisable to extract the key when there are oth-
er people in the car. The car should always be
evacuated after the key has been removed or
turned to the OFF position. During refuelling op-
erations, it is necessary to make sure that the car
is off with the ignition key in the OFF position.
WARNING
For cars with a robotised transmission, if
the engine cuts out automatically on a
gradient, it is advisable to restart the engine by
moving the gear lever towards (+) or (-) without
releasing the brake pedal. For vehicles with Dua-
logic transmission, where the Hill Holder function
is present, if the engine cuts out automatically
whilst on a hill, it is advisable to restart it by mov-
ing the gear lever towards (+) or towards (-) with-
out releasing the brake pedal to make the Hill
Holder function – which is active only when the
engine is running – available.
WARNING
If you want to prioritise climate comfort,
the Start&Stop system can be disabled to
allow continuous operation of the climate control
system.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:07 Pagina 120

125
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
ACCESSORIES PURCHASED
BY THE OWNER
If, after buying the vehicle, you decide to install electrical
accessories that require a permanent electrical supply
(sound system, satellite anti-theft system, etc.) or ones that
drain the battery, contact a Fiat Dealership, whose quali-
fied personnel, besides suggesting the most suitable de-
vices from Lineaccessori Fiat, will also check whether the
vehicle’s electrics are able to withstand the load required,
or whether they need to be integrated with a more pow-
erful battery.
Take care when fitting additional spoilers,
alloy wheels or non-standard wheel hubs:
they could reduce the ventilation of the brakes
and affect efficiency under sharp, repeated brak-
ing or on long descents. Make sure that nothing
obstructs the pedals (mats, etc.)
WARNING
INSTALLING ELECTRICAL/ELECTRONIC
DEVICES
Electrical and electronic devices installed after buying the
car in the context of after-sales service must carry the fol-
lowing label:
Fiat Auto S.p.A. authorises the installation of transceiving
devices provided that they are installed by a specialised
centre according to rules of good engineering practice in
compliance with the manufacturer’s instructions.
IMPORTANT Traffic police may not allow the car on the
road if devices have been installed which modify the features
of the car. This may also cause invalidation of warranty in
relation to faults caused by the change or either directly
or indirectly related to it.
Fiat Auto S.p.A. shall not be liable for damage caused by
the installation of accessories either not supplied or rec-
ommended by Fiat Auto S.p.A. and/or not installed in com-
pliance with the provided instructions.
RADIOTRANSMITTERS AND MOBILE
PHONES
Radio transmitter equipment (vehicle mobile phones, CB
radios, amateur radio etc.) shall not be used inside the
car unless a separate aerial is mounted on the roof.
IMPORTANT The use of these devices inside the pas-
senger compartment (without a separate aerial) may cause
the vehicle electrical systems to malfunction. This could
compromise safety in addition to constituting a potential
hazard for passengers’ health.
In addition, transmission and reception of these devices
may be affected by the shielding effect of the car body.
As far as the use of EC-approved mobile phones is con-
cerned (GSM, GPRS, UMTS), follow the instructions for
use provided by the mobile phone manufacturer.
082-128 PUNTO FL EN 4ed 20-01-2010 15:07 Pagina 125

199
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Never replace a blown fuse with metal
wires or other materials.
Should the fuse blow again, contact a Fi-
at Dealership.
WARNING
Never replace a fuse with one that has
a higher amperage: FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-FUSE,
MIDI-FUSE, MAXI-FUSE) is activated,
contact a Fiat Dealership.
WARNING
Remove the key from the ignition and
switch off or disable all devices before re-
placing a fuse.
WARNING
If a general protection fuse for safety sys-
tems (air bag system, braking system),
power unit systems (engine system, transmission
system) or steering system is triggered, contact a
Fiat Dealership.
WARNING
175-210 PUNTO FL EN 4ed 20-01-2010 15:09 Pagina 199

KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

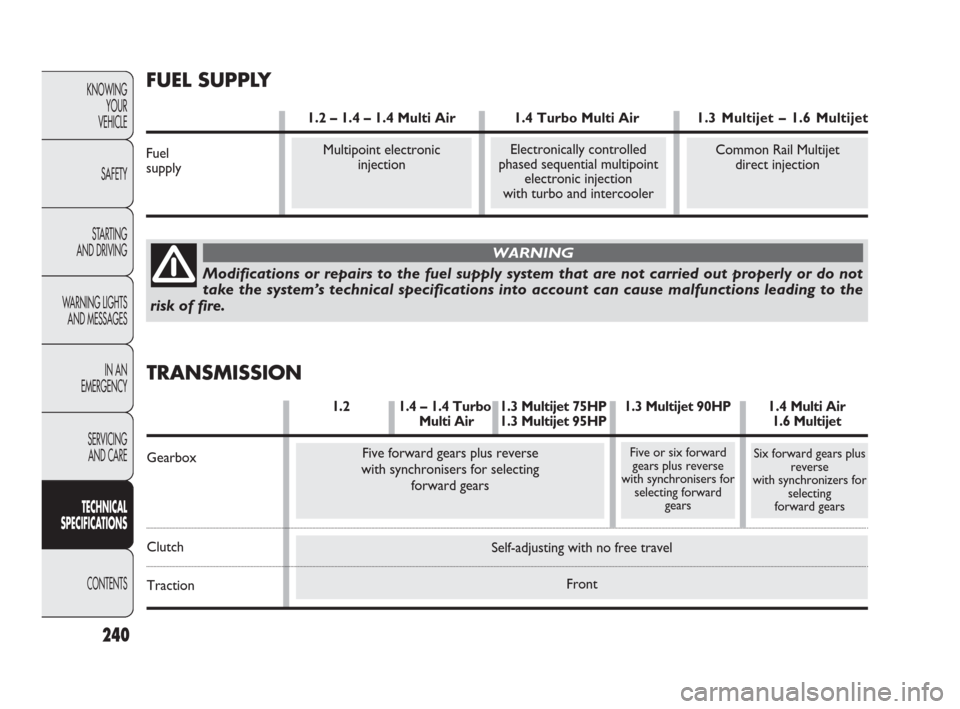

240
Self-adjusting with no free travel
Front
Five forward gears plus reverse
with synchronisers for selecting
forward gears
Electronically controlled
phased sequential multipoint
electronic injection
with turbo and intercoolerCommon Rail Multijet
direct injection
Modifications or repairs to the fuel supply system that are not carried out properly or do not
take the system’s technical specifications into account can cause malfunctions leading to the
risk of fire.
WARNING
Multipoint electronic
injection
Six forward gears plus
reverse
with synchronizers for
selecting
forward gearsFive or six forward
gears plus reverse
with synchronisers for
selecting forward
gears
FUEL SUPPLY
1.2 – 1.4 – 1.4 Multi Air 1.4 Turbo Multi Air 1.3 Multijet – 1.6 Multijet
Fuel
supply
TRANSMISSION
1.2 1.4–1.4 Turbo 1.3 Multijet 75HP 1.3 Multijet 90HP1.4 Multi AirMulti Air 1.3 Multijet 95HP 1.6 Multijet
Gearbox
Clutch
Traction
235-258 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 240

KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
252
Lubricants and
greases
for drive
transmission
system
Brake liquid
Fuel additive
Windscreen/
rear window
washer fluid
Mechanical gearbox
and differential (petrol
versions and 1.3
Multijet 75HP version)
Mechanical gearbox
and differential (1.3
Multijet 90HP and
1.6 Multijet versions)
Wheel side
constant-velocity
joints
Differential side
constant-velocity
joints (1.6 Multijet
versions excluded)
Differential side
constant-velocity joints
(1.6 Multijet versions)
Hydraulic brakes
and hydraulic clutch
controls
Cooling circuits.
Mixture: 50% water
and 50%
PARAFLU
UP(❒)
Mix 25cc per 10 litres
of diesel
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MX3 certification
SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MZ1 certification
Molybdenum disulphide grease, for use at
high temperatures.
FIAT 9.55580 certification. NL.GI. 1-2 consistency
Grease for constant-velocity joints with low
friction coefficient.
FIAT 9.55580 certification. NL.GI. 0-2 consistency
Polyeura-based synthetic grease for high temperatures.
FIAT 9.55580 certification. NL.GI. 2 consistency
Synthetic fluid FMVSS n° 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01.
FIAT 9.55597 certification
Red protective with antifreeze action, based on inhibited
monoethyl glycol with organic formula. Exceeds CUNA
NC 956-16, ASTM D 3306 specifications.
FIAT 9.55523 certification
Additive for diesel antifreeze, protecting
diesel engines
Mixture of alcohol, water and surfactants CUNA NC
956-II
FIAT 9.55522 certification.TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR
MATRYX
Contractual Technical
Reference N° F108.F02
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07
TUTELA STAR 325
Contractual Technical
Reference N° F301.D03
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35Contractual Technical
Reference N° F201.D02
Radiator
protection Use Quality specifications of fluids and lubricants Original Applications
for correct car operation fluids and lubricants
(*) IMPORTANT Do not use fluids with other specifications for topping up or mixing.
(❒) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand distalled water.
235-258 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 252

263
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
– blade replacement ....................... 230
– rear window washer fluid
specifications ................................. 252
Reconfigurable multifunctional
display ................................................. 24
– control buttons ............................ 25
– setup menu ................................... 26
– standard screen ............................ 24
Regular checks .................................... 216
Remote control .................................. 6
– additional remote controls ........ 8
– battery replacement .................... 7
– opening/closing doors
remotely ........................................ 6
– opening the tail gate .................... 6
Replacing battery of key with
remote control ................................. 7
Rev counter ......................................... 15
Reverse light
– bulb replacement ......................... 194
Right hand drive version ................... 265
Roof bar attachments ........................ 99
Roof rack/ski rack (capacity for) ..... 99
Rubber tubes ....................................... 229
Safety ................................................... 129
Satellite navigation socket ................. 124
SBR system .......................................... 130
Scheduled servicing plan ......... 212-214
Scrappage ............................................. 255
Seat belt pretensioners ..................... 131
– load limiters .................................. 131
Seat belts .............................................. 129
– carrying children safely ............... 134– general information ..................... 132
– load limiters .................................. 131
– maintenance .................................. 225
– pretensioners ................................ 131
– SBR ................................................. 130
– using the seat belts ...................... 129
Seat heating .......................................... 41
Servicing and care......................... 211
– checking fluid levels ..................... 217
– heavy-duty use of the car ........... 216
– regular checks .............................. 216
– scheduled servicing plan..... 212-214
Setting the clock ..........................21-30
Side bags
–
side bag / window bag ... 144-145-146
– general information ..................... 147
Side lights/taillights
– front bulb replacement ............... 189
– rear bulb replacement ................ 193
– switching on .................................. 61
Smart washing
(windscreen wipers) ........................ 64
Snow chains ......................................... 159
Sockets .................................................. 80
Spare wheel ......................................... 176
– technical specifications ............... 244
Spark plugs (type) .....................238-239
Speedometer ....................................... 15
– standard screen ............................ 23
Start&Stop system .............................. 115
Starting and driving...................... 149
Starting the engine ............................. 149
– emergency starting ...................... 175
– ignition switch .............................. 11
– procedure for diesel versions.... 150– procedure for petrol versions .... 149
– stopping the engine ..................... 151
– warming the engine ..................... 151
Steering lock ........................................ 12
Steering system
– technical specifications ............... 241
–
steering wheel adjustment lever.... 43
Steering wheel
– adjustment lever .......................... 43
– turning circle ................................. 241
Steering wheel stalks ................... 61-63
Stereo (wiring)..................................... 122
Storage compartments ...................... 74
Sun visors ............................................. 79
Suspensions .......................................... 241
Switching ceiling lights on/off ........... 68
Symbols ................................................. 4
Tail gate
– emergency unlocking from
the inside ....................................... 94
– unlocking with remote control .. 6
Technical specifications.............. 235
Third brake light ................................. 194
Topping up engine oil ........................ 220
– specifications ................................. .251
Tow hook
– installing ........................................ 207
Towing the car .................................... 208
Towing trailers .................................... 156
Trailer (towing) ................................... 156
– installing the tow hook ............... 157
Transmission
– technical specifications ............... 240
Trip computer ..................................... 37
259-268 PUNTO FL EN 4ed 18-01-2010 12:29 Pagina 263
