2010 FIAT GRANDE PUNTO check engine light

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IGNITION
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: engine off, key can be extract-
ed, steering locked. Some electrical de-
vices (e.g. sound system, central door
locking system, etc.) can function.
❒MAR: driving position. All electrical
devices can function.
❒AVV: engine starting (temporary posi-
tion).
The ignition device is fitted with an elec-
tronic safety system that, in the event the
engine fails to start, turns back the ignition
key to STOPbefore repeating the start-
ing operation.STEERING LOCK
Engagement
When the key is in position STOP, re-
move it and turn the steering wheel until
it locks.
Disengagement
Rock the steering wheel slightly as you
turn the key to MAR.
If the ignition device has
been tampered with (e.g. an
attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls. Remember to
engage the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 9F0M0015m
Never extract the key while
the vehicle is moving. The
steering wheel would lock automati-
cally as soon as it is turned. This also
applies to when the car is towed.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car not complying
with regulations.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 12

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

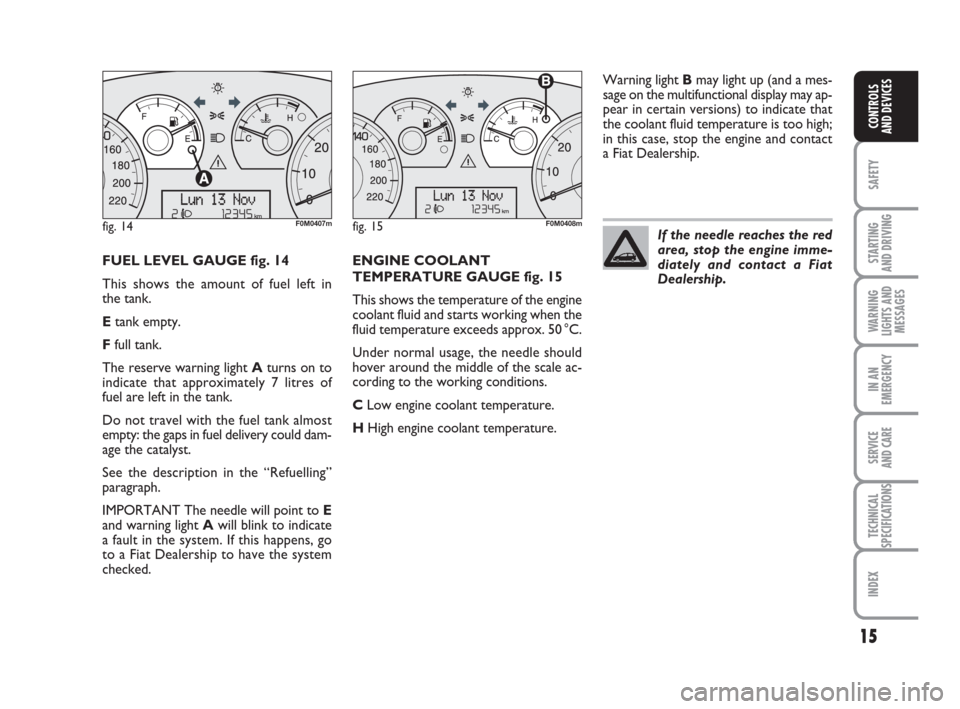

FUEL LEVEL GAUGE fig. 14
This shows the amount of fuel left in
the tank.
Etank empty.
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 7 litres of
fuel are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
See the description in the “Refuelling”
paragraph.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate
a fault in the system. If this happens, go
to a Fiat Dealership to have the system
checked.ENGINE COOLANT
TEMPERATURE GAUGE fig. 15
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50 °C.
Under normal usage, the needle should
hover around the middle of the scale ac-
cording to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.Warning light Bmay light up (and a mes-
sage on the multifunctional display may ap-
pear in certain versions) to indicate that
the coolant fluid temperature is too high;
in this case, stop the engine and contact
a Fiat Dealership.
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
fig. 14F0M0407mfig. 15F0M0408m
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 15

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Door unlocking in the event of
a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to allow access to the passenger
compartment and the ceiling lights will be
switched on at the same time. The doors
can always be opened from the inside of
the car by using the appropriate controls.
if no fuel leakage is found and the car is
roadworthy, ensure the correct operation
of the vehicle by adhering to the following
instructions. DOOR LOCKING fig. 50
To lock all doors at the same time, press
button A, located on the central console
control panel, regardless of the position
of the ignition key.FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒cut-off of fuel supply with consequent
switching off of the engine;
❒automatic door unlocking;
❒switching on of all interior lights.
When the system has been triggered, the
message “Fuel cut off, see handbook” is
displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.
After a crash, turn the key to STOP to
avoid draining the battery.fig. 50F0M0013m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reactivate the sys-
tem to avoid the risk of fire.
WARNING
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 55

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
BONNET
OPENING
Proceed as follows:
❒pull the lever fig. 89in the direction
of the arrow;
❒pull catch A-fig. 90as shown in the
diagram;
❒lift the bonnet and at the same time re-
lease the support prop from its locking
device D-fig. 91, then insert the end
C-fig. 92 into hole Eon the bonnet.
IMPORTANT Before opening the bonnet,
check that the windscreen wiper arms are
not lifted from the windscreen.
CLOSING
Proceed as follows:
❒hold the bonnet up with one hand and
with the other remove support rod
C-fig. 92 from hole Eand fit it back in-
to its catch D-fig. 91;
fig. 90F0M0358m
fig. 89F0M0135m
❒lower the bonnet to about 20 cen-
timetres above the engine compart-
ment and then let it drop. Make sure
that the bonnet is closed correctly and
not just in the safety position by trying
to lift it. If it is not perfectly closed, do
not try to press the bonnet lid down
but open it and repeat the procedure.
IMPORTANT Always check that the bon-
net is closed properly to avoid it opening
while the car is travelling.
fig. 91F0M0413m
fig. 92F0M0133m
033-071 ACTUAL 1ed EN 21-07-2010 14:26 Pagina 70

75
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
ESPSYSTEM(Electronic
StabilityProgram)
(for versions/markets, where provided)
This is an electronic system that controls
car stability in the event of tyre grip loss,
helping to maintain directional control.
The ESP system is therefore particularly
useful when road surface grip changes.
In addition to the ESP system, ASR system
and Hill Holder, the MSR system (adjusting
the engine braking torque) and the HBA
system (improving the braking force dur-
ing emergency braking) are also provided
(for versions/markets, where provided).
SYSTEM INTERVENTION
This is signalled by the flashing of warn-
ing light
áon the instrument panel, to in-
form the driver that the car is in critical
stability and grip conditions.
When the ABS cuts in and
you feel the brake pedal pul-
sating, do not remove your foot, but
keep the pedal pushed down; in do-
ingsoyou,willstopintheshortest
distance possible under the road con-
ditions at the time.
WARNINGEBD failure
This is indicated by the
>andxwarn-
ing lights on the instrument panel togeth-
er with the dedicated message on the mul-
tifunction display (for versions/markets,
where provided) coming on (see “Warn-
ing lights and messages” section).
In this case, the rear wheels may sudden-
ly lock and the vehicle may swerve when
braking sharply. Drive carefully to the
nearest Fiat Dealership to have the system
checked.
If only thexwarning light
on the instrument panel
lights up (together with a message in
the multifunction display, for ver-
sions/markets, where provided) stop
the vehicle immediately and contact
the nearest Fiat Dealership. Fluid
leaking from the hydraulic system will
compromise the operation of the
braking system, whether it is of the
conventional type or with ABS.
WARNING
072-092 ACTUAL 1ed EN 26-07-2010 10:54 Pagina 75

78
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Do not take unnecessary
risks, even if your vehicle is
fitted with this system. Your driving
style must always be suited to the
road conditions, visibility and traffic.
The driver is always responsible for
road safety.
WARNING
For correct operation of the ASR system,
the tyres must be of the same brand and
type on all wheels, in perfect conditions
and, above all, of the type, brand and size
recommended.
FAILURE INDICATIONS
In the event of a failure, the ASR system
will be automatically switched off and
warning light
áwill appear permanently
on the instrument panel along with a mes-
sage on the multifunction display (for ver-
sions/markets, where provided) (see
“Warning lights and messages”). In this
case, contact a Fiat Dealership as soon as
possible.
EOBD SYSTEM
The EOBD (European On Board Diagno-
sis) system allows continuous diagnostics
of the emission-related components of the
car.
It also alerts the driver, by turning on the
Uwarning light on the instrument panel
(together with a relevant message in the
multifunction display, for versions/mar-
kets, where provided) (see “Warning
lights and messages” section), when these
components are no longer in peak con-
dition.
The goal of the system is to:
❒keep the system efficiency under con-
trol;
❒warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace non-per-
forming components.
The system also has a connector that can
be interfaced with appropriate equipment,
which makes it possible to read the er-
ror codes stored in the control unit, to-
gether with a series of specific parameters
for engine operation and diagnosis. This
check can also be carried out by traffic
authorities.IMPORTANT After resolving the prob-
lem, to check the system completely, Fi-
at Dealerships are obliged to run a bench
test and, if necessary, road tests which
may call for a long journey.
If, when the ignition key is
turned to the MAR position,
theUwarning light either
does not come on or, when
driving, it comes on permanently or
flashes (along with a message in the
multifunction display for versions/mar-
kets, where provided), contact a Fiat
Dealership as soon as possible. The
operation of theUwarning light may
be checked by traffic police using ap-
propriate equipment. Follow the laws
in force in the country where you are
driving.
072-092 ACTUAL 1ed EN 26-07-2010 10:55 Pagina 78

109
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
Never rest your head, arms
or elbows on the doors, on
the windows or in the window bag
area as this could cause injuries dur-
ing the inflation phase.
WARNING
Never lean your head, arms
or elbows out of the window.
WARNING
GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬does not turn on or if it stays on when
travelling (together with the message
on the multifunction display, for ver-
sions/markets, where provided), there
could be a failure in the safety sys-
tems; in this event, airbags or pre-
tensioners may not trigger in case of
impact or, in a minor number of cas-
es, they could trigger accidentally.
Contact a Fiat Dealership immedi-
ately to have the system checked.
WARNING
Do not cover the backrest of
front and rear seats with
trims or covers that are not suitable
to be used with side bags.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; serious injury may re-
sult in the event of the airbag being
triggered.
WARNING
If the key is turned to MAR,
even if the engine is switched
off, airbags may be deployed when
the car is stationary and hit by an-
other vehicle. For this reason, children
must never occupy the front seat,
even if the car is not moving. Con-
versely, remember that when the key
is inserted in the STOP position, no
safety device (air bag or pretension-
ers) will activate following an impact;
non-activation of these devices in such
cases cannot therefore be considered
an indicator of system malfunction.
WARNING
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 109

117
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
Roof rack/ski rack
Remove the roof rack or ski rack from the
roof after use. These accessories decrease
aerodynamic penetration and have a neg-
ative effect on fuel consumption. It is bet-
ter to use a trailer to transport particu-
larly bulky objects.
Electrical devices
Use electrical devices only for the amount
of time needed. The heated rear window,
auxiliary headlights, windscreen wipers and
fan heater use up a considerable amount
of current, causing increased fuel con-
sumption (up to +25% in the urban cycle).
Air conditioning
Air conditioning leads to higher fuel con-
sumption (on average up to +20%). If the
temperature outside is not too extreme,
try and use the air vents.
Spoilers
The use of non-certified spoilers may ad-
versely affect aerodynamics and fuel con-
sumption.DRIVING STYLE
Starting
Do not warm up the engine at low or high
revs when the vehicle is stationary; this
causes the engine to warm up more slow-
ly, thereby increasing fuel consumption
and emissions. It is advisable to set off im-
mediately and slowly, avoiding high revs:
this allows the engine to warm up more
quickly.
Unnecessary actions
Avoid revving up when stationary at traf-
fic lights or before stopping the engine.
The latter action, like double declutching,
is entirely unnecessary and causes in-
creased fuel consumption and pollution.
Gear selection
Use a higher gear as soon as traffic and
road conditions allow. Using a low gear
for faster acceleration will increase fuel
consumption.
In the same way, improper use of a high
gear increases fuel consumption, emissions
and engine wear.SAVING FUEL
Here are some suggestions which may
help you to save fuel and reduce the
amount of toxic emissions released into
the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Scheduled Service
Plan”.
Tyres
Check the tyre pressure at least once
every 4 weeks: if the pressure is too low,
consumption levels increase as resistance
to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot.
The weight of the car (especially when dri-
ving in town) and its arrangement greatly
affect fuel consumption and stability.
111-122 ACTUAL 1ed EN 20-07-2010 16:10 Pagina 117
