2010 FIAT GRANDE PUNTO technical specifications

124
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Warning lights are accompanied by a spe-
cific message and/or sound when applica-
ble. These indications are synthetic and
precautionaryand, as such, must not be
considered as exhaustive and/or alterna-
tive to the information contained in this
Owner Handbook, which you are rec-
ommended to read carefully in all cases.
Refer to the information in this sectionif
a fault is signalled.
IMPORTANT The fault indications ap-
pearing on the display are divided into two
categories: very seriousand less seri-
ousfailures.
Very seriousfailures are indicated by
a repeated and prolonged warning “cycle”.
Less seriousfailures are indicated by
a shorter warning “cycle”.
Press MENU ESCto stop the warning
cycle in both cases. Warning lights on the
instrument panel will stay on until the
cause of the failure is eliminated.
For messages relevant to the versions
equipped with a Dualogic gearbox, see the
attached Supplement.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
Low brake fluid level
The warning light comes on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level due to possible
leaks in the circuit.
A specific message is displayed on certain
versions.
x
If the warning light xturns
on when travelling (togeth-
er with the message on the display on
certain versions), stop the car imme-
diately and contact a Fiat Dealership.
WARNING
Handbrake on
The warning light turns on when the hand-
brake is engaged.
If the car is moving, an audible warning will
also sound on certain versions.
IMPORTANT If the warning light comes
on with the vehicle in motion, check that
the handbrake is not engaged.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 124

125
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
AIRBAG FAULT
(red)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light stays on constantly if
there is a failure in the airbag system.
A specific message is displayed on certain
versions.
¬If the warning light ¬does
not turn on when turning the
key to MAR or stays on during car
travel, there may be a failure in the
restraint systems. If this is the case,
the airbags or pretensioners may not
be deployed in an accident or, in a
minor number of cases, they may be
deployed incorrectly. Contact a Fiat
Dealership immediately to have the
system checked before driving off.
WARNING
A problem with the warning
light
¬(light off) is indicat-
ed by the warning light
“, which in-
dicates the front passenger airbag is
deactivated, flashing for more than
the usual four seconds.
WARNING
OVERHEATED ENGINE
COOLANT (red)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒when driving normally: stop the car,
switch off the engine and check that the
water level in the reservoir is not be-
low the MIN mark. If it is not, wait for
a few minutes for the engine to cool
down then slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MIN and
MAX marks. Also visually check for
leaks. Should the warning light turn on
again at the next start-up, contact a Fiat
Dealership.
ç
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 125

126
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED ENGINE
OIL
(only Multijet versions with
DPF - red)
When the ignition key is turned to MAR
(ON), the warning light switches on and
should go out as soon as the engine is
started.
Low engine oil pressure
The warning light turns on and stays on
constantly (for versions/markets, where
provided) along with the message on the
display when the system detects that en-
gine oil pressure is low.
v
If the warning light vturns on when the vehicle is
travelling (on certain versions to-
gether with the message on the dis-
play) stop the engine immediately
and contact a Fiat Dealership.
WARNING
❒if the vehicle is used under de-
manding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on, stop the
car. Stop for 2 or 3 minutes with the
engine running and slightly accelerated
to assist better coolant circulation.
Then switch the engine off. Check cor-
rect fluid level as described above.
IMPORTANT On particularly demanding
journeys, it is advisable to keep the engine
on and slightly accelerated for a few min-
utes before switching it off.
A specific message is displayed on certain
versions.
LOW BATTERY
CHARGE (red)
When the ignition key is moved to MAR,
the warning light turns on but should go
out as soon as the engine is started (with
the engine idling, a brief delay can be ex-
pected).
If the warning light comes on, either per-
manently or intermittently, contact a Fiat
Dealership immediately.
w
Exhausted engine oil
(only Multijet versions with DPF)
The warning light will flash and a specific
message will appear on the display (for
versions/markets, where provided). The
warning light may flash in the following
ways, depending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning
light off for intervals of 5 seconds until oil
is changed.
After the initial warning, each time the en-
gine is started up, the warning light will
continue to flash in the above mentioned
modes, until the oil is changed. A specific
message will appear on the display (for
versions/markets, where provided) in ad-
dition to the warning light.
If the warning light flashes, this does not
mean that the car is defective but simply
informs the driver that it is now necessary
to change the oil as a result of regular ve-
hicle use.
Note that engine oil is exhausted faster
under the following circumstances:
– use of the vehicle prevalently for city dri-
ving, requiring more frequent regenera-
tion of DPF
– use of the vehicle for short drives, in
which the engine does not have time to
reach its regular operating temperature
– repeated interruption of the regenera-
tion process, signalled by the DPF warn-
ing light coming on.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 126

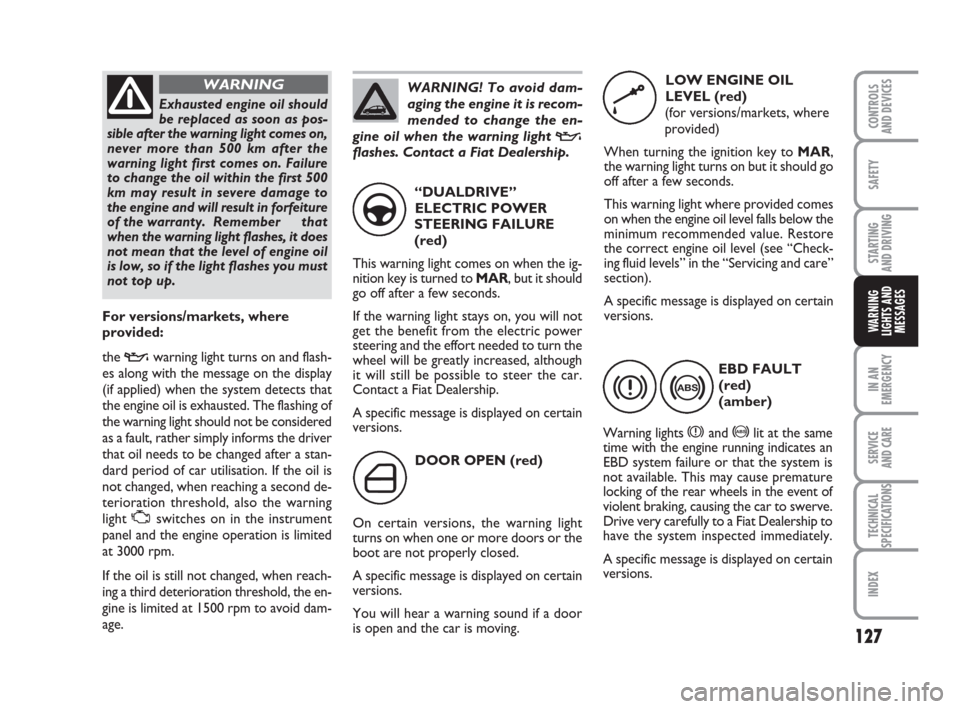

127
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
DOOR OPEN (red)
On certain versions, the warning light
turns on when one or more doors or the
boot are not properly closed.
A specific message is displayed on certain
versions.
You will hear a warning sound if a door
is open and the car is moving.
´
“DUALDRIVE”
ELECTRIC POWER
STEERING FAILURE
(red)
This warning light comes on when the ig-
nition key is turned to MAR, but it should
go off after a few seconds.
If the warning light stays on, you will not
get the benefit from the electric power
steering and the effort needed to turn the
wheel will be greatly increased, although
it will still be possible to steer the car.
Contact a Fiat Dealership.
A specific message is displayed on certain
versions.
g
EBD FAULT
(red)
(amber)
Warning lights
xand >lit at the same
time with the engine running indicates an
EBD system failure or that the system is
not available. This may cause premature
locking of the rear wheels in the event of
violent braking, causing the car to swerve.
Drive very carefully to a Fiat Dealership to
have the system inspected immediately.
A specific message is displayed on certain
versions.
x>
LOW ENGINE OIL
LEVEL (red)
(for versions/markets, where
provided)
When turning the ignition key to MAR,
the warning light turns on but it should go
off after a few seconds.
This warning light where provided comes
on when the engine oil level falls below the
minimum recommended value. Restore
the correct engine oil level (see “Check-
ing fluid levels” in the “Servicing and care”
section).
A specific message is displayed on certain
versions.
kExhausted engine oil should
be replaced as soon as pos-
sible after the warning light comes on,
never more than 500 km after the
warning light first comes on. Failure
to change the oil within the first 500
km may result in severe damage to
the engine and will result in forfeiture
of the warranty. Remember that
when the warning light flashes, it does
not mean that the level of engine oil
is low, so if the light flashes you must
not top up.
WARNING
For versions/markets, where
provided:
the
vwarning light turns on and flash-
es along with the message on the display
(if applied) when the system detects that
the engine oil is exhausted. The flashing of
the warning light should not be considered
as a fault, rather simply informs the driver
that oil needs to be changed after a stan-
dard period of car utilisation. If the oil is
not changed, when reaching a second de-
terioration threshold, also the warning
light
Uswitches on in the instrument
panel and the engine operation is limited
at 3000 rpm.
If the oil is still not changed, when reach-
ing a third deterioration threshold, the en-
gine is limited at 1500 rpm to avoid dam-
age.
WARNING! To avoid dam-
aging the engine it is recom-
mended to change the en-
gine oil when the warning light
v
flashes. Contact a Fiat Dealership.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 127

128
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
Go to a Fiat Dealership as
soon as possible if warning
light
Udoes not light up
when the key is turned to
MAR or if, while travelling, it either
comes on permanently or flashes
(along with a message on the display
on some versions). The operation of the
Uwarning light may be checked by
traffic police using appropriate equip-
ment. Respect the regulations in force
in the country where you are driving.
If the light flashes, come off the accelera-
tor pedal to reduce engine revs until the
warning light stops flashing; continue the
journey at moderate speed, trying to avoid
driving conditions that may cause further
flashing, and get to a Fiat Dealership as
soon as possible. EOBD engine control
system failure
Under normal conditions, turning the ig-
nition key to MAR, the warning light turns
on but it should go off after the engine
starts. This indicates that the warning light
is working correctly. If the warning light ei-
ther stays on or comes on while travelling:
❒on permanently: this means there is
a fault in the supply/ignition system
which could cause high exhaust emis-
sions, loss of performance, poor han-
dling and high fuel consumption levels.
A specific message is displayed on certain
versions.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. Prolonged use of the car with
the warning light on may cause damage.
Go to a Fiat Dealership as soon as possi-
ble. The warning light goes out after the
fault disappears, but the indication is
stored in the system.
❒flashing: this indicates possible damage
to the catalytic converter (see “EOBD
system” in the “Dashboard and con-
trols” section). INJECTION SYSTEM
FAULT
(Multijet versions
– amber)
EOBD SYSTEM FAULT
(petrol versions – amber)
Injection system failure
Under normal conditions, turning the ig-
nition key to MAR, the warning light turns
on but it should go off after the engine
starts.
If the warning light stays on or comes on
when travelling, it means there is a fault in
the injection system which could cause
loss of performance, poor handling and
high fuel consumption levels.
A specific message is displayed on certain
versions.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. In any case, you should go to
a Fiat Dealership as soon as possible.
U
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 128

129
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
ç
FUEL RESERVE
(amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on when about
7 litres of fuel are left in the tank.
IMPORTANT The warning light will blink
to indicate a system failure. If this is the
case, go to a Fiat Dealership to have the
system checked.ABS SYSTEM FAULT
(amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light comes on when the sys-
tem is either not working properly or not
available. Under these circumstances, the
braking system will work as normal but
without the extra performance offered by
the ABS system. Drive carefully and go to
a Fiat Dealership as soon as possible.
A specific message is displayed on certain
versions.
>“
FRONT PASSENGER
AIRBAG
DEACTIVATED
(amber)
The warning light
“comes on when the
front passenger airbag is disabled.
With the front passenger airbag enabled
and when turning the key to MAR, warn-
ing light
“comes on for about 4 seconds,
flashes for the next 4 seconds and then
goes out.
Warning light
“indicates
a failure of warning light ¬.
This condition is indicated by inter-
mittent blinking of warning light
“for longer than 4 seconds. In this case,
warning light ¬may not be indicat-
ing that there is a fault in the restraint
systems. Before driving off, contact
a Fiat Dealership to have the system
checked immediately.
WARNING
SEAT BELT NOT
FASTENED
(red)
The warning light on the instrument pan-
el will light up permanently when the car
is not moving and the driver’s seat belt is
not correctly fastened. This light will flash
if the driver’s seat belt is not correctly fas-
tened and the car is moving. The audible
alert of the SBR (Seat Belt Reminder) sys-
tem can be removed only by a Fiat Deal-
ership.
<
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 129

130
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GLOW PLUG HEATING
(Multijet versions
– amber)
GLOW PLUG
HEATING FAULT
(Multijet versions
– amber)
Glow plug heating
The warning light comes on when the key
is turned to MAR. It goes out as soon as
the glow plugs have reached the preset
temperature. Start the engine as soon as
the warning light goes out.
IMPORTANT In hot outside tempera-
tures, the warning light may stay on for
only a very short time.
Glow plug heating failure
The warning light flashes if there is a fault
in the preheating system. Go to a Fiat
Dealership as soon as possible.
A specific message is displayed on certain
versions.
m
WATER IN DIESEL
FILTER
(Multijet versions
– amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on when there is
water in the diesel filter.
A specific message is displayed on certain
versions.
c
The presence of water in the
fuel circuit may cause severe
damage to the injection sys-
tem and irregular engine op-
eration. If warning light
ccomes on
(with a message on the display on some
versions), go to a Fiat Dealership as
soon as possible to have the system
bled. Water may have entered the tank
if this appears immediately after refu-
elling: if this happens, switch the engine
off immediately and contact a Fiat
Dealership.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 130

131
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS
FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver-
sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light èturns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION
SYSTEM FAULT
– FIAT CODE
(amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 131
