2010 FIAT GRANDE PUNTO sensor

84
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CAR INACTIVITY fig. 103
(with Start&Stop system with
dummy pole)
(for versions/markets where provided)
In case of vehicle inactivity conditions, pay
special attention to the disconnection of
the battery power supply. The procedure
must be made by disconnecting the quick
release negative terminalA-fig. 103from
the dummy negative poleB,asthebattery
negative poleChas a sensorDfor bat-
tery condition monitoring that must nev-
er be disconnected (unless the battery is
replaced).CAR INACTIVITY fig. 104
(with Start&Stop system without
dummy pole)
(for versions/markets where provided)
In case of car inactivity, special attention
must be paid due to the disconnection of
the battery power supply. Proceed as fol-
lows: detach the connectorA-fig. 104(by
pressing buttonB) from sensorCfor
monitoring the battery status installed on
the battery negative poleD. This sensor
should never be disconnected from the
pole except if the battery is replaced.EMERGENCY STARTING
(with Start&Stop system with
dummy pole)
(for versions/markets where provided)
In case of vehicle jump starting, never
connect the negative cable (–) of the
auxiliary battery to the negative pole
B-fig. 105of the vehicle battery, rather
to the dummy pole A or to an en-
gine/gearbox earth point.
When replacing the battery,
always go to a Fiat Dealer-
ship. Replace the battery using a new
one of the same type (HEAVY DUTY)
and having the same specifications.
WARNING
fig. 103F0M0514mfig. 104F0M0516mfig. 105F0M0517m
072-092 ACTUAL 1ed EN 26-07-2010 10:55 Pagina 84

91
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
FUEL TANK CAP fig. 111
To carry out refuelling, open lidAand un-
screw capB;thecapisfittedwithade-
viceCwhich fastens it to the lid so it can-
not be mislaid.
In some versions, capBmay be provided
with a lock and key; use the ignition key
to access the flapA, turn it anti-clockwise
and unscrew the cap itself.
The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
When refuelling, hook the cap onto the
device inside the lid as shown infig. 111.
fig. 111F0M0138m
Do not place naked flames
or lit cigarettes near to the
fuel tank opening: fire risk. Keep your
face away from the fuel tank open-
ing to avoid breathing in harmful
vapours.
WARNING
Filling the tank
To fill the tank completely, top up twice
after the first click of the trigger. Further
top ups could cause faults in the fuel sup-
ply system.
PROTECTING
THEENVIRONMENT
The devices for reducing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The following devices are used for reduc-
ing diesel fuel engine emissions:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (E.G.R.);
❒diesel particulate filter (DPF) (for ver-
sions/markets, where provided).
072-092 ACTUAL 1ed EN 26-07-2010 10:55 Pagina 91

131
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS
FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver-
sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light èturns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION
SYSTEM FAULT
– FIAT CODE
(amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 131

159
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
1
8
13
2
5
11
4
6
14
7
12
3
107,5
7,5
5
5
10
5
20
20
20
20
5
5
7,5 FUSE TABLE
Dashboard fusebox fig. 36
DEVICESFUSE AMPS
Right dipped beam headlight
Left dipped beam headlight, corrector, headlamp alignment corrector
INT/A supply for switch coils on engine fusebox
and switch coils on body computer control unit
Front ceiling light, rear ceiling light (VAN version)
Supply and battery for EOBD diagnostic plug, alarm, sound system,
Blue&Me control unit
INT supply for instrument panel, switch on brake pedal
(N.O. contact), third brake light
Door locking/unlocking motors, dead lock activation motors,
boot unlocking motor
Windscreen/rear window washer pump
Electric window motor on driver-side front door
Electric window motor on passenger-side front door
INT supply for dashboard control lights, mirror movement exterior electrics,
sunroof control unit, My Port infotelematic system socket
Instrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, Blue&Me control unit, sound system capabilities,
voltage stabiliser control unit, reverse light on rear bumper,
water sensor on diesel filter, glow plug heating control unit, airflow meter,
brake booster sensor, switch coils on engine compartment fusebox
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 159

161
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
15
7,5
–
15
5
7,5 30
84
85
86
87
88
DEVICESFUSE AMPS
Left fog light, right fog light
Methane system management solenoid valves
Socket (ready for use)
Passenger compartment socket, cigarette lighter
Battery charge status sensor
De-mister on driver-side wing mirror, de-mister on passenger-side wing mirror
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 161

163
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

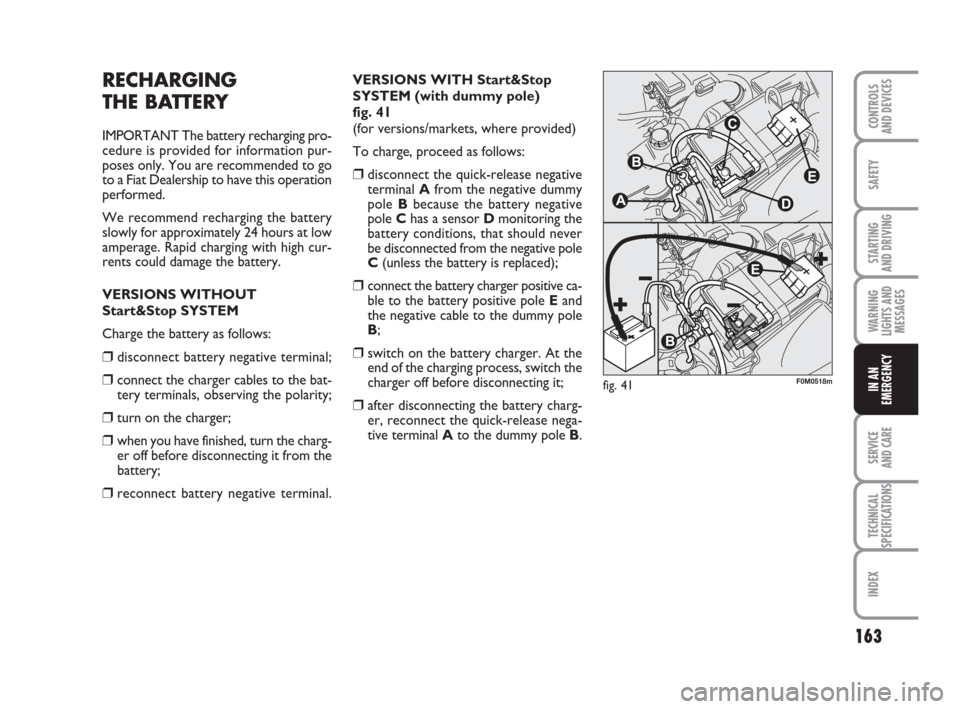

RECHARGING
THE BATTERY
IMPORTANT The battery recharging pro-
cedure is provided for information pur-
poses only. You are recommended to go
to a Fiat Dealership to have this operation
performed.
We recommend recharging the battery
slowly for approximately 24 hours at low
amperage. Rapid charging with high cur-
rents could damage the battery.
VERSIONS WITHOUT
Start&Stop SYSTEM
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the polarity;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting it from the
battery;
❒reconnect battery negative terminal.
fig. 41F0M0518m
VERSIONS WITH Start&Stop
SYSTEM (with dummy pole)
fig. 41
(for versions/markets, where provided)
To charge, proceed as follows:
❒disconnect the quick-release negative
terminal Afrom the negative dummy
pole Bbecause the battery negative
pole Chas a sensor Dmonitoring the
battery conditions, that should never
be disconnected from the negative pole
C(unless the battery is replaced);
❒connect the battery charger positive ca-
ble to the battery positive pole Eand
the negative cable to the dummy pole
B;
❒switch on the battery charger. At the
end of the charging process, switch the
charger off before disconnecting it;
❒after disconnecting the battery charg-
er, reconnect the quick-release nega-
tive terminal Ato the dummy pole B.
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 163

164
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
RAISING THE CAR
If the car needs to be lifted, go to a Fiat
Dealership which is equipped with the arm
hoist or workshop lift.
The car should be lifted side-on only, by
putting the ends of the arms or the work-
shop lifting device in the areas shown in
the diagram.
Do not try to rechargea frozen
battery; defrost it first to pre-
vent the risk of explosion. If the bat-
tery was frozen, have it inspected by
specialised personnel before recharg-
ing to check that the internal ele-
ments are not damaged and that the
casing is not cracked, which could
cause poisonous, corrosive gas to leak.
WARNING
fig. 42F0M0513m
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
must be recharged in a ventilated
place away from naked flames or
possible sources of sparks to avoid the
risk of explosion and fire.
WARNING
VERSIONS WITH Start&Stop
SYSTEM fig. 42
(without dummy pole)
(for versions/markets, where provided)
To charge, proceed as follows:
❒disconnect the connector A(pressing
the button B) from the sensor Cmon-
itoring the battery conditions, on the
negative pole Dof the battery;
❒connect the battery charger positive ca-
ble Eand the negative cable to the ter-
minal of sensor D, according to figure;
❒turn on the battery charger. At the end
of the charging process, switch the bat-
tery charger off;
❒after disconnecting the battery charg-
er, reconnect the connector Ato the
sensor Caccording to figure.
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 164
