Detection distances
Central action range: 140 cm ±10 cm
Side action range: 60 cm ±20 cm
If several obstacles are detected by the sensors, only the
nearest one is considered.
FAILURE WARNING
Any parking sensor failures will be indicated when
engaging reverse by the
twarning light in the instrument
panel together with the message in the multifunction
display coming on for versions/markets where provided
(see “Warning lights and messages” section).
PARKING SENSORS
(for versions/markets where provided)
The parking sensors are located in the rear bumper,
fig. 136 and their function is to inform the driver,
through an intermittent buzzer, about the presence of
obstacles behind the vehicle.
ACTIVATION
The sensors are automatically activated when the
reverse gear is engaged.
As the obstacle behind the vehicle gets closer to the
bumper, the beeping becomes more frequent.
WARNING BUZZER
When reverse gear is engaged an intermittent beeping is
automatically activated.
The acoustic signal:
❒increases as the distance between the vehicle and
the obstacle decreases;
❒becomes continuous when the distance between the
vehicle and the obstacle is less than 30 cm and stops
immediately if the distance increases;
❒remains constant if the distance remains unchanged;
if this situation concerns the side sensors, the
buzzer will stop after about 3 seconds to avoid,
for example, warning indications in the event of
manoeuvres along walls.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 121

S.B.R. SYSTEM
The vehicle is fitted with a Seat Belt Reminder system
(S.B.R.), consisting of a buzzer and a flashing warning
light
that the seat belt must be fastened.
The buzzer can be deactivated (until the next engine
stop) as follows:
❒fasten the driver’s seat belt;
❒turn the ignition key to MAR-ON;
❒wait for over 20 seconds and then release one of the
seat belts.
For permanent deactivation, contact the Fiat Dealership.
With digital display, the S.B.R. system can only be reset
at Fiat Dealership.
With multifunction display, the S.B.R. system can also be
reset through the set-up menu.
130
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0070mfig. 143F0N0156mfig. 144
Seat belt with reel for front central position on
bench seat fig. 144
The two-seater front bench is equipped with an on-
board seat belt (reel on seat) with three anchorage
points for the central position. Correct regulation is obtained when the belt passes
approximately half way between the shoulder and the
neck.
After adjustment, always check that the
cursor to which the ring is fastened is
locked in one of the set positions. Push
downwards to enable the locking device to click
if the grip has not been released in one of the
possible positions.
WARNING
129-146 DUCATO LUM EN 7ed 6/21/10 2:12 PM Page 130

146
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
With ignition key inserted, on MAR-ON,
even if the engine is off, the air bags can
activate even with the vehicle stopped, if it is hit
by another vehicle. For this reason, children
must never sit on the front seat, even if the
vehicle is not moving. On the other hand,
whenever the key is positioned on STOP,
the safety devices (airbags or pretensioners)
do not deploy after a collision. In this case
non-deployment of these devices does not
indicate a system malfunction.
WARNING
If the vehicle has been subject to theft
or a theft attempt or if it has been
affected by vandalism, flooding or inundation,
have the air bag system checked at a Fiat
Dealership.
WARNING
Turning the ignition key to MAR-ON, the
warning light F(airbag on passenger’s
side enabled) goes on and flashes for a few
seconds, thus reminding the passenger that the
airbag on his/her side will deploy in the event of
a collision. After this time, the light goes off.
WARNING
Do not wash the car seats with water or
pressurised steam (either by hand or at
automatic washing stations).
WARNING
The front airbag is deployed in the event
of collisions with a more severe nature
than those required to activate the
pretensioners. For collisions in the range
between the two activation thresholds, the fact
that only the pretensioners activate is normal.
WARNING
Always drive keeping your hands on the
rim of the steering wheel so that, in the
event of airbag activation, it can inflate without
meeting obstacles. Do not drive with your body
bent forward. Keep the backrest in an upright
position, resting your back on it firmly.
WARNING
Do not hook rigid objects to clothes
hangers or to the support handles.
The air bag does not replace seat belts but
increases their efficiency. Furthermore, since
front air bags are not deployed in low speed
collisions, side collisions, rear-end shunts or roll-
overs, the passengers are only protected by the
seat belts which must be fastened at all times.
WARNING
129-146 DUCATO LUM EN 7ed 6/21/10 2:12 PM Page 146

147
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
PROCEDURE FOR
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒turn the ignition key to MAR-ON: the warning lights
mand Yon the instrument panel will turn on;
❒wait for the warning lights Yand mto turn off.
The hotter the engine is, the quicker this will happen;
❒press the clutch pedal all the way down without
touching the accelerator;
❒turn the ignition key to AVVas soon as the warning
light
mturns off. Waiting too long will waste the
work done by the glow plugs. Release the key as
soon as the engine starts.
If the engine does not start at the first attempt, return
the ignition key to STOP before repeating starting.
STARTING THE ENGINE
The vehicle is fitted with an electronic engine lock
device: if the engine fails to start, see the paragraph
“The Fiat CODE system” in section “Dashboard and
controls”.
STARTING AND DRIVING
It is dangerous to let the engine run in
enclosed spaces. The engine consumes
the oxygen and discharges carbon dioxide,
carbon monoxide and other toxic gases.
WARNING
In the first period of use, we recommend
avoiding excessive stress on the car (for
instance excessive acceleration, extended
travel at maximum speed, sudden braking etc.).
When the engine is switched off never
leave the key into the ignition switch to
prevent useless current absorption from
draining the battery.
Remember that the brake servo and
power steering are not operational until
the engine has been started, therefore much
effort than usual is required on the brake pedal
and steering wheel.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 147

148
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

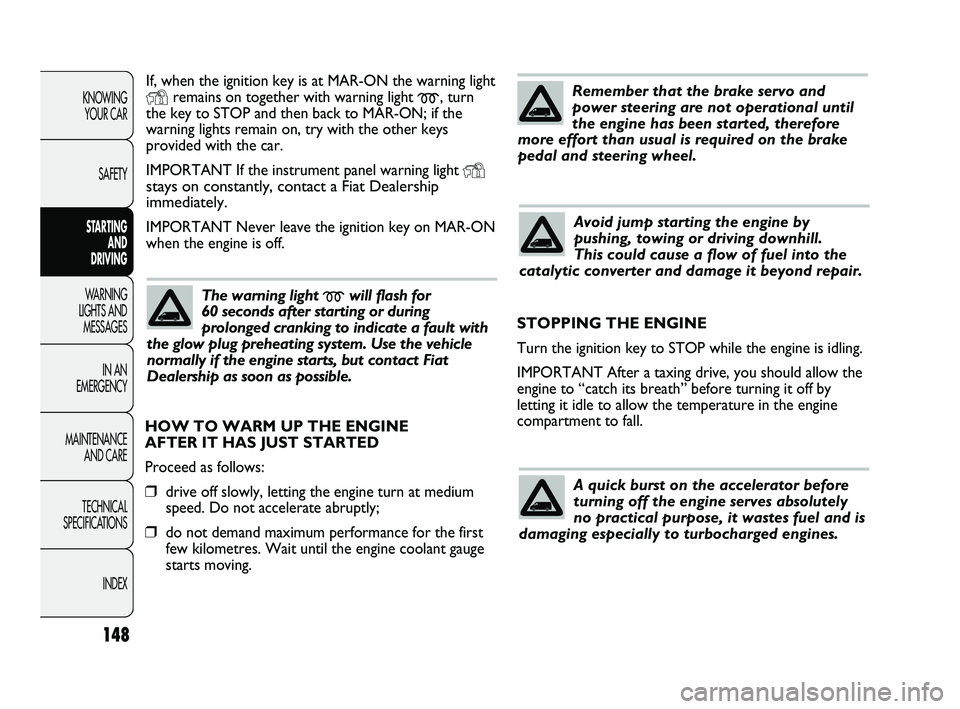

If, when the ignition key is at MAR-ON the warning light

Yremains on together with warning light m, turn
the key to STOP and then back to MAR-ON; if the
warning lights remain on, try with the other keys
provided with the car.
IMPORTANT If the instrument panel warning light
Ystays on constantly, contact a Fiat Dealership
immediately.
IMPORTANT Never leave the ignition key on MAR-ON
when the engine is off.
The warning light mwill flash for
60 seconds after starting or during
prolonged cranking to indicate a fault with
the glow plug preheating system. Use the vehicle
normally if the engine starts, but contact Fiat
Dealership as soon as possible.
Remember that the brake servo and
power steering are not operational until
the engine has been started, therefore
more effort than usual is required on the brake
pedal and steering wheel.
Avoid jump starting the engine by
pushing, towing or driving downhill.
This could cause a flow of fuel into the
catalytic converter and damage it beyond repair.
HOW TO WARM UP THE ENGINE
AFTER IT HAS JUST STARTED
Proceed as follows:
❒drive off slowly, letting the engine turn at medium
speed. Do not accelerate abruptly;
❒do not demand maximum performance for the first
few kilometres. Wait until the engine coolant gauge
starts moving.STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is idling.
IMPORTANT After a taxing drive, you should allow the
engine to “catch its breath” before turning it off by
letting it idle to allow the temperature in the engine
compartment to fall.
A quick burst on the accelerator before
turning off the engine serves absolutely
no practical purpose, it wastes fuel and is
damaging especially to turbocharged engines.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 148

149
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0073mfig. 159
HANDBRAKE fig. 159
The handbrake lever is located to the left side of the
driver’s seat. Pull the lever upwards to engage the
handbrake and ensure that the vehicle does not move.
Four or five notches are normally sufficient to brake the
vehicle on flat ground, while nine or ten may be
necessary on a steep slope with the vehicle loaded.
IMPORTANT If this is not the case, contact a Fiat
Dealership to have the handbrake adjusted.
When the handbrake lever is pulled up and the ignition
key is at
MAR-ON, the instrument panel warning light
xwill turn on. Proceed as follows to release the
handbrake:
❒slightly lift the handbrake and press the release
button
A;
❒keep button Apressed and lower the lever.
The warning light
xon the instrument panel will
turn off.
Press the brake pedal when carrying out this operation
to prevent the vehicle from moving accidentally.
IMPORTANT Apply the handbrake lever only when
the vehicle is at a standstill or with the vehicle in
motion only in the event of a fault in the hydraulic
system. If exceptional use is made of the handbrake
with the vehicle in motion, moderate traction is
advisable in order not to cause locking of the rear end
with consequent swerving of the vehicle.
PARKING THE VEHICLE
Proceed as follows:
❒stop the engine and engage the handbrake;
❒engage a gear (on a slope, engage first gear if the
vehicle is faced uphill or reverse if it is faced
downhill) and leave the wheels steered.
If the vehicle is parked on a steep slope, it is advisable
to block the wheels with a wedge or stone. Do not
leave the key in the ignition switch to prevent draining
the battery. Always remove the key when you leave
the vehicle.
Never leave children unattended in
the vehicle. Always remove the ignition
key when leaving the vehicle and take it out
with you.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 149

152
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTAINING RUNNING COSTS
Here are some suggestions which may help you to keep
the running costs of your vehicle down and lower the
amount of toxic emissions released into the
atmosphere.
GENERAL CONSIDERATIONS
Vehicle maintenance
Have checks and adjustments carried out in accordance
with the “Scheduled Servicing Plan”.
Tyres
Check the pressure of the tyres routinely at an interval
of no more than 4 weeks: if the pressure is too low,
consumption levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight of
the vehicle (especially when driving in town) and its
geometry greatly affect fuel consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof
after use. These accessories decrease aerodynamic
penetration of the vehicle and have a negative effect on
fuel consumption. It is better to use a trailer, particularly
for transporting bulky objects. In addition to these general precautions, some simple
precautions can improve driving safety, travelling
comfort and vehicle durability:
❒distribute the load evenly over the floor: if it is
necessary to concentrate it in a single area, choose
an area mid-way between both axles;
❒remember that the lower the load, the lower the
vehicle’s centre of gravity, making for a safer drive:
therefore always position the heaviest goods lower
down;
❒lastly, remember that the vehicle’s dynamic
behaviour is affected by the weight transported:
in particular, the stopping distances are longer,
especially at high speed.
If you wish to carry petrol in a reserve
tank, observe the legal restrictions and
only use a tank that is type approved and
properly secured to the load anchorage
eyebolts. However, the risk of fire in the event
of an accident increases.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 152

161
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING LIGHTS AND MESSAGES
GENERAL WARNINGS
The turning on of the warning light is accompanied by
a specific message and/or buzzer sound where provided
by instrument panel. These indications are brief and
precautionary and as such must not be considered as
exhaustive and/or an alternative to the information
contained in the Owner Handbook, which you are
recommended to read carefully in all cases. Always refer
to the information in this chapter in the event of
a failure indication.
IMPORTANT Failure indications displayed are divided
into two categories: very serious and less serious
failures.
Very serious failures prompt a prolonged cycle of
signals.
Less serious failures prompt a shorter cycle of signals.
Press MODE to stop the warning cycle in both cases.
The instrument panel warning light will stay on until the
cause of the failure is eliminated.
For messages relevant to the versions equipped with
Dualogic gearbox, see the attached Supplement.
WARNING LIGHTS AND MESSAGES
If the warning light xturns on when
travelling (on certain versions together
with the message on the display) stop the car
immediately and contact a Fiat Dealership.
WARNING
LOW BRAKE FLUID LEVEL (red)
HANDBRAKE ENGAGED (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
Low brake fluid level
The warning light comes on when the level of the brake
fluid in the reservoir falls below the minimum level due
to a possible leak in the circuit.
On some versions the display shows the dedicated
message.
x
Handbrake engaged
The warning light turns on when the handbrake is
engaged.
On certain versions, if the vehicle is moving the buzzer
will also sound.
IMPORTANT If the warning light turns on when
travelling, check that the handbrake is not engaged.
