IMPORTANT For versions with right and left side flaps,
it is advisable to reposition the release lever in the
closed position before lowering the sides.
LOAD ADVICE
The Fiat Ducato version used by you has been designed
and type approved on the basis of certain maximum
weights (see “Weights” table in the “Technical Data”
section): kerb weight, payload, total weight, maximum
weight on front axle, maximum weight on rear axle,
towable weight.
Each of these must be strictly observed
and MUST NEVER BE EXCEEDED in
any case. In particular, ensure that you never
exceed the maximum permitted weights on the
front and rear axles when arranging the load on
the vehicle (particularly if the vehicle is
equipped with a specific trim level).
WARNING
IMPORTANT The maximum permitted load on the
floor fastenings is 500 kg; the maximum permitted load
on the side panel is 150 kg.
Irregular trajectories and abrupt braking
may cause sudden movements of the
load with consequent situations of hazard for
the driver and passengers: before setting off,
secure the load tightly using the appropriate
hooks on the floor and use steel cables, ropes
or chains strong enough to hold the items to be
secured.
WARNING
If a vehicle is parked on a very steep
gradient or with a side gradient, opening
the rear door or side door could cause any
unsecured items to emerge suddenly.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 151

157
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Installation diagram for Van
versions – fig. 161
The tow hook structure must be
fastened in the points shown by the
symbol Øusing a total of 6
M10x1.25 screws and 4 M12 screws.
The internal back plates must be at
least 5 mm thick.
MAX LOAD ON BALL: 100/120 kg
according to the payload (see
“Weights” table in the “Technical
data” section).
After fitting, the screw
holes must be sealed to
prevent exhaust gas leaks.
WARNING
fig. 161F0N0189m
Existing hole
Existing nut
Existing nutExisting hole
Existing hole
laden
Standard ball M12
M12
M10 (3x)
M10 (3x)
M12
To install a tow hook, the bumpers
must be trimmed as described in the
supplier’s installation kit.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 157

158
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Installation diagram for Truck
and Chassis Cab versions
– fig. 162
Another tow hook specific to Truck
and Chassis Cab versions is shown
in fig. 162.
The structure Ømust be fastened in
the points shown using a total of
6 M10x1.25 screws and 4 M12
screws.
MAX LOAD ON BALL: 100/120 kg
according to the payload (see
“Weights” table in the “Technical
data” section).
After fitting, the screw
holes must be sealed to
prevent exhaust gas from
entering.
WARNING
fig. 162F0N0250m
Existing hole
Existing hole
Existing hole
Standard ball
laden
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 158

184
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0828mfig. 181
❒If at least 3 bar pressure is read, restore the correct
pressure specified in the paragraph „Inflation
pressure“ in the „Technical Specifications“ section
(with engine running and handbrake on) and restart.
❒drive with the utmost care to the nearest Fiat
Dealership.
You must inform the dealership that the
tyre has been repaired using the quick
tyre repair kit. Hand the leaflet over to the staff
who will be dealing with the the tyre treated
using the tyre repair kit.
WARNING
If different tyres from the ones supplied
with the vehicle are used, the repair
cannot be carried out. If the tyres are replaced,
it is advisable to use those approved by the
manufacturer. Contact a Fiat Dealership .
WARNING
❒Undo the cap for the tyre valve, extract the pipe
C-fig. 181 with the quick connector and connect it
directly to the valve of the tyre to be inflated.
❒Insert the pin in the nearest 12 V power socket and
start the engine.
❒Rotate the selector clockwise to the pressure
renewal position.
❒Activate the kit by pressing the on/off switch. Inflate
the tyre to the pressure specified in the „Inflation
pressure“ paragraph, in the „Technical Data“
chapter.
NOTE If the tyre has to be deflated, press the
dedicated button B illustrated in
fig. 182. For a more accurate reading, it is advisable to
check the pressure reading on the pressure gauge with
the compressor off and without moving the centre
selector from the pressure restoring position.
FOR CHECKING AND RESTORING
PRESSURE ONLY
The compressor can be also used solely for restoring
pressure.
❒Engage the handbrake
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 184

231
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0333mfig. 236
H Maximum authorised weight on second axle
(rear).
I Engine type
L Bodywork version code
M Number for spare parts
N Correct fume coefficient value.
TECHNICAL SPECIFICATIONS
IDENTIFICATION DATA
It is advisable to take note of the identification codes.
The following identification codes are printed and
shown on the plates:
❒Model plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
MODEL PLATE fig. 236
This plate is fitted to the engine compartment front
crossmember and contains the following identification
data:
B Type-approval number
C Vehicle type identification code.
D Chassis number.
E Maximum authorised weight of vehicle fully laden.
F Maximum authorised weight of vehicle fully laden
plus trailer.
G Maximum authorised weight on first axle (front).
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 231

232
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0160mfig. 237F0N0338mfig. 239
F0N0162mfig. 238
ENGINE MARKING
This is stamped onto the cylinder block and shows the
type and the manufacture serial number. BODYWORK PAINT IDENTIFICATION
PLATE fig. 237
This plate is fitted to the engine compartment front
crossmember and contains the following identification
data:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Respray and touch up code.
CHASSIS MARKING fig. 238
One is located on the passenger’s side inner wheel arch,
A-fig. 238, the other on the lower part of the
windscreen, fig. 239.
❒vehicle model;
❒the chassis progressive number.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 232

280
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

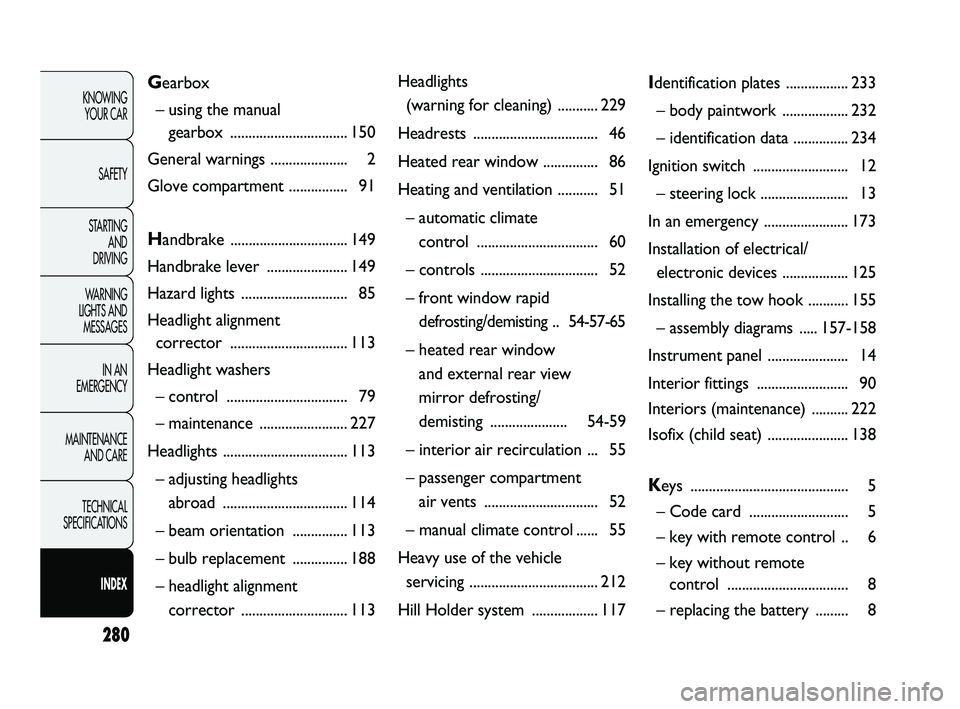

Gearbox
