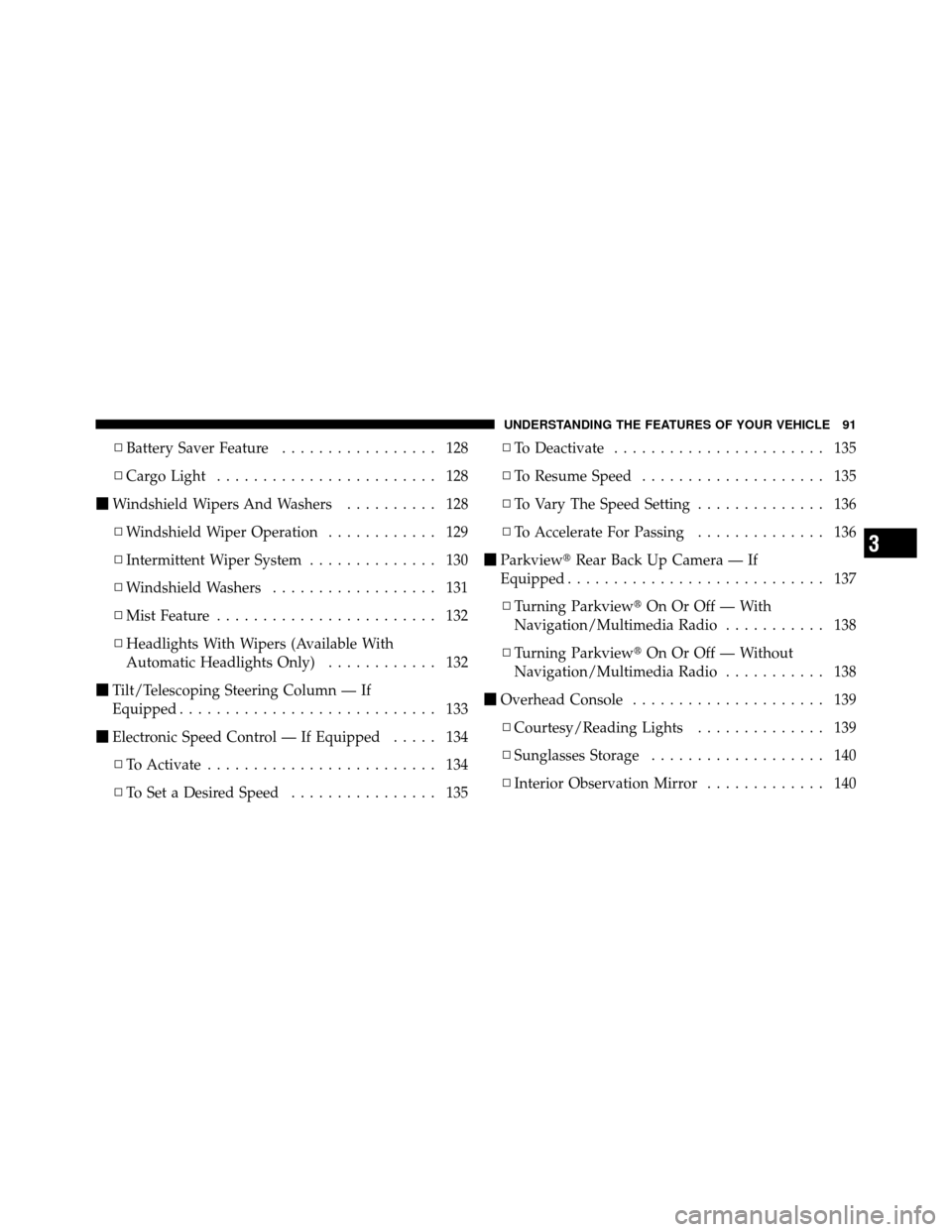

▫Battery Saver Feature ................. 128
▫ Cargo Light ........................ 128
 Windshield Wipers And Washers .......... 128
▫ Windshield Wiper Operation ............ 129
▫ Intermittent Wiper System .............. 130
▫ Windshield Washers .................. 131
▫ Mist Feature ........................ 132
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 132
 Tilt/Telescoping Steering Column — If
Equipped ............................ 133
 Electronic Speed Control — If Equipped ..... 134
▫ To Activate ......................... 134
▫ To Set a Desired Speed ................ 135 ▫
To Deactivate ....................... 135
▫ To Resume Speed .................... 135
▫ To Vary The Speed Setting .............. 136
▫ To Accelerate For Passing .............. 136
 Parkview Rear Back Up Camera — If
Equipped ............................ 137
▫ Turning Parkview On Or Off — With
Navigation/Multimedia Radio ........... 138
▫ Turning Parkview On Or Off — Without
Navigation/Multimedia Radio ........... 138
 Overhead Console ..................... 139
▫ Courtesy/Reading Lights .............. 139
▫ Sunglasses Storage ................... 140
▫ Interior Observation Mirror ............. 140
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control. An accident could be the result.
Do not use Electronic Speed Control in heavy traffic
or on roads that are winding, icy, snow-covered, or
slippery.
PARKVIEWREAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen
image of the rear of your vehicle whenever the shift lever
is put into REVERSE. The image will be displayed on the
Navigation/Multimedia radio display screen.
WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You are
responsible for the safety of your surroundings and
must continue to pay attention while backing up.
Failure to do so can result in serious injury or death.
CAUTION!
•To avoid vehicle damage, ParkView should only
be used as a parking aid. The ParkView camera is
unable to view every obstacle or object in your
drive path.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

CAUTION! (Continued)
•To avoid vehicle damage, the vehicle must be
driven slowly when using ParkViewto be able to
stop in time when an obstacle is seen. It is recom-
mended that the driver look frequently over his/
her shoulder when using ParkView.
NOTE: If snow, ice, mud, or anything else builds up on
the camera lens, clean the lens, rinse with water, and dry
with a soft cloth. Do not cover the lens.
Turning ParkView On or Off — With
Navigation/Multimedia Radio
1. Press the “menu” hard key.
2. Select “system setup” soft key.
3. Press the “camera setup” soft key. 4. Enable or disable the rear camera feature by selecting
“enable rear camera in reverse” soft key.
5. Press the “save” soft key.
6. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
“check entire surroundings” displayed across the top of
the screen. After five seconds this note will disappear.
7. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the navigation or audio screen
appears again.
Turning ParkView
On or Off — Without
Navigation/Multimedia Radio
1. Press the “menu” hard key.
2. Select “system setup” soft key.
3. Enable or disable the rear camera feature by selecting
“enable rear camera in reverse” soft key.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

COMPASS MINI-TRIP COMPUTER (CMTC) — IF
EQUIPPED
NOTE:
•The compass on your vehicle is self-calibrating, elimi-
nating the need to manually calibrate the compass.
•If the vehicle is equipped with a Chryslergps
(Navigation Radio), the NAV system will provide the
compass direction, and the variance and calibration
menus will be unavailable. The compass will perform
accurately, based on GPS signals instead of the Earth’s
magnetic field.
The Compass Mini-Trip Computer is located in the
instrument cluster and features a driver-interactive dis-
play (displays information on outside temperature, com-
pass direction, and trip information). NOTE:
The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature, therefore temperature readings
are not updated when the vehicle is not moving.CMTC Reset Buttons
CMTC Reset Button
Press the left reset button located on the instrument
cluster to scroll through sub menus (i.e., Trip Functions:
AVG Fuel Economy, DTE, Elapsed Time, and Units).
To reset the display shown, turn the ignition switch to the
ON position, then press and hold the reset button for
approximately two seconds.
198 UNDERSTANDING YOUR INSTRUMENT PANEL

and average fuel economy, according to the current fuel
tank level. DTE cannot be reset through the RESET
button.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE displayed value.
•When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will
change to a text display of LOW FUEL.This display
will continue until the vehicle runs out of fuel. Adding
a significant amount of fuel to the vehicle will turn off
the LOW FUEL text and a new DTE value will
display.
•Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
•Units In
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the RESET button until “U.S.” or “METRIC”
appears.
To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the RESET button once to
clear the resettable function being displayed. To reset all
resettable functions, press and release the RESET button
a second time within three seconds of resetting the
currently-displayed function. (>Reset ALL will display
during this three-second window).4
UNDERSTANDING YOUR INSTRUMENT PANEL 207

“Language”
When in this display you may select one of three lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the RESET button while in this display to select English,
French, or Spanish. Then, as you continue, the informa-
tion will display in the selected language.
NOTE:The EVIC will not change the Uconnect™ lan-
guage selection.
“Auto UNLK On Exit”
When ON is selected, all doors and the liftgate will
unlock when the vehicle is stopped and the transaxle is in
the PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
RESET button until “ON” or “OFF” appears.
“RKE Unlock”
When Driver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) UNLOCK button. When Driver Door 1st
Press is selected, you must press the RKE UNLOCK
button twice to unlock the passenger doors and liftgate.
When All Doors 1st Press is selected, all doors and the
liftgate will unlock on the first press of the RKE UN-
LOCK button. To make your selection, press and release
the RESET button until “Driver Door 1st Press” or “All
Doors 1st Press” appears.
“Sound Horn With Lock”
When ON is selected, a short horn sound will occur when
the RKE LOCK button is pressed. This feature may be
selected with or without the Flash Lamp with Lock
feature. To make your selection, press and release the
RESET button until “ON” or “OFF” appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

“ILLUMIN Approach”
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and hold the RESET button until “Off,”
“30 sec,” “60 sec,” or “90 sec” appears.
Display ECO — If Equipped
The “ECO” message can be turned on or off. To make
your selection, press and release the FUNCTION SE-
LECT button until “ON” or “OFF” appears.
“Display Units In”
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press andrelease the RESET button until “ENGLISH” or “MET-
RIC” appears.
“NAV Turn By Turn” — If Equipped
When ON is selected, the Turn-by-Turn directions will
appear in the display as the vehicle approaches a desig-
nated turn within a programmed route. To make your
selection, press and release the RESET button until “ON”
or “OFF” appears.
Compass Variance
Refer to “Compass Variance” under “Compass Display.”
Calibrate Compass
Refer to “Manual Compass Calibration” under “Com-
pass Display.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213

TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).
Operating Instructions - Uconnect™ Phone (If
Equipped)
Refer to “Uconnect™ Phone” in “Understanding The
Features If Your Vehicle”.
Operating Instructions - Uconnect™ Multimedia
(Satellite Radio) (If Equipped)
Refer to “Uconnect™ Multimedia (Satellite Radio)”.
MEDIA CENTER 830N (REU) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD/HDD/NAV CHANGER
— IF EQUIPPED
NOTE:The sales code is located on the lower right side
of the unit’s faceplate. The REU Multimedia system contains a radio, Sirius
Satellite Radio player, navigation system, six disc CD/
DVD player, USB port, 30-gigabyte hard drive (HDD),
and the uconnect™ phone cellular system.
A 7 in (17.8 cm) remote screen allows easy menu selec-
tion, while the Advanced Voice Dialog System recognizes
more than 1,000 words for audio, navigation, entertain-
ment, and hands-free mobile phone use.
The satellite navigation capability combines a Global-
Positioning System (GPS)-based navigation system with
a remote color screen to provide maps, turn identifica-
tion, selection menus, and instructions for selecting a
variety of destinations and routes.
A shared HDD for the navigation system, the database,
and other radio features allows uploads of music and
photos from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music.
