2010 DODGE GRAND CARAVAN Owners Manual

Page 89 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
WARNING!
Rearward-facing child seats must NEVER be used in
the front seat of a vehicle with a front passenger
airbag. An airbag deployment could cause severe
injury or death to infants in this positi

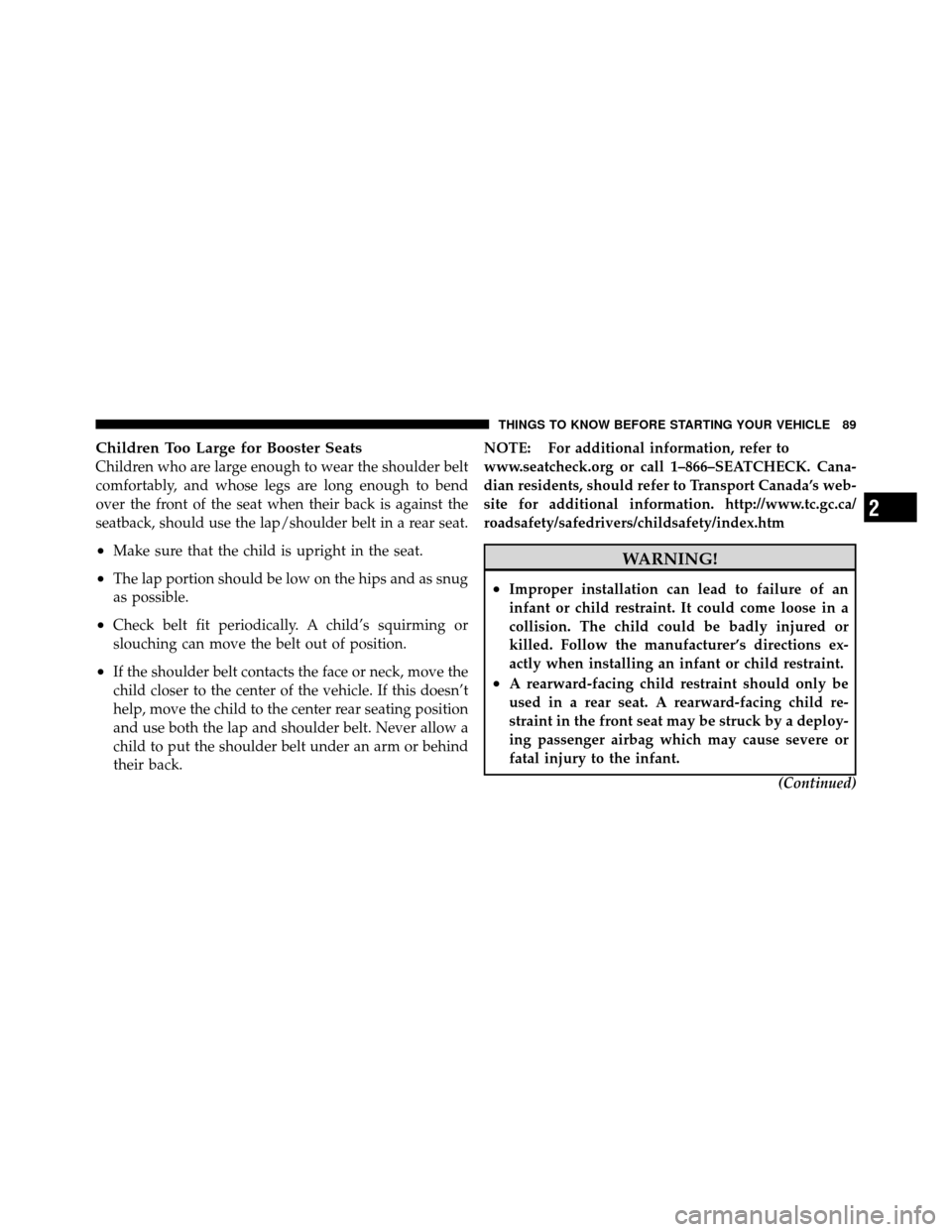

Page 90 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against

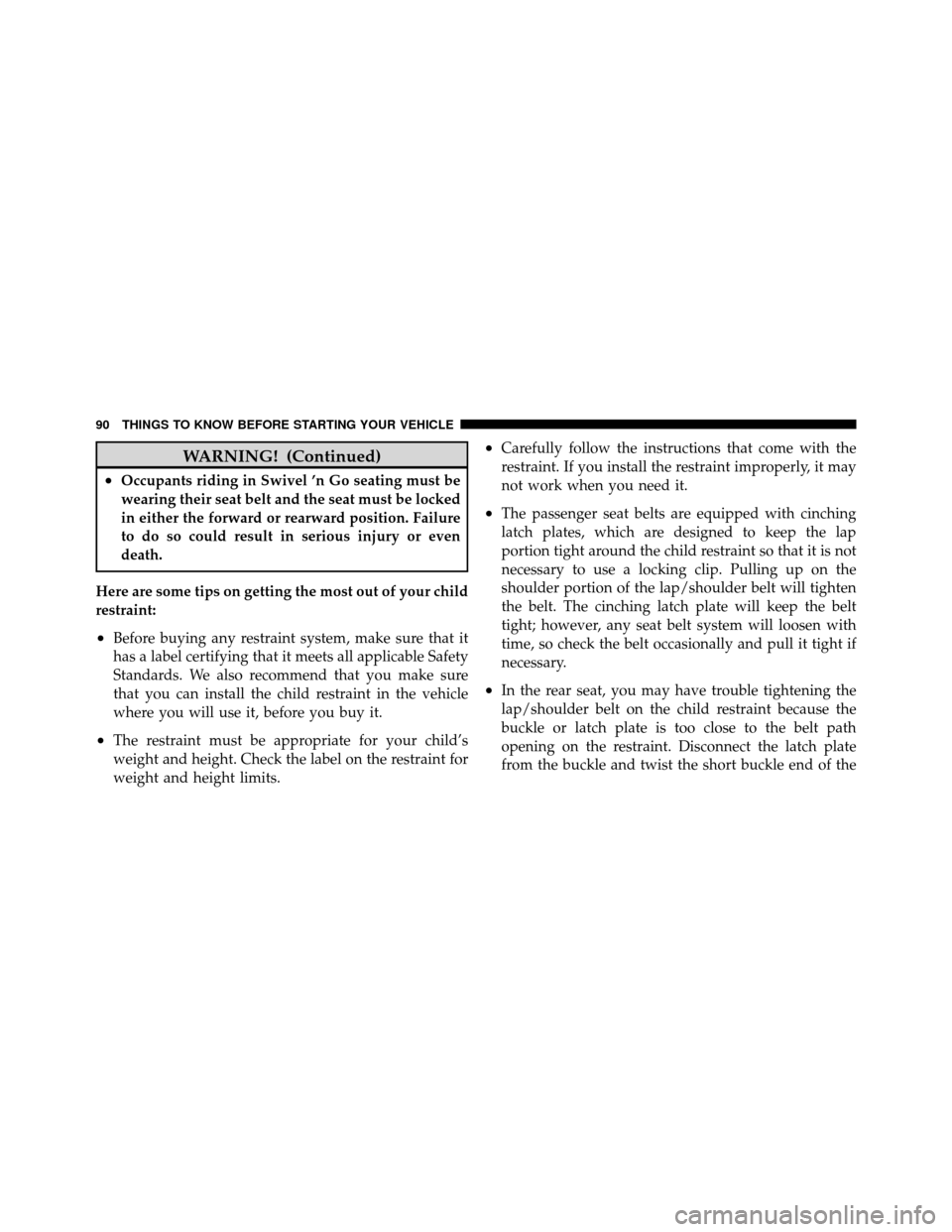

Page 91 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
WARNING! (Continued)
•Occupants riding in Swivel ’n Go seating must be
wearing their seat belt and the seat must be locked
in either the forward or rearward position. Failure
to do so could resul

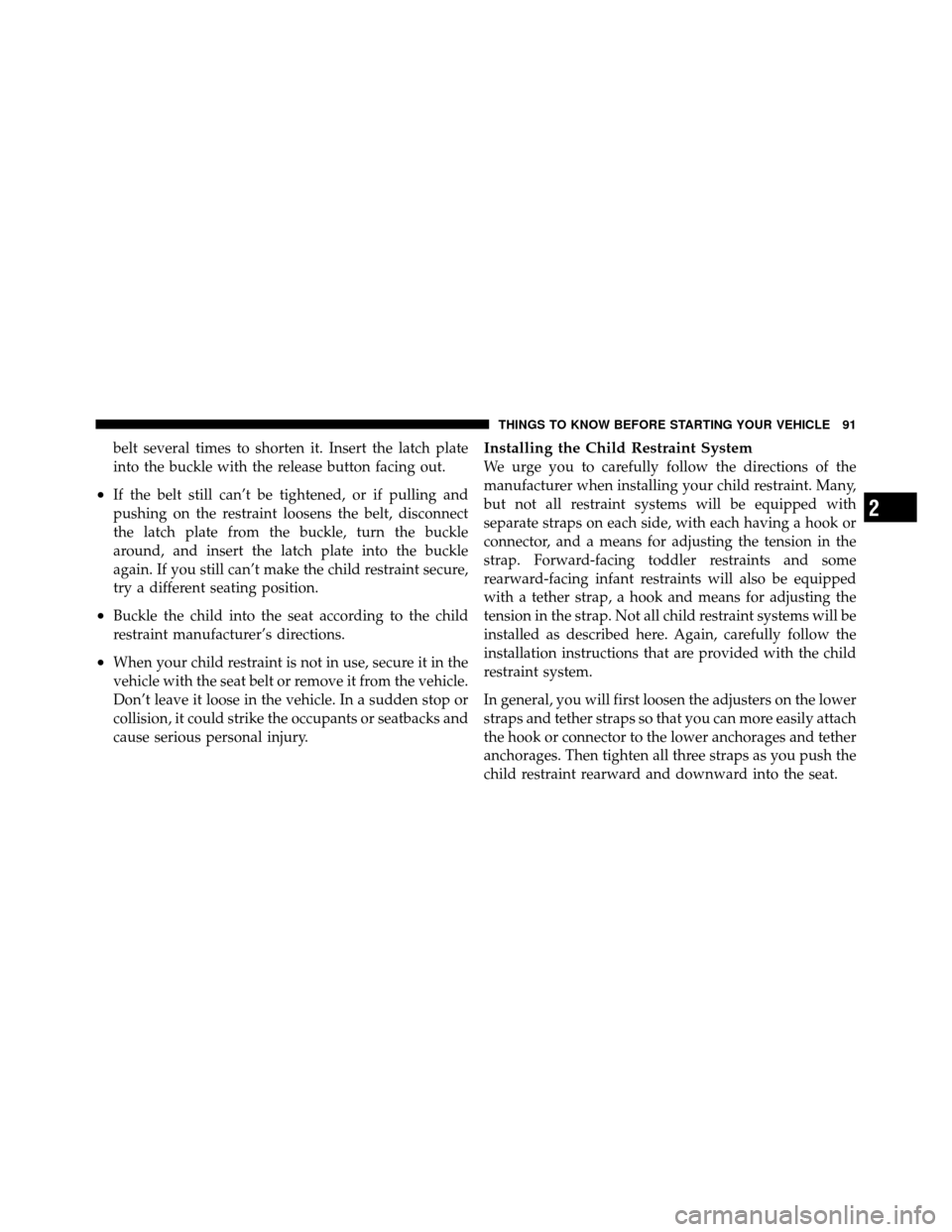

Page 92 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
belt several times to shorten it. Insert the latch plate
into the buckle with the release button facing out.
•If the belt still can’t be tightened, or if pulling and
pushing on the restraint loos

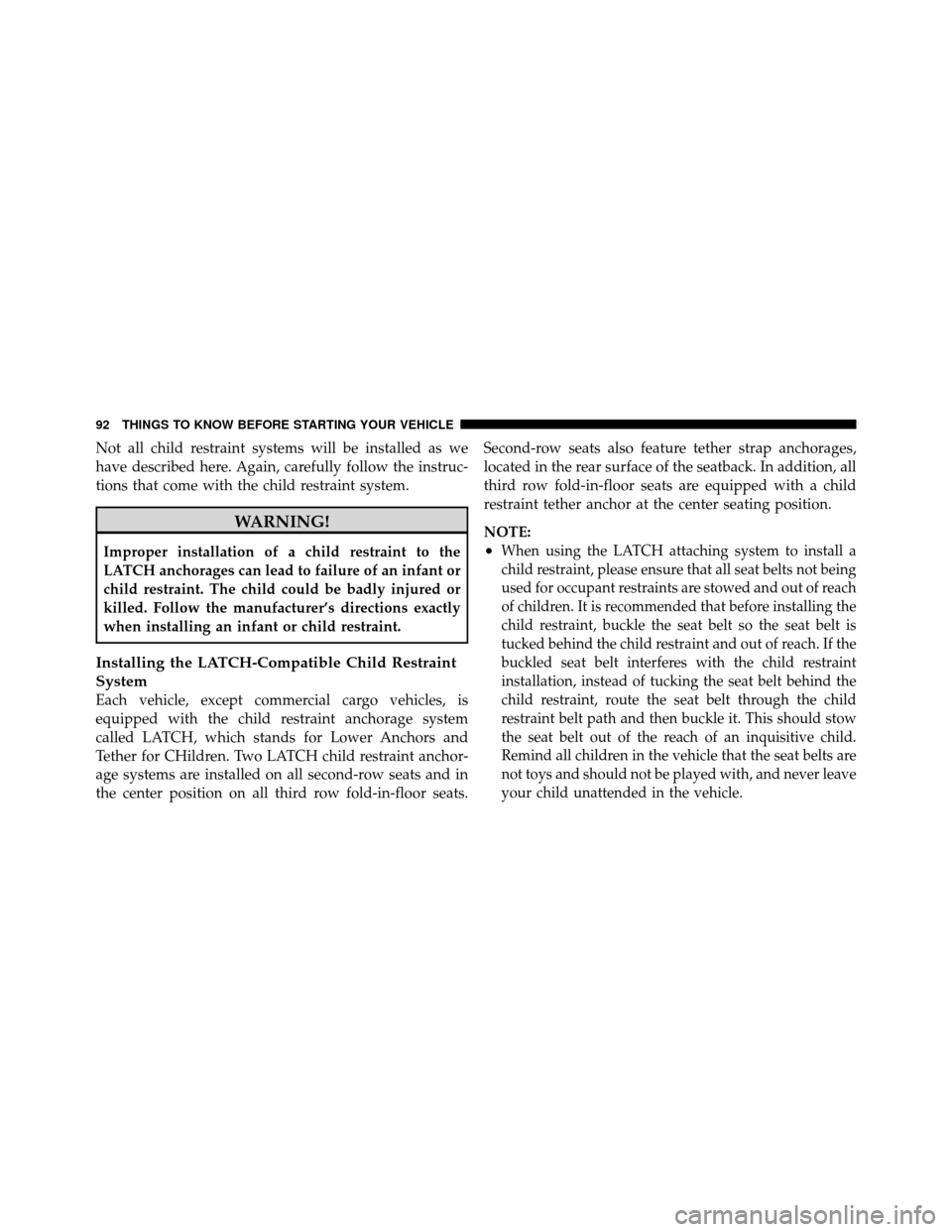

Page 93 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instruc-
tions that come with the child restraint system.
WARNING!
Improper installation of a

Page 94 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
•If your child restraint seat is not LATCH-compatible,
install the restraint using the vehicle seat belts.
Installing the Lower Attachments:
1. The vehicle lower anchorages are round bars located
a

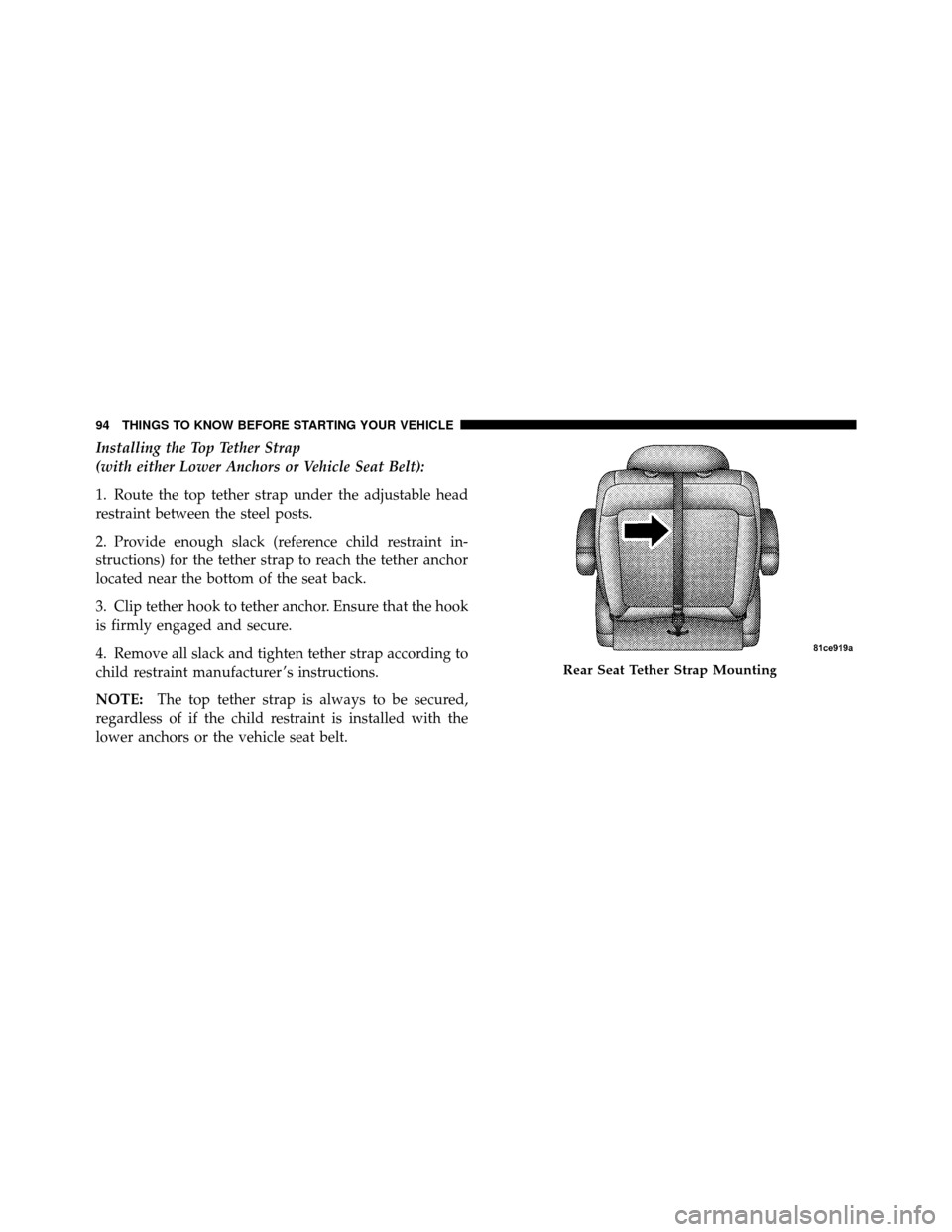

Page 95 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
Installing the Top Tether Strap
(with either Lower Anchors or Vehicle Seat Belt):
1. Route the top tether strap under the adjustable head
restraint between the steel posts.
2. Provide enough slack (r

Page 96 of 530

DODGE GRAND CARAVAN 2010 5.G Owners Manual
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child rest
