2010 DODGE CHARGER battery replacement

▫Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 26
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
▫ Child Protection Door Lock .............. 33
 Windows ............................ 35
▫ Power Windows ...................... 35
▫ Wind Buffeting ....................... 39
Trunk Lock And Release ................. 39
 Trunk Safety Warning ................... 40
▫ Trunk Emergency Release ............... 40
 Occupant Restraints ..................... 41
▫ Lap/Shoulder Belts .................... 42
▫ Lap/Shoulder Belt Untwisting Procedure .... 48
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 48
▫ Seat Belt Pretensioners — If Equipped ...... 49
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 49
▫ Seat Belts And Pregnant Women .......... 51
▫ Seat Belt Extender ..................... 51
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

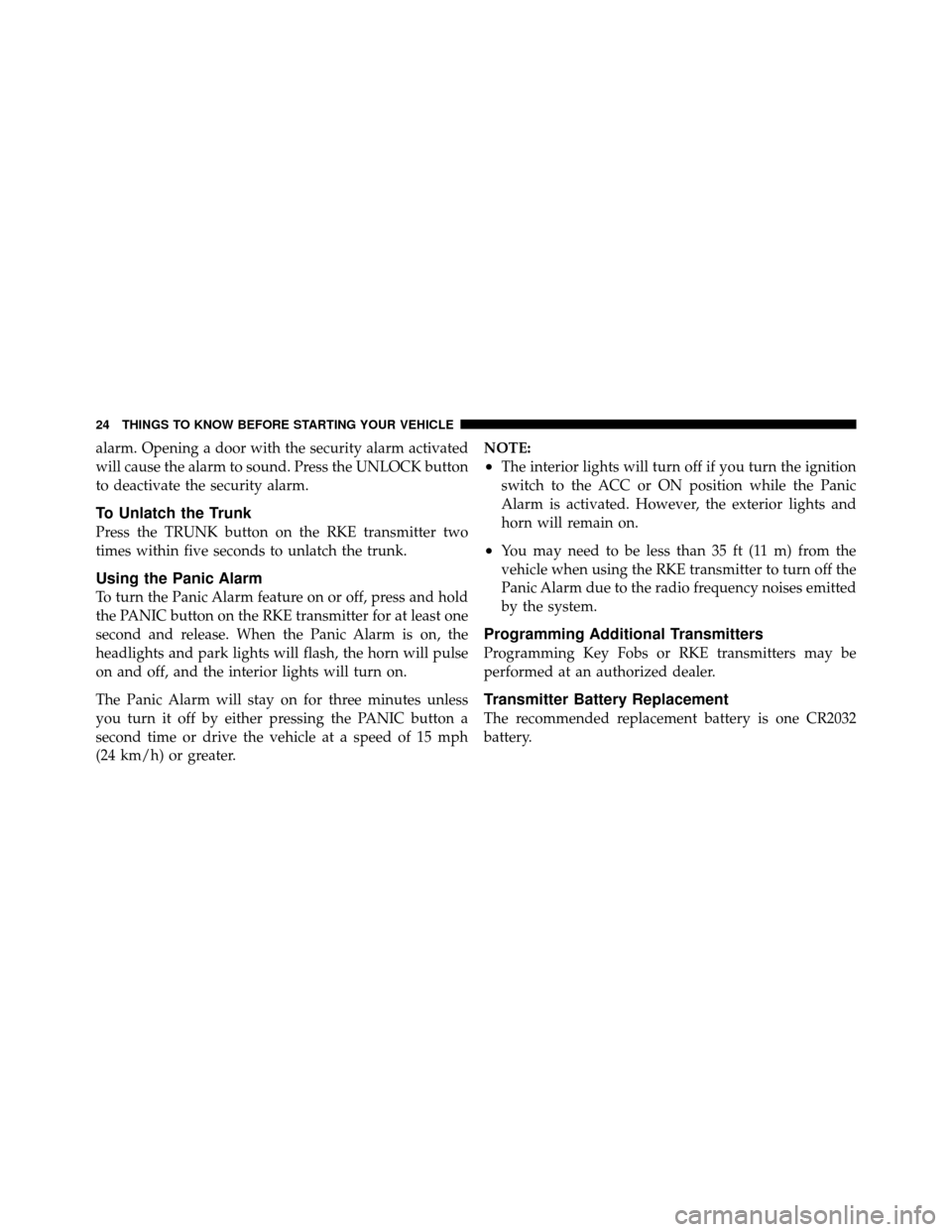

alarm. Opening a door with the security alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the security alarm.
To Unlatch the Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to unlatch the trunk.
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the RKE transmitter. Insert a small, flat blade screwdriver
into the slot and gently pry open the access door.
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
Battery Replacement
1— Battery Access Door
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

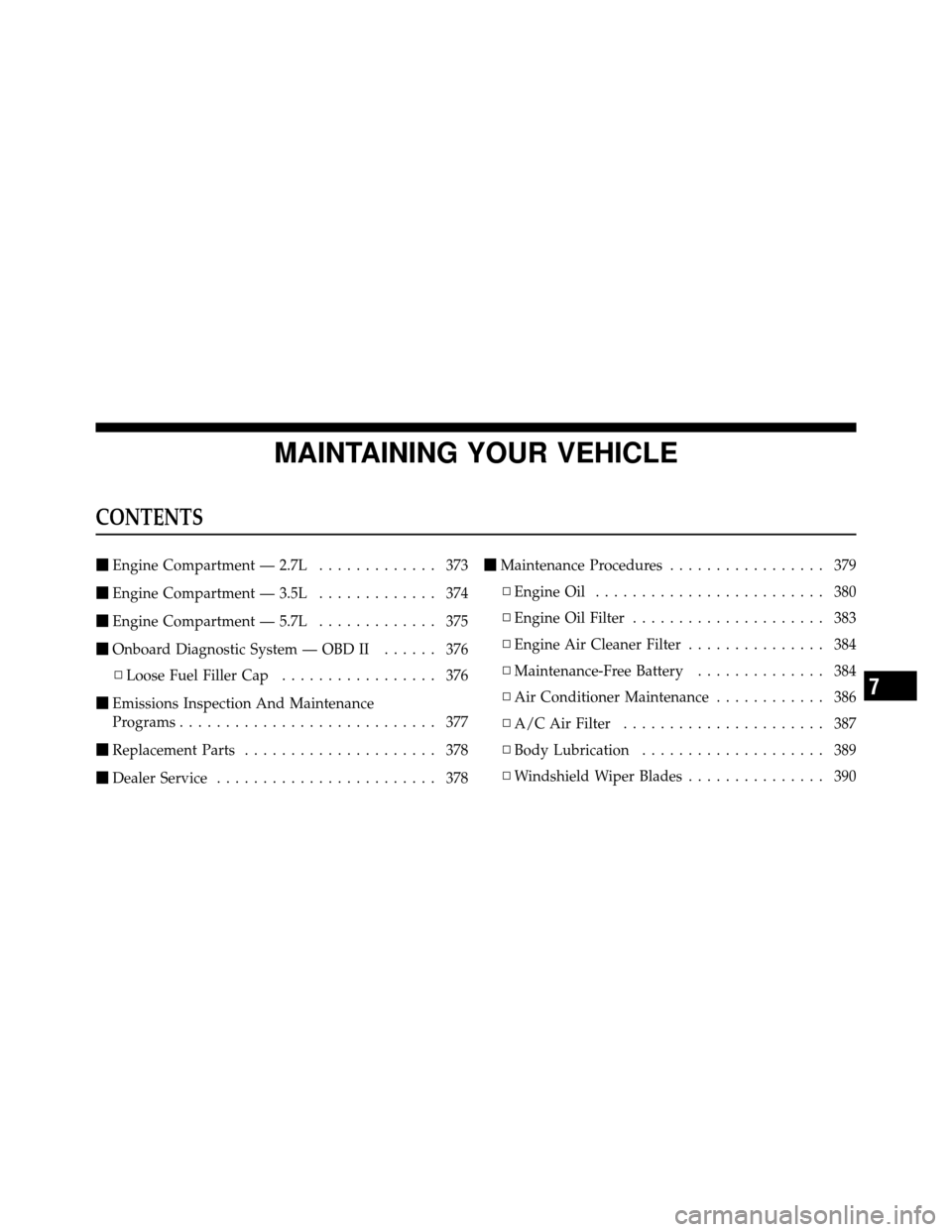

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.7L ............. 373
 Engine Compartment — 3.5L ............. 374
 Engine Compartment — 5.7L ............. 375
 Onboard Diagnostic System — OBD II ...... 376
▫ Loose Fuel Filler Cap ................. 376
 Emissions Inspection And Maintenance
Programs ............................ 377
 Replacement Parts ..................... 378
 Dealer Service ........................ 378
Maintenance Procedures ................. 379
▫ Engine Oil ......................... 380
▫ Engine Oil Filter ..................... 383
▫ Engine Air Cleaner Filter ............... 384
▫ Maintenance-Free Battery .............. 384
▫ Air Conditioner Maintenance ............ 386
▫ A/C Air Filter ...................... 387
▫ Body Lubrication .................... 389
▫ Windshield Wiper Blades ............... 390
7

4. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready. Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
DEALER SERVICE
Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
378 MAINTAINING YOUR VEHICLE

Engine Air Cleaner Filter
Refer to “Maintenance Schedule” for further information.
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine air
cleaner filters are a high quality filter and are
recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE: The battery is stored under an access cover in
the trunk. Remote battery terminals are located in the
engine compartment for jump starting. Refer to “Jump-
Starting Procedures” in “What To Do In Emergencies” for
further information.
384 MAINTAINING YOUR VEHICLE

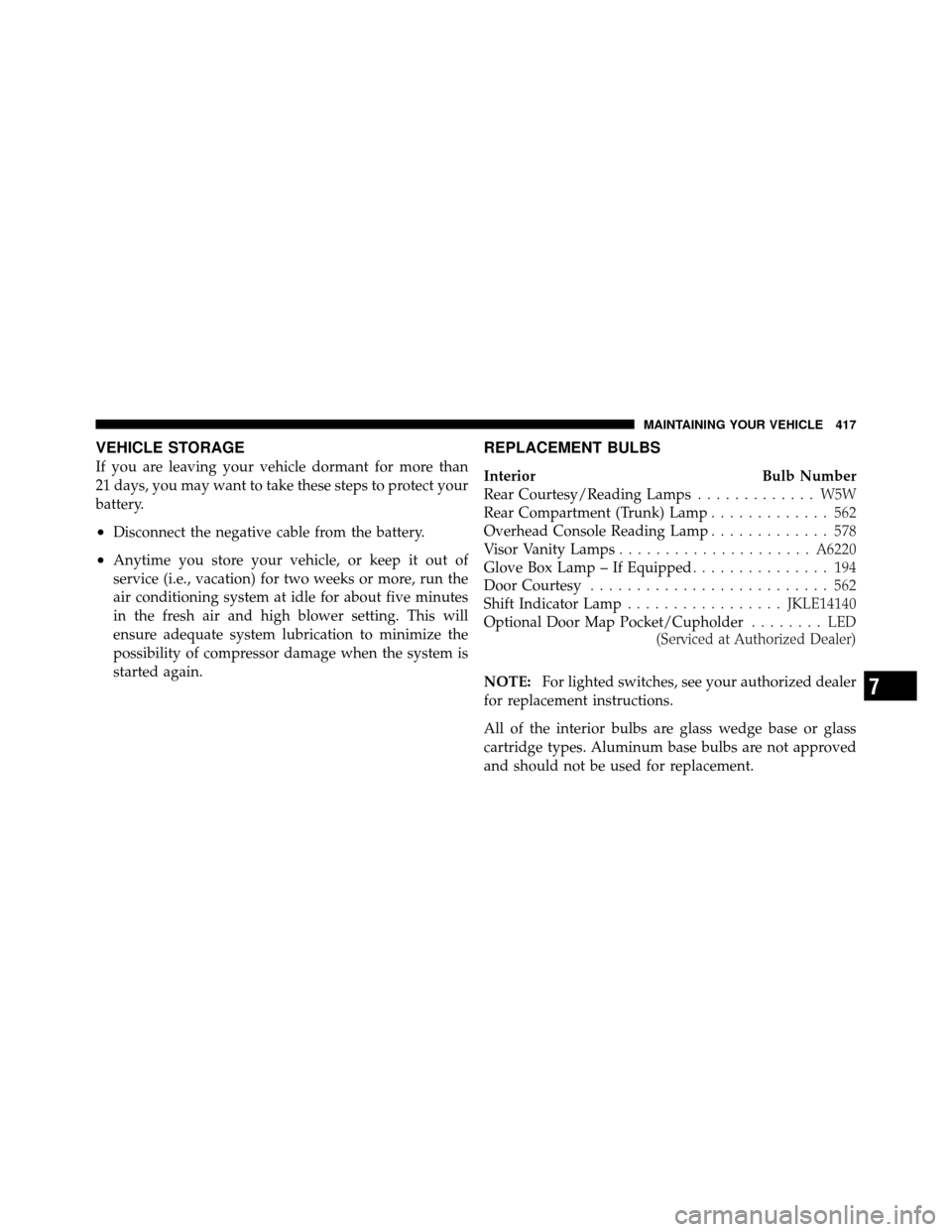

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
InteriorBulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamp ............. 578
Visor Vanity Lamps ..................... A6220
Glove Box Lamp – If Equipped ............... 194
Door Courtesy .......................... 562
Shift Indicator Lamp ................. JKLE14140
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
7
MAINTAINING YOUR VEHICLE 417

Auto Unlock, Doors....................... 31
Auto Up Power Windows .................. 37
Automatic Dimming Mirror ................. 88
Automatic Door Locks ................... 30,31
Automatic Headlights .................... 134
Automatic Oil Change Indicator ..........180,189
Automatic Temperature Control (ATC) ......... 250
Automatic Transaxle Special Additives ...................... 402
Automatic Transmission ...........270,276,401,402
Adding Fluid ...................... 402,429
Autostick ............................ 280
Fluid and Filter Changes ................. 402
Fluid Change ......................... 402
Fluid Level Check ..................... 401
Fluid Type ........................... 429
Gear Ranges ....................... 271,276
Overdrive ........................... 273
Shifting .......................... 270,276Special Additives
...................... 402
Torque Converter ...................... 274
Automatic Transmission Limp Home Mode . . 275,278
Autostick ............................. 280
Axle Fluid ............................. 429
Axle Lubrication (Axle Fluid) ............... 429
Battery ............................... 384
Keyless Transmitter Replacement (RKE) ....... 24
Location ............................ 384
Belts, Seat ............................ 42,79
Body Mechanism Lubrication ............... 389
B-Pillar Location ........................ 302
Brake Assist System ...................... 293
Brake Control System, Electronic ............. 292
Brake Fluid ............................ 429
Brake, Parking .......................... 287
Brake System ........................... 399
Anti-Lock (ABS) ....................... 290
10
INDEX 463
