2010 DODGE CARAVAN wipers

▫Manual Front And Second Row
Seat Adjuster ....................... 124
▫ Manual Reclining Seats — If Equipped ..... 124
▫ Manual Lumbar Adjust Lever —
If Equipped ........................ 126
▫ Eight–Way Power Seats — If Equipped ..... 126
▫ Heated Seats — If Equipped ............ 128
▫ Adjusting Head Restraints .............. 129
▫ Stow ’n Go Seating — If Equipped ....... 132
▫ Easy Access Seating .................. 135
▫ Swivel ’n Go™ Premium Seating —
If Equipped ........................ 136
▫ Second Row Bench Seat — If Equipped .... 144
▫ Third Row Power Recline — If Equipped . . . 145
Driver Memory Seat — If Equipped ........ 149
▫ Setting Memory Positions And Linking RKE
Transmitter To Memory ................ 150
▫ Easy Entry/Exit Seat
(Available With Memory Seat Only) ....... 152
 To Open And Close The Hood ............ 153
 Lights ............................. 155
▫ Interior Lighting ..................... 155
▫ Parking Lights ...................... 157
▫ Headlights ......................... 157
▫ Automatic Headlights — If Equipped ...... 157
▫ Headlights On With Wipers — If Equipped . . 158
▫ Headlight Delay — If Equipped .......... 158
▫ Daytime Running Lights — If Equipped .... 159
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

▫Front Fog Lights — If Equipped .......... 160
▫ Battery Protection .................... 160
▫ Multifunction Lever .................. 160
▫ Turn Signals ........................ 160
▫ Lane Change Assist ................... 161
▫ High/Low Beam Switch ............... 161
▫ Flash-To-Pass ....................... 162
 Windshield Wiper And Washers ........... 162
▫ Rain Sensing Wipers — If Equipped ....... 164
 Tilt Steering Column ................... 165
 Adjustable Pedals — If Equipped .......... 166
 Electronic Speed Control — If Equipped ..... 168
▫ To Activate ......................... 169 ▫
To Set At A Desired Speed .............. 169
▫ Deactivating Electronic Speed Control ...... 169
▫ Resuming Speed ..................... 169
▫ Varying The Speed Setting .............. 170
▫ Accelerating To Pass .................. 170
 Parksense Rear Park Assist — If Equipped . . . 171
▫ Parksense Sensors................... 172
▫ Parksense Warning Display ............ 172
▫ Parksense Display................... 173
▫ Enabling/Disabling Parksense .......... 177
▫ Service Parksense ................... 177
▫ Cleaning Parksense .................. 177
▫ Parksense System Usage Precautions ...... 178
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
ProCarManuals.com

ignition switch OFF. To turn the Automatic System off,
turn the headlight switch clockwise to the O (OFF)
position.
NOTE:The engine must be running before the head-
lights will come on in the Automatic mode.Headlights On With Wipers — If Equipped
When your headlights are in the Automatic mode and the
engine is running, the headlights will automatically turn
on when the wiper system is also turned on. Headlights
on when windshield wipers are on may be found on
vehicles equipped with an automatic headlight system.
Refer to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Headlight Delay — If Equipped
This feature provides the safety of headlight illumination
for up to 90 seconds after exiting your vehicle.
To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then turn off the
headlights within 45 seconds. The 90 second delay inter-
val begins when headlight switch is turned off. If the
headlights or parking lights are turned back on or the
ignition switch is turned ON, the delay will be cancelled.
Automatic Headlights
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Front Fog Lights — If Equipped
To activate the front fog lights, turn on the parking
lights or the low beam headlights and push in the
headlight switch control knob. Pressing the head-
light switch control knob in a second time will turn the
front fog lights off.
Battery Protection
This feature provides battery protection to avoid wearing
down the battery if the headlights, parking lights, or
front fog lights are left on for extended periods of time
when the ignition switch is in the LOCK position. After
eight minutes of the ignition switch being in the LOCK
position and the headlight switch in any position other
than OFF or AUTO, the lights will turn off automatically
until the next cycle of the ignition switch or headlight
switch. The battery protection feature will be disabled if the
ignition switch is turned to any other position other than
LOCK during the three minute delay.
Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
The multifunction lever controls the:
•Turn Signals
•Headlight Beams Low/High
•Flash-To-Pass (Optical Horn)
•Front and Rear Wipers — Washer Functions
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the lever is released.
WINDSHIELD WIPER AND WASHERS
The wipers and washers are operated by a switch within
the multifunction lever. Rotate the end of the multifunc-
tion lever to select the desired wiper speed.
NOTE:Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning to the
off position. If the windshield wiper switch is turned off
and the blades cannot return to the off position, damage
to the wiper motor may occur. 1. Mist, Front Wiper and Washer
Press the end of the multifunction lever inward to the
first detent and release to clear the windshield. Pressing
the multifunction lever inward to the second detent will
Washer And Wiper Controls
1 — Front Mist/Washer 3 — Rear Wiper/Washer
2 — Wiper Speeds
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

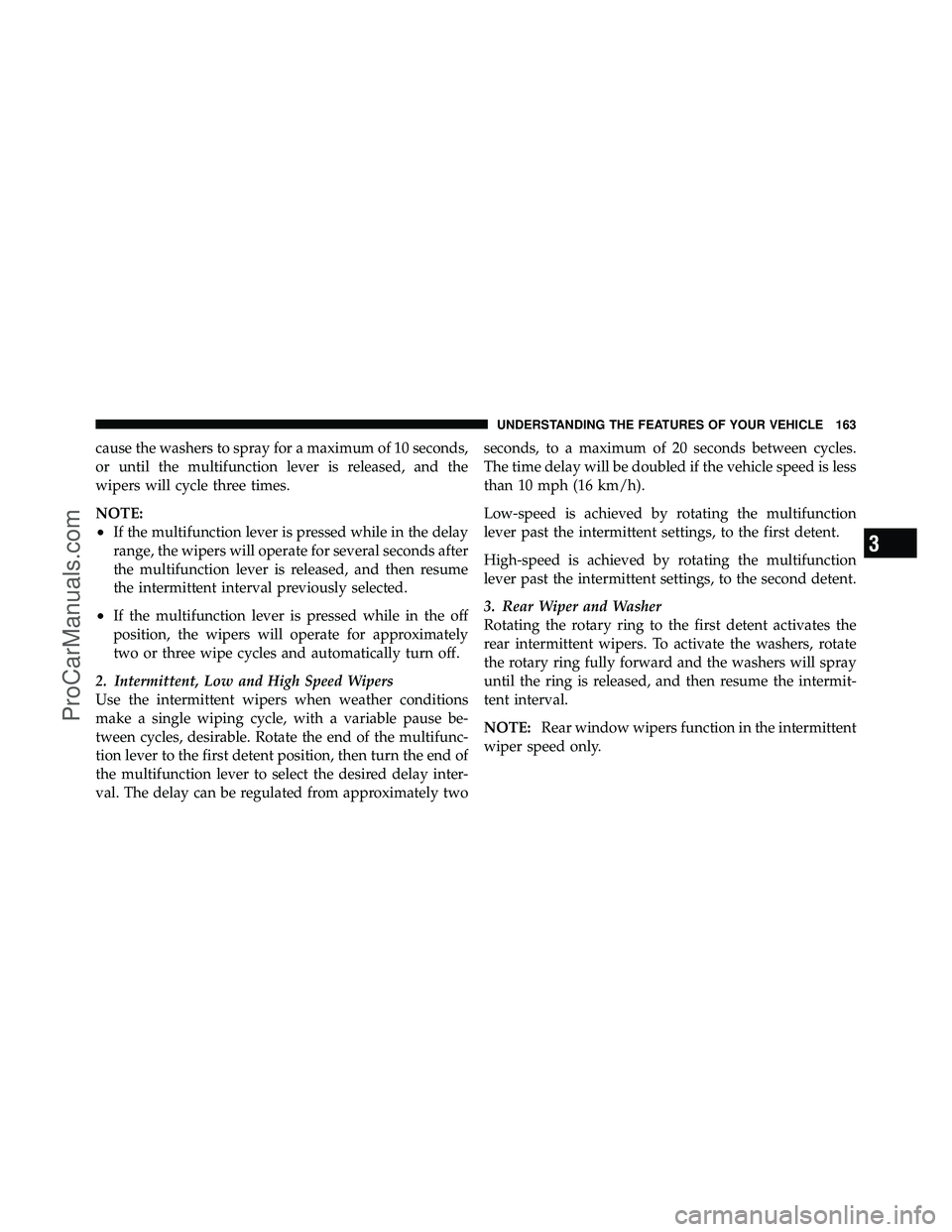

cause the washers to spray for a maximum of 10 seconds,
or until the multifunction lever is released, and the
wipers will cycle three times.
NOTE:
•If the multifunction lever is pressed while in the delay
range, the wipers will operate for several seconds after
the multifunction lever is released, and then resume
the intermittent interval previously selected.
•If the multifunction lever is pressed while in the off
position, the wipers will operate for approximately
two or three wipe cycles and automatically turn off.
2. Intermittent, Low and High Speed Wipers
Use the intermittent wipers when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Rotate the end of the multifunc-
tion lever to the first detent position, then turn the end of
the multifunction lever to select the desired delay inter-
val. The delay can be regulated from approximately two seconds, to a maximum of 20 seconds between cycles.
The time delay will be doubled if the vehicle speed is less
than 10 mph (16 km/h).
Low-speed is achieved by rotating the multifunction
lever past the intermittent settings, to the first detent.
High-speed is achieved by rotating the multifunction
lever past the intermittent settings, to the second detent.
3. Rear Wiper and Washer
Rotating the rotary ring to the first detent activates the
rear intermittent wipers. To activate the washers, rotate
the rotary ring fully forward and the washers will spray
until the ring is released, and then resume the intermit-
tent interval.
NOTE:
Rear window wipers function in the intermittent
wiper speed only.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
ProCarManuals.com

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. This
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of the five
intermittent wiper sensitivity settings to activate this
feature.The sensitivity of the system is adjustable from the
multifunction lever. Wiper sensitivity position 3 has been
calibrated for best overall wiping sensitivity. If the opera-
tor desires more wiping sensitivity, they may select
sensitivity positions 4 or 5. If the operator desires less
wiping sensitivity, they may select sensitivity positions 2
or 1. Place the multifunction lever in the OFF position
when not using the system.
NOTE:•The Rain Sensing feature will not operate when the
wiper speed is in the low or high position.
•The Rain Sensing feature may not function properly
when ice or dried saltwater is present on the wind-
shield.
•Use of Rain-X
or products containing wax or silicone
may reduce rain sensor performance.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

•The Rain Sensing feature can be turned on and off
through the EVIC (if equipped). Refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
The Rain Sensing system has protective features for the
wiper blades and arms. It will not operate under the
following conditions:
•Low Temperature Wipe Inhibit — The Rain Sensing
feature will not operate when the ignition is first
switched ON, and the vehicle is stationary, and the
outside temperature is below 32°F (0°C), unless the
wiper control on the multifunction lever is moved, or
the vehicle speed becomes greater than 0 mph
(0 km/h), or the outside temperature rises above
freezing.
•Neutral Wipe Inhibit—The Rain Sensing feature will
not operate when the ignition is ON, and the transmis-
sion shift lever is in the NEUTRAL position, and the
vehicle speed is less than 5 mph (8 km/h), unless the
wiper control on the multifunction lever is moved or
the shift lever is moved out of the NEUTRAL position.
•Remote Start Mode Inhibit — On vehicles equipped
with Remote Starting system, Rain Sensing wipers are
not operational when the vehicle is in the remote start
mode. Once the operator is in the vehicle and has
placed the ignition switch in the RUN position, rain
sensing wiper operation can resume, if it has been
selected, and no other inhibit conditions (mentioned
previously) exist.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt control lever is located on
the steering column, below the steering wheel.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
