2010 DODGE CALIBER Owners Manual

Ignition Off Operation
The sunroof will also operate up to 45 seconds after the
ignition has been turned OFF. The sunroof operation will
be canceled if either of the front doors are opened during
the 45 second time period.
ELECTRICAL POWER OUTLETS
There is a standard 12 Volt (13 Amp) power outlet located
in the instrument panel for added convenience. This
power outlet can power cellular phones, electronics and
other low power devices.Power is available when the ignition switch is in the ON
or ACC position. Insert the cigar lighter or accessory plug
into the outlet for use.To preserve the heating element,
do not hold the lighter in the heating position.
12 Volt Power Outlet
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•To ensure proper operation, a MOPARknob and
element must be used.
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with great caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

POWER INVERTER — IF EQUIPPED
A 115 Volt (150 Watt) AC power inverter is located on the
rear of the center console for added convenience. This
outlet can power cellular phones, electronics and other
low power devices requiring power up to 150 Watts.
Certain high-end video games, such as Playstation3 and
XBox360 will exceed this power limit, as will most power
tools.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
may have to be reset manually. To reset the inverter
manually, unplug the device and plug it in again.NOTE:
To avoid overloading the circuit, check the
power ratings on electrical devices prior to using the
inverter.
115 Volt Power Outlet
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

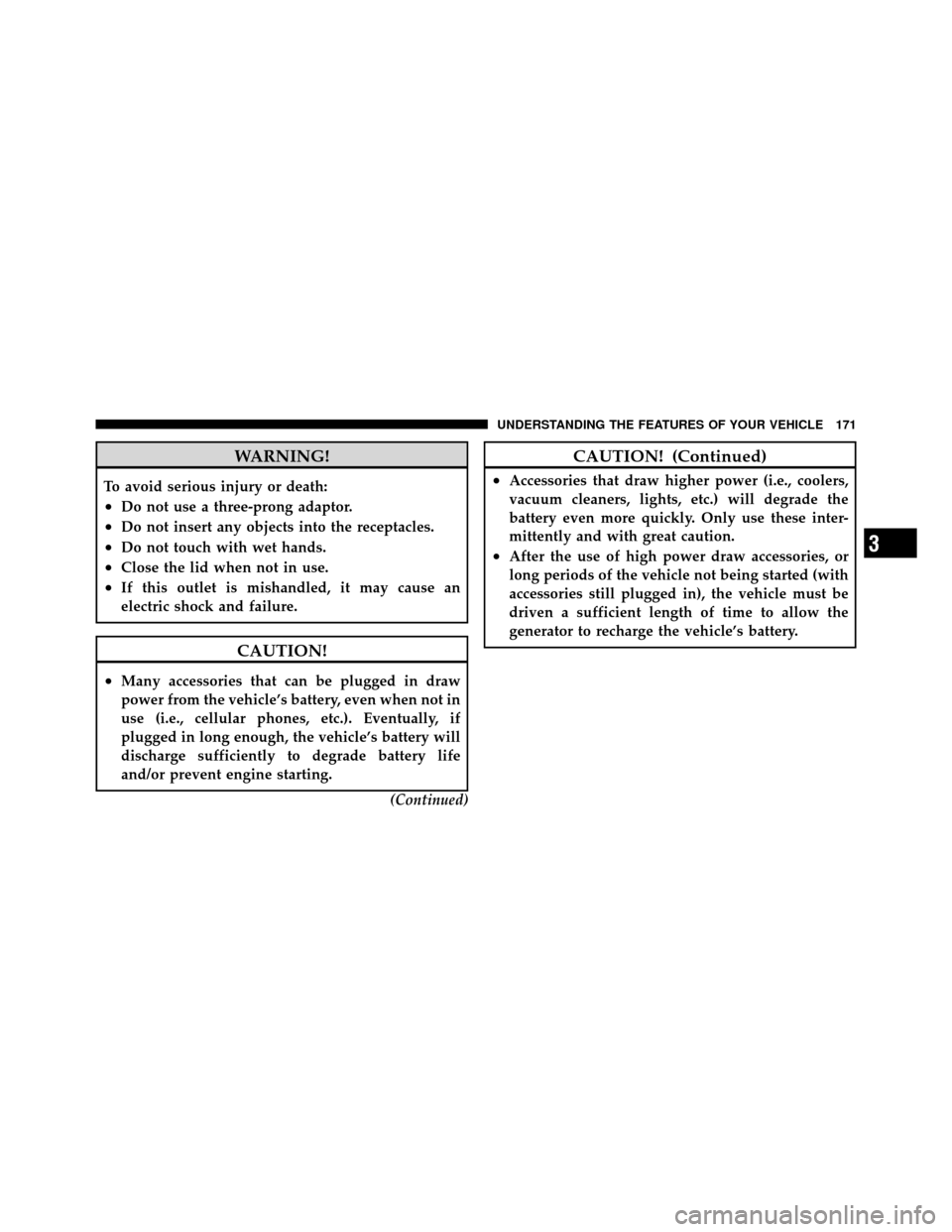

WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.(Continued)
CAUTION! (Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with great caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

CUPHOLDERS
Your vehicle is equipped with four cupholders. There are
two cupholders located in the front.There are two cupholders behind the center console for
rear passengers.
Front Cupholders
Rear Cupholders
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

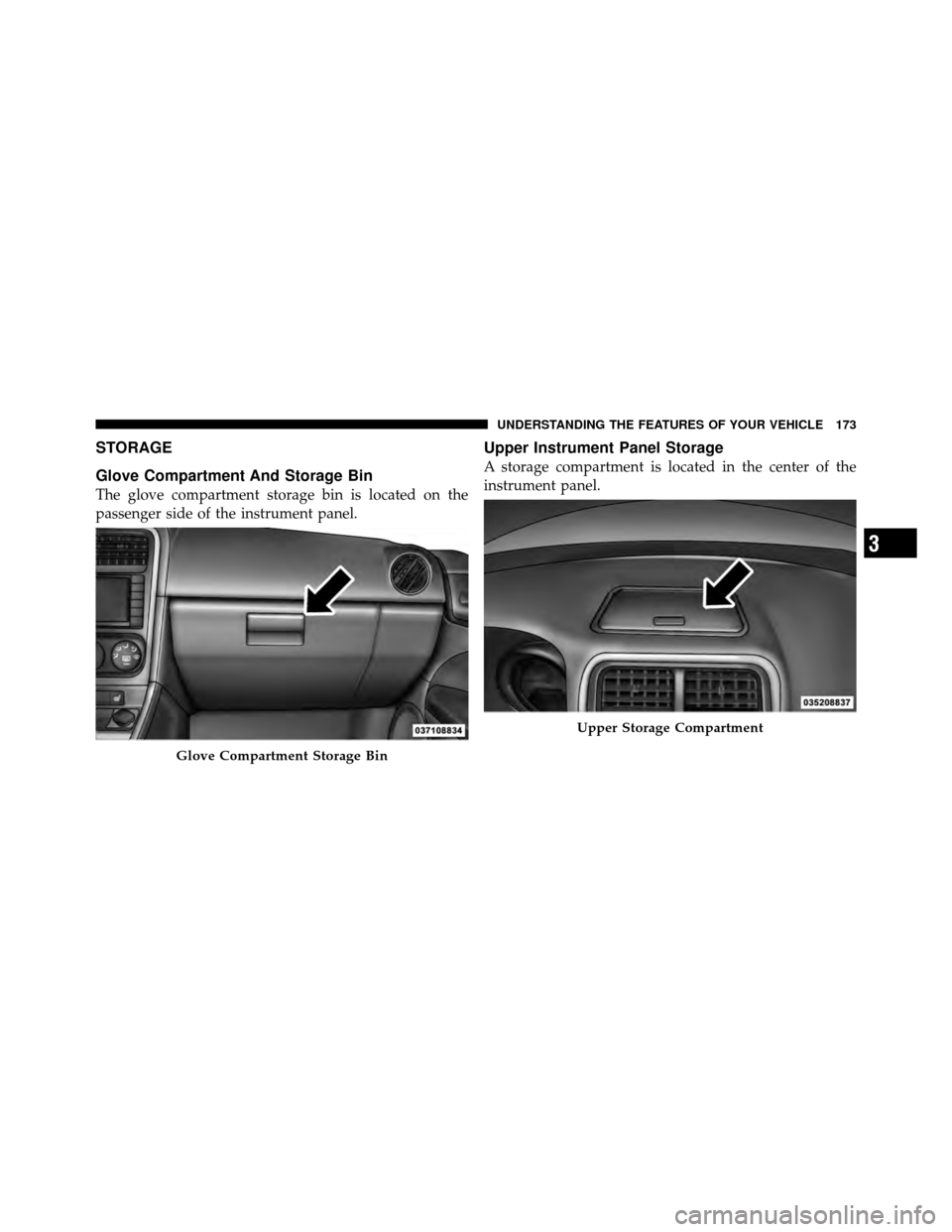

STORAGE
Glove Compartment And Storage Bin
The glove compartment storage bin is located on the
passenger side of the instrument panel.
Upper Instrument Panel Storage
A storage compartment is located in the center of the
instrument panel.
Glove Compartment Storage Bin
Upper Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173

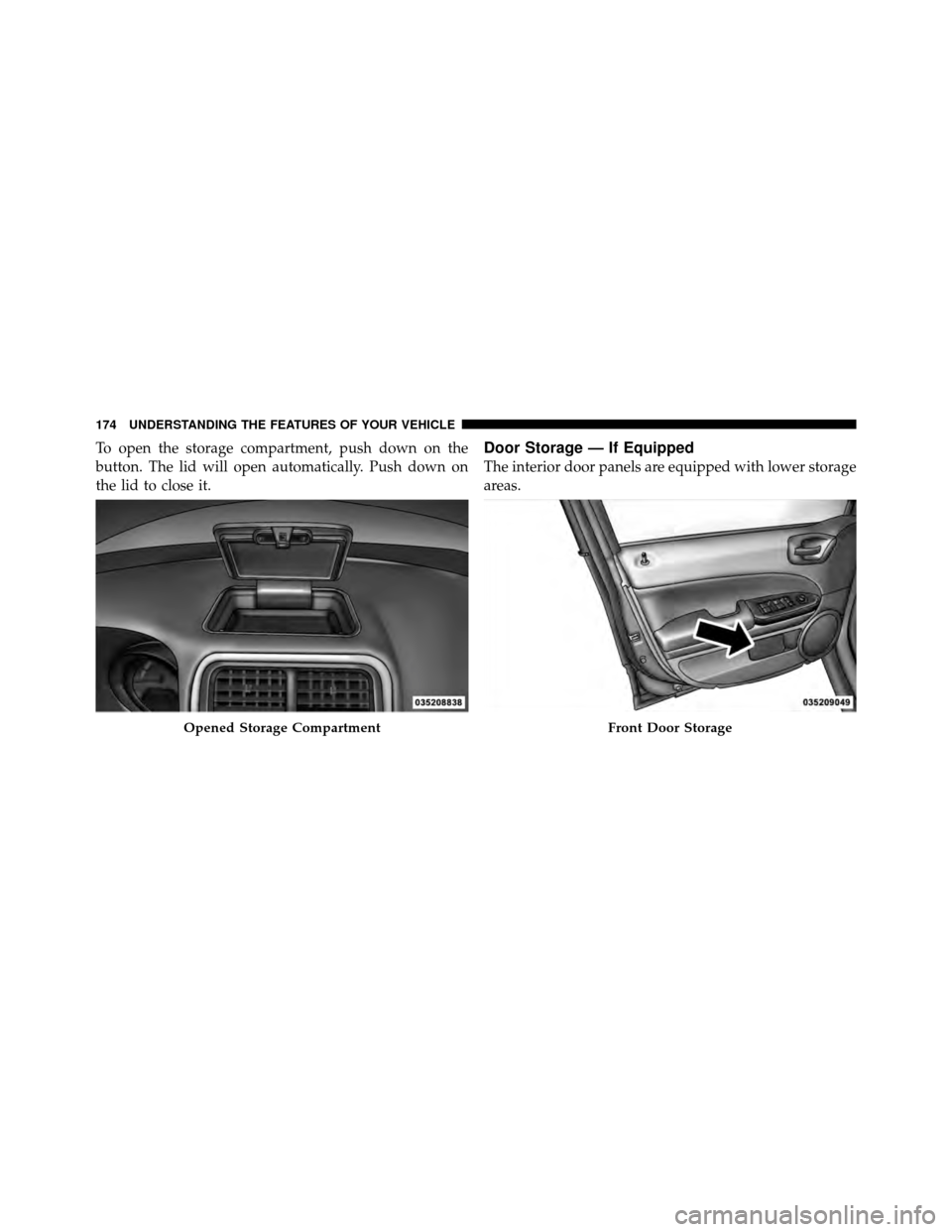

To open the storage compartment, push down on the
button. The lid will open automatically. Push down on
the lid to close it.Door Storage — If Equipped
The interior door panels are equipped with lower storage
areas.
Opened Storage CompartmentFront Door Storage
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CHILL ZONEBEVERAGE COOLER STORAGE
COMPARTMENT — IF EQUIPPED
The glove compartment is located on the passenger side
of the vehicle. The large glove compartment door swings
downward and features two levels of storage. The upper
bin functions as the Chill Zone cooled beverage storage
compartment (for vehicles equipped with air condition-
ing) for storing up to four 20 oz (1 L) bottles or cans.
When desired, cool air enters the Chill Zone to keep the
contents cool, depending on ambient temperature and
A/C settings.
NOTE:The use of the Chill Zone is for nonperishable
beverages only.
Inside the Chill Zone is a vent which, when opened,
allows either air conditioned or fresh air to flow into the
Glove Compartment and Chill Zone
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
