2010 DODGE AVENGER Owners Manual

CavityCartridge
Fuse Mini Fuse Description
6 — 10 Amp Red Ignition Off
Draw (IOD) –
Power Mirror
Switch/Climate
Controls
7— 30 Amp
Green Ignition Off
Draw (IOD)
Sense 1
8— 30 Amp
Green Ignition Off
Draw (IOD)
Sense 2
9 40 Amp
Green Battery Feed –
Power Seats – If
Equipped/PZEV
Air Pump –
If EquippedCavity
Cartridge
Fuse Mini Fuse Description
10 —20 Amp
Yellow Battery Feed –
Cabin Compart-
ment Node
(CCN)
11 —15 Amp Lt
Blue Selectable Power
Outlet
12 —20 Amp
Yellow —
13 —20 Amp
Yellow —
14 — 10 Amp Red Ignition Off
Draw (IOD) –
Cabin Compart-
ment Node
(CCN)/Interior
Lighting
384 MAINTAINING YOUR VEHICLE

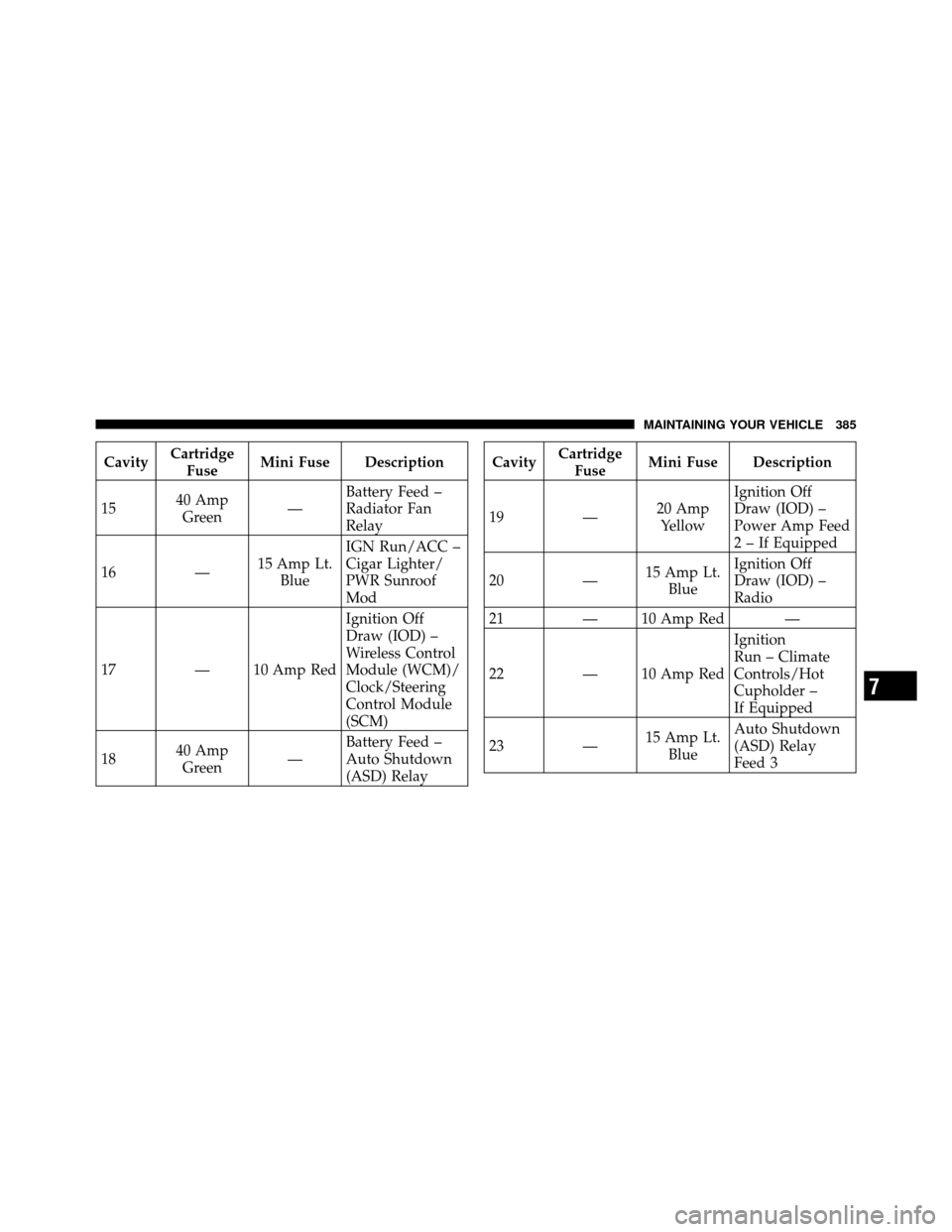

CavityCartridge
Fuse Mini Fuse Description
15 40 Amp
Green —Battery Feed –
Radiator Fan
Relay
16 —15 Amp Lt.
Blue IGN Run/ACC –
Cigar Lighter/
PWR Sunroof
Mod
17 — 10 Amp Red Ignition Off
Draw (IOD) –
Wireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp
Green —Battery Feed –
Auto Shutdown
(ASD) RelayCavity
Cartridge
Fuse Mini Fuse Description
19 —20 Amp
Yellow Ignition Off
Draw (IOD) –
Power Amp Feed
2 – If Equipped
20 —15 Amp Lt.
Blue Ignition Off
Draw (IOD) –
Radio
21 — 10 Amp Red —
22 — 10 Amp Red Ignition
Run – Climate
Controls/Hot
Cupholder –
If Equipped
23 —15 Amp Lt.
Blue Auto Shutdown
(ASD) Relay
Feed 3
7
MAINTAINING YOUR VEHICLE 385

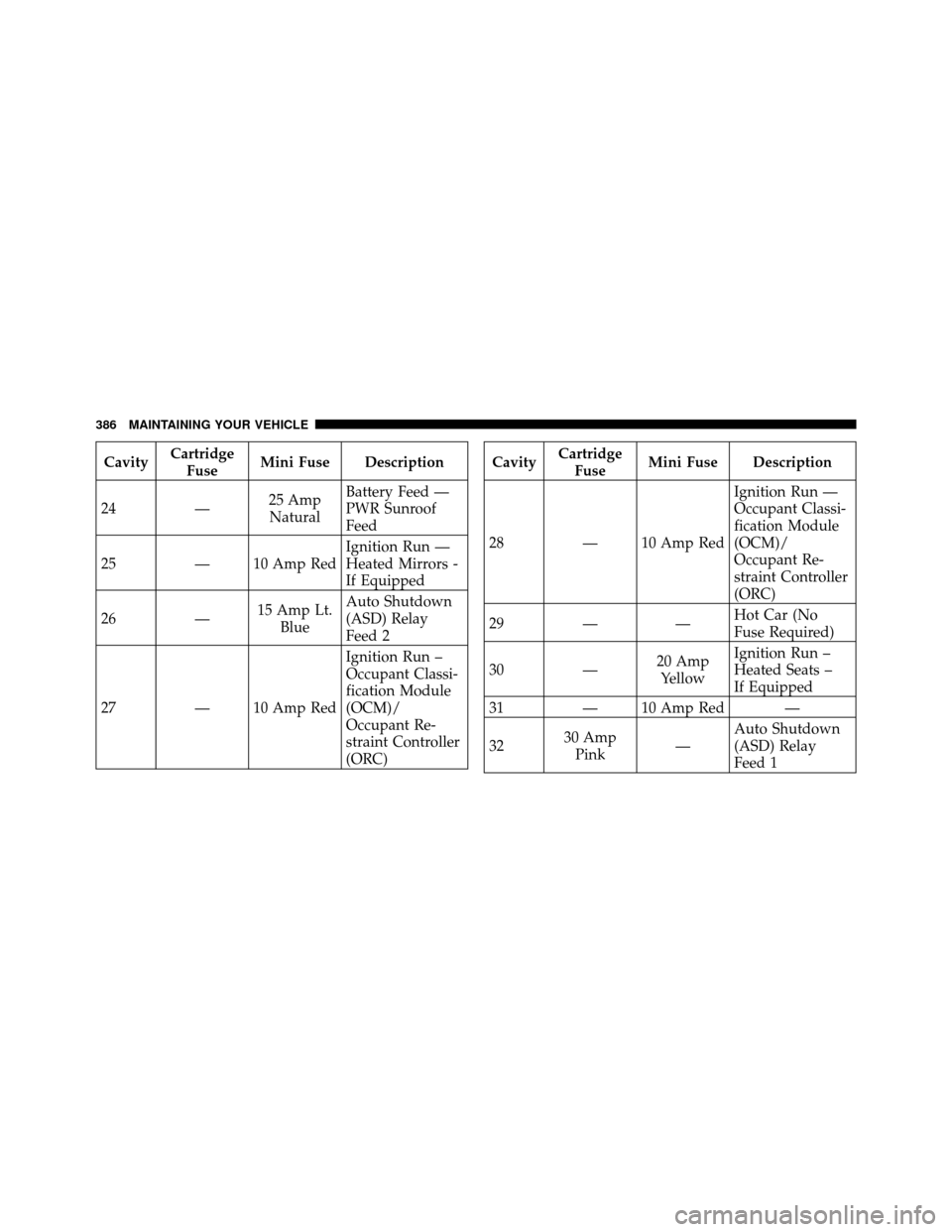

CavityCartridge
Fuse Mini Fuse Description
24 —25 Amp
Natural Battery Feed —
PWR Sunroof
Feed
25 — 10 Amp Red Ignition Run —
Heated Mirrors -
If Equipped
26 —15 Amp Lt.
Blue Auto Shutdown
(ASD) Relay
Feed 2
27 — 10 Amp Red Ignition Run –
Occupant Classi-
fication Module
(OCM)/
Occupant Re-
straint Controller
(ORC)Cavity
Cartridge
Fuse Mini Fuse Description
28 — 10 Amp Red Ignition Run —
Occupant Classi-
fication Module
(OCM)/
Occupant Re-
straint Controller
(ORC)
29 ——Hot Car (No
Fuse Required)
30 —20 Amp
Yellow Ignition Run –
Heated Seats –
If Equipped
31 — 10 Amp Red —
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay
Feed 1
386 MAINTAINING YOUR VEHICLE

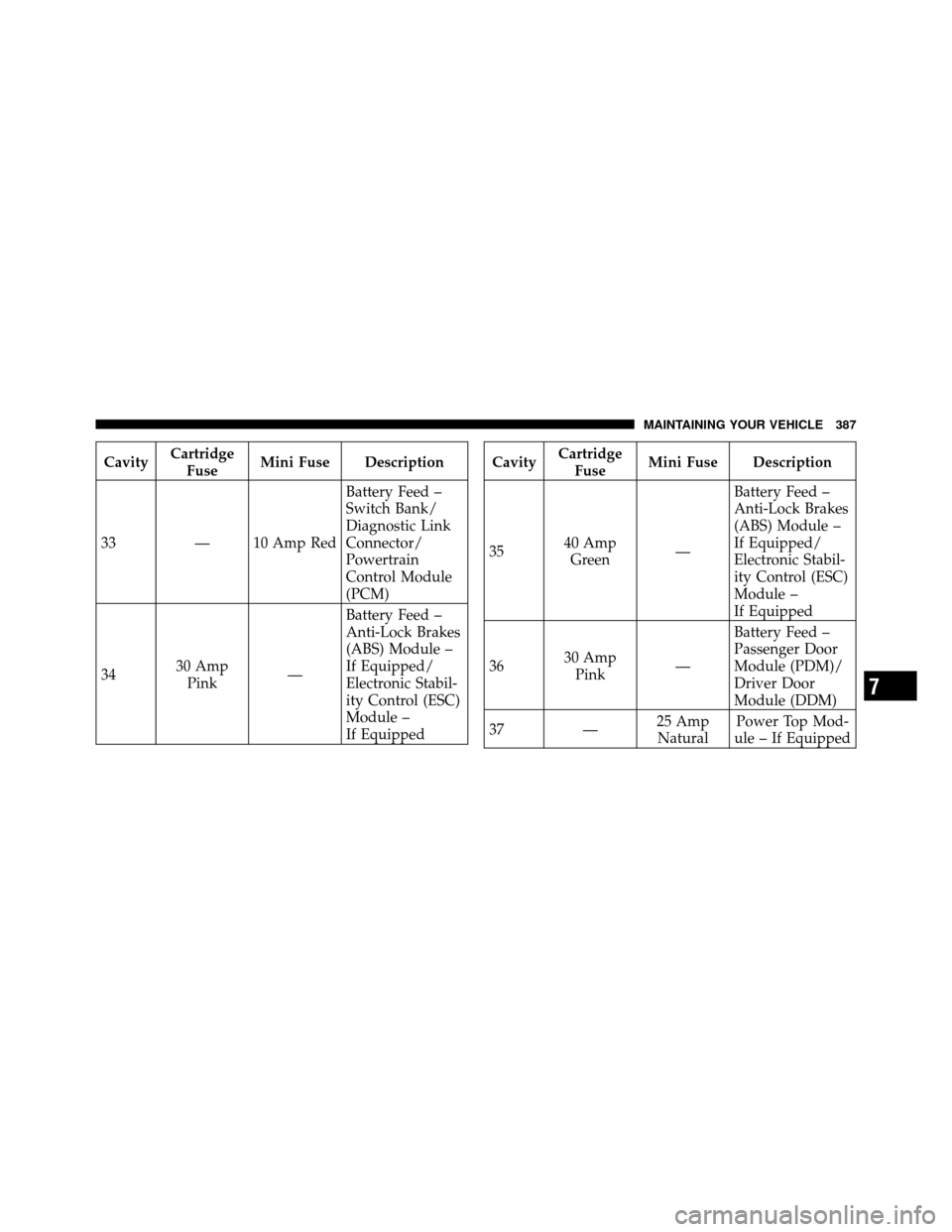

CavityCartridge
Fuse Mini Fuse Description
33 — 10 Amp Red Battery Feed –
Switch Bank/
Diagnostic Link
Connector/
Powertrain
Control Module
(PCM)
34 30 Amp
Pink —Battery Feed –
Anti-Lock Brakes
(ABS) Module –
If Equipped/
Electronic Stabil-
ity Control (ESC)
Module –
If EquippedCavity
Cartridge
Fuse Mini Fuse Description
35 40 Amp
Green —Battery Feed –
Anti-Lock Brakes
(ABS) Module –
If Equipped/
Electronic Stabil-
ity Control (ESC)
Module –
If Equipped
36 30 Amp
Pink —Battery Feed –
Passenger Door
Module (PDM)/
Driver Door
Module (DDM)
37 —25 Amp
Natural Power Top Mod-
ule – If Equipped
7
MAINTAINING YOUR VEHICLE 387

CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
388 MAINTAINING YOUR VEHICLE

LIGHT BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp ....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop
(CHMSL) Lamp ................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise the hood and locate the connector behind the
headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
MAINTAINING YOUR VEHICLE 389

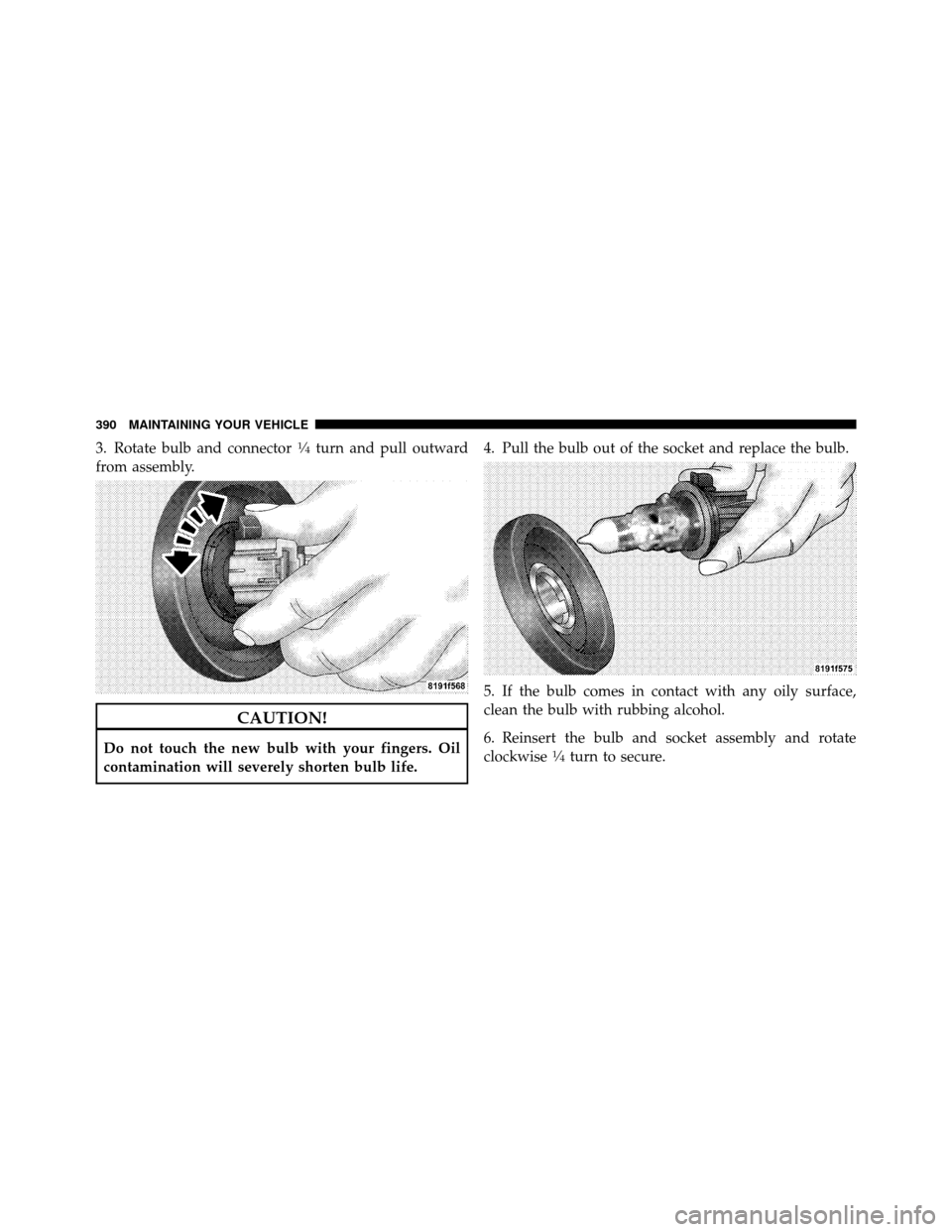

3. Rotate bulb and connector14turn and pull outward
from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. 4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise14turn to secure.
390 MAINTAINING YOUR VEHICLE

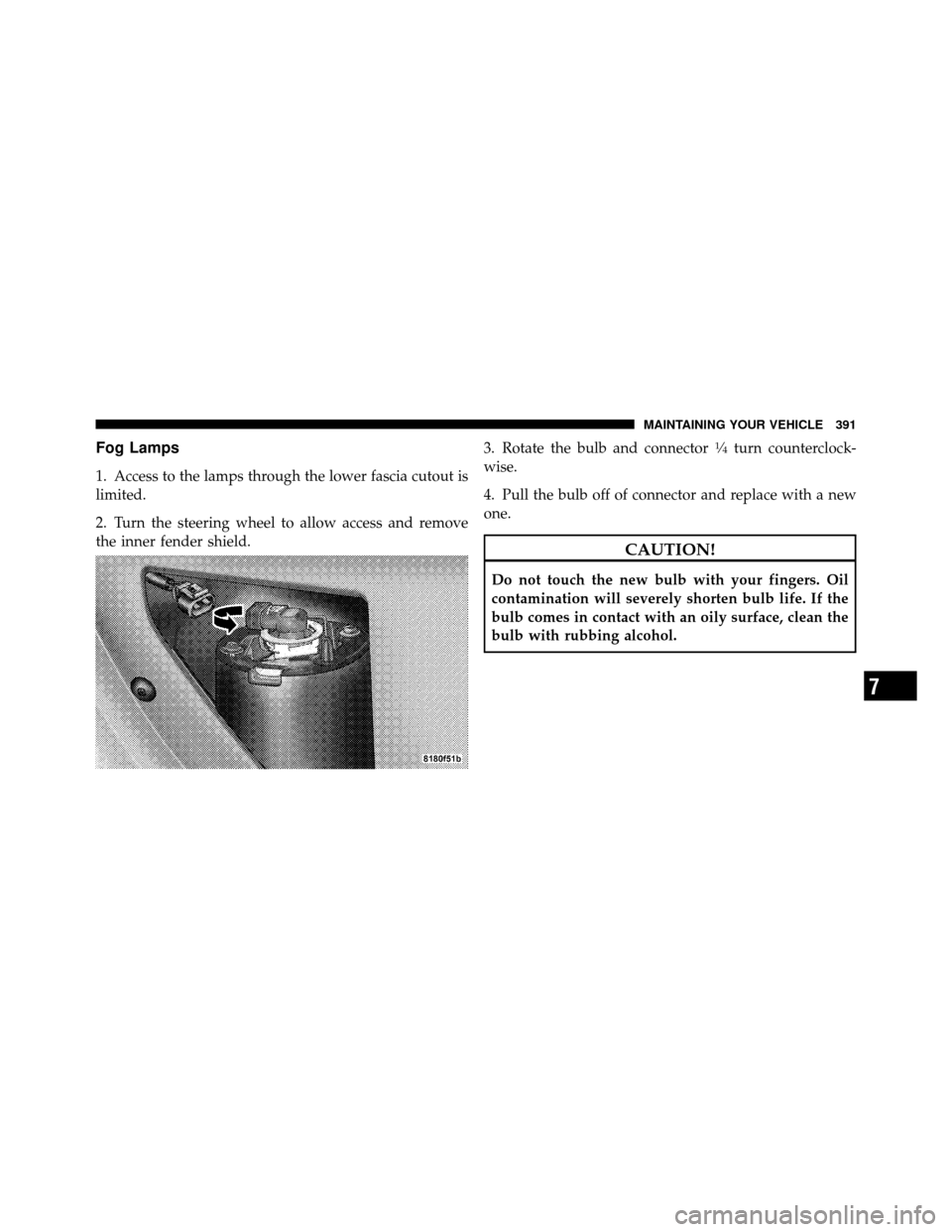

Fog Lamps
1. Access to the lamps through the lower fascia cutout is
limited.
2. Turn the steering wheel to allow access and remove
the inner fender shield.3. Rotate the bulb and connector
14turn counterclock-
wise.
4. Pull the bulb off of connector and replace with a new
one.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
7
