Exterior
FAMILIARISATION
1
17 126

Key
: chapter identification
: page identification
22

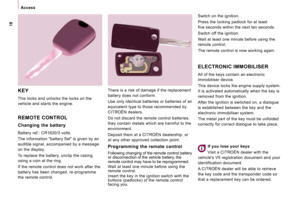

Key - Remote control
Complete locking of the vehicle.
Unlocking of the load space only.
First press: unlocking of the cab,
second press: unlocking of the rear
doors.
Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this may damage the fuel filler flap.

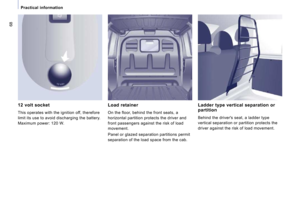

Usable dimensions
Door open warning light
If this comes on, a door is not closed correctly.

3b3a
2
7
7
2
3a3b
7
Exterior
6
77
70
Hinged rear doors
This control permits opening to
approximately 180°.
Parking assistance
Rear suspension
Two functions:
- Automatic correction.
- Manual correction.
106

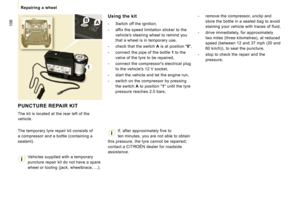

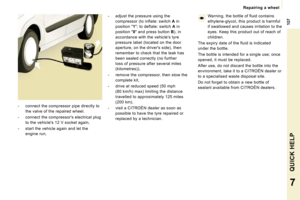

Repairing a wheel
23
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
108
Changing a wheel

6
7
6
6
7
Exterior
FAMILIARISATION
1
96
Diesel engines Petrol engine
97
124
Towing eye

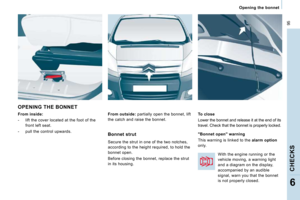

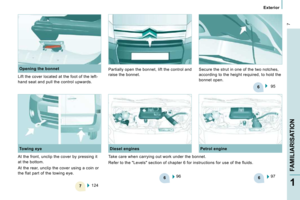

Opening the bonnet
Lift the cover located at the foot of the left-
hand seat and pull the control upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. 95
Partially open the bonnet, lift the control and
raise the bonnet.
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Take care when carrying out work under the bonnet.
Refer to the "Levels" section of chapter 6 for ins tructions for use of the fluids.

Interior
8
INSTRUMENTS AND CONTROLS

1. Lights and direction indicators stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip computer
controls.

4. Gear lever.

5. Ignition.

6. Audio equipment controls.

7. Driver's airbag, horn.

8. Steering wheel height and depth
adjustment.

9. Headlamp beam adjustment.

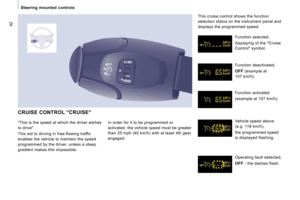

10. Cruise control, speed limiter switch.

11. 12 volt accessories socket
(120 W max) of the lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,
passenger airbag disarming switch.

9
Interior
FAMILIARISATION
1
CENTRE CONSOLE AND OVERHEAD STORAGE UNIT

1. Location of the controls:
- central locking/unlocking,
- locking/unlocking of the load space.

2. Heating and/or air conditioning
controls.

3. Location of the ticket/card storage or
controls:
- deactivation of the ESP,
- disarming of the interior protection alarm, alarm diode,
- deactivation of the parking assistance.

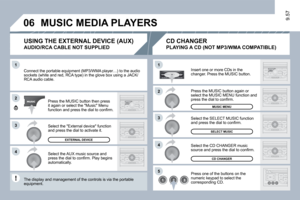

4. CD changer or storage compartment.

5. Audio equipment or storage
compartment.

6. Central adjustable vents.

7. Hazard warning lights button.

8. Display or storage compartment.

9. Courtesy light.

10. Passenger airbag disarmed warning
light.

11. Location of the ticket/card storage,
heated seat controls.
ADJUSTING THE TIME - a centre console with display: refer
to the "Adjusting the date and time"
section of chapter 9,
- a centre console without display: refer to the "Instruments and controls"
section of chapter 2.
Depending on the configuration of your
vehicle, you have either:

3
Interior
10
Driver's seat
SIT COMFORTABLY

1. Forwards-backwards adjustment.

2. Angle.

3. Height.

4. Lumbar.

5. Head restraint height.
59

2
4
3
3
11
Interior
FAMILIARISATION
1
Seat belts Steering wheel
Electric windows
Mirrors
36
80 75
73
Electric adjustments, electric folding/
unfolding.
Height adjustment.
Fastening.
Adjust the height and depth of the steering
wheel.
Manual adjustments.

3
3
7
Interior
12
SEE CLEARLY 37
Lights off.
Side lights.
Main beam headlamps (blue).
Dipped headlamps (green). Wipers stalk

2 fast.

1 normal.

I intermittent.

0 off.

 single wipe.

AUTO , press the stalk down.
AUTO, automatic switching
on of the lights.

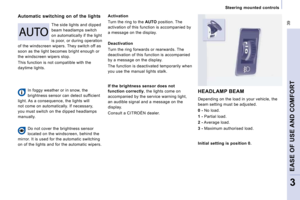

Lights stalk
40 Changing bulbs
113
In bad weather or in winter, check that the
lights are not covered with mud or snow.
