GUIDANCE OPTIONS
GPS
The route presented depends directly on the guidance options. Changing these options may completely change the r oute.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE CALCULATION CRITERIA function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example, the DISTANCE/TIME function.

9.12
99
1010
1111
1212
22
11
33
Turn the dial and select the TRAFFIC INFO function if you wish to receive the TRAFFIC INFO announcements.
Press the dial to confi rm the selection.
Select OK and press the dial to confi rm.
TRAFFIC INFO
Press the dial to confi rm the selection.
Tick this box for optimum operation of the traffi c information, diversions will be suggested.
OK
SETTING HAZARDOUS AREAS
ALERT PARAMETERS
Turn the dial and select the SET HAZARDOUS AREAS PARAMETERS function, then press the dial to confi rm the warning message. Press the dial to confi rm the selection.
Select: - visual warnings, - audible warnings with an announcement duration (in seconds), - warn during guidance only, then select OK and press the dial to confi rm.
These functions are only available if the hazardou s areas have been downloaded and installed on the system. The hazardous areas are, in general, fi xed speed c ameras, level crossings, dangerous uphill and downhill gradients. They may change on a regular basis.
Repeat steps 1 to 5 of the guidance option.
SET HAZARDOUS AREAS PARAMETERS
OK

66
88
77
55
11
22
33
44
03
Press the dial to confi rm the selection.
ADJUST SPEECH SYNTHESIS
DEACTIVATE
OK
Select the ADJUST SPEECH SYNTHESIS function and press the dial to confi rm.
Press the dial then adjust the volume of the speech synthesis or select the DEACTIVATE function and press the dial to confi rm.
Select OK and press the dial to confi rm.
GUIDANCE SPEECH SYNTHESIS
During announcements, the volume of each speech synthesis function (guidance, traffi c information...) can be adjusted directly using the volume button.
GPS
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the GUIDANCE OPTIONS function.
GUIDANCE OPTIONS

9.14
03
11
22
33
44
66
77
88
55
GPS
Press the MENU button.
Turn the dial and select the MAP function.
Press the dial to confi rm the selection.
Turn the dial and select the MAP DETAILS function. Permits selection of the services which can be seen on the map (hotels, restaurants, hazardous areas...).
ACTIONS ON THE MAP
MAP DETAILS
Press the dial to confi rm the selection.
Turn the dial and select the orientation of your choice.
Select OK and press the dial to confi rm.
Repeat steps 1 to 3 then turn the dial and select the MAP ORIENTATION function.
3D VIEW/MAP ORIENTATION
MAP ORIENTATION
3D VIEW
OK
NORTH DIRECTION
VEHICLE DIRECTION
For improved visibility, beyond the scale of 10 km, the map automatically switches to North Orientation.

11
22
33
44
55
66
77
9.15
Press the MENU button.
Press the dial to confi rm the selection.
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to confi rm.
Press the dial to confi rm the selection.
Turn the dial and select the DISPLAY MAP function.
DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW

9.16
03
List of POI
GPS

11
22
33
44
55
99
88
77
66
03
9.17
ADDING A STAGE
During guidance, press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the JOURNEY LEGS AND ROUTE function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to confi rm the order of the stages.
When the new address has been entered, select OK and press the dial to confi rm.
Enter for example a new address.
Select the ADD A STAGE function (9 stages maximum) and press the dial to confi rm.
Press the dial to confi rm the selection. Select STRICT (the stage must be completed in order to continue to the next destination) or PROXIMITY then press the dial to confi rm.
ENTER AN ADDRESS
ADD A STAGE
GPS

9.18
55
66
77
88
11
22
33
44
04

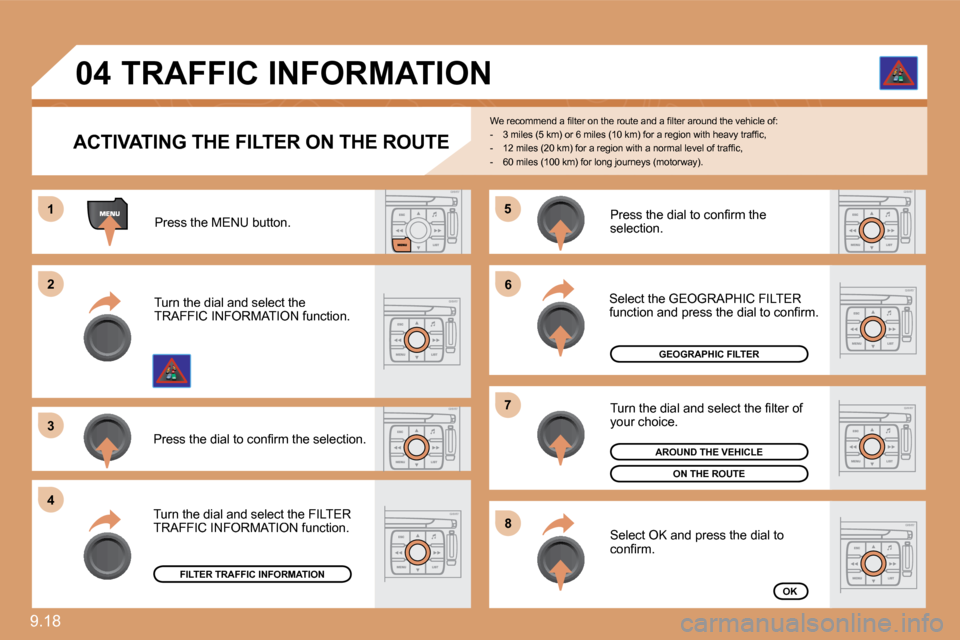

ACTIVATING THE FILTER ON THE ROUTE
We recommend a fi lter on the route and a fi lter around the vehicle of: - 3 miles (5 km) or 6 miles (10 km) for a region with heavy traffi c, - 12 miles (20 km) for a region with a normal le vel of traffi c, - 60 miles (100 km) for long journeys (motorway) .
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to confi rm the selection.
FILTER TRAFFIC INFORMATION
Turn the dial and select the FILTER TRAFFIC INFORMATION function.
TRAFFIC INFORMATION
Press the dial to confi rm the selection.
Select the GEOGRAPHIC FILTER function and press the dial to confi rm.
Turn the dial and select the fi lter of your choice.
Select OK and press the dial to confi rm.
GEOGRAPHIC FILTER
AROUND THE VEHICLE
ON THE ROUTE
OK
