SAFETY
DIRECTION INDICATORS
If you forget to cancel the di-
rection indicators for more than
twenty seconds, the volume of
the audible signal will increase
if the speed is above 40 mph
(60 km/h).
HAZARD WARNING LAMPS


)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.

HORN



)
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:


- immediate danger,

- when approaching an area
where there is no visibility.

Audible warning to alert other road users
to an imminent danger.

"Motorway" function
Move the stalk briefl y upwards or down-
wards, without going beyond the point
of resistance; the corresponding direc-
tion indicators will fl ash 3 times.
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.



)
Lower the lighting control stalk fully
when moving to the left.

)
Raise the lighting control stalk fully
when moving to the right.

8
101
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct operation of these
systems depends on observa-
tion of the manufacturer’s rec-
ommendations regarding wheels
(tyres and rims), braking compo-
nents, electronic components
and assembly and repair proce-
dures.
After an impact, have these sys-
tems checked by a CITROËN
dealer or a qualifi ed workshop.



Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.

)
Press the "ESP OFF"
button, locat-
ed in the centre of the dashboard.

If this warning lamp comes on in
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.

Reactivation
These systems are reactivated automa-
tically each time the ignition is switched
back on or from 30 mph (50 km/h).


)
Press the "ESP OFF"
button again
to reactivate them manually.

Operating fault

If this warning lamp comes on,
accompanied by an audible sig-
nal and a message in the multi-
function screen, this indicates a
malfunction of these systems.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
TRAJECTORY CONTROLSYSTEMS


The anti-slip regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by acting
on the brakes of the driving wheels and
on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.


Anti-slip regulation (ASR) and
electronic stability programme (ESP)
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.

Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.

8
103
SAFETY


1.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

2.
Front left seat belt warning lamp.

3.
Front right seat belt warning lamp.

4.
Rear right seat belt warning lamp.

5.
Rear centre seat belt warning lamp.

6.
Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamp display
Rear seat belts
The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).

Locking

When the rear side side belts are not being
used, you can lock them in place. To do so:


)
Raise the grip A
to its maximum
height.

Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it rolls up.

The corresponding warning lamp 2
or 3

comes on in red on the seat belt and
passenger’s front airbag warning lamp
display if the seat belt is not fastened or
is unfastened.

Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and passen-
ger’s front airbag warning lamp
display, when one or more rear passen-
gers unfasten their seat belt.
From approximately 12 mph (20 km/h), this
warning lamp fl ashes for two minutes accom-
panied by an audible signal of increasing vol-
ume. Once these two minutes have elapsed,
this warning lamp remains on until the one or
more rear passengers fasten their seat belt.


Seat belt unfastened warning lamp
display
When the ignition is switched on, the cor-
responding warning lamps 4
, 5
and 6
come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the engine is running or the vehicle
is moving, the corresponding warning lamp
4
, 5
or 6
comes on in red, accompanied
by an audible signal and a message on the
multifunction screen, if a rear passenger
has unfastened their seat belt.

8
108
SAFETY

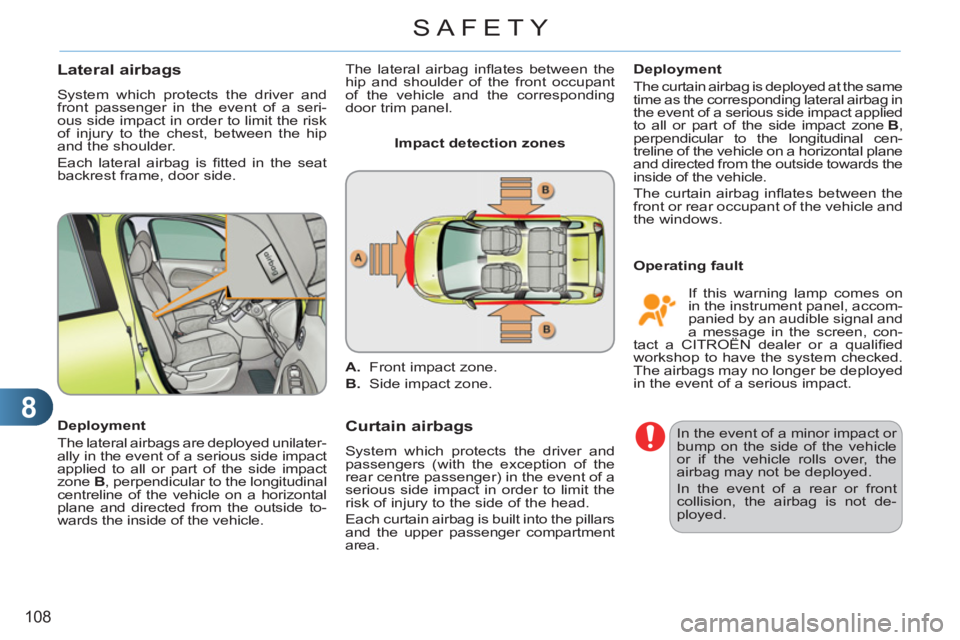

Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest, between the hip
and the shoulder.
Each lateral airbag is fi tted in the seat
backrest frame, door side.

Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pillars
and the upper passenger compartment
area.
Operating fault
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone B
,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal plane
and directed from the outside towards the
inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the
airbag may not be deployed.
In the event of a rear or front
collision, the airbag is not de-
ployed.

Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message in the screen, con-
tact a CITROËN dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact. The lateral airbag infl ates between the
hip and shoulder of the front occupant
of the vehicle and the corresponding
door trim panel.

9
119
DRIVING
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal in
the normal manner no longer has any effect.
The controls of this system are grouped
together on stalk A
.


1.
Speed limiter mode selection thumb
wheel.

2.
Value decrease button.

3.
Value increase button.

4.
Speed limiter on/off button.
The programmed information is grouped
together in the instrument panel screen.

5.
Speed limiter on/off indication.

6.

Speed limiter mode selection indication.

7.
Programmed speed value.
Steering mounted controls
Displays in the instrument panel

The speed limiter cannot, in any
circumstances, replace the need to
respect speed limits, nor can it re-
place the need for vigilance and re-
sponsibility on the part of the driver.
The speed limiter is switched on
man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off
by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator fi rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.

9
121
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on

manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging of at least 4th gear.
The controls of this system are grouped
together on control stalk A
. The programmed information is grouped
together in the instrument panel screen.
Steering mounted controls
Displays in the instrument panel

The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. The cruise control is switched off
manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

1.
Cruise control mode selection dial

2.
Speed programming/value decrease
button

3.
Speed programming/value increase
button

4.
Cruise control off/resume button
5.
Cruise control off/resume indication

6.
Cruise control mode selection indi-
cation

7.
Programmed speed value

9
DRIVING
REAR PARKING SENSORS
System comprising four proximity sensors,
located in the rear bumper.
This detects obstacles (person, vehi-
cle, tree, gate, etc.) behind the vehicle.
However, it cannot detect obstacles lo-
cated just below the bumper.
An object, such as a stake, a
roadworks cone or any other simi-
lar object may be detected at the
beginning of the manoeuvre, but
may no longer be detected when
the vehicle comes close to it.
Activation

The system is activated as soon as re-
verse gear is engaged, accompanied
by an audible signal. The proximity in-
formation is given by:


- an audible signal, which becomes
more rapid as the vehicle approaches
the obstacle,

- a graphic in the multifunction screen,
with blocks which become increas-
ingly closer to the vehicle (depending
on version). The parking sensors system
cannot, in any circumstances,
take the place of the vigilance
and responsibility of the driver.
Detection zone


When the distance between the rear of the
vehicle and the obstacle is less than thirty
centimetres, the audible signal becomes
continuous and the "Danger" symbol ap-
pears in the multifunction screen.
On completion of the manoeuvre, when
you exit reverse gear, the system be-
comes inactive.

10
130
CHECKS
CHECKING LEVELS
Brake fluid level

Oil level
The reading will only be correct if the
vehicle is on level ground and the
engine has been off for more than
30 minutes.
The check is carried out either when the ignition
is switched on using the oil level indicator in the
instrument panel, or using the dipstick.
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the
ignition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with plain water.


Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil grade
The oil must be suitable for your engine
and conform to the manufacturer's
recommendations.


Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Changing the coolant

The coolant does not have to be changed.


Screenwash fluid level

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer or a qualifi ed work-
shop. In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Top up the level when necessary.
Take care when carrying out
checks under the bonnet as
some parts of the engine can be
very hot (risk of burns).


It is normal to top up the engine oil
between services. CITROËN rec-
ommends that you check the oil
level and top up if necessary, every
3 000 miles (5 000 kilometres).
