2010 CITROEN C3 PICASSO ESP

2
38
MULTIFUNCTION SCREENS

Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).

Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l). navigation colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").

Displa
y

This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).

S
ystem parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text. This displays the following information:


- time,

- date,

- audio functions,

- navigation system information. The chosen language will also
be used in the MyWay satellite
navigation colour screen.
Once the fuel consumption unit
has been changed to l/100 km
or km/l, the information relat-
ing to speed and distance also
changes to kilometres.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.

Press the SETUP button to access the
"SETUP"
menu. It gives you access to
the following functions:


- Date and time,

- Display,

- System parameters.

2
41
MULTIFUNCTION SCREENS

Display confi guration
Once this menu has been selected, you
can gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units. Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.

For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit
has been changed to l/100 km
or km/l, the information relat-
ing to speed and distance also
changes to kilometres.
Telephone menu
With the Audio system on, with this
menu selected, you can confi gure
your Bluetooth hands-free kit (pairing),
view the various telephone directories
(call log, services...) and manage your
calls (call, hang up, double call, secret
mode...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio and Telematics".

3
49
COMFORT
When the engine is cold, to pre-
vent too great a distribution of
cold air, the air fl ow will reach its
optimum level gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, side windows and
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the
value displayed in order to obtain
the comfort required. The system
corrects the difference in tempera-
ture automatically and as quickly
as possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

Automatic operation



)
Press the "AUTO"
button.
The indicator lamp in the
button comes on.
2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO"
button comes on.


1. Automatic comfort programme
3. Passenger side adjustment







With Stop & Start, when demisting
has been activated, the STOP mode
is not available.

3
55
COMFORT

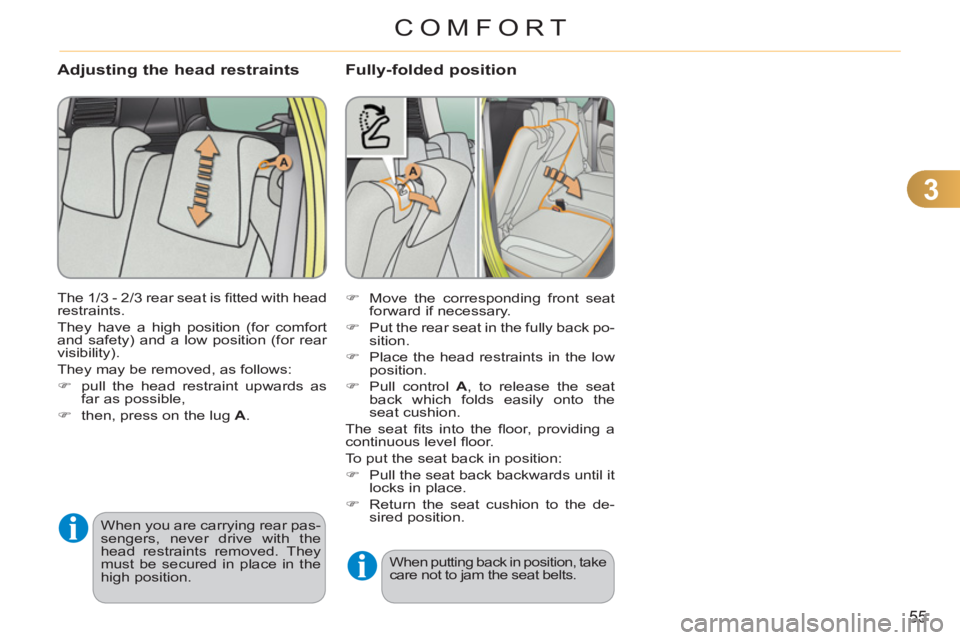

Fully-folded position


)
Move the corresponding front seat
forward if necessary.

)
Put the rear seat in the fully back po-
sition.

)
Place the head restraints in the low
position.

)
Pull control A
, to release the seat
back which folds easily onto the
seat cushion.
The seat fi ts into the fl oor, providing a
continuous level fl oor.
To put the seat back in position:


)
Pull the seat back backwards until it
locks in place.

)
Return the seat cushion to the de-
sired position.

Adjusting the head restraints

The 1/3 - 2/3 rear seat is fi tted with head
restraints.
They have a high position (for comfort
and safety) and a low position (for rear
visibility).
They may be removed, as follows:


)
pull the head restraint upwards as
far as possible,

)
then, press on the lug A
.
When you are carrying rear pas-
sengers, never drive with the
head restraints removed. They
must be secured in place in the
high position.

When putting back in position, take
care not to jam the seat belts.

3
COMFORT
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order
to correctly judge the distance
of vehicles approaching from
behind.

MIRRORS

Door mirrors

The mirror glass is electrically adjustable.
A lamp located under the mirror shell
provides lighting for the driver's and
front passenger's entry and exit.
This exterior lighting comes on when the
vehicle is unlocked or a door is opened
and stays on for a timed period.

Folding


)
From outside: lock the vehicle using
the remote control or the key.

)
From inside: with the ignition on, pull
the control A
in the central position
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Never fold or unfold the electric
folding mirrors manually.

Adjustment

Unfolding


)
From outside: unlock the vehicle us-
ing the remote control or the key.

)
From inside: with the ignition on, pull
the control A
in the central position
rearwards. If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.


)

Move control A
to the right or to the left
to select the corresponding mirror.

)
Move control B
in all four directions
to adjust.

)
Return control A
to the central posi-
tion.

4
63
ACCESS

Deactivating the rear window and
door controls Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when ope-
rating the windows. Reinitialisation

In the event of a malfunction you must
reinitialise the operation of the electric
windows:


)
release the switch and pull it again
until the window closes completely,

)
hold the switch for approximately
one second after closing,

)
press the switch to lower the win-
dow automatically.

The safety anti-pinch function is not
active during these operations.



)
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
With the indicator lamp on, the rear con-
trols are deactivated.
With the indicator lamp off, the rear con-
trols are activated.
When the function is activated, this
warning lamp lights up on the in-
strument panel for a few seconds.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child
lock").

5
71
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clearly
when the road is clear.



Additional lighting

Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:


- a rear foglamp to be seen from afar,

- front foglamps for even better for-
ward vision.



Programming

Various automatic lighting control modes
are also available according to the fol-
lowing options:


- guide-me-home lighting,

- automatic illumination of headlamps.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.

Manual controls

The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
lamps temporarily ("headlamp fl ash") by
maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.

Displays

Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.

5
78
VISIBILITY
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.


1.
Front courtesy lamp


2.
Map reading lamps


3.
Rear courtesy lamp


Front and rear courtesy lamps

Map readin
g lamps



)
With the ignition on, press the cor-
responding switch.


In permanent lighting mode, differ-
ent lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, un-
limited.
In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting. It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to locate
your vehicle.


Footwell lighting

These lamps come on at the same time
as the courtesy lamps.
