2010 CHRYSLER SEBRING SEDAN fold seats

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 89
▫ Inside Day/Night Mirror ................ 89
▫ Automatic Dimming Mirror — If Equipped . . . 90
▫ Power Mirrors ....................... 90
▫ Adjusting Sideview Mirrors .............. 92
▫ Illuminated Vanity Mirrors — If Equipped . . . 93
 uconnect™ phone — If Equipped ........... 93
 Voice Recognition (VR) System — If Equipped . . 93
 Seats ............................... 94 ▫
Manual Front Seat Adjustment ............ 94
▫ Driver Seat Manual Height Adjuster —
If Equipped ......................... 95
▫ Reclining Bucket Seats .................. 96
▫ Lumbar Support — If Equipped ........... 97
▫ Power Seats — If Equipped .............. 97
▫ Adjusting Active Head Restraints .......... 98
▫ Heated Seats — If Equipped ............ 101
▫ Fold-Flat Passenger Seatback ............ 102
3

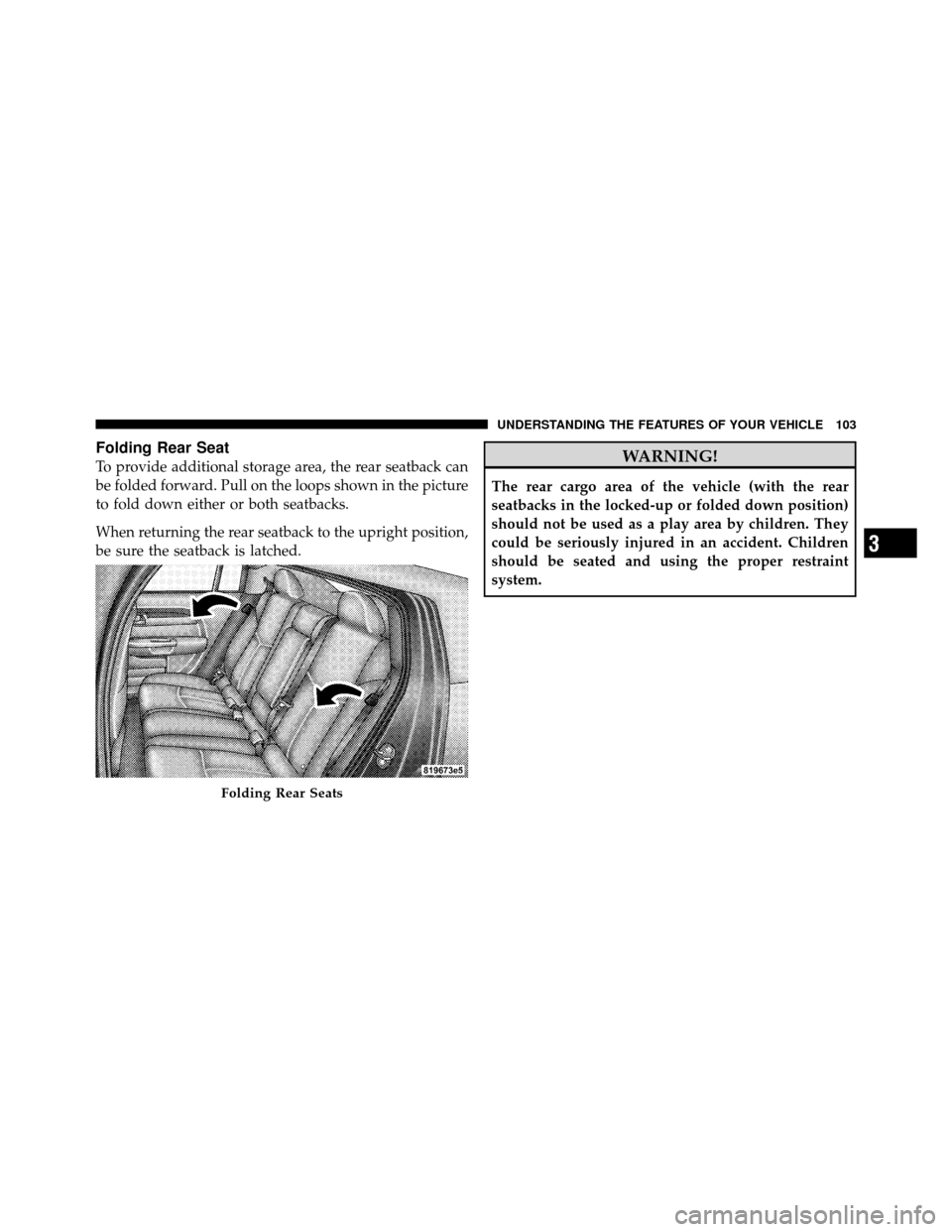

Folding Rear Seat
To provide additional storage area, the rear seatback can
be folded forward. Pull on the loops shown in the picture
to fold down either or both seatbacks.
When returning the rear seatback to the upright position,
be sure the seatback is latched.WARNING!
The rear cargo area of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children. They
could be seriously injured in an accident. Children
should be seated and using the proper restraint
system.
Folding Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.
STORAGE
Driver’s Side Sunglass Holder — If Equipped
An integrated sunglass holder is located in the headliner
above the sun visor. To access the sunglass holder, lower
the sun visor. Small items such as toll tickets can be
stored between the two straps, while sunglasses or other
items can be stored above the two straps.
Cargo Area
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
Sunglass Holder
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.(Continued)
WARNING! (Continued)
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
Always place cargo evenly on the cargo floor. Put heavier
objects as low and as far forward as possible.
Place as much cargo as possible in front of the rear axle.
Too much weight or improperly placed weight over or
behind the rear axle can cause the rear of the vehicle to
sway.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

Phone, Hands-Free (uconnect) ............... 93
Placard, Tire and Loading Information......... 268
Power Deck Lid Release ....................... 37
Door Locks ........................... 30
Mirrors .............................. 90
Outlet (Auxiliary Electrical Outlet) .......... 129
Seats ................................ 97
Steering .......................... 250,251
Sunroof ............................. 126
Windows ............................. 33
Pregnant Women and Seat Belts .............. 54
Preparation for Jacking .................... 319
Pretensioners Seat Belts ............................ 48
Programmable Electronic Features ............ 167
Programming Transmitters
(Remote Keyless Entry) .................... 25 Radial Ply Tires
......................... 275
Radiator Cap (Coolant Pressure Cap) .......... 357
Radio Operation ........................ 217
Radio Remote Controls .................... 215
Radio, Satellite (uconnect studios)........... 209
Rear Cupholder ......................... 133
Rear Seat, Folding .................... 103,104
Rear Window Defroster ................... 139
Rear Window Features .................... 139
Rearview Mirrors ........................ 89
Recreational Towing ...................... 314
Reformulated Gasoline .................... 291
Refrigerant ............................ 349
Reminder, Seat Belt ..................... 52,53
Remote Control Door Locks ........................... 20
Security Alarm ......................... 18
Remote Keyless Entry (RKE) ................. 20
Remote Keyless Entry (Sedan) ............... 20
430 INDEX

Untwisting Procedure.................... 46
Seat Belts (Sedan) ........................ 39
Seats ................................. 94
Adjustment ........................... 94
Cleaning ............................ 104
Heated ............................. 101
Lumbar Support ....................... 97
Power ............................... 97
Rear Folding ....................... 103,104
Rear Folding (Sedan) ................... 134
Reclining ............................. 96
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........355,387
Selection of Oil ......................... 343
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 16
Service Assistance ....................... 409
Service Contract ......................... 411
Service Manuals ........................ 413 Setting the Clock
.............169,172,186,189,198
Settings, Personal ........................ 167
Shifting Automatic Transaxle .................... 239
Shoulder Belts ........................... 40
Side Airbag ............................. 64
Side Window Demisters (Defrosters) .......... 229
Signals, Turn ......................... 84,381
Slippery Surfaces, Driving On ............... 247
Snow Chains (Tire Chains) ................. 279
Snow Tires ............................ 280
Spare Tire .......................... 275,318
Specifications Oil ................................ 343
Speed Control (Cruise Control) ........... 117,152
Speedometer ........................... 146
Starting ............................... 235
Engine Fails to Start .................... 236
Starting and Operating .................... 235
432 INDEX
