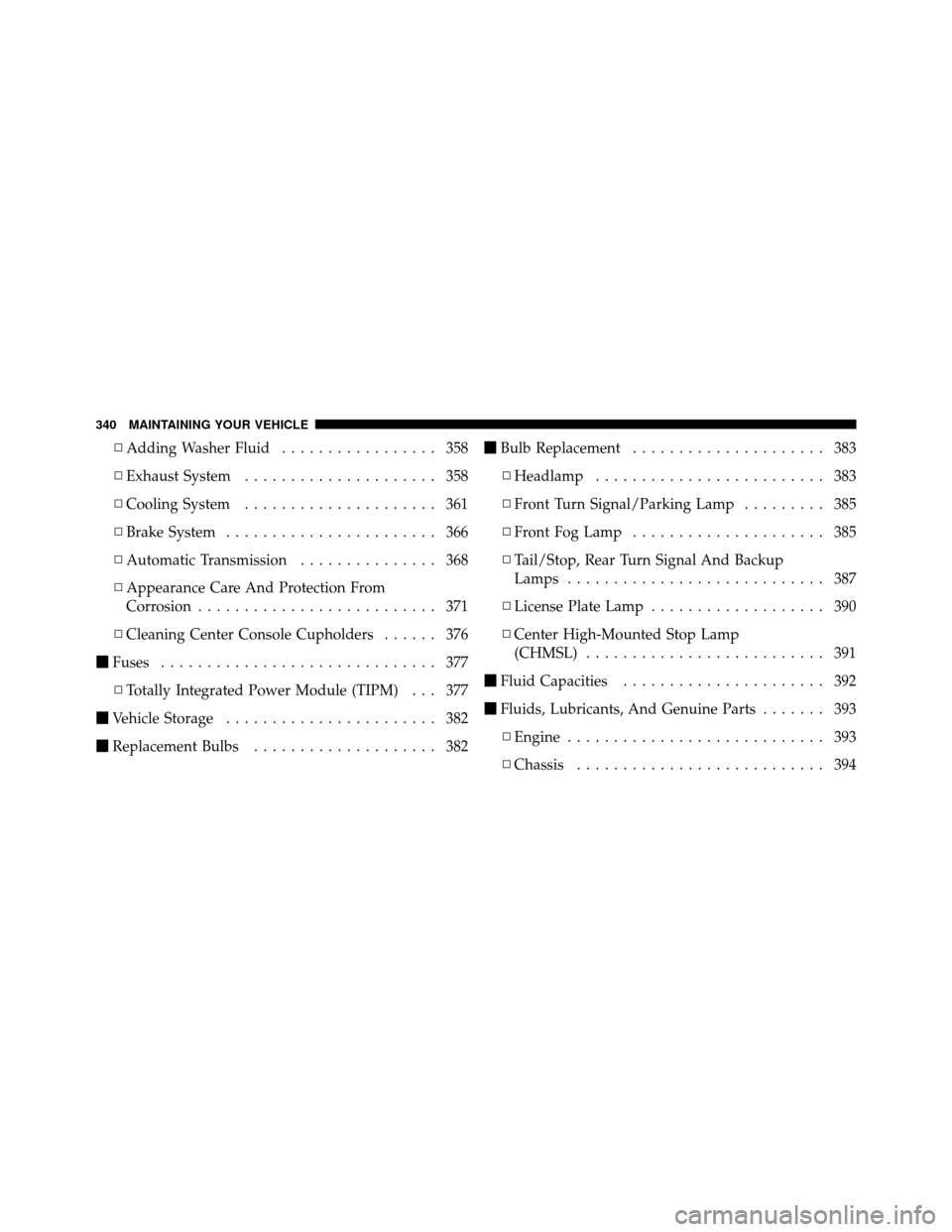

▫Adding Washer Fluid ................. 358
▫ Exhaust System ..................... 358
▫ Cooling System ..................... 361
▫ Brake System ....................... 366
▫ Automatic Transmission ............... 368
▫ Appearance Care And Protection From
Corrosion .......................... 371
▫ Cleaning Center Console Cupholders ...... 376
 Fuses .............................. 377
▫ Totally Integrated Power Module (TIPM) . . . 377
 Vehicle Storage ....................... 382
 Replacement Bulbs .................... 382
Bulb Replacement ..................... 383
▫ Headlamp ......................... 383
▫ Front Turn Signal/Parking Lamp ......... 385
▫ Front Fog Lamp ..................... 385
▫ Tail/Stop, Rear Turn Signal And Backup
Lamps ............................ 387
▫ License Plate Lamp ................... 390
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 391
 Fluid Capacities ...................... 392
 Fluids, Lubricants, And Genuine Parts ....... 393
▫ Engine ............................ 393
▫ Chassis ........................... 394
340 MAINTAINING YOUR VEHICLE

LIGHT BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp ....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop
(CHMSL) Lamp ................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
MAINTAINING YOUR VEHICLE 383

Front Turn Signal/Parking Lamp
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Lamp
NOTE:
Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
7
MAINTAINING YOUR VEHICLE 385
