2010 CHRYSLER SEBRING CONVERTIBLE display

The trunk release button on the dash
will be disabled if the vehicle is locked
by pressing the power door lock
switch or by pressing the LOCK but-
ton on the Remote Keyless Entry
(RKE) transmitter. The trunk release
button will be enabled when the ve-
hicle is unlocked by the RKE or if the
key is inserted into the ignition and
turned to ON or START.
NOTE: This provides a locked area in the vehicle even
if the convertible top is open.
To unlatch the trunk lid from outside the vehicle, press
and release the TRUNK RELEASE button on the RKE
transmitter two times. With the ignition ON, the word “deck” will display in the
odometer indicating the trunk is open. The odometer
display will reappear once the trunk is closed or if the
trip button is pressed.
With the ignition switch in the LOCK position or with the
key out, the word “deck” will display until the trunk is
closed.
On vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the words “Trunk Ajar” will
display.
Trunk Release
Button
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)
•Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
•When using the power top button on RKE trans-
mitter, if potential danger exists while lowering
the top, release the button immediately to inter-
rupt the operation.
•When using the power top switch on the instru-
ment panel, if potential danger exists while low-
ering the top, release the switch immediately to
interrupt the operation.(Continued)
WARNING! (Continued)
•When using the power top switch on the instru-
ment panel, if potential danger exists while raising
the top, release the switch immediately to inter-
rupt the operation.
•Only drive the vehicle with the convertible top
completely closed and latched or fully lowered
into its stowage compartment.
•Do not operate the power top when the vehicle is
in motion.
Cargo Shield
The cargo shield is located in the trunk. Before lowering
the convertible top, you must unfold the cargo shield and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner. Doing so closes a switch that allows top
operation. If the switch is not closed, a warning message
displays in the instrument cluster to notify the driver.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

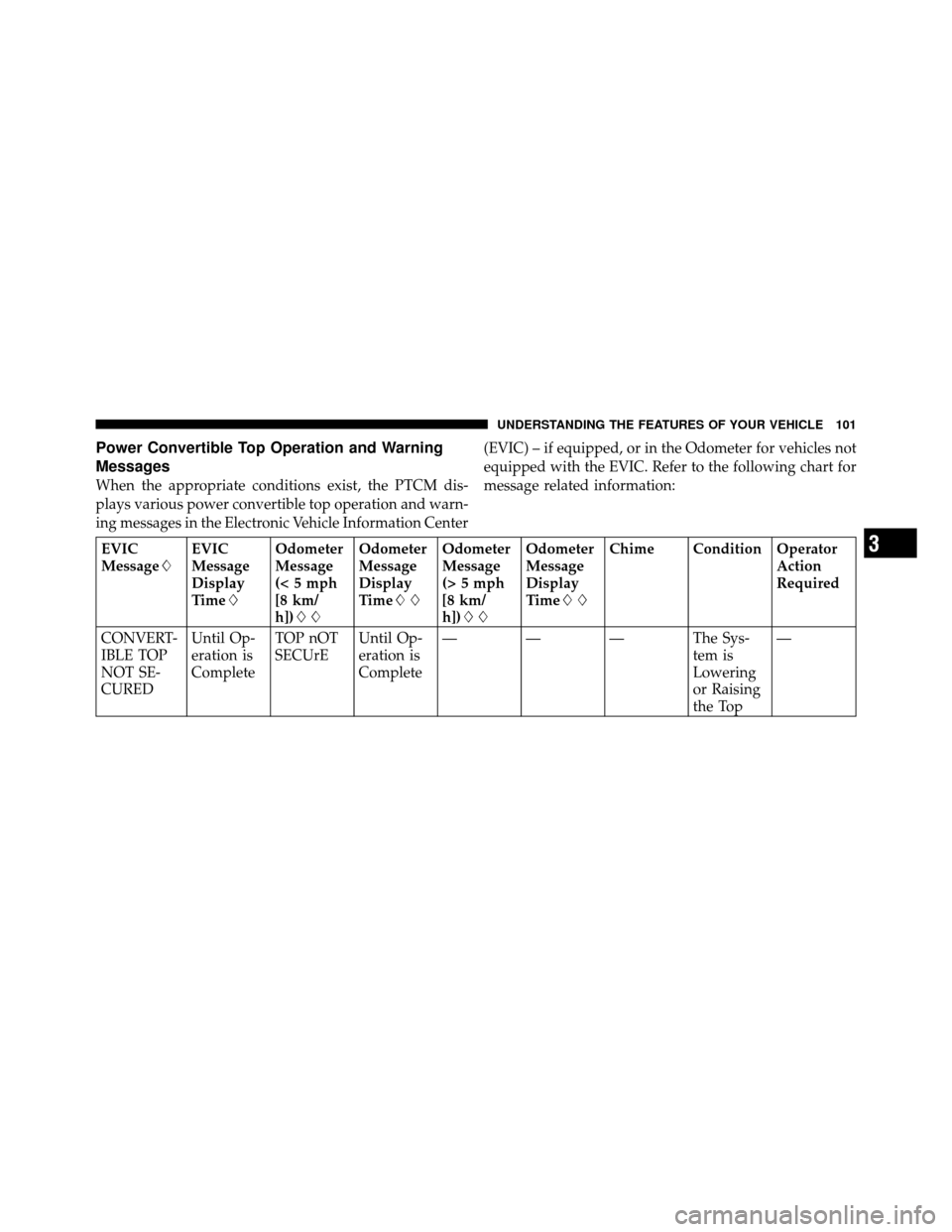

Power Convertible Top Operation and Warning
Messages
When the appropriate conditions exist, the PTCM dis-
plays various power convertible top operation and warn-
ing messages in the Electronic Vehicle Information Center(EVIC) – if equipped, or in the Odometer for vehicles not
equipped with the EVIC. Refer to the following chart for
message related information:
EVIC
Message
EVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
Complete— — — The Sys-
tem is
Lowering
or Raising
the Top—3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
COMPLETE 9 sec. TOP
DONEDisplay
Scrolls for
6 sec.— — Single
ChimeThe Sys-
tem Com-
pletes Op-
eration of
Lowering
or Raising
the Top—
SECURE
CARGO
SHIELD 9 sec. SET
CARGO
SHIELDDisplay
Scrolls for
9 sec.— — Single
ChimeThe Top
Fails to
Move
When Op-
erating the
Power Top
ControlPosition
the Cargo
Shield in
the Trunk
to Allow
Top Op-
eration
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
CompleteTOP nOT
SECUrE
Until Op-
eration is
CompleteSingle
Chime
The Sys-
tem Fails
to Com-
plete Op-
eration of
Lowering
or Raising
the TopCycle
Power Top
Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
SPEED
TOO HIGH 9 sec. SPEED
TOO
HIGHDisplay
Scrolls for
9 sec.TOP 6 sec. Single
ChimeYo u A r e
Operating
the Power
Topata
Vehicle
Speed
Greater
Than
0 mph
(0 km/h)The Top
Will Not
Operate
Unless the
Vehicle is
Stationary.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
TRUNK
AJAR Continu-
ousDECK Continu-
ousDECK Continu-
ousSingle
ChimeThe Trunk
Lid is Un-
latched or
OpenThe Top
Will Not
Operate
Unless the
Trunk Lid
is Closed
CONVERT-
IBLE TOP
MAL-
FUNCTION 6 sec. TOP FAIL Display
Scrolls for
6 SecondsTOP 6 sec. Single
ChimeThe PTCM
Activated
the System
LOCKOUT
FeatureRefer to
Foot Note

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/
h])Odometer
Message
Display
Time
Odometer
Message
(> 5 mph
[8 km/
h])Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
MAL-
FUNCTION Until Fault
is No
Longer
Detected
or Re-
pairedTOP FAIL Display
Scrolls un-
til Fault is
No Longer
Detected
or Re-
pairedTOP Display
Flashes
until Fault
is No
Longer
Detected
or Re-
pairedSingle
Chime
The PTCM
Activated
the System
LOCKOUT
FeatureSee your
authorized
dealer for
service
 If so equipped.
 For vehicles not equipped with the EVIC.
 The PTCM will lockout the power convertible top system if the vehicle charging system is malfunction-
ing, or the battery is run down, or the hydraulic pump is overheating. In addition, the system prohibits lower-
ing the top when ambient temperature is at 0°F (-18°C) or lower and raising the top when ambient temperature
is below -40°F (-40°C).
