2010 CHRYSLER PT CRUISER spark plugs replace

Miles108,000 114,000 120,000 126,000 132,000 138,000
(Kilometers) (180 000) (190 000) (200 000) (210 000) (220 000) (230 000)
[Months] [108] [114] [120] [126] [132] [138]
Change engine oil and engine oil filter. X X XXXX
Rotate tires. X X XXXX
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the air cleaner filter.* X
Replace the generator belt. X
Replace power steering/air conditioning belt. X
Flush and replace the engine coolant at
120 months, if not done at 102,000 miles
(200 000 kg). X
Replace the spark plugs and ignition cables. X
Replace the make-up air filter.* X
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S336 MAINTENANCE SCHEDULES

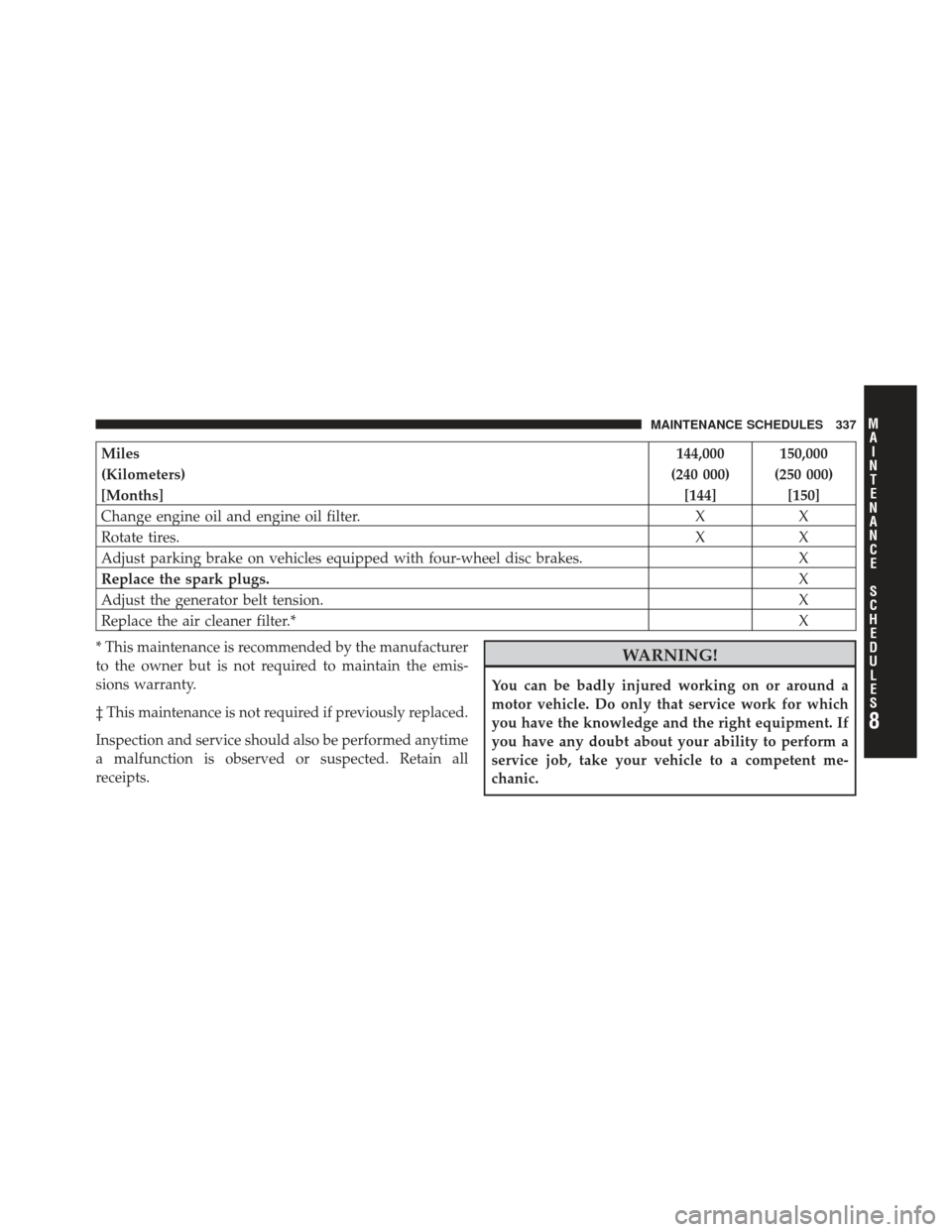

Miles144,000 150,000
(Kilometers) (240 000) (250 000)
[Months] [144] [150]
Change engine oil and engine oil filter. X X
Rotate tires. XX
Adjust parking brake on vehicles equipped with four-wheel disc brakes. X
Replace the spark plugs. X
Adjust the generator belt tension. X
Replace the air cleaner filter.* X
* This maintenance is recommended by the manufacturer
to the owner but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all
receipts.
WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 337
