FUSES

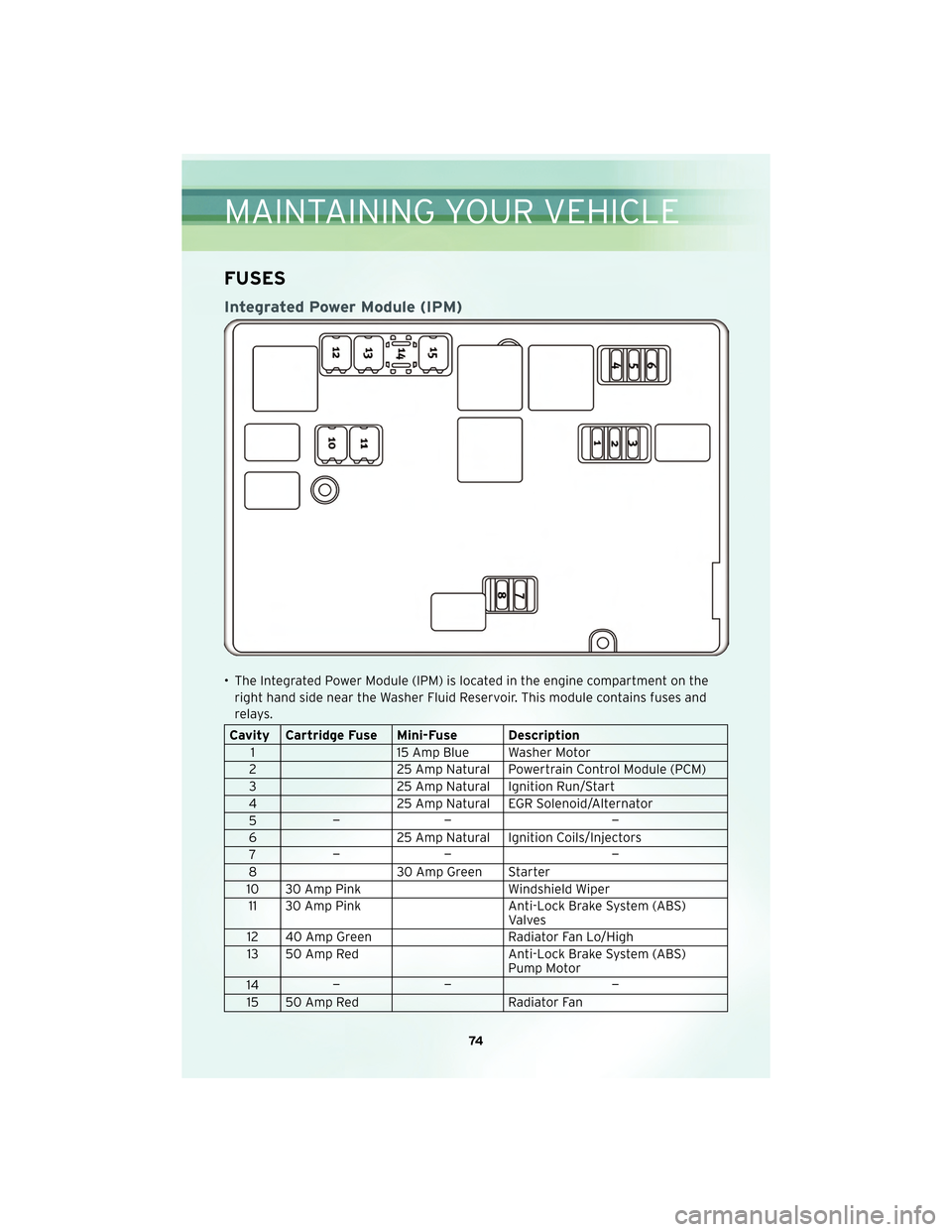

Integrated Power Module (IPM)
• The Integrated Power Module (IPM) is located in the engine compartment on theright hand side near the Washer Fluid Reservoir. This module contains fuses and
relays.
Cavity Cartridge Fuse Mini-Fuse Description
1 15 Amp Blue Washer Motor
2 25 Amp Natural Powertrain Control Module (PCM) 3 25 Amp Natural Ignition Run/Start
4 25 Amp Natural EGR Solenoid/Alternator 5— — —
6 25 Amp Natural Ignition Coils/Injectors 7— — —
8 30 Amp Green Starter
10 30 Amp Pink Windshield Wiper 11 30 Amp Pink Anti-Lock Brake System (ABS) Valves
12 40 Amp Green Radiator Fan Lo/High
13 50 Amp Red Anti-Lock Brake System (ABS)
Pump Motor
14 — — —
15 50 Amp Red Radiator Fan
