2010 CHRYSLER 300 fold seats

until the driver ’s or front passenger ’s seat belt is buckled.
BeltAlertwill be reactivated if the driver ’s or passen-
ger ’s seat belt is unbuckled for more than 10 seconds and
the vehicle speed is greater than 5 mph (8 km/h).
For front passenger seats equipped with BeltAlert, your
vehicle is equipped to detect when it is occupied. The
BeltAlert warning system is not activated when the
front passenger seat is unoccupied. The BeltAlert warn-
ing system may be triggered when an animal or heavy
object is on the front passenger seat or when the seat is
folded flat (if equipped). It is recommended that pets be
restrained in the rear seat in pet harnesses or pet carriers
that are secured by seat belts and cargo is properly
stowed.
BeltAlert Programming
The BeltAlert can be enabled or disabled by your
authorized dealer or by performing the following steps: NOTE:
Chrysler Group LLC does not recommend de-
activating the BeltAlert.
1. With all doors closed, and the ignition switch in any
position except RUN or START, buckle the driver’s seat
belt.
2. Turn the ignition switch to the RUN position, but do
not start the engine. Wait for the Seat Belt Reminder Light
to turn off and then proceed to the next step.
NOTE: You must perform the following steps within
60 seconds of turning the ignition switch to the RUN
position.
3. Within 60 seconds of turning the ignition switch to the
RUN position, unbuckle and then re-buckle the driver’s
seat belt at least three times within 10 seconds, ending
with the seat belt buckled.
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Things You Should Know About Your
Uconnect™ Phone .................... 116
▫ General Information .................. 124
 Voice Command — If Equipped ........... 124
▫ Voice Command System Operation ........ 124
▫ Commands ........................ 126
▫ Voice Training ...................... 129
 Seats .............................. 129
▫ Power Seats ........................ 130
▫ Power Reclining Seats ................. 131
▫ Lumbar Support ..................... 132
▫ Head Restraints ..................... 132
▫ Heated Seats — If Equipped ............ 134▫
Folding Rear Seat .................... 136
 Driver Memory Seat — If Equipped ........ 138
▫ Programming The Memory Feature ....... 139
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory ........... 139
▫ Memory Position Recall ................ 140
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ................... 141
 To Open And Close The Hood ............ 142
 Lights ............................. 144
▫ Headlight Switch .................... 144
▫ Automatic Headlights — If Equipped ...... 145
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 145
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

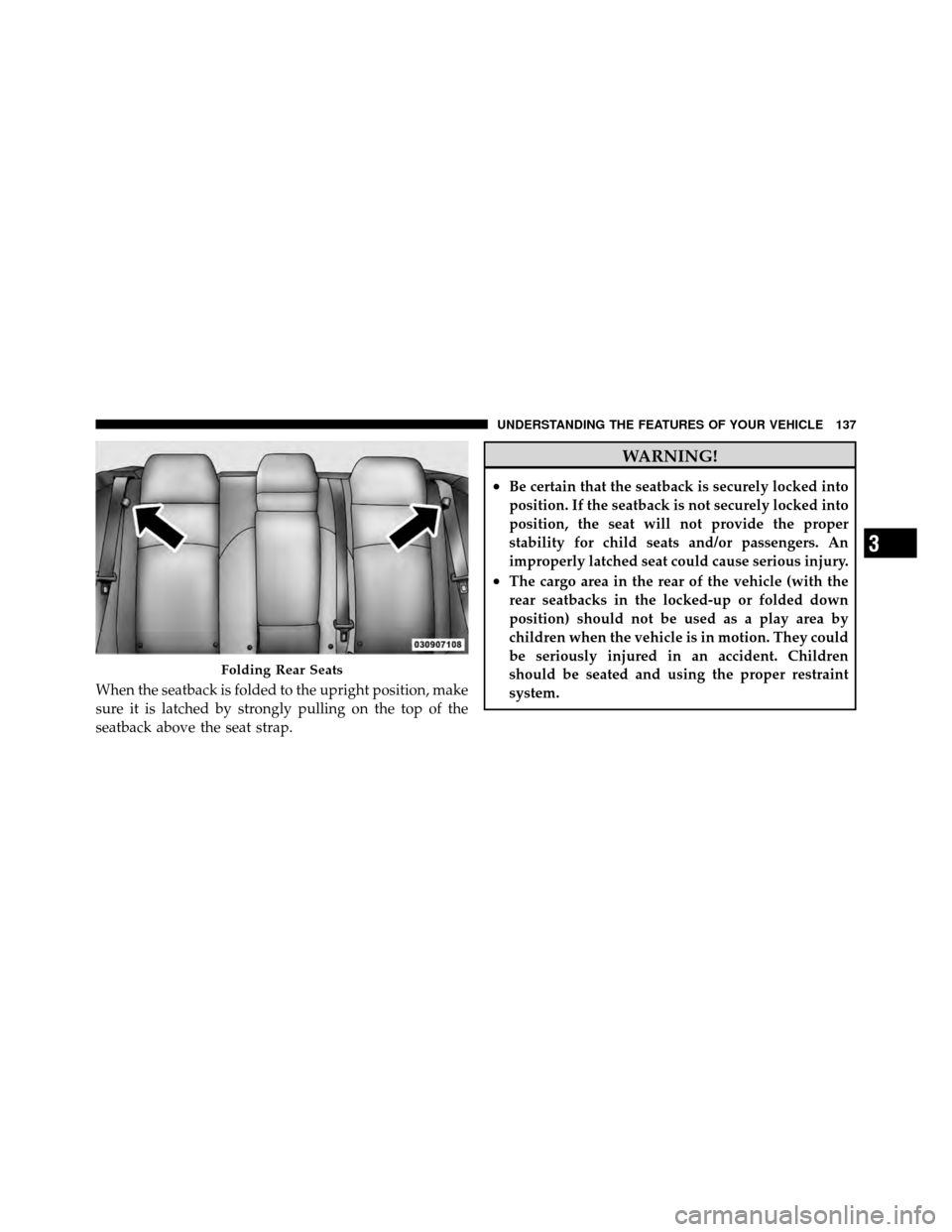

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.
Folding Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

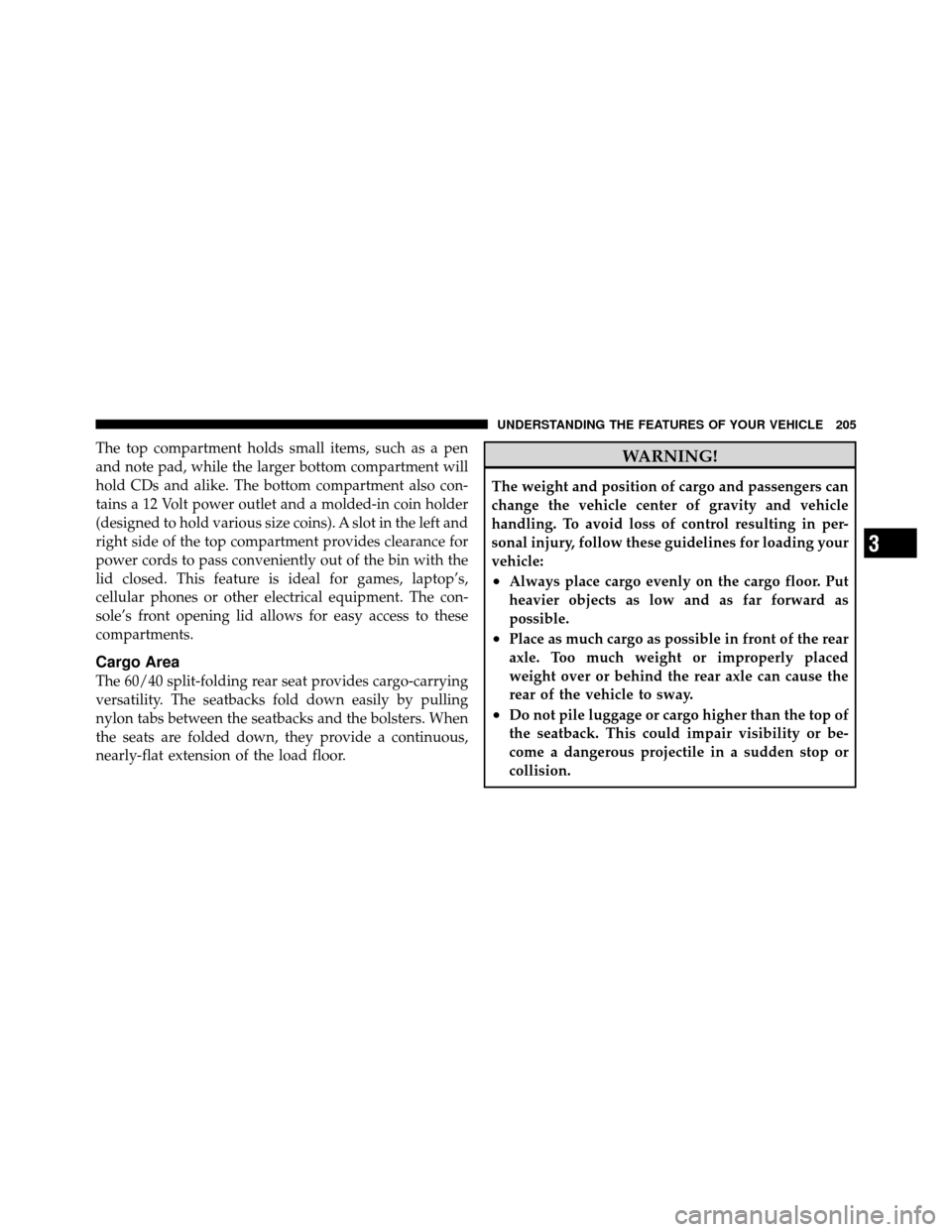

The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12 Volt power outlet and a molded-in coin holder
(designed to hold various size coins). A slot in the left and
right side of the top compartment provides clearance for
power cords to pass conveniently out of the bin with the
lid closed. This feature is ideal for games, laptop’s,
cellular phones or other electrical equipment. The con-
sole’s front opening lid allows for easy access to these
compartments.
Cargo Area
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly-flat extension of the load floor.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
rear of the vehicle to sway.
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

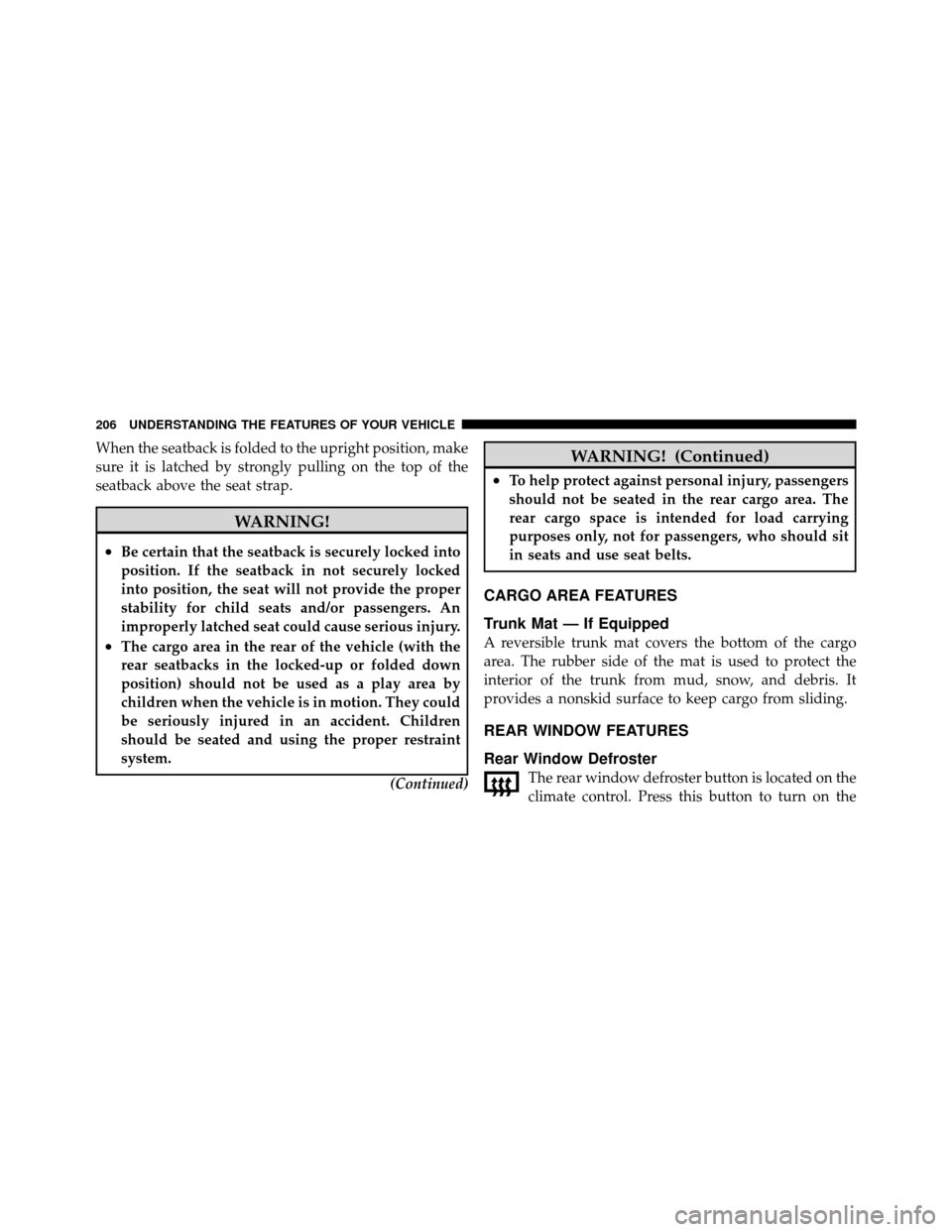

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.(Continued)
WARNING! (Continued)
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
CARGO AREA FEATURES
Trunk Mat — If Equipped
A reversible trunk mat covers the bottom of the cargo
area. The rubber side of the mat is used to protect the
interior of the trunk from mud, snow, and debris. It
provides a nonskid surface to keep cargo from sliding.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control. Press this button to turn on the
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Steering Fluid..................... 483
Pregnant Women and Seat Belts .............. 55
Preparation for Jacking .................... 404
Pretensioners Seat Belts ............................ 53
Programmable Electronic Features ............ 245
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 358
Radiator Cap (Coolant Pressure Cap) .......... 447
Radio Operation ........................ 292
Radio Remote Controls .................... 290
Radio, Satellite (Uconnect studios)........... 282
Rain Sensitive Wiper System ................ 153
Rear Cupholder ......................... 203
Rear Park Sense System ................... 184
Rear Seat, Folding ....................... 136
Rear Window Defroster ................... 206 Rear Window Features
.................... 206
Rearview Mirrors ........................ 91
Reclining Front Seats ..................... 131
Recreational Towing ...................... 396
Reformulated Gasoline .................... 375
Refrigerant ............................ 437
Release, Hood .......................... 142
Reminder, Lights On ..................... 147
Reminder, Seat Belt ....................... 53
Remote Control Starting System ........................ 27
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 290
Remote Starting System .................... 27
Remote Trunk Release ..................... 43
Replacement Bulbs ....................... 468
Replacement Keys ........................ 17
Replacement Parts ....................... 428
Replacement Tires ....................... 362
530 INDEX
