2010 BMW Z4 SDRIVE35I ROADSTER Owners Manual

Mobility
223Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

Reference

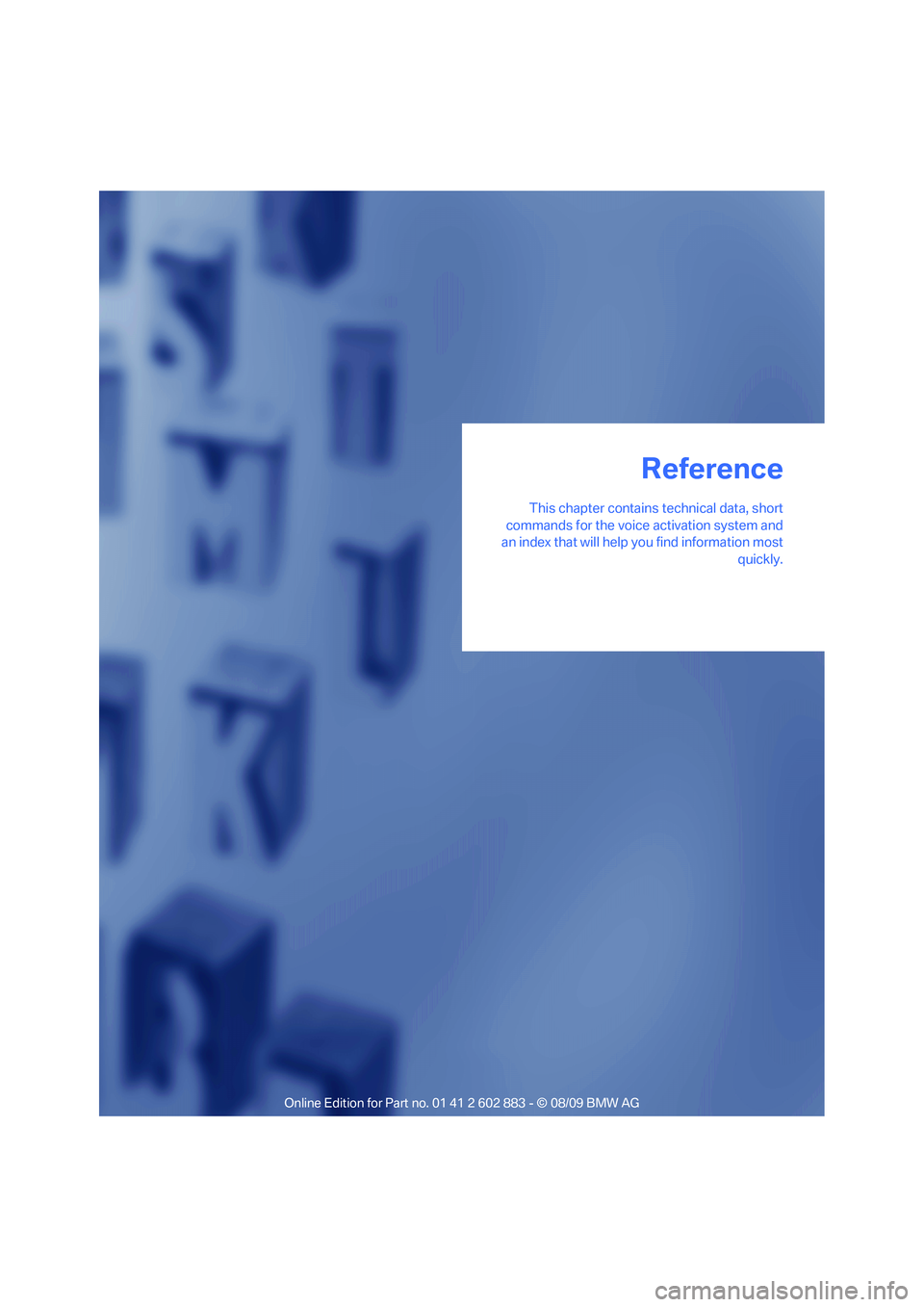

This chapter contains technical data, short
commands for the voice activation system and
an index that will help you find information most
quickly.
Reference

Technical data
226
Technical data
Engine data
Z4 sDrive30iZ4 sDrive35i
Displacement cu in/cmμ182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 255 300
at engine speed rpm 6,600 5,800
Maximum torque lb ft/Nm 220/298 300/407
at engine speed rpm 2,600 1,400 - 5,000

Reference 227
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

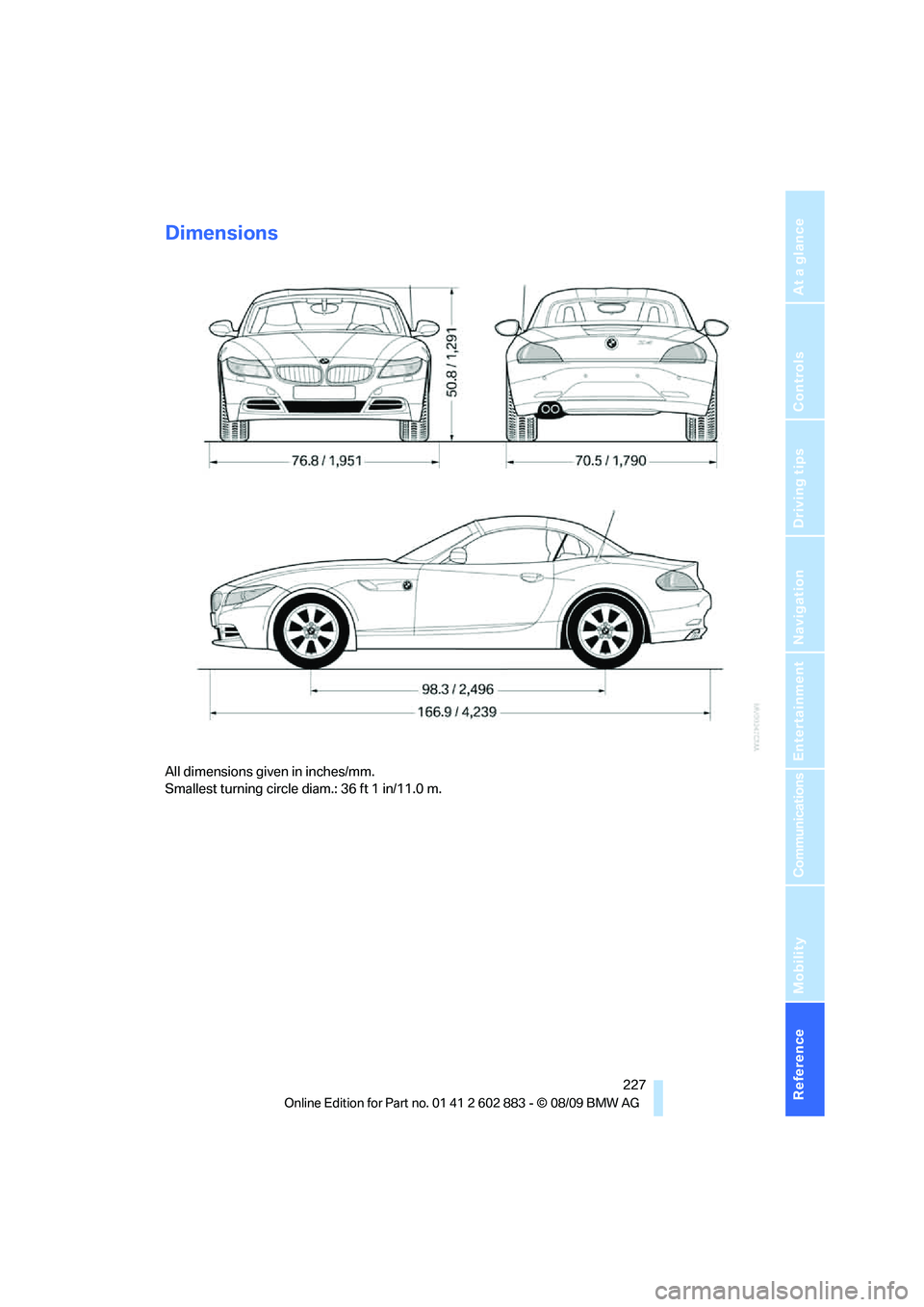

Dimensions
All dimensions given in inches/mm.
Smallest turning circle diam.: 36 ft 1 in/11.0 m.

Technical data
228

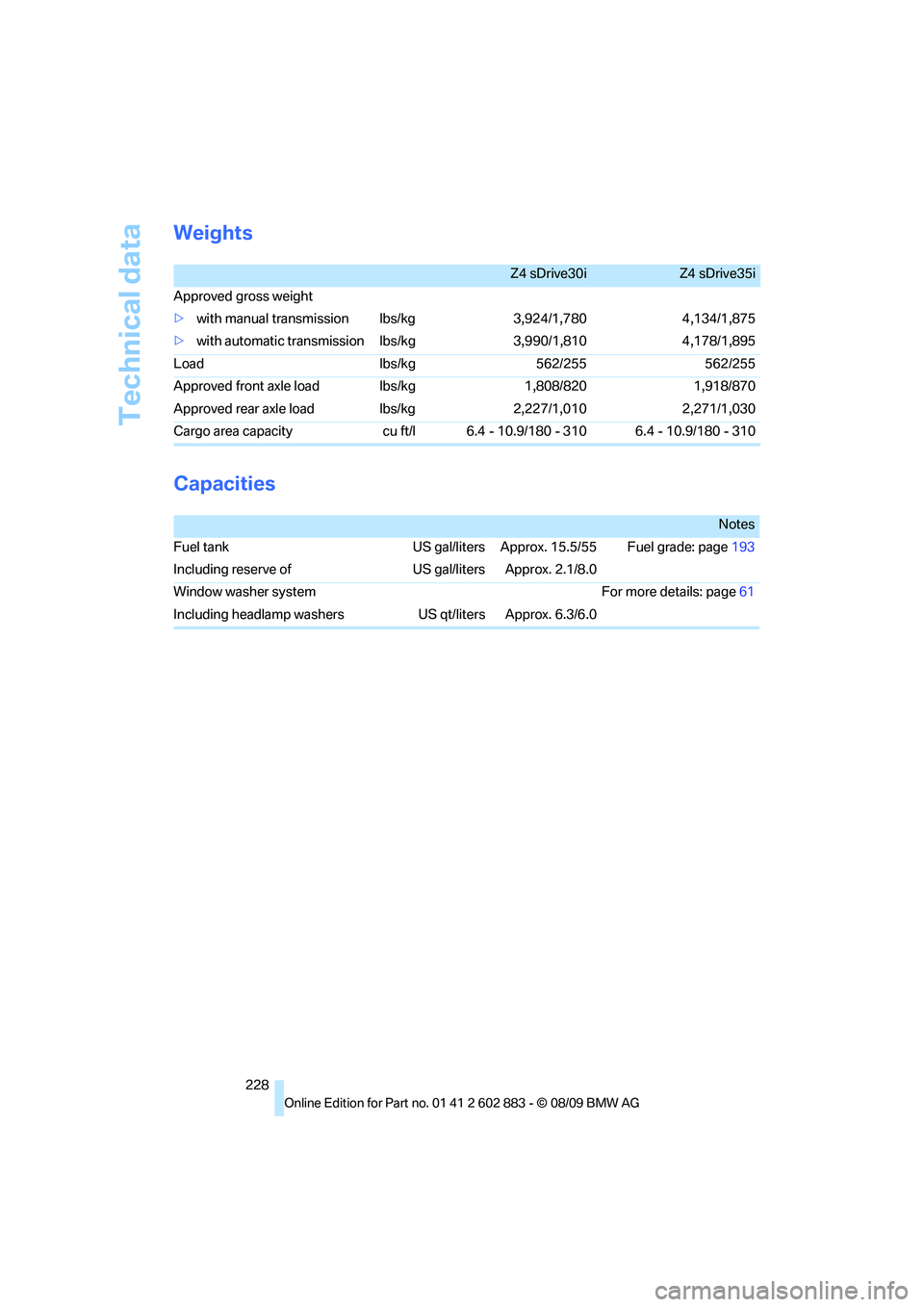

Weights
Capacities
Z4 sDrive30iZ4 sDrive35i
Approved gross weight
>with manual transmission lbs/kg 3,924/1,780 4,134/1,875
>with automatic transmission lbs/kg 3,990/1,810 4,178/1,895
Load lbs/kg 562/255 562/255
Approved front axle load lbs/kg 1,808/820 1,918/870
Approved rear axle load lbs/kg 2,227/1,010 2,271/1,030
Cargo area capacity cu ft/l 6.4 - 10.9/180 - 310 6.4 - 10.9/180 - 310
Notes
Fuel tank US gal/liters Approx. 15.5/55 Fuel grade: page193
Including reserve of US gal/liters Approx. 2.1/8.0
Window washer system For more details: page61
Including headlamp washers US qt/liters Approx. 6.3/6.0

Reference 229
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

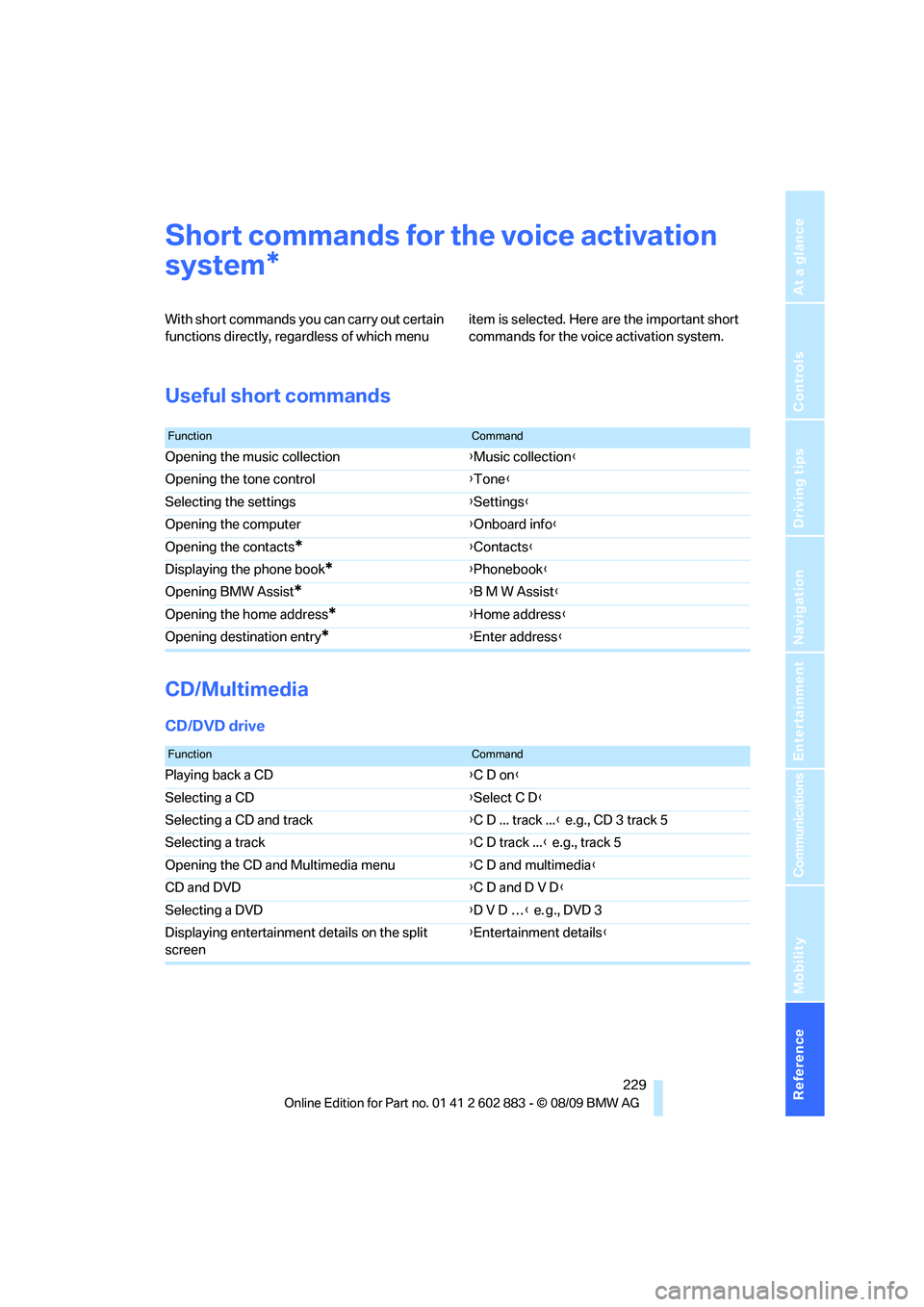

Short commands for the voice activation
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice activation system.
Useful short commands
CD/Multimedia
CD/DVD drive
*
FunctionCommand
Opening the music collection{Music collection}
Opening the tone control{Tone}
Selecting the settings{Settings}
Opening the computer{Onboard info}
Opening the contacts
*{Contacts}
Displaying the phone book
*{Phonebook}
Opening BMW Assist
*{B M W Assist}
Opening the home address
*{Home address}
Opening destination entry
*{Enter address}
FunctionCommand
Playing back a CD{C D on}
Selecting a CD{Select C D}
Selecting a CD and track{C D ... track ...} e.g., CD 3 track 5
Selecting a track{C D track ...} e.g., track 5
Opening the CD and Multimedia menu{C D and multimedia}
CD and DVD{C D and D V D}
Selecting a DVD{D V D …} e. g., DVD 3
Displaying entertainment details on the split
screen{Entertainment details}

Short commands for the voice activation system
230

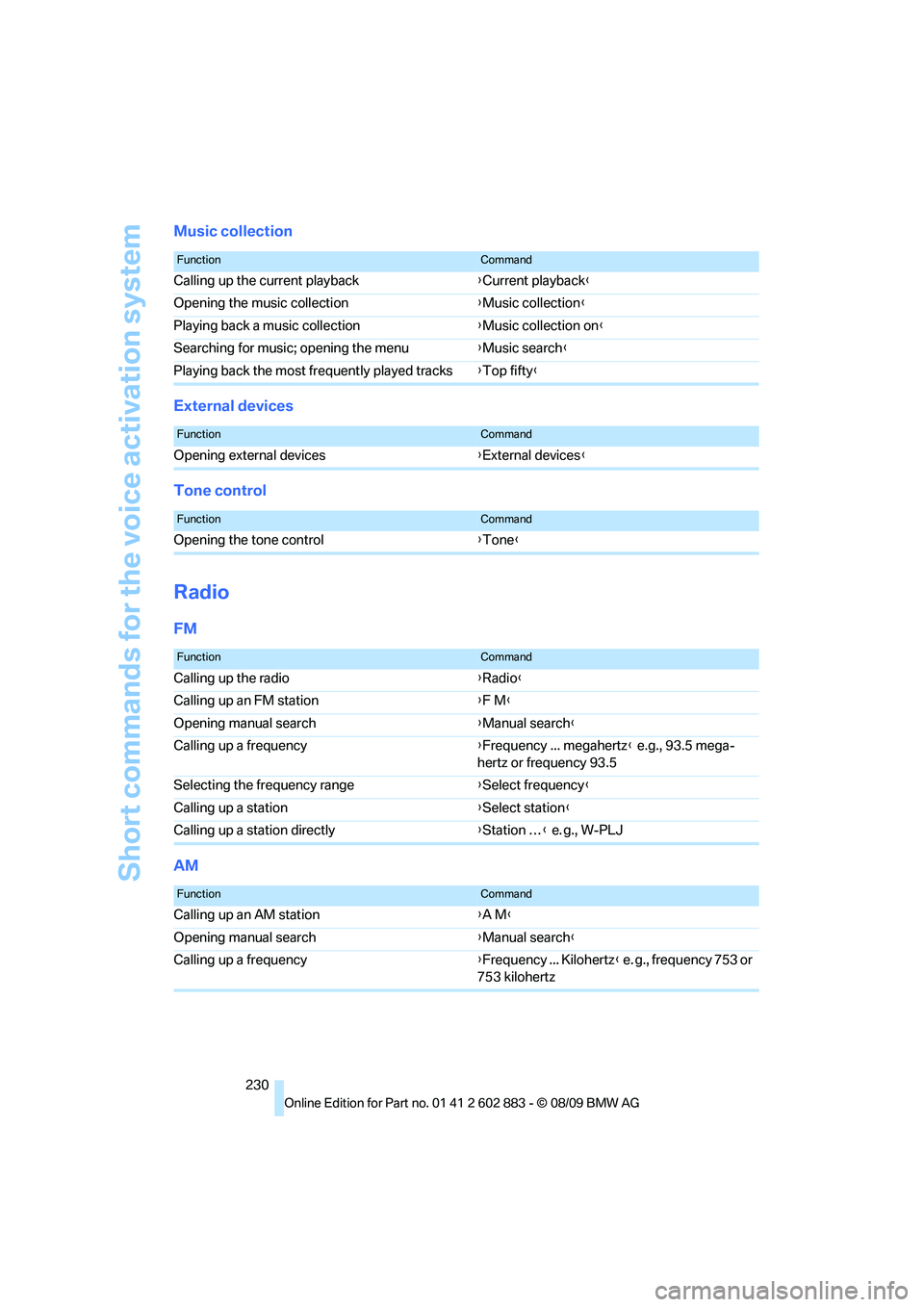

Music collection
External devices
Tone control
Radio
FM
AM
FunctionCommand
Calling up the current playback{Current playback}
Opening the music collection{Music collection}
Playing back a music collection{Music collection on}
Searching for music; opening the menu{Music search}
Playing back the most frequently played tracks{Top fifty}
FunctionCommand
Opening external devices{External devices}
FunctionCommand
Opening the tone control{Tone}
FunctionCommand
Calling up the radio{Radio}
Calling up an FM station{F M}
Opening manual search{Manual search}
Calling up a frequency{Frequency ... megahertz} e.g., 93.5 mega-
hertz or frequency 93.5
Selecting the frequency range{Select frequency}
Calling up a station{Select station}
Calling up a station directly{Station …} e. g., W-PLJ
FunctionCommand
Calling up an AM station{A M}
Opening manual search{Manual search}
Calling up a frequency{Frequency ... Kilohertz} e. g., frequency 753 or
753 kilohertz
